ASUS TUF Gaming X870-Plus WiFi Motherboard, AMD X870, Socket AM5, DDR5
- 1x PCIe 5.0 x16, 1x PCIe 4.0 x4/8 and 1x PCIe 4.0 x4
- 4x DIMM slots for up to 192 GB DDR5-RAM up to 8000 MHz (OC)
- 4x M.2 (2x PCIe 5.0 and 2x PCIe 4.0) / 2x SATA 6G

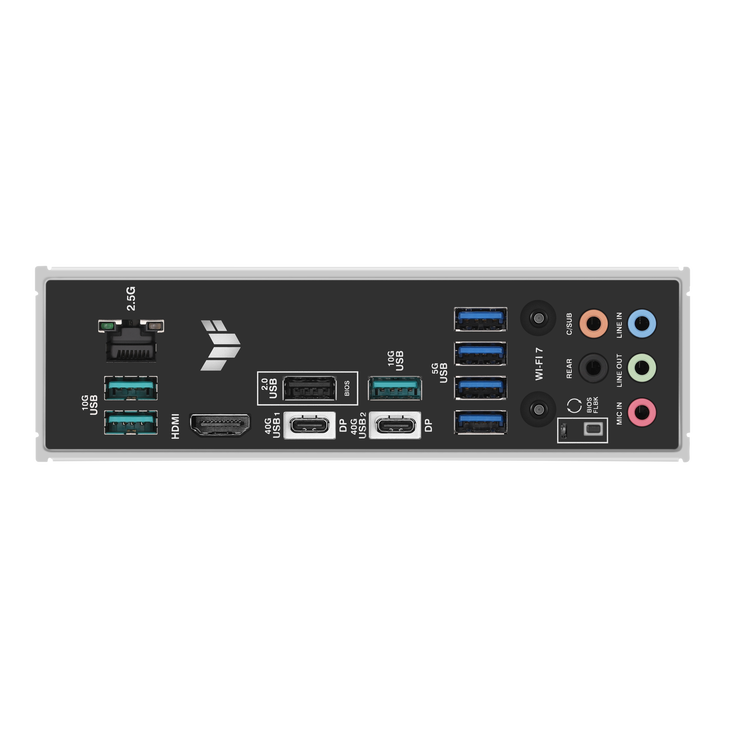

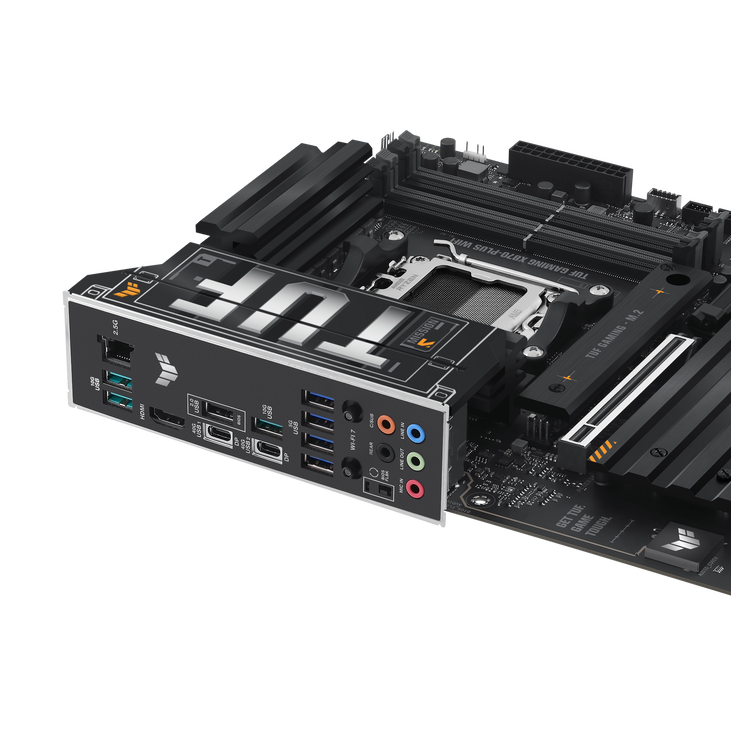

- 2x USB4, 3x USB 3.1, 4x USB 3.0, and 1x USB 2.0 at the I/O panel
- OC features: 16+2+1 phases VRMs, Digi+
- Supports up to 7x 4-Pin PWM fans

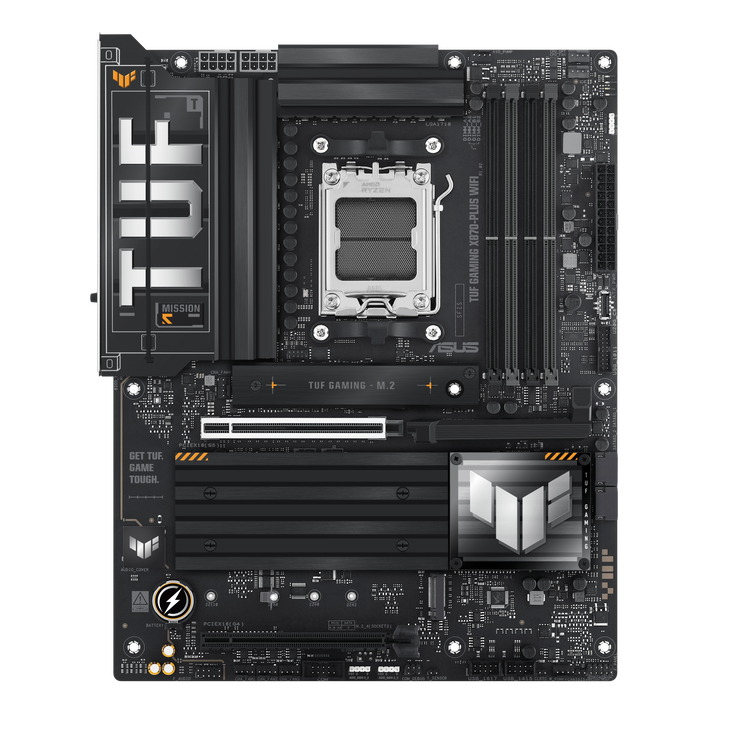

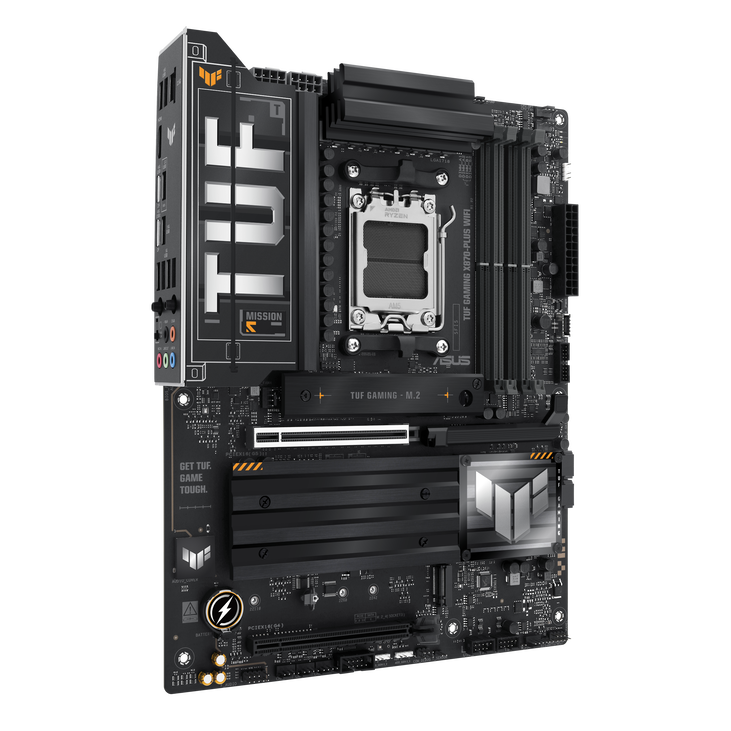

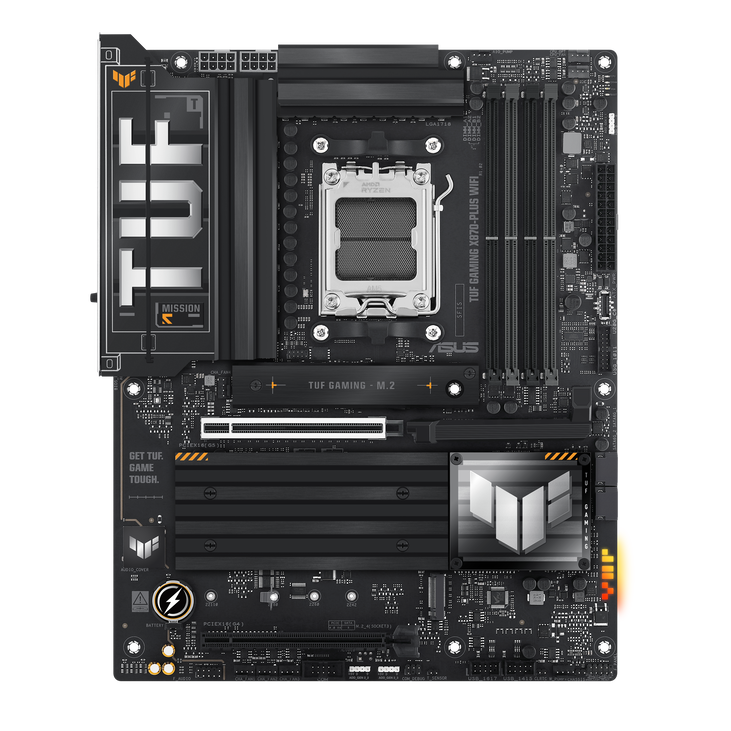

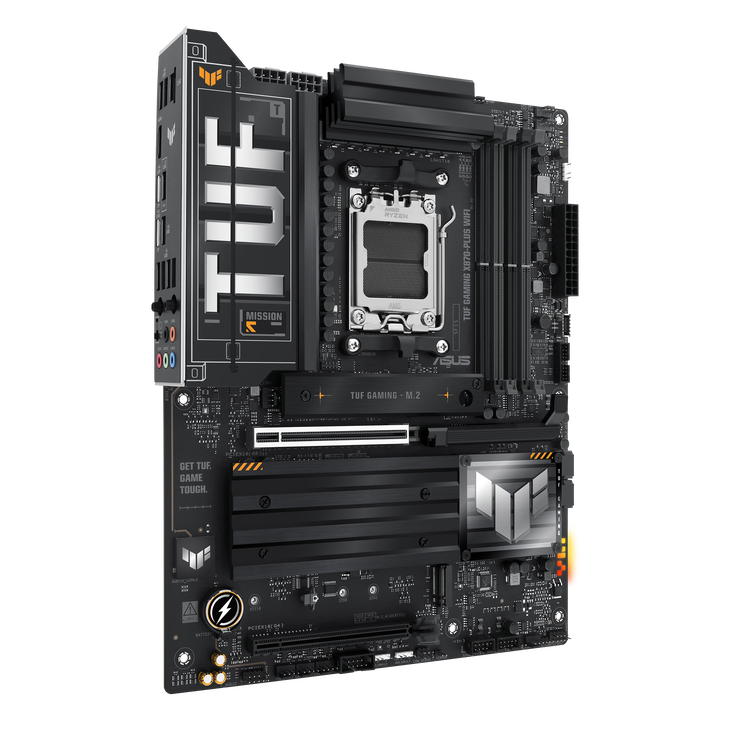

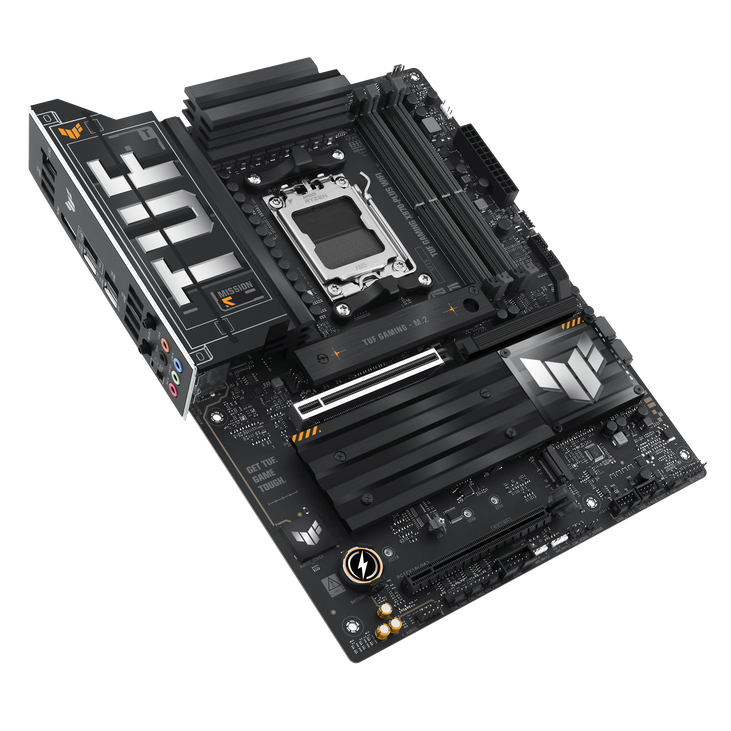

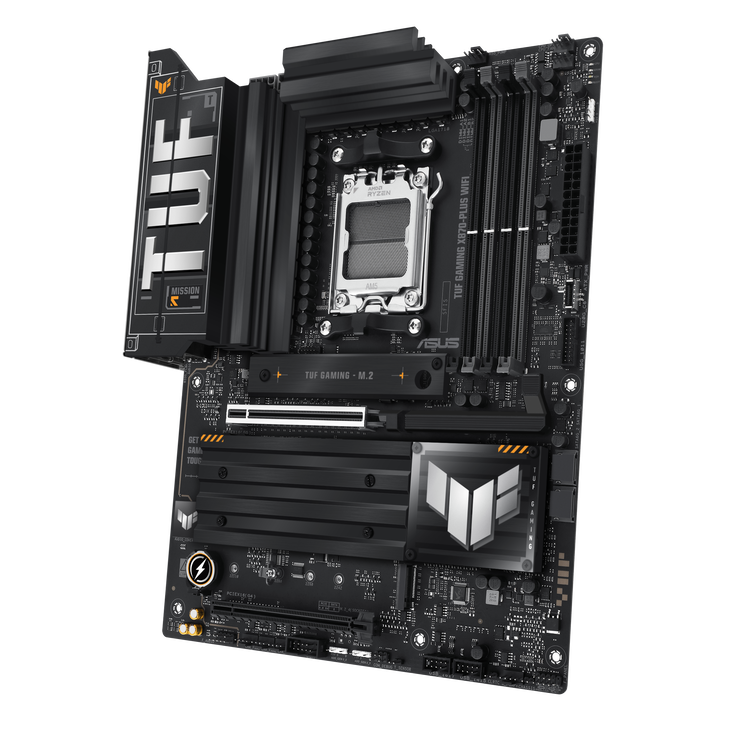

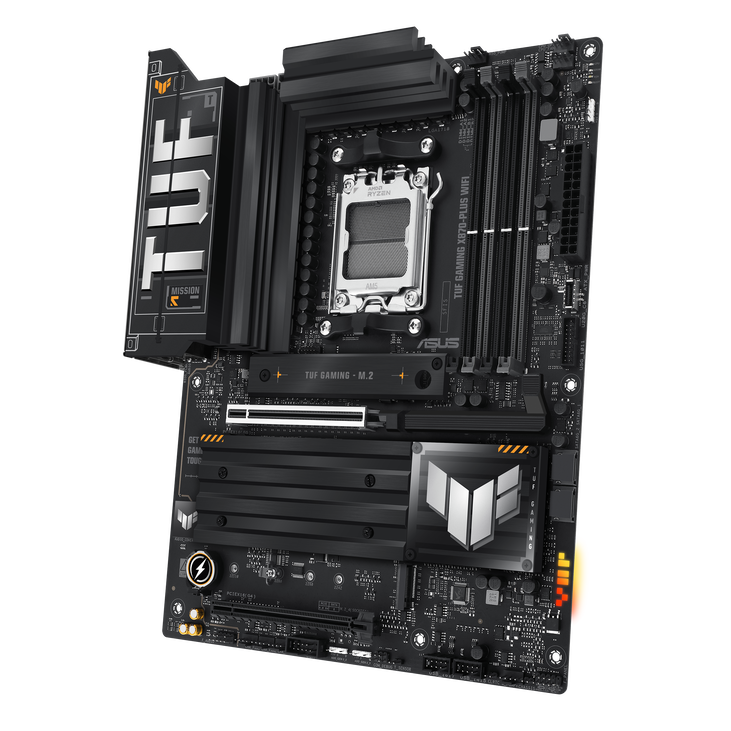

ASUS TUF GAMING X870-PLUS WIFI: ATX motherboard with AMD AM5 socket and X870 chipset
The ASUS TUF GAMING X870-PLUS WIFI is equipped with the mid-tier X870 chipset for AMD’s Ryzen 9000 series processors and offers numerous features for gamers and content creators. The Ryzen 9000 series also utilizes the proven AM5 socket (LGA 1718).
In addition, the AMD X870 motherboard provides USB 4.0, now available as standard and reaching data transfer rates of up to 40 Gbps. Moreover, the ASUS TUF GAMING X870-PLUS WIFI supports PCIe 5.0, offering double the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.
Fully prepared for gaming
The ASUS TUF GAMING X870-PLUS WIFI is geared toward high-end gaming, ensuring you can enjoy even demanding games without interruptions. The high-quality voltage regulators ensure stable power delivery to the CPU, guaranteeing high clock speeds over an extended period. Features such as HD audio processors provide precise sound for your games.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Form Factor
|
|
|
Motherboard formfactor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
AMD
|
|
CPU Socket
|
AM5
|
|
Motherboard
|
|
|
Motherboard Chipset
|
AMD X870
|
|
Built-In I/O Shield
|
Yes
|
|
Memory
|
|
|
Max. Memory
|
192 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (Standard)
|
5200 MT/s
|
|
Max. Memory Speed (OC)
|
8000 MT/s
|
|
EEC Support
|
Yes
|
|
Memory slots
|
4x
|
|
Performance Profile
|
AMD EXPO
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
2x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 (internal) Header
|
1
|
|
USB 2.0 (internal) Header
|
2
|
|
External Ports
|
|
|
USB4 Gen 2x2 (external) Type C
|
2
|
|
USB 3.1 (external) Type A
|
3
|
|
USB 3.0 (external) Type A
|
4
|
|
USB 2.0 (external) Type A
|
1
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
2
|
|
M.2 PCIe 5.0 x4
|
2
|
|
SATA 6G (internal)
|
2
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
3
|
|
PCIe 5.0 x16 mechanical slot
|
1
|
|
PCIe 4.0 x4 mechanical slot
|
2
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
7
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Product Series
|
|
|
Product Series/Family
|
TUF
|
