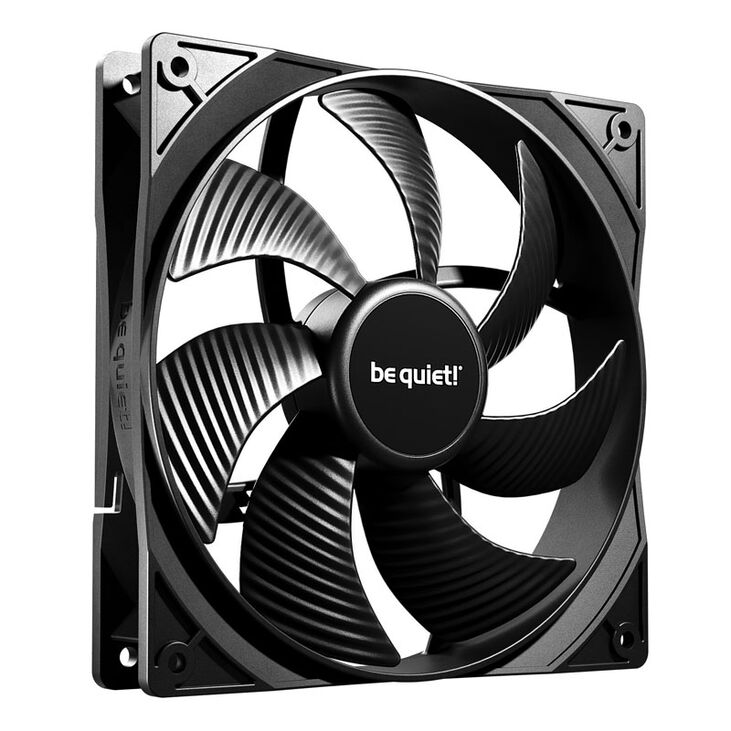

be quiet! Fan Pure Wings 3 Fan - 140mm
- 3-pin fan for cases, radiators, and coolers
- High-quality 4-pole fan motor
- Durable rifle bearing
- Unique airflow-optimised fan blades with minimal gap to the frame
- Rubberised fan frame with funnel-shaped air outlets
- Maximum 1,200 RPM with 97.5 m³/h and 0.96 mmH2O at 21.9 dB(A)

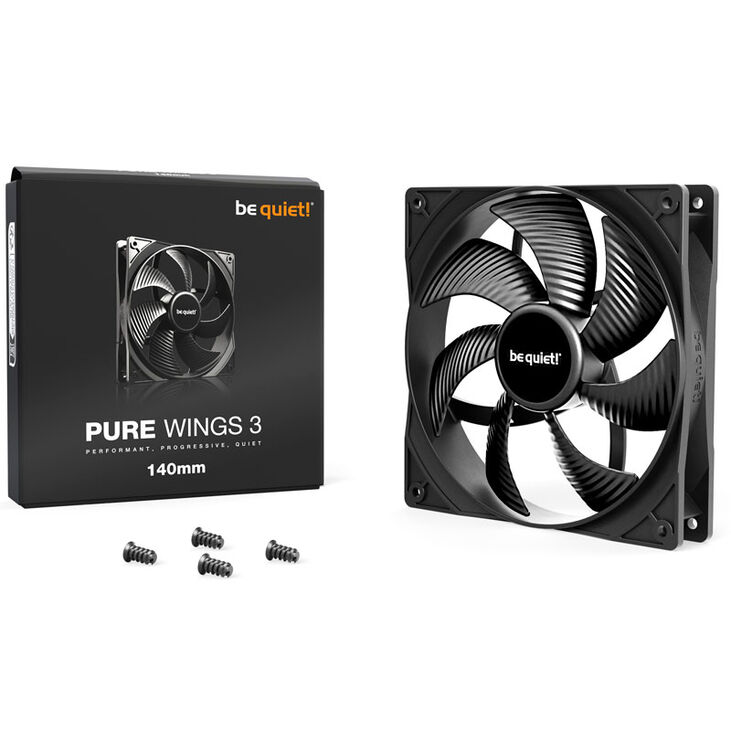

- Installation with rubberised push-pins or screws
- Lifetime of up to 80,000 hours
be quiet! Pure Wings 3: Case Fans of the Highest Order
The be quiet! Pure Wings 3 case fans once again combine top-tier cooling performance with near-silent operation. The third generation of the Pure Wings series continues the high-end standard and offers some optimisations compared to previous models. The black Pure Wings 3 not only provide excellent performance but also look great.
Optimised Fan and Frame Design
The design of the black fan already differs significantly from the standard and has been further refined compared to its predecessor. The fan blades are not smooth but feature grooves to optimise airflow. Additionally, the angle of the fan blades and the gap to the frame have been further reduced to improve air pressure.
In 12V mode, a maximum speed of 1,200 RPM achieves an airflow of 97.5 m³/h at just 21.9 dB(A), combining good cooling performance with minimal noise.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Fan Main Colour (Frame)
|
Black
|
|
Fan Main Colour (Rotor)
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
140 mm
|
|
Width
|
140 mm
|
|
Weight
|
178 g
|
|
Fan height
|
25 mm
|
|
Fan Specifications
|
|
|
Fan Size
|
140 mm
|
|
Fan mounting size
|
140 mm
|
|
Fan Blade Direction
|
Standard
|
|
Fan Bearing
|
Rifle Bearing
|
|
Max. Fan RPM
|
1200 rpm
|
|
Max. Single Fan Airflow
|
57.4 cfm
|
|
Max. Static Pressure
|
0.96 mmH2O
|
|
Power Specifications
|
|
|
Rated voltage
|
12 V
|
|
Starting voltage
|
5 V
|
|
Noise
|
|
|
Max. Single Fan Noise
|
21.9 dB(A)
|
|
Internal Ports
|
|
|
Fan connectors
|
3 Pin
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
