be quiet! Midi Tower in black, with pre-installed sound insulation, mesh front panel, including 2x 140mm Pure Wings 3 fans, 2x 3.5-inch or 5x 2.5-inch drives, radiators up to 360mm in length
69,90 €
Incl. VAT, add. delivery costs starting from 4.99€

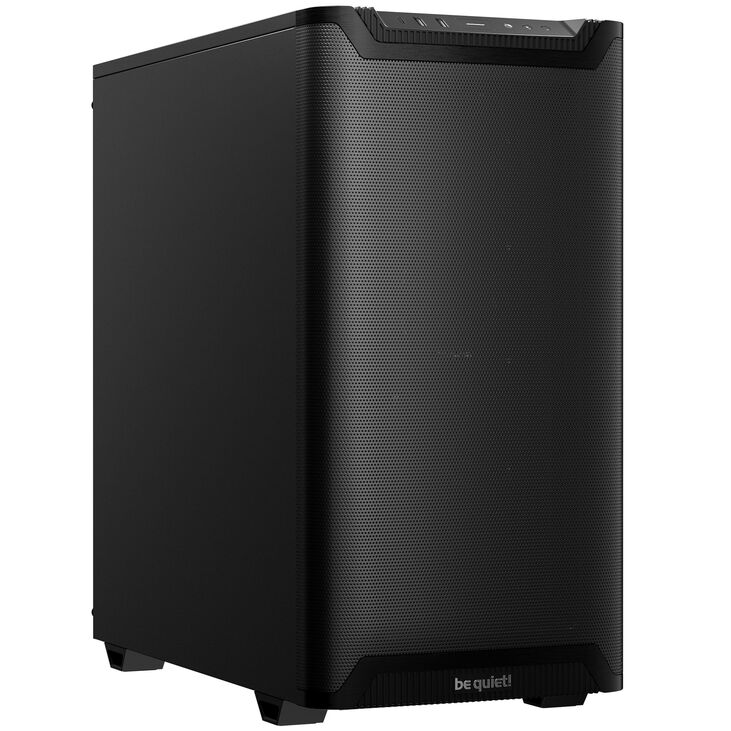

The be quiet! Pure Base 501 expands the Silent Specialist's case range with an affordable midi tower featuring pre-installed sound insulation and optimised airflow. The case is suitable for installing radiators up to 360 mm in length, comes factory-equipped with two quiet case fans, and offers space for powerful hardware as well as numerous drives.
- Simple midi tower from be quiet! in black
- Suitable for radiators up to 360 millimetres
- Mesh front panel and top cover for maximum airflow
- Pre-installed sound insulation on the side panel
- Includes two 140-millimetre Pure Wings 3 fans
- Conveniently placed channels for easy cable management
- Up to 2x 3.5-inch and 5x 2.5-inch drives
be quiet! Pure Base 501: Stylish, functional, and quiet
The Pure Base 501 is a compact midi tower designed for quiet operation, thanks to its simple design and pre-installed sound insulation. It also provides ample space for your hardware and supports the installation of multiple radiators simultaneously.
The case offers excellent options for powerful yet quiet cooling solutions. Three 120mm or two 140mm fans can be mounted at the front, the top has space for two 140mm or 120mm models, and a 140mm or 120mm fan can also be installed at the rear. The mesh front panel ensures optimal airflow for your components.

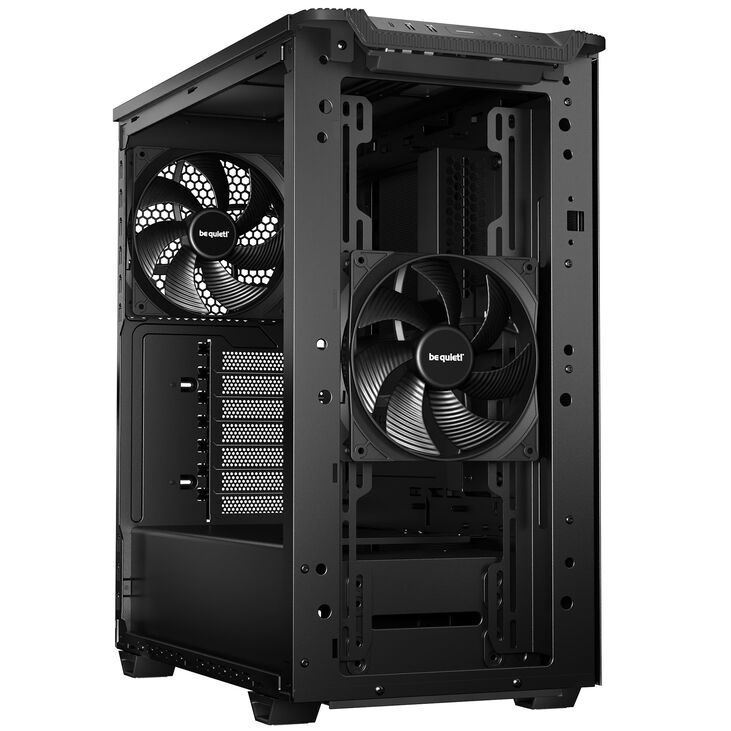

Out of the box, the Pure Base 501 comes with two pre-installed 140mm Pure Wings 3 fans, one at the front and one at the back of the case. The Pure Base 501 accommodates CPU coolers up to 178mm in height.
Consideration has also been given to the installation of custom and all-in-one water cooling solutions. The front is suitable for a 360mm or 280mm radiator, while a 240mm heat exchanger can be fitted in the top, and a 140mm or 120mm model can be placed at the rear.
Thoughtful design with high functionality
Under the power supply cover, there is room for 180mm power supplies, two 3.5-inch drives, and one 2.5-inch drive in a modular drive cage. Its decoupled installation reduces vibrations and enables quiet operation.
Two 2.5-inch drives can be installed on the SSD panel between the motherboard tray and the front, while two more 2.5-inch SSDs can be housed on the SSD bracket at the back of the motherboard tray. The case accommodates graphics cards with a maximum length of 368 millimetres.

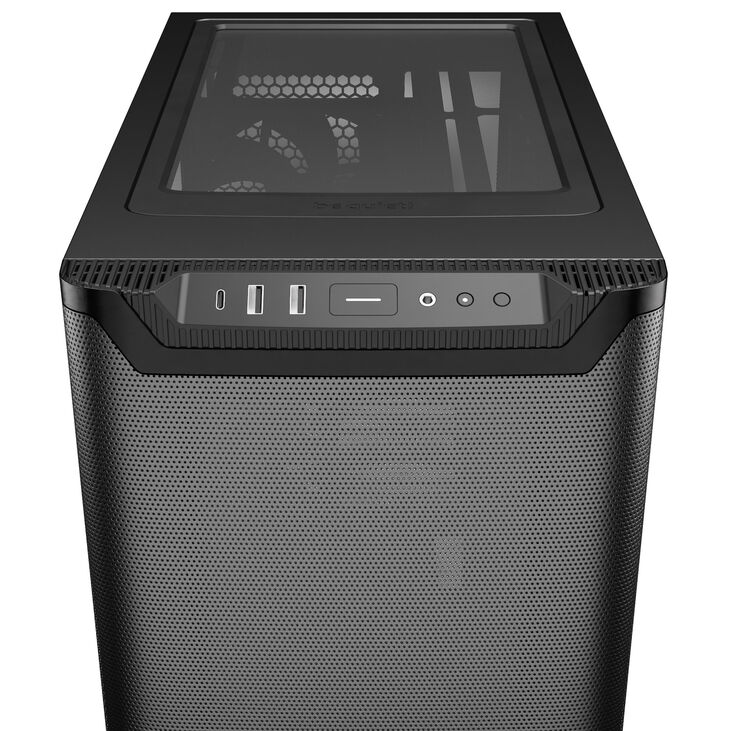

The be quiet! Pure Base 501 features a smooth and minimalist appearance. The I/O panel of the midi tower is located on the top of the front cover and includes a power button, two USB 3.0 Type-A ports, one USB 3.1 Type-C port, and a combined headphone and microphone jack.
|
Colour
|
|
|
Primary Colour
|
Black
|
|

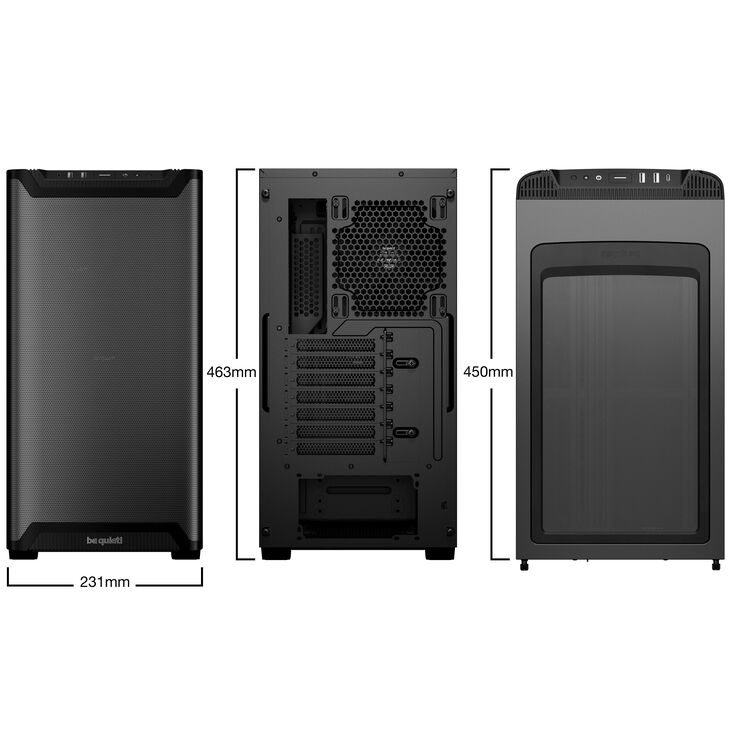

Dimensions
|
|
|
Length / Depth
|
450 mm
|
|
Width
|
231 mm
|
|
Height
|
463 mm
|
|
Weight
|
6.8 kg
|
|
Case
|
|
|
Case Type
|
Mid Tower
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, Micro-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
178 mm
|
|
Max. GPU Length
|
368 mm
|
|
Max. PSU Length / Depth
|
180 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear bottom
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Front)
|
120mm Fan (3x), 140mm Fan (2x)
|
|
Case Fan Support (Rear)
|
120mm Fan (1x), 140mm Fan (1x)
|
|
Case Fan Support (Top)
|
120mm Fan (2x), 140mm Fan (2x)
|
|
Max. Number of Fans
|
6
|
|
120 mm fans
|
6
|
|
140 mm fans
|
5
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
1x Dual (240 mm), 1x Single (140 mm), 1x Triple (360 mm)
|
|
Radiator/AIO Support (Front)
|
120mm Radiator, 140mm Radiator, 240mm Radiator, 280mm Radiator, 360mm Radiator
|
|
Radiator/AIO Support (Rear)
|
120mm Radiator, 140mm Radiator
|
|
Radiator/AIO Support (Top)
|
120mm Radiator, 240mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
5
|
|
Max. 3.5 Inch Drives
|
2
|
|
Max. 5.25 Inch Drives
|
0
|
|
2.5 inch internal drive bay
|
5
|
|
3.5 inch internal drive bay
|
2
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
Front I/O – USB Type C Ports Total
|
1
|
|
Front I/O – USB Type A Ports Total
|
2
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|
I/O position
|
Front
|
|
Side panel
|
closed
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
Yes
|
|
Filter Position
|
Bottom, Front, Top
|
|
Noise dampening
|
Yes
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
7
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
ABS, Steel
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Product Series
|
|
|
Product Series/Family
|
Pure Base
|
|
Additional Contents
|
|
|
Fans Included
|
Yes
|
|
Included fans
|
2x 140 mm
|
