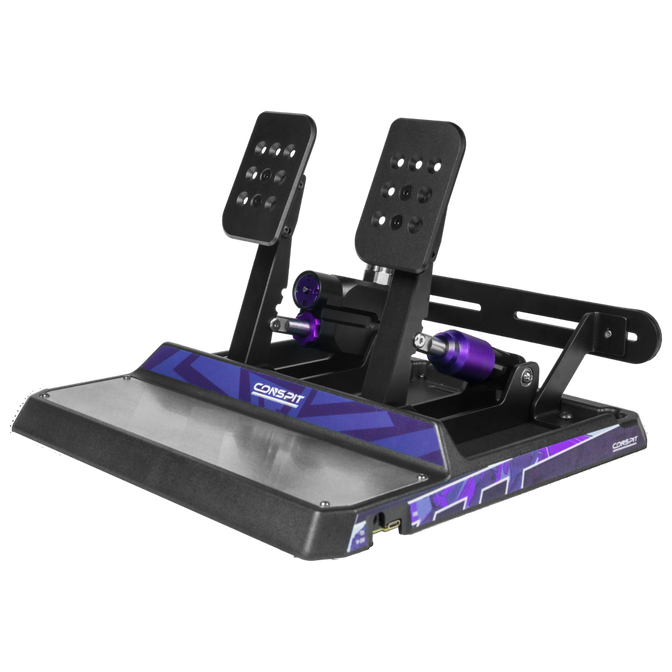

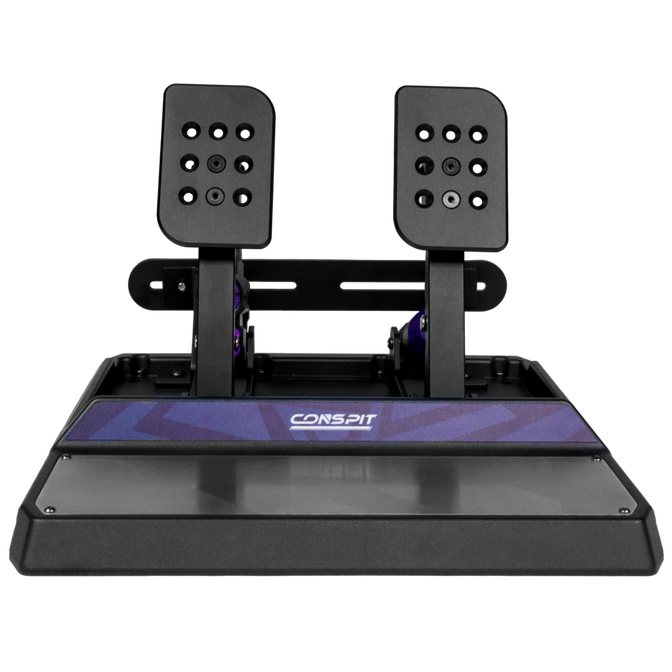

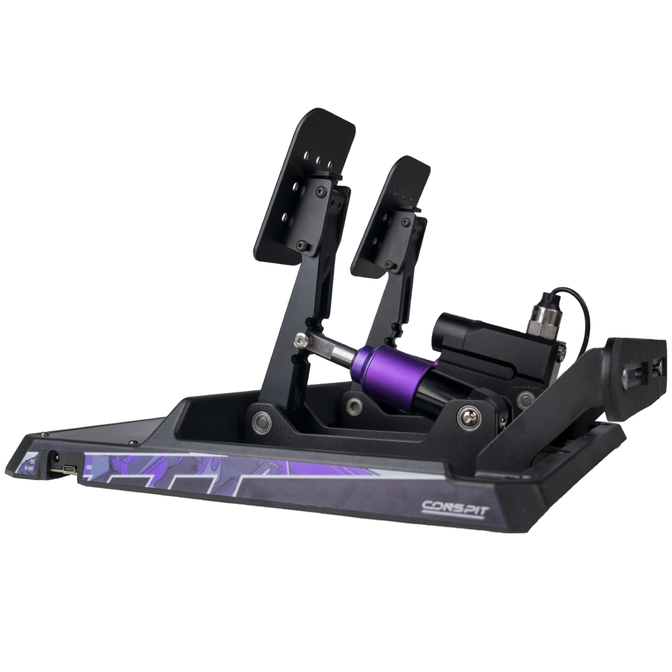

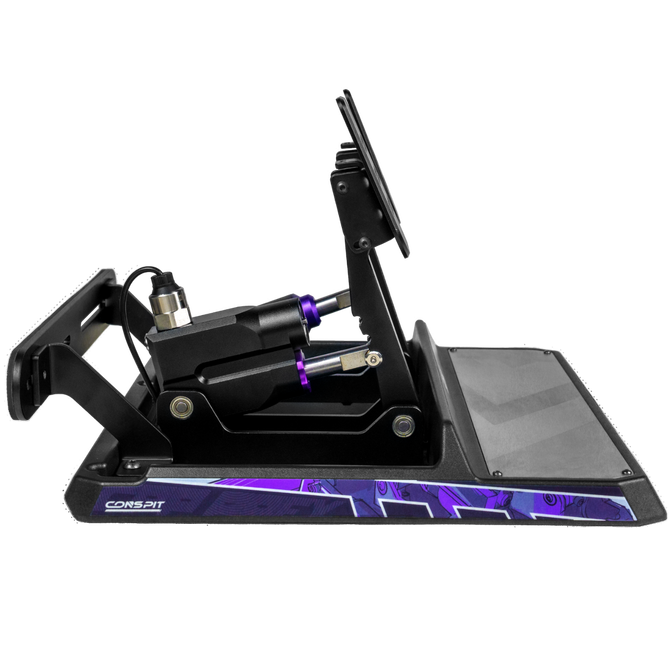

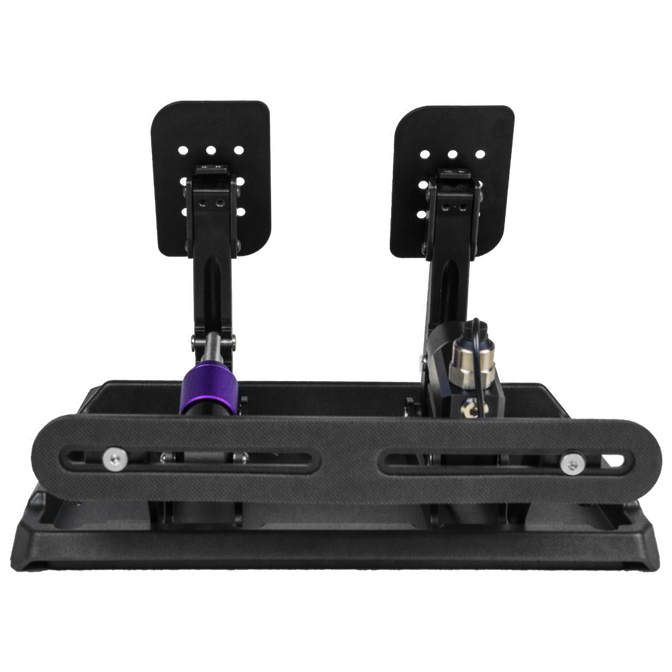

Conspit CPP APEX 2-Pedal Set

The Conspit CPP APEX 2-Pedal Set is aimed at ambitious sim racers seeking a competition-ready combination of realistic hydraulics, precise sensors, and high-quality craftsmanship. The pedals are made entirely of aluminium and offer extensive adjustability – for an uncompromising driving experience on PC systems.

• Hydraulic system with vertical dual-chamber cylinder for smooth, realistic feedback
• Proprietary 10 MPa hydraulic sensor for exact brake pressure detection
• Two-stage brake feel via spring and elastomer – individually adjustable
• Enclosed throttle pedal with Hall sensor for protected, precise control
• USB & CONSPIT CAN connection – compatible with CONSPIT wheelbases & PC

Competition-level hydraulic technology

The vertical dual-chamber design combines hydraulic and elastomer damping in a compact cylinder. The CNC-machined aluminium brake unit offers a smooth pedal feel and long-lasting performance. The 10 MPa hydraulic sensor operates with extreme precision, enabling fine-dosed trail braking under racing conditions.

Two-stage pedal feel with individual adjustment

The brake pedal simulates a two-stage feedback: a spring provides soft response upon brake pad contact, while an elastomer generates firm resistance later in the pedal travel. Different elastomers can be swapped to suit your preferred driving style. Angle, height, and return force are also triple adjustable.

Robust construction & clean integration

The complete pedal set is made from heat-treated aluminium (T6) and stainless steel – all precisely CNC-machined. The throttle pedal is enclosed to protect against dust and dirt. Mounting is flexible, either on aluminium rigs or via wall brackets with silicone pads. Cables are routed internally, and side ports facilitate easy access.
