The CORSAIR AIR 5400 LX-R RGB PC case is designed for enthusiasts seeking a powerful case with clear structure and well-thought-out cooling management. Thanks to its innovative three-chamber design, it effectively separates hot components and creates order in the build.
- Three separate chambers optimise airflow for GPU, CPU, and power supply – ideal for high-performance builds with significant cooling demands.
- The iCUE LINK system with pre-installed LX-R RGB fans offers directly controllable lighting and effective cooling straight out of the box.
- Curved glass doors open elegantly to the side – providing free access to hardware and a stylish presentation.
- Compatible with E-ATX motherboards and large graphics cards – perfect for demanding configurations.
- RapidRoute 2.0 simplifies cable management and ensures clean builds without compromise.
Three-Chamber Design: Structure Meets Cooling Performance

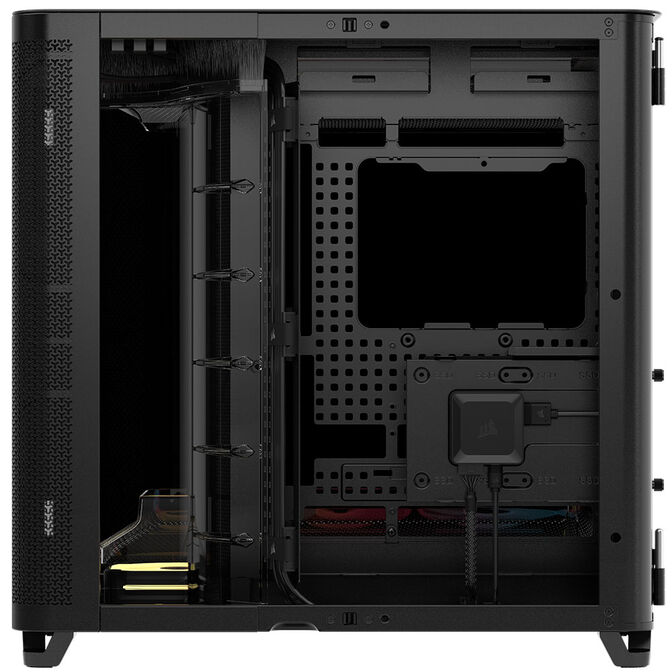

At the heart of the AIR 5400 LX-R lies a well-thought-out layout with three thermally separated zones. GPU, CPU cooling, and power supply each receive individual airflow paths, which not only lowers temperatures but also supports the longevity of components.
Stylish Access with System

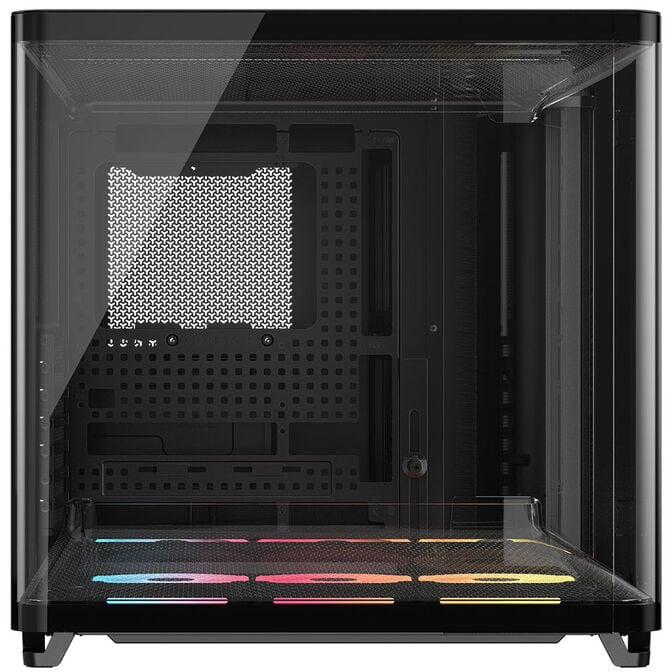

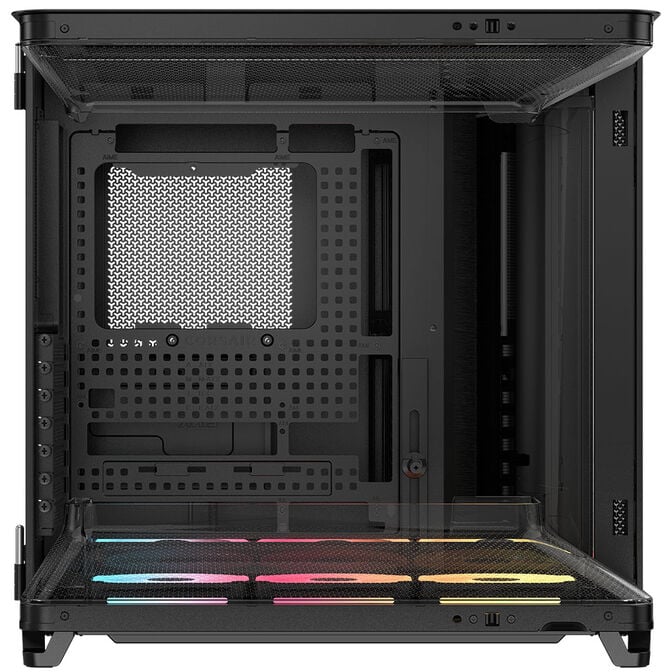

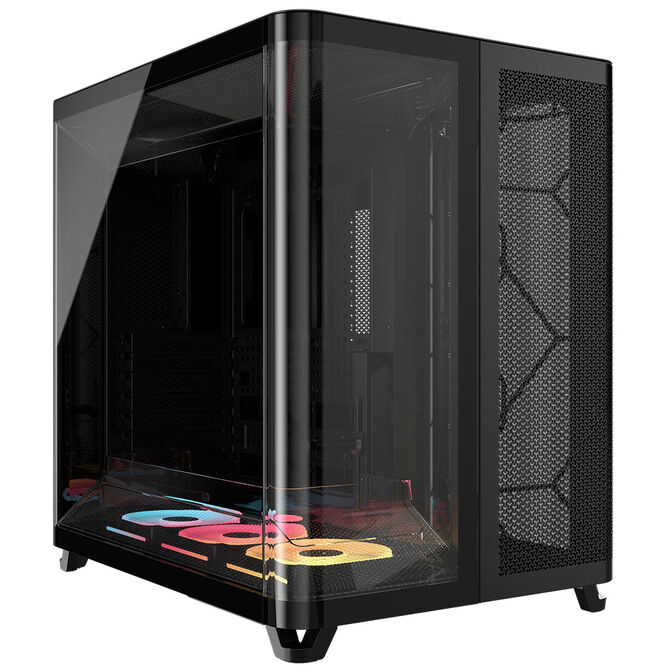

The curved, side-opening tempered glass doors combine elegance and functionality. They allow tool-free access to hardware and present your setup clearly and neatly – completely free of cable clutter.
Prepared for High-End Configurations
Thanks to iCUE LINK integration, the case comes equipped with intelligent fan control and RGB sync right from the start. Radiators up to 360 mm can be installed in all three main zones, while the thoughtful interior easily accommodates even large hardware.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
470 mm
|
|
Width
|
340 mm
|
|
Height
|
467 mm
|
|
Weight
|
16.7 kg
|
|
Case
|
|
|
Case Type
|
Mid Tower
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, E-ATX, ITX, Micro-ATX
|
|
Max. Motherboard Format
|
E-ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
180 mm
|
|
Max. GPU Length
|
360 mm
|
|
Max. PSU Length / Depth
|
200 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear side
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|

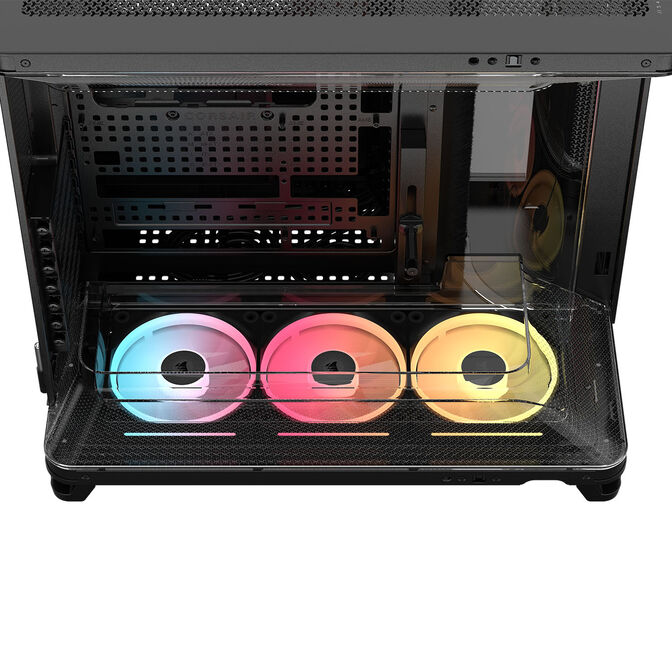

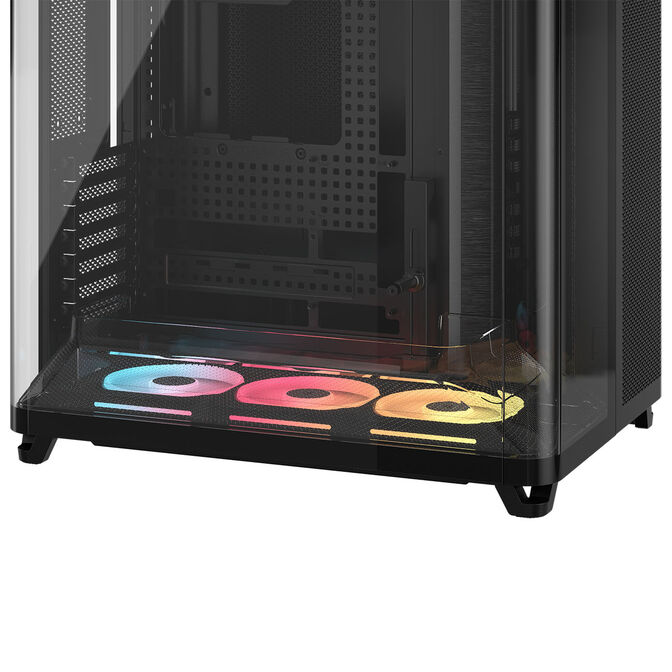

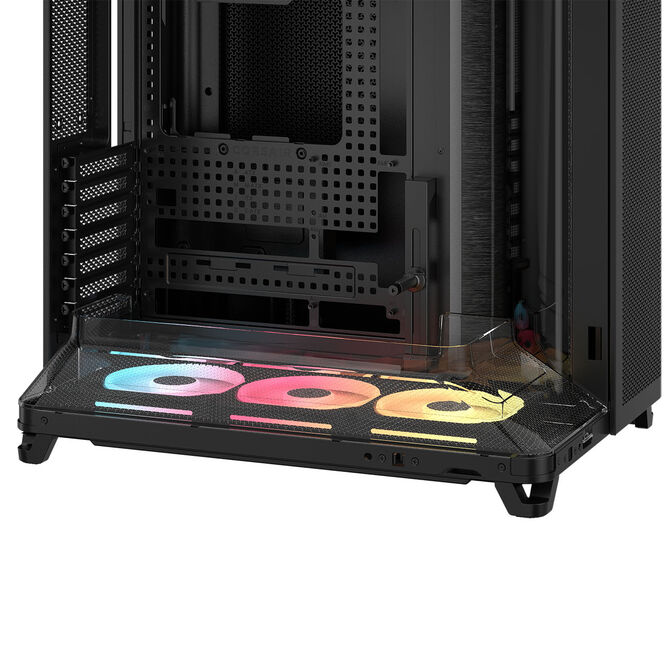

Case Fan Support (Bottom)
|
120mm Fan (3x)
|
|
Case Fan Support (Front)
|
120mm Fan (3x)
|
|
Case Fan Support (Rear)
|
120mm Fan (1x)
|
|
Case Fan Support (Top)
|
120mm Fan (3x)
|
|
Max. Number of Fans
|
10
|
|
120 mm fans
|
10
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
1x Single (120 mm), 3x Triple (360 mm)
|
|
Radiator/AIO Support (Bottom)
|
240mm Radiator, 360mm Radiator
|
|
Radiator/AIO Support (Front)
|
240mm Radiator, 360mm Radiator
|
|
Radiator/AIO Support (Rear)
|
120mm Radiator
|
|
Radiator/AIO Support (Top)
|
360mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
2
|
|
Max. 3.5 Inch Drives
|
1
|
|
Max. 5.25 Inch Drives
|
0
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
Front I/O – USB Type C Ports Total
|
3
|
|
USB 3.2 (external) Type C
|
3
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|

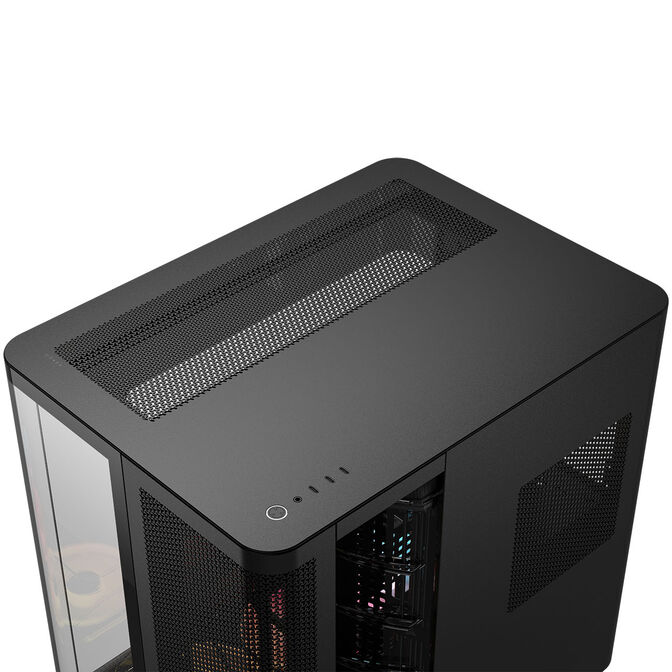

I/O position
|
Top
|
|
Side panel
|
with window
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
Yes
|
|
Cable Management
|
Yes
|
|
Filters Included
|
Yes
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
Yes
|
|
Back-Connect Compatibility
|
ASUS BTF, Gigabyte Project Stealth, MSI Project Zero
|
|

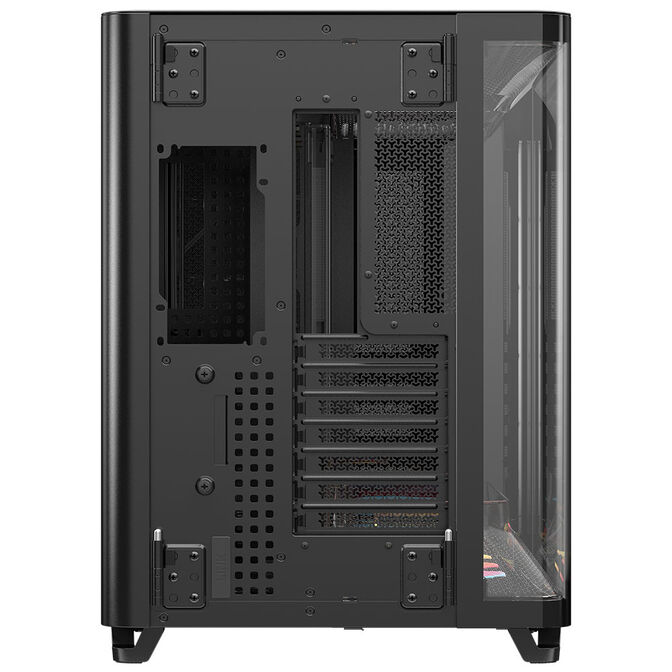

Expansion Slots
|
|
|
Expansion slots / PCI slots
|
7
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
Yes
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
Steel, Tempered Glass
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
RGB Controller
|
Yes
|
|
Lighting Colour
|
RGB
|
|
Additional Contents
|
|
|
Fans Included
|
Yes
|
|
Included fans
|
3x 120 mm
|
