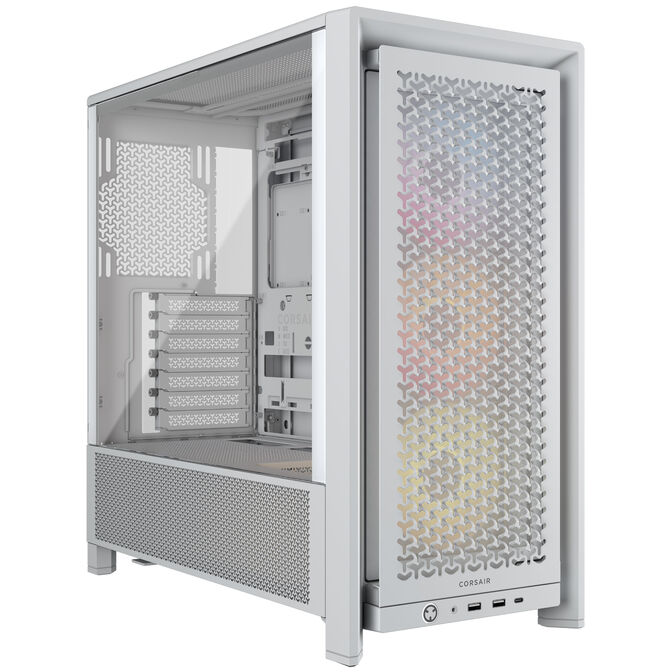

Corsair Frame 4000D RS ARGB PC case, Mid Tower, E-ATX, RGB, Tempered Glass - white
- White case with tempered glass side panel
- Versatile options through modularity
- Efficient cooling options with up to 12 fans and radiators up to 360mm
- Support for motherboards up to E-ATX, including back-connect design
- Space for graphics cards up to 430mm and CPU coolers with a height of up to 170mm
- Up to two four drives possible

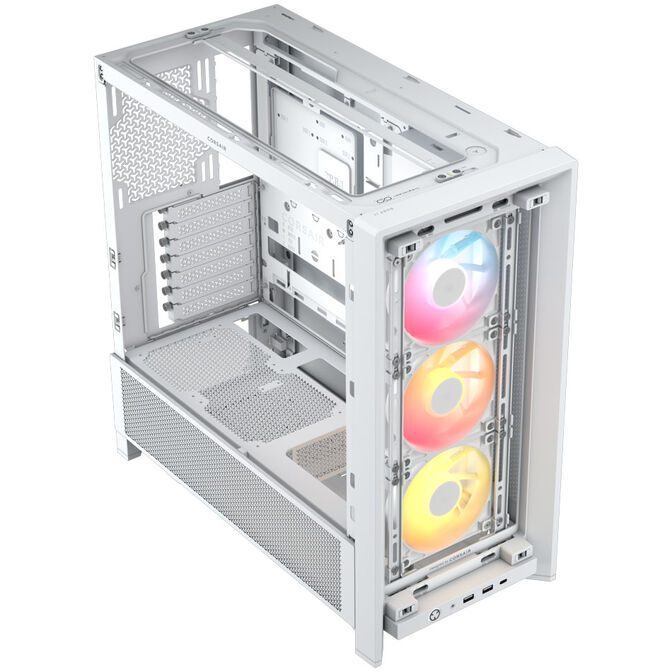

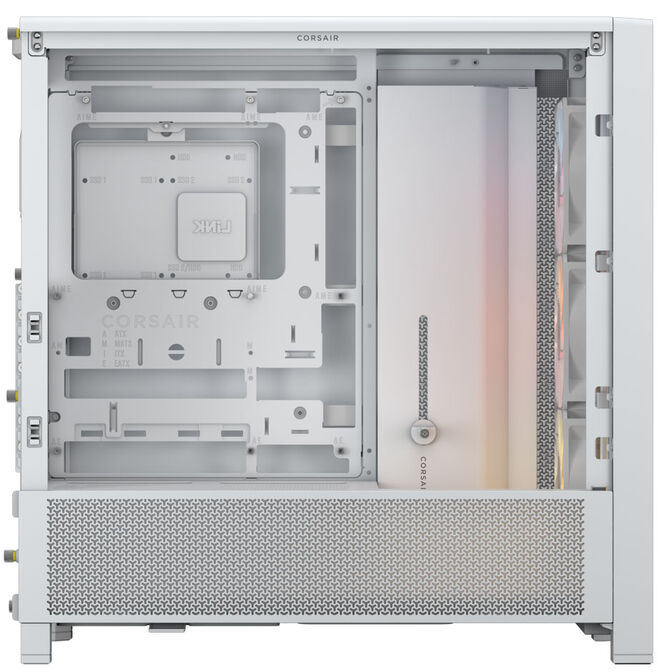

The Corsair Frame 4000D RS ARGB: Modular Mid Tower

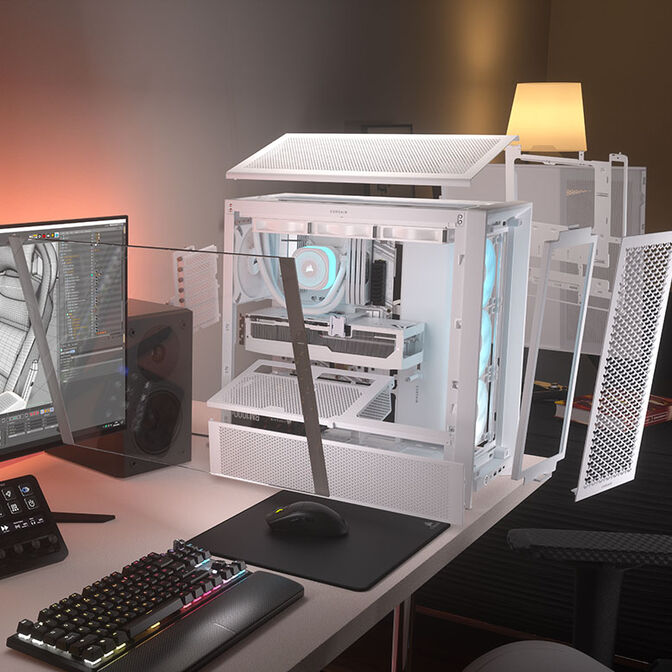

The Corsair Frame 4000D RS ARGB is a midi-tower that stands out from the competition due to its modularity. It offers you the ability to customise it according to your wishes - all external parts can be easily removed and replaced. Additionally, there is enough space for your high-end components, as well as extensive options to cool them effectively.
Well-cooled with fans and radiators

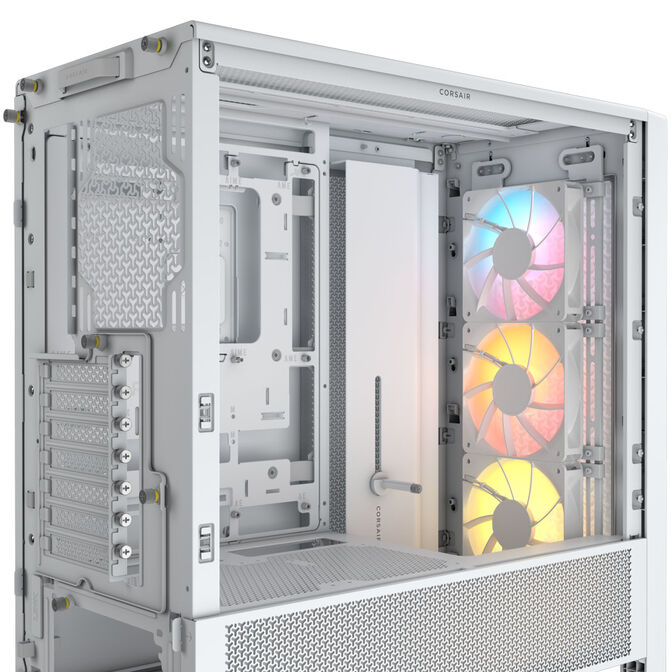

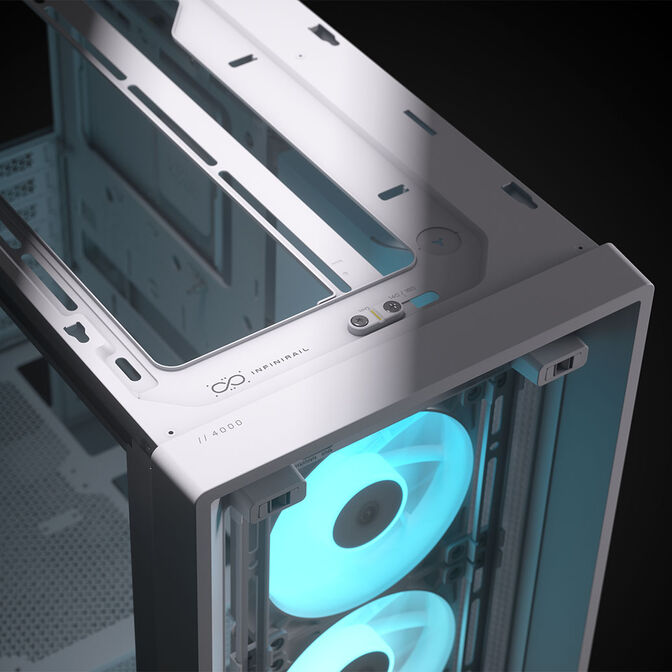

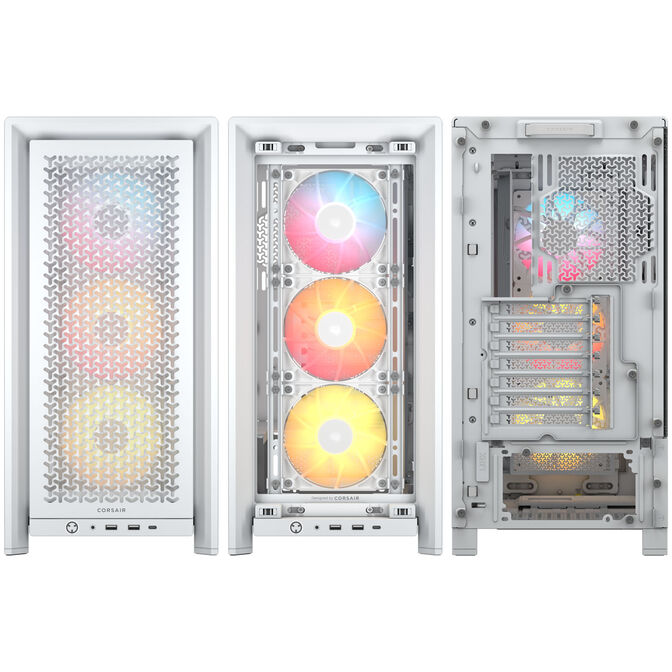

To cool your hardware under any load, the Corsair Frame 4000D RS ARGB allows for the installation of up to 12 fans. The top and side support the installation of three 120mm or two 140mm fans, while the front can accommodate three 120mm, two 140mm, or two 200mm fans. You can install two additional 120mm fans at the bottom. Additionally, another 120mm or 140mm fan can be mounted at the rear.
Along with the case, you also receive three powerful 120mm ARGB fans from Corsair.

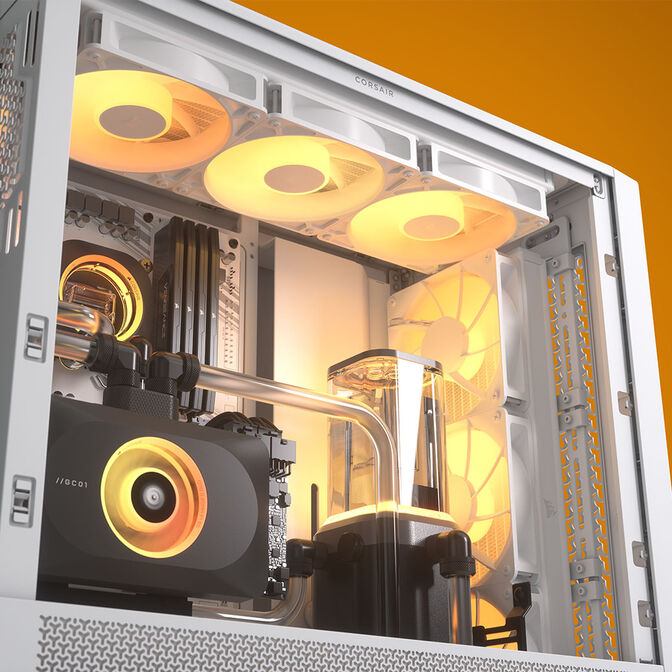

If you prefer liquid cooling - whether it's an all-in-one liquid cooler or a custom-built liquid cooling system - there are several locations where a radiator can be installed. Large radiators up to 360mm can be mounted at the top, front, and side. The rear supports a 120mm or 140mm radiator.

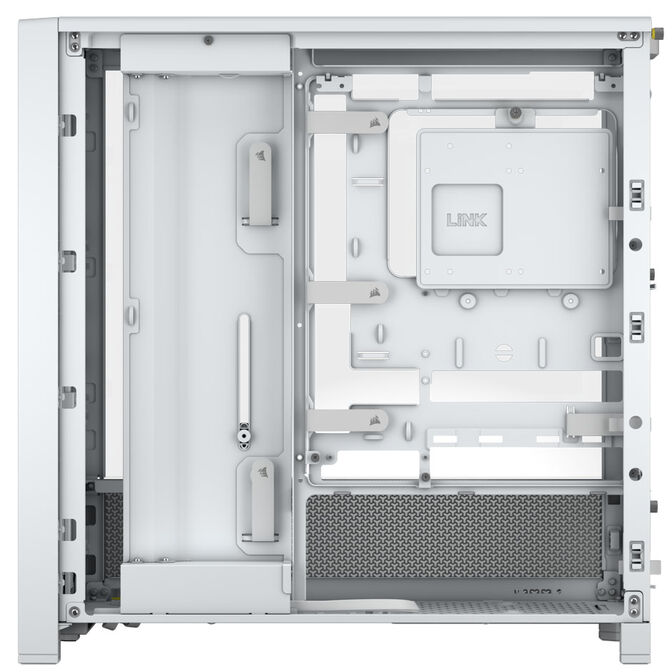

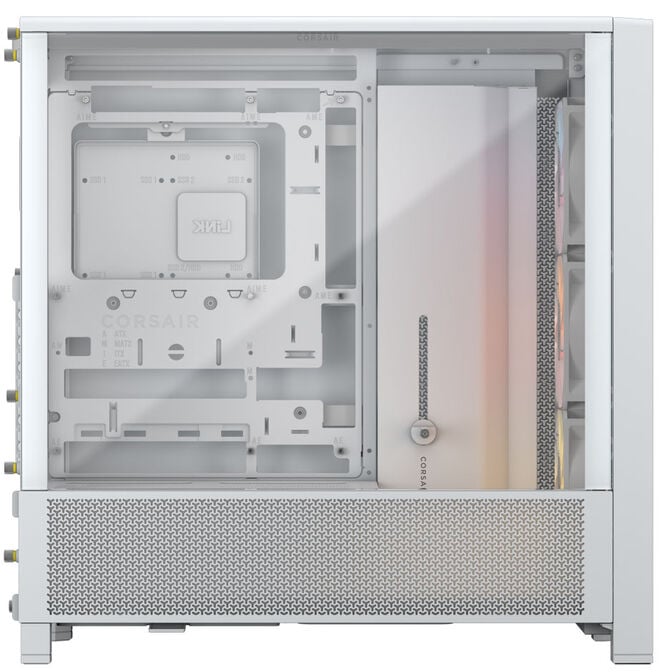

Installing your hardware

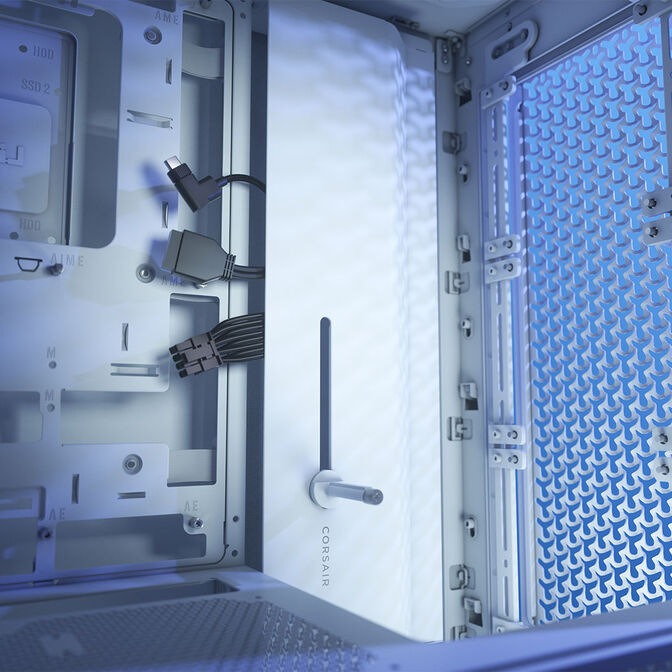

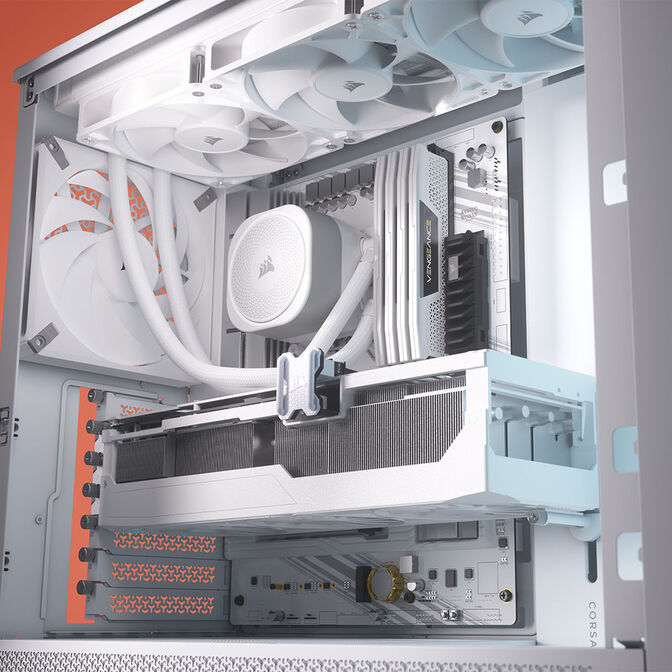

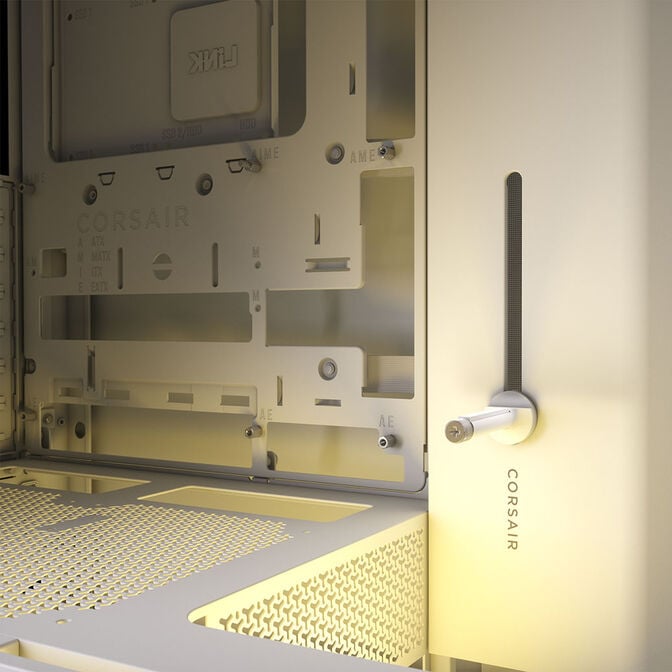

The case supports the installation of graphics cards up to a size of 430mm. This means that the current NVIDIA GPUs of the 50 series are also possible. To prevent sagging of particularly heavy graphics cards, a GPU stabilisation arm is built into the tower. Motherboards up to E-ATX format are feasible.
|
Colour
|
|
|
Primary Colour
|
White
|
|
Dimensions
|
|
|
Length / Depth
|
490 mm
|
|
Width
|
239 mm
|
|
Height
|
486 mm
|
|
Weight
|
10.38 kg
|
|
Case
|
|
|
Case Type
|
Mid Tower
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, E-ATX, Micro-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
E-ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
170 mm
|
|
Max. GPU Length
|
430 mm
|
|
Max. PSU Length / Depth
|
220 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear bottom
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Bottom)
|
120mm Fan (2x)
|
|
Case Fan Support (Front)
|
120mm Fan (3x), 140mm Fan (2x), 200mm Fan (2x)
|
|
Case Fan Support (Rear)
|
120mm Fan (1x), 140mm Fan (1x)
|
|
Case Fan Support (Side)
|
120mm Fan (3x), 140mm Fan (2x)
|
|
Case Fan Support (Top)
|
120mm Fan (3x), 140mm Fan (2x)
|
|
Max. Number of Fans
|
12
|
|
120 mm fans
|
12
|
|
140 mm fans
|
7
|
|
200 mm fans
|
2
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
1x Single (140 mm), 3x Triple (360 mm)
|
|
Radiator/AIO Support (Front)
|
240mm Radiator, 280mm Radiator, 360mm Radiator
|
|
Radiator/AIO Support (Rear)
|
120mm Radiator, 140mm Radiator
|
|
Radiator/AIO Support (Side)
|
240mm Radiator, 280mm Radiator, 360mm Radiator
|
|
Radiator/AIO Support (Top)
|
240mm Radiator, 280mm Radiator, 360mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
4
|
|
Max. 3.5 Inch Drives
|
2
|
|
Max. 5.25 Inch Drives
|
0
|
|
2.5 inch internal drive bay
|
4
|
|
3.5 inch internal drive bay
|
2
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|

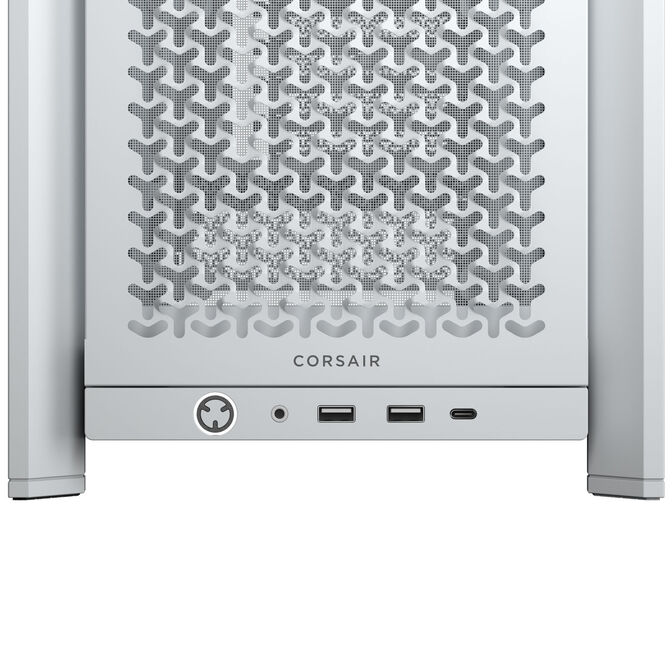

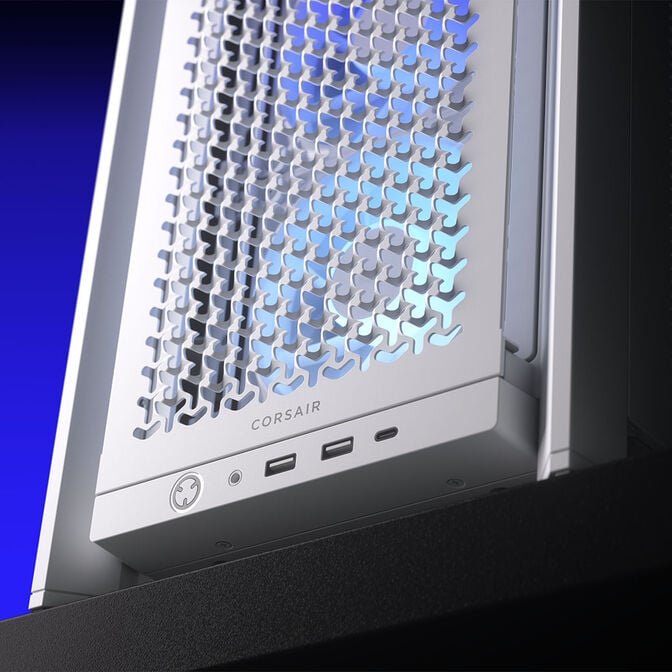

Front I/O – USB Type C Ports Total
|
1
|
|
Front I/O – USB Type A Ports Total
|
2
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|
I/O position
|
Front
|
|
Side panel
|
with window
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
Yes
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
Yes
|
|
Back-Connect Compatibility
|
ASUS BTF, Gigabyte Project Stealth, MSI Project Zero
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
7
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
Plastic, Steel, Tempered Glass
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
RGB Controller
|
No
|
|
Lighting Colour
|
RGB
|
|
Additional Contents
|
|
|
Fans Included
|
Yes
|
|
Included fans
|
3x 120 mm
|
