- AiO water cooling with a 360 mm radiator for strong cooling
- Pump with three-phase motor for maximum flow rate
- Three powerful Corsair RX 120 mm fans included
- 20 individually customisable RGB LEDs on the pump head
- Compatible with modern sockets such as LGA 1851 and AM5
The Corsair iCUE LINK Titan 360 RX RGB Complete Water Cooling: strong cooling performance in stylish design

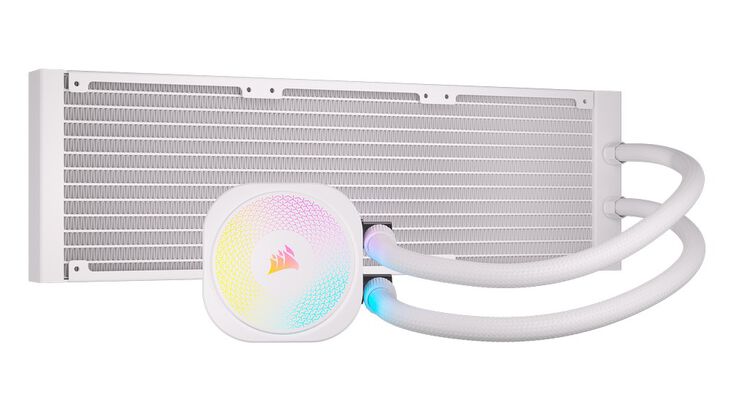

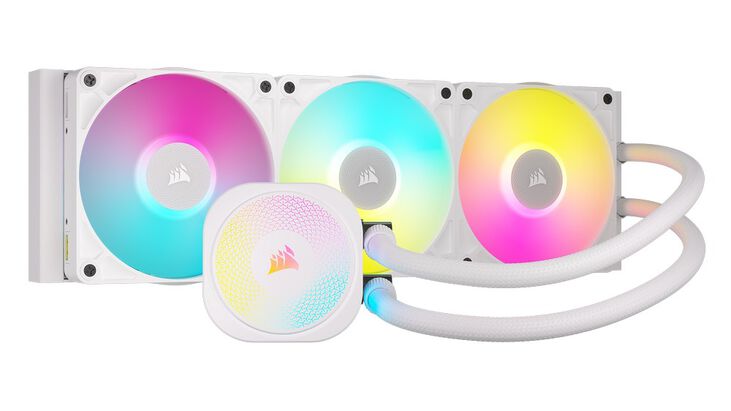

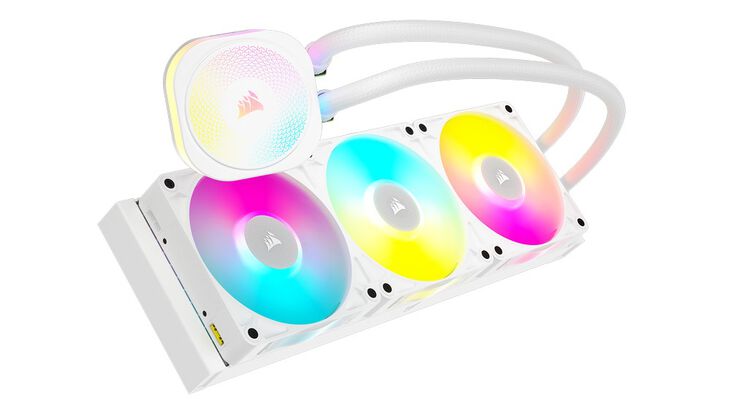

The iCUE LINK Titan RX RGB is a 360 mm complete water cooling system that combines all the advantages of water cooling in a customisable and maintenance-free design. The powerful three-phase motor and low noise levels characterise the iCUE LINK Titan 360 RX RGB.
The three included RX 120 mm fans and the 27 mm thick radiator made of aluminium ensure efficient cooling with quiet operation. The Titan RX RGB features a CPU block that is compatible with sockets such as LGA 1851 and 1700 as well as AM5 and AM4.
Customisable lighting with Corsair iCUE LINK

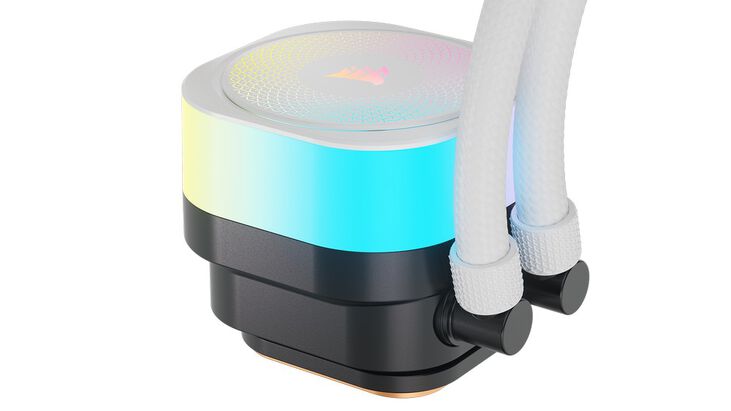

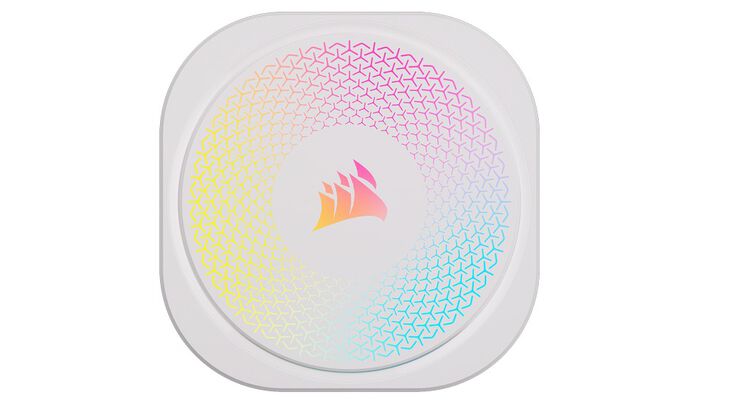

The pump head of the Corsair AiO can be easily customised to your gaming setup thanks to 20 individually controllable RGB LEDs. Both the CPU block and the three RX 120 mm fans allow for various colour combinations and effects. These are controlled by the proprietary iCUE software.

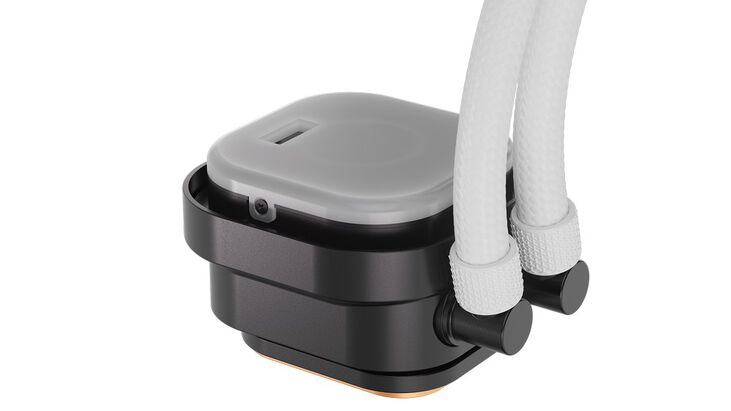

The pump head also features a hot-swap design, allowing for seconds-fast and tool-free replacement of the pump cap. The separately available CapSwap modules instantly change the look of your cooler.
Improved cooling performance and noise development
The Titan RX RGB is equipped with an improved version of the Flowdrive cooling engine – a custom-developed pump with a three-phase motor. This has a significantly improved flow rate compared to its predecessors, resulting in a cool and quiet gaming PC when combined with a lower noise level.
The base plate of the AiO is made of copper to optimally absorb heat. The white sleeved hoses are made of low-permeation rubber to ensure maximum durability and functionality.
The three RX 120 mm RGB fans provide optimal air pressure and airflow. They are therefore excellently suited for use as both AiO fans and case fans. Improved magnetic levitation bearings also minimise friction, resulting in lower noise levels.
Through daisy chaining, it is possible to connect multiple fans in series, significantly reducing cable clutter in your gaming PC. Additionally, the Corsair QuikTurn screws allow for incredibly fast and simple fan installation.
Colour
|
|
Primary Colour
|
White
|
Fan Main Colour (Frame)
|
White
|
Fan Main Colour (Rotor)
|
Transparent (matt / frosted)
|
Main radiator colour (cage)
|
White
|
Main radiator colour (fins)
|
White
|
Dimensions
|
|
Length / Depth
|
396 mm
|
Width
|
120 mm
|
Height
|
27 mm
|
Fan height
|
25 mm
|
Radiator Size
|
360 mm
|
Radiator Height With Fan
|
52 mm
|
Tube length
|
400 mm
|
Type
|
|
CPU Cooler Type
|
AiO Liquid Cooler
|
CPU
|
|
CPU Socket
|
1700, 1851, AM4, AM5
|
Fan Specifications
|
|
Fan Size
|
120 mm
|
Noise
|
|
Max. Single Fan Noise dB(A)
|
36 dB(A)
|
Internal Ports
|
|
Fan connectors
|
iCUE LINK
|
Pump connectors
|
iCUE LINK
|
Materials
|
|
Materials
|
Aluminium, Rubber
|
Lighting
|
|
Lighting / RGB
|
Yes
|
Lighting Colour
|
RGB
|
Lighting Compatibility
|
Corsair iCUE
|
Additional Contents
|
|
Included fans
|
None
|
