- Power supply with 1000 watts for high-end PCs with powerful components
- 80-PLUS Gold and Cybenetics Gold certification for efficient gaming

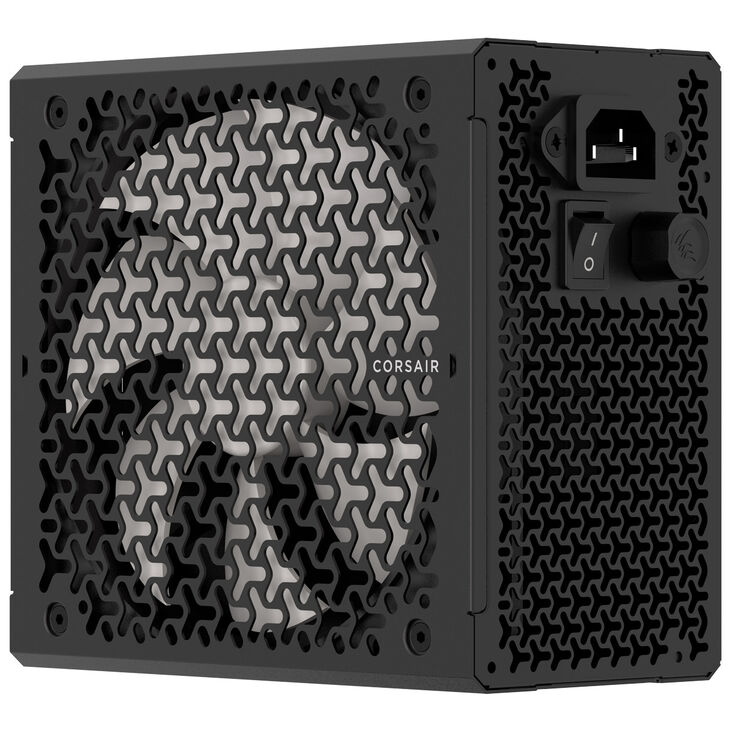

- 140 mm fan with FDB bearing ensures quiet cooling
- Easy cable management thanks to modular design
- Zero-RPM mode for absolutely silent cooling under low load
- Included 12V-2x6 cable for high-end graphics cards

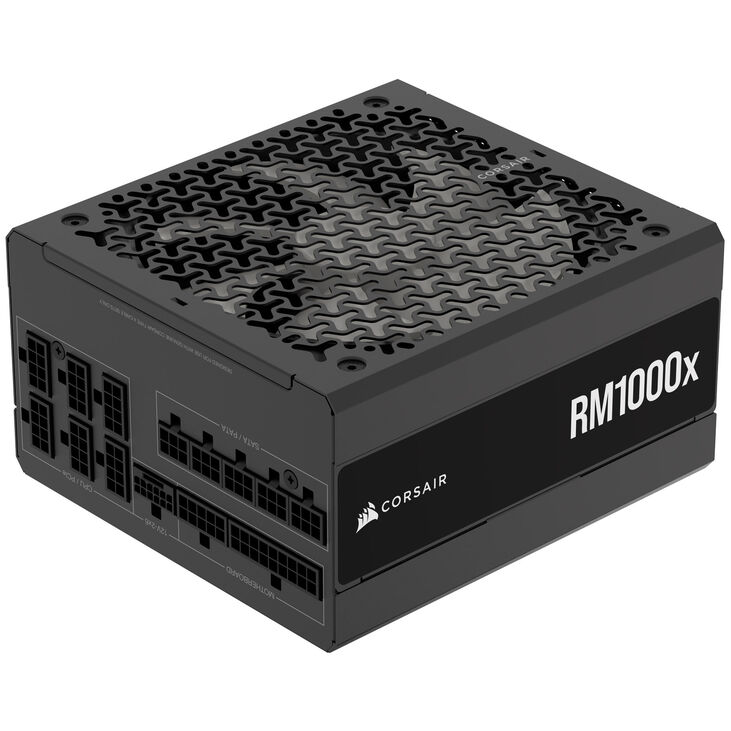

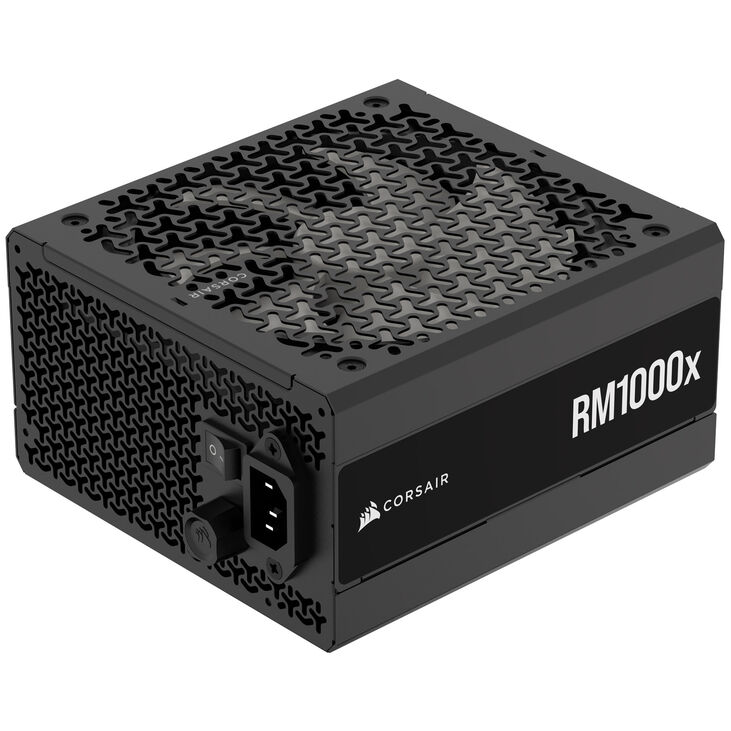

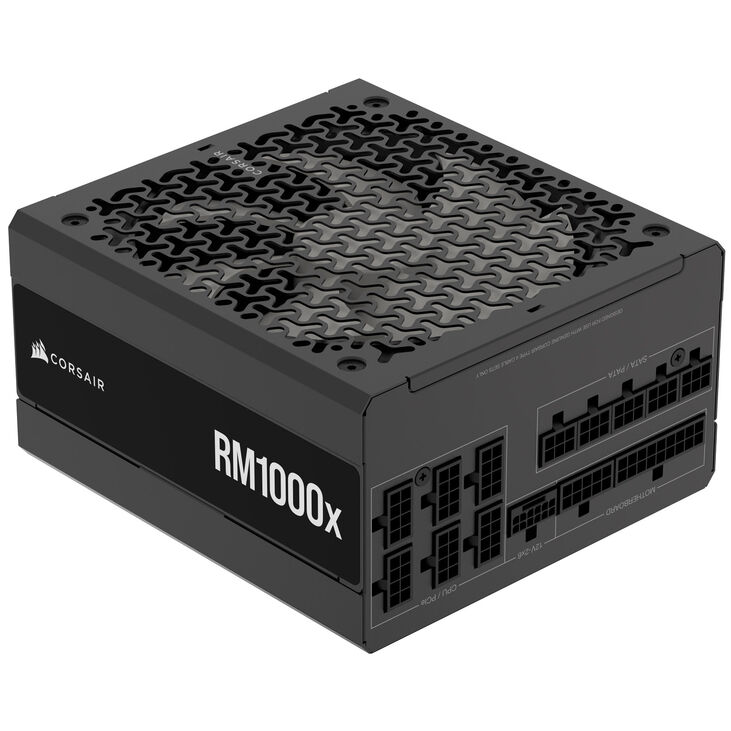

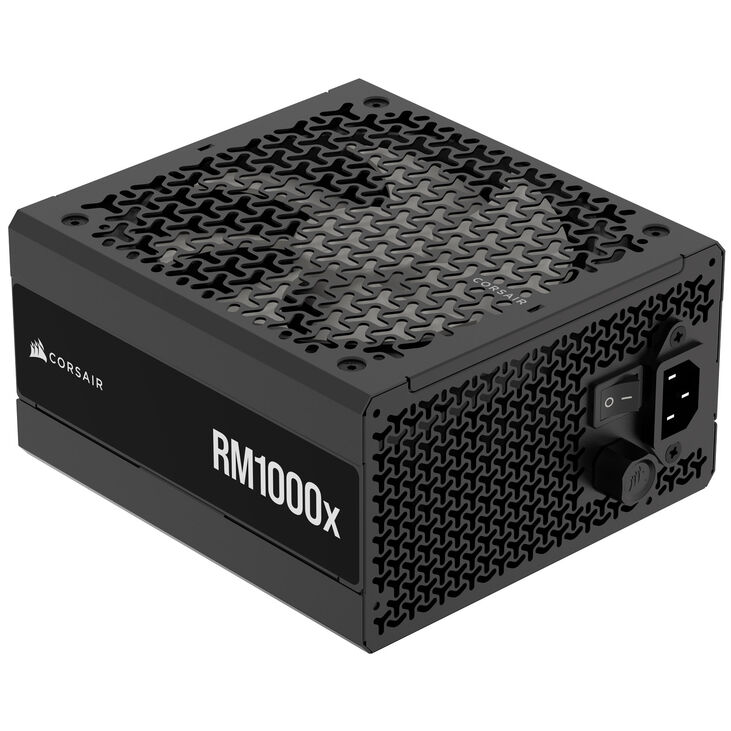

Corsair RM1000x – Efficient and Reliable

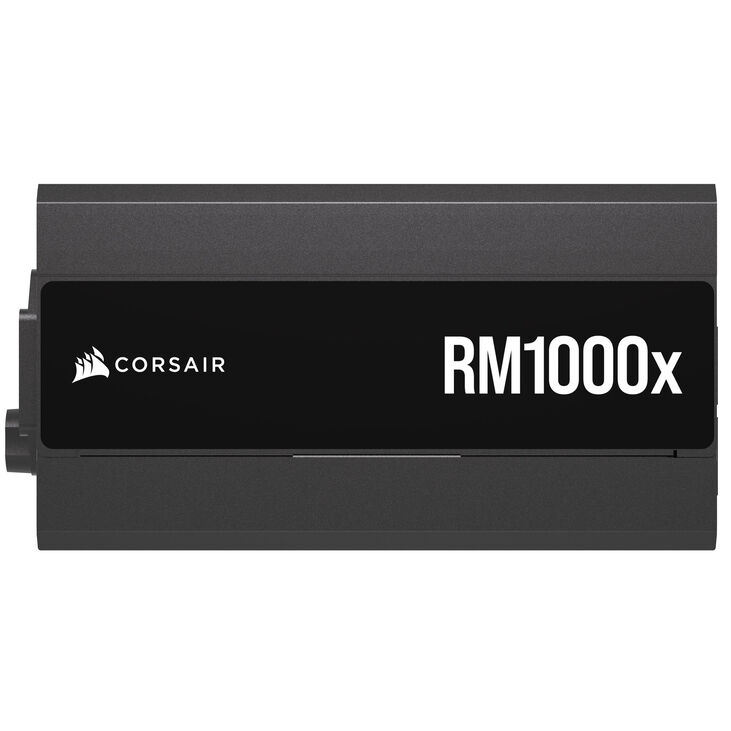

With the Corsair RMx Series RM1000x power supply, you can supply your components with power safely and reliably. The power supply, with its simple yet stylish black casing, fits perfectly into your build. The ATX-3.1 form factor ensures compatibility with most builds. The 80-PLUS Gold and Cybenetics Gold certifications guarantee particularly efficient power delivery.

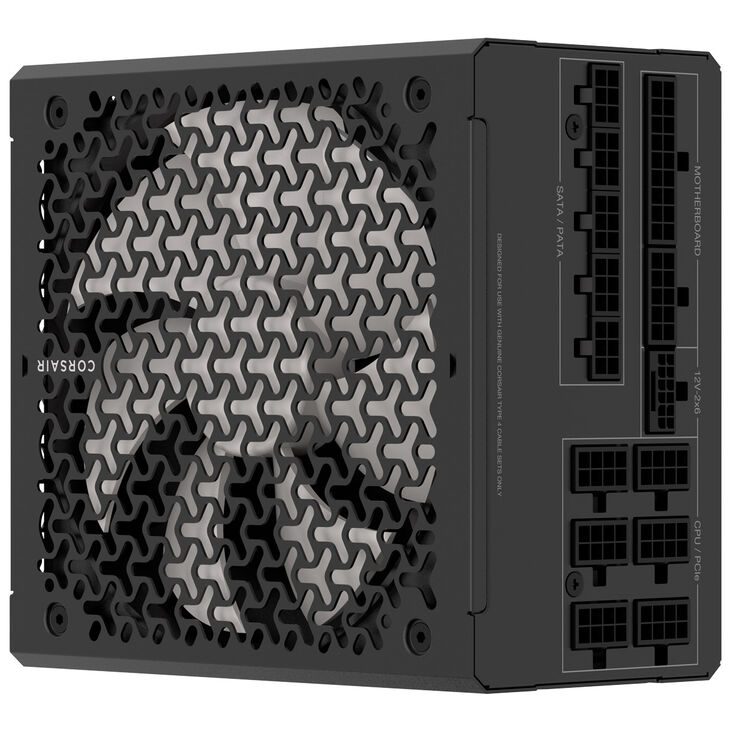

Fully modular cable management offers maximum flexibility
Thanks to the fully modular design of the power supply, you save not only time but also a lot of hassle during installation. Cables for your components are, of course, included in the package. Only the cables that you really need will be part of your build, especially regarding accessories. Unwanted cables that would only get in the way during assembly are completely avoided.
Silent operation through Zero-RPM mode
With the help of the Zero-RPM mode of the fans, which completely shuts off the fan under low load, you achieve an almost silent yet efficient operation.
If too much heat has accumulated in the case, you can easily override the Zero-RPM mode and the quiet fan profile with a manual button press to achieve higher airflow and fan speeds.
Long lifespan thanks to high-quality components
The Corsair RM1000x power supply is characterised by a long lifespan due to its high-quality components. Particularly impressive are the Japanese capacitors rated at 105°C, which ensure exceptional durability.
- Dimensions: 160 x 150 x 86 mm (L x W x H)
- Colour: Black

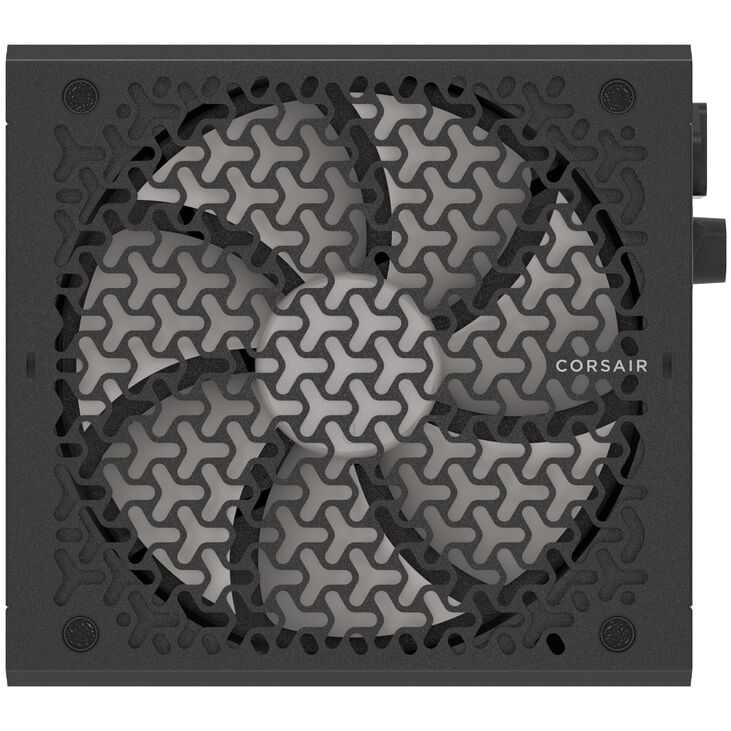

- Fan: 140 mm
- Standard: ATX 3.1
- Efficiency: 80 PLUS Gold Certificate / Cybenetics Gold Certificate
- Power: 1000 W
+3.3V: 20 A
+5V: 20 A
+3.3V & +5V: 150 W
+12V: 83.3 A / 1000 W
-12V: n/a

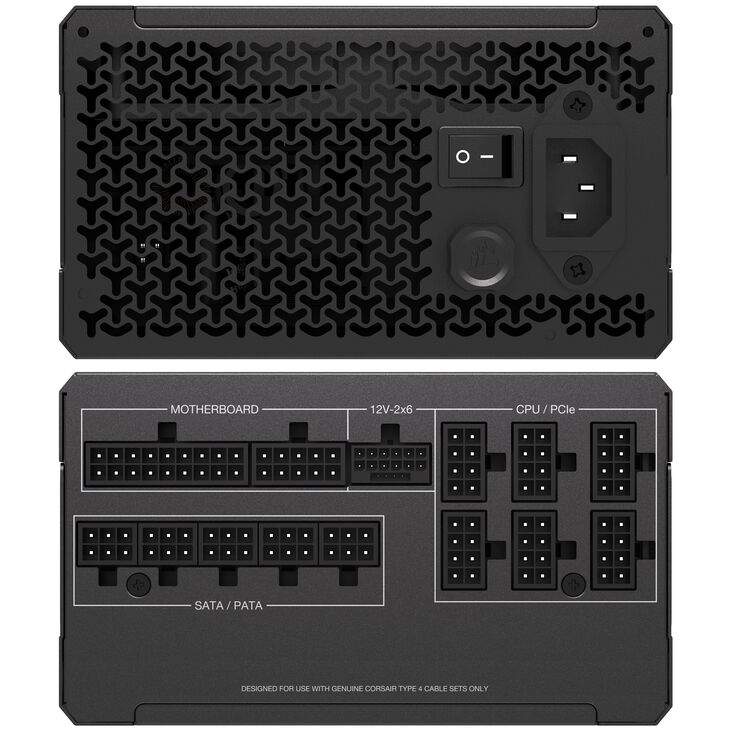

+5Vsb: 3 A / 15 W - Connections:
1x ATX 24-pin
2x EPS/ATX 12V (4+4-pin)
1x PCIe 12VHPWR (12+4-pin)
4x PCIe (6+2-pin)
3x SATA (4 connections)

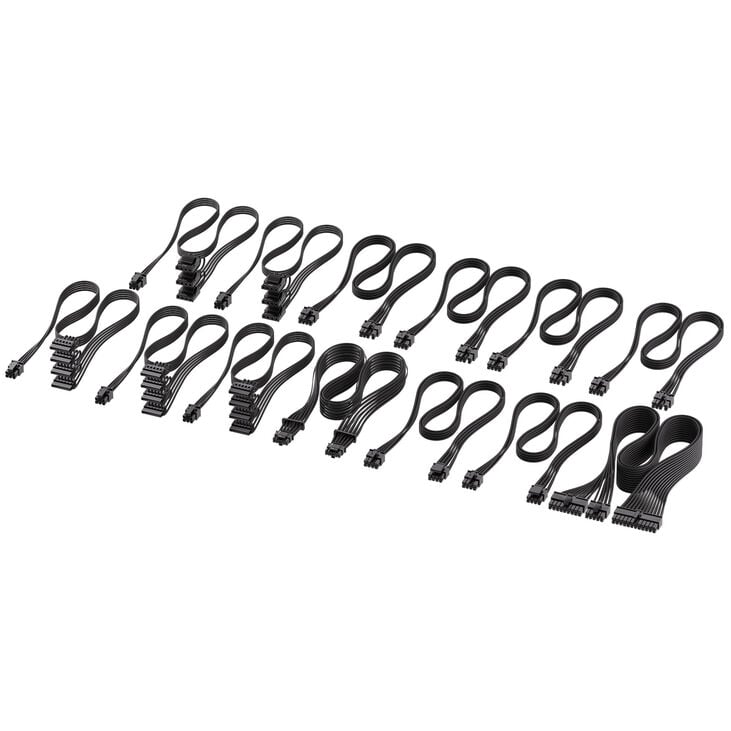

2x PATA (3 connections) - Cables:
1x ATX 24-pin (610mm ±10mm)
2x EPS/ATX 12V 8-pin (750mm ±10mm)
1x PCIe 12V 2x6-pin (650mm ±10mm)
4x PCIe 8-pin (6+2) (650mm ±10mm)
3x SATA (4 connections, 850mm ±10mm)
2x PATA (3 connections, 750mm ±25mm)
Dimensions
|
|
Length / Depth
|
160 mm
|
Width
|
150 mm
|
Height
|
86 mm
|
Fan Specifications
|
|
Fan Size
|
140 mm
|
Power Supply
|
|
PSU Format
|
ATX
|
Modular Power Supply
|
Yes
|
Power Specifications
|
|
Total Power Output
|
1000 W
|
Power Output +12V rails
|
1000 W
|
Cooling
|
|
Semi Passive Power Supply
|
No
|
Internal Ports
|
|
CPU Power Connectors 12V ATX/EPS
|
2
|
12VHPWR PCIe Power Connectors
|
1
|
8 Pin PCIe Power Connectors
|
4
|
6+2 Pin PCIe Power Connectors
|
4
|
SATA Power Connectors
|
12
|
Efficiency Class
|
|
80PLUS Efficiency
|
80 PLUS Gold
|
Lighting
|
|
Lighting / RGB
|
No
|
