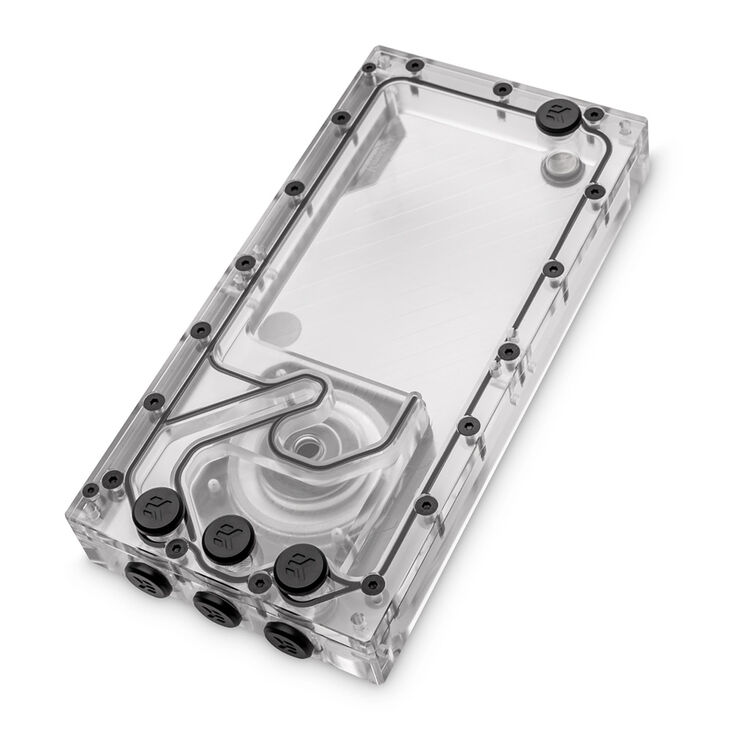

EK Water Blocks EK-Quantum Kinetic3 FLT D5 PWM Reservoir-Pump Combo - 240mm, D-RGB, Acrylic
- 300-ml pump-reservoir combo for high-performance systems

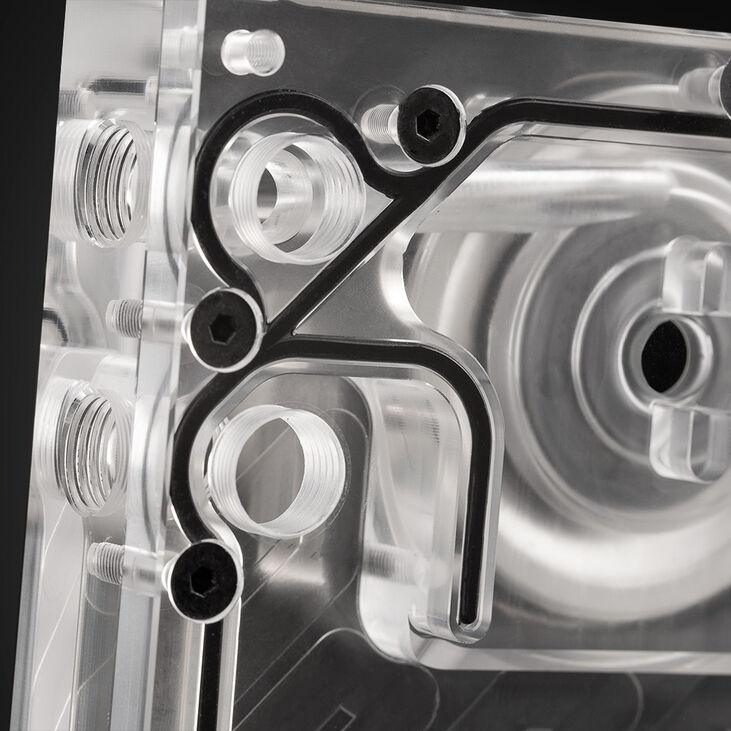

- Easy maintenance and flexibility thanks to eight G1/4-inch fittings
- High-quality acrylic glass for clear visibility of your coolant
- D-RGB lighting for customisable lighting effects

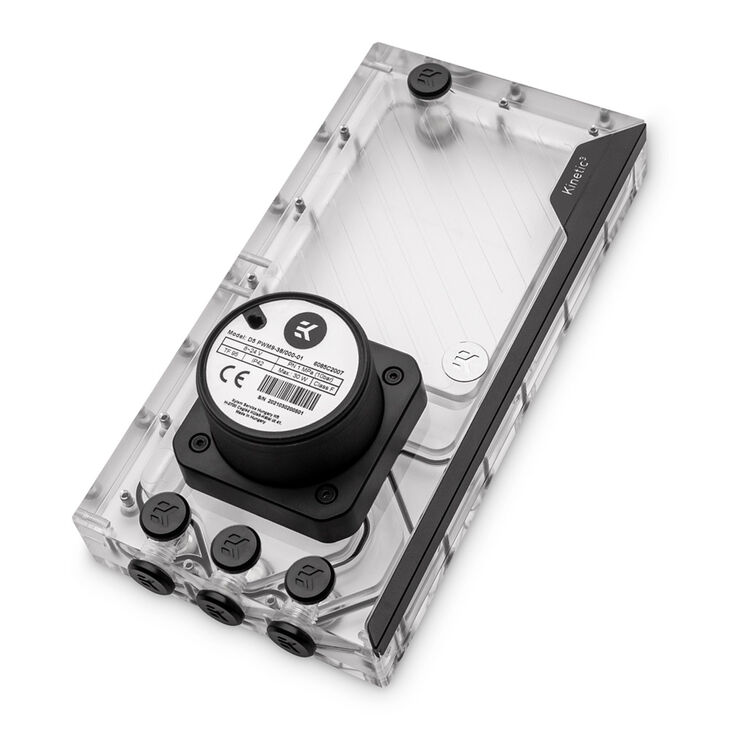

- Integrated D5 PWM pump for maximum cooling performance
- Durable EPDM O-rings for maximum reliability
- Easy installation thanks to 120-mm fan mounting holes
The EK-Quantum Kinetic3 FLT D5 PWM D-RGB Reservoir-Pump Combo in Detail
The EK-Quantum Kinetic3 FLT D5 PWM D-RGB stands out with its integrated D5 PWM pump and high-quality construction. With a maximum flow rate of 1.000 l/h and a maximum head pressure of 5.2 m, the pump delivers substantial power, ensuring your system remains well-cooled.

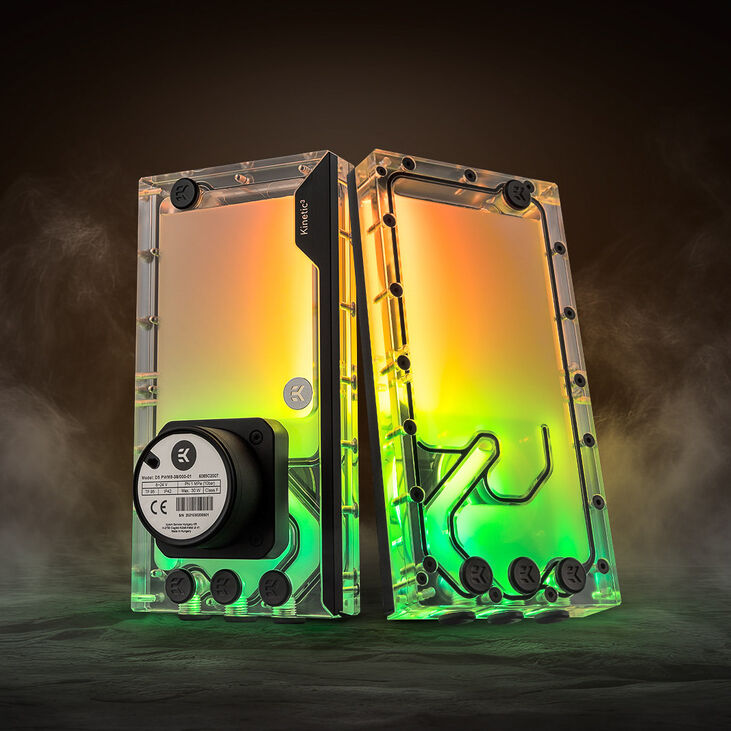

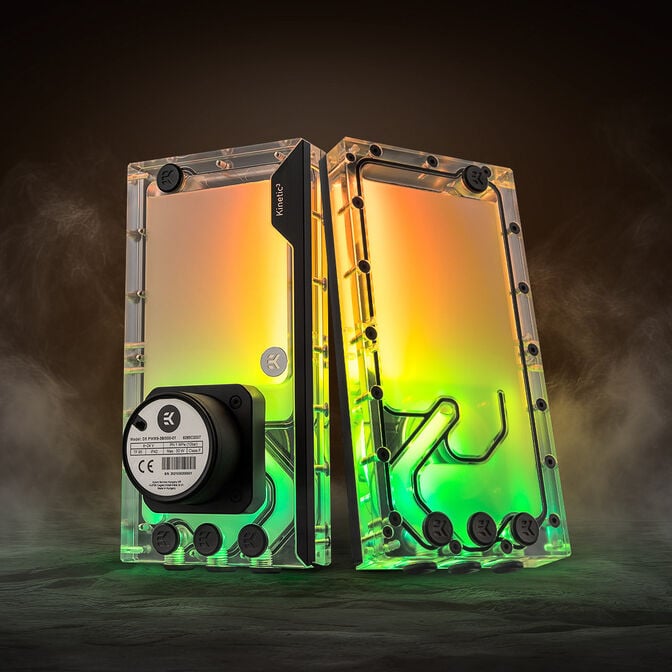

The reservoir is made from transparent acrylic glass, providing excellent visibility of your coolant. The integrated addressable D-RGB lighting, concealed behind a black anodised aluminium cover, offers even illumination.
With a volume of 300 ml and a large cooling area, this reservoir-pump combo ensures strong cooling performance for large and demanding systems. Your gaming PC will remain reliably cooled and maintain excellent performance even under higher hardware demands. The sealing is achieved with high-quality EPDM O-rings, ensuring a durable and reliable seal.
Easy Installation and Strong Flexibility

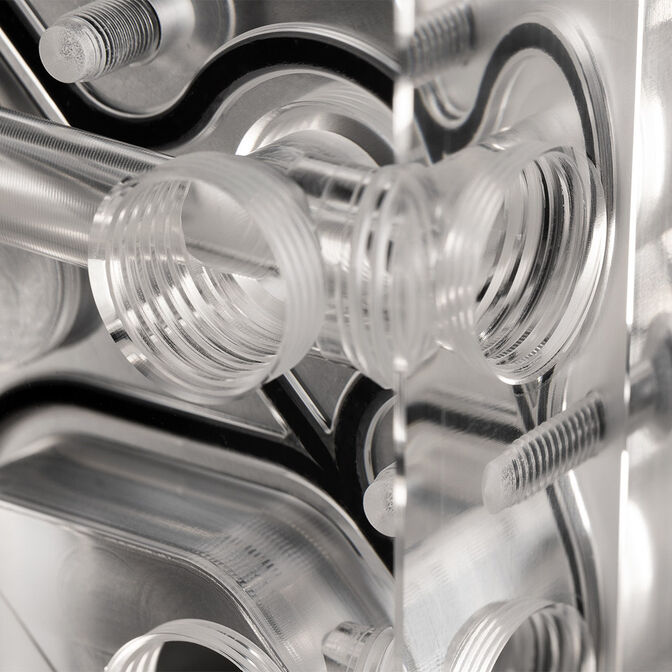

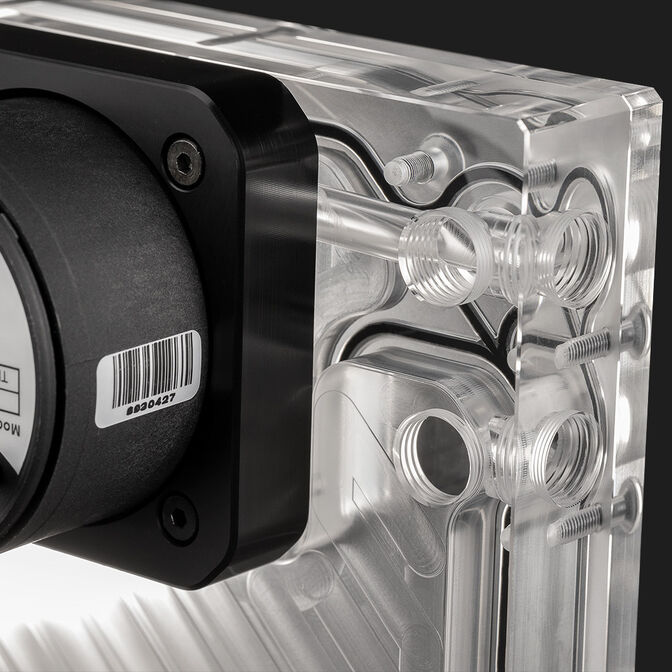

Mount the EK-Quantum Kinetic3 FLT D5 PWM D-RGB on 120-mm fan mounts, making it a perfect fit for your gaming PC. No additional drilling is required, saving you time and effort. With eight G1/4-inch fittings, it offers versatile inlets and outlets and can be flexibly integrated into your system.
Enhance Your System with Light and Colours
Achieve a customised look with a variety of visual effects. The addressable, integrated D-RGB lighting beautifully showcases your PC. It connects via a 3-pin 5V Digital-RGB header. Your creativity has no limits.
- Dimensions: 128 x 238.5 x 86 mm (W x H x D)
- Material: Acrylic, EPDM rubber, anodised aluminium, stainless steel, PPS-GF40, aluminium oxide
- Colour: Transparent, Black (anodised aluminium cover)
- Volume: 300 ml
- Fittings: 8x G1/4-inch threads
- D-RGB Connection: 3-pin digital 5V LED header (+5V / Digital / Blocked / Ground)
- Number of LEDs: 27
- Pump: Integrated D5 PWM pump
Rated Voltage: 12 V DC
Power Consumption: 20 W
Max Head Pressure: 5.2 m
Max Flow Rate: 1.000 l/h
Max System Temperature: 60°C
Power Connection: SATA power and 4-pin PWM fan connector - Contents:
1x EK-Quantum Kinetic3 FLT D5 PWM D-RGB
L-shaped steel bracket with mounting screws
Mounting mechanism with all necessary screws
|
Colour
|
|
|
Primary Colour
|
Transparent
|
|
Dimensions
|
|
|
Length / Depth
|
86 mm
|
|
Width
|
128 mm
|
|
Height
|
238.5 mm
|
|
Volume
|
300 ml
|
|
Pump Specifications
|
|
|
Max. Pressure Head
|
5.2 m
|
|
Max. Water Flow
|
1000 l/h
|
|
Type
|
|
|
Pump type
|
D5
|
|
Power Specifications
|
|
|
Power Consumption
|
20 W
|
|
Rated voltage
|
12 V
|
|
Water Cooling
|
|
|
Water cooling component
|
Pump + Reservoir
|
|
Water cooling connectors
|
8x G1/4"
|
|
Internal Ports
|
|
|
Pump connectors
|
4 Pin (PWM control), SATA (power)
|
|
RGB / LED connectors
|
1x Digital RGB (3-Pin 5VDG)
|
|
Thermal Specifications
|
|
|
Max. System Temperature
|
60 °C
|
|
Materials
|
|
|
Materials
|
Acrylic glass, Aluminium oxide, Anodised aluminium, PPS-GF40, Rubber, Stainless steel
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
