EK Water Blocks EK-Quantum Vector FTW3 RTX 3070 D-RGB - Nickel + Acetal

• Water block
• 1/4"
• Material: Acetal, Copper
• Black, Nickel

This is the 2nd generation Vector GPU water block from the EK® Quantum Line, designed for EVGA® FTW3 RTX 3070 graphics cards based on the latest NVIDIA® Ampere™ architecture.

An EK Water Block for FTW3 RTX 3070

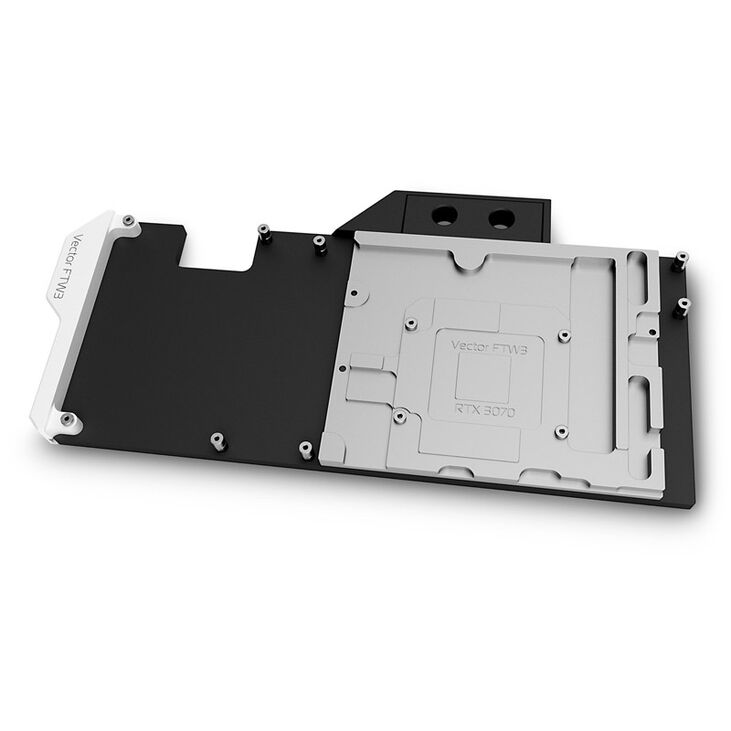

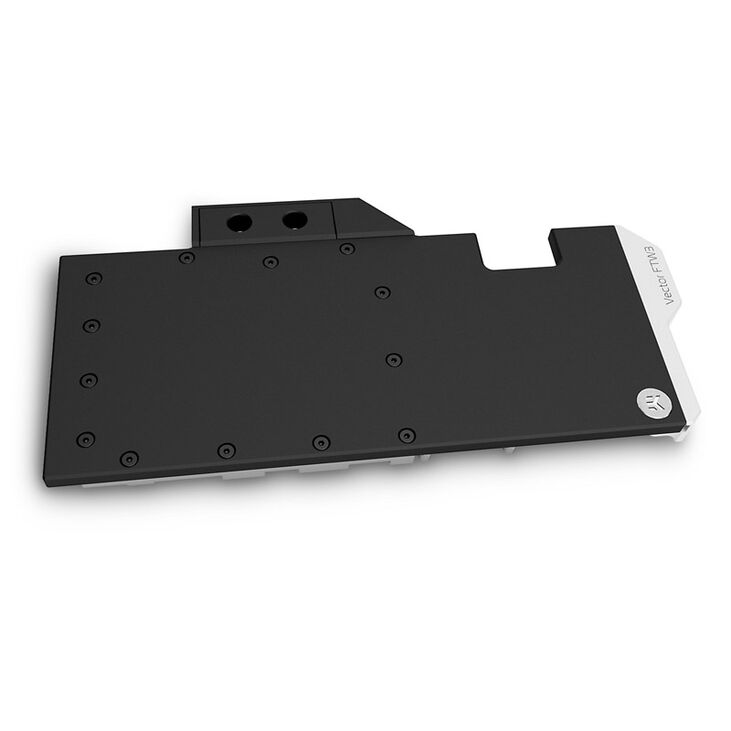

EK-Quantum Vector FTW3 3070 D-RGB water block is compatible with FTW3 RTX 3070 graphics cards. The Vector water block actively cools the GPU, VRAM, power stages, and chokes in the VRM (voltage regulation module).

These newly developed water blocks feature optimized flow paths that reduce hydrodynamic instabilities and vortexing (dead spots) inside of them.

The EK-Quantum Vector Series water blocks use an Open Split-Flow cooling engine design, which proved to be a superior solution for GPU water blocks. It is characterized by low hydraulic flow restriction, meaning it can be used with weaker water pumps or pumps running on low-speed settings, and still achieve top performance. The jet plate and fin structure geometry have been optimized to provide even flow distribution with minimal losses and optimal performance when used in any given coolant flow orientation.

The fin array is populated by 28 microfins with 0.6mm wide microchannels that provide optimal cooling performance, without unnecessary flow restrictions or clogging hazards.

The base of the block is CNC-machined out of nickel-plated electrolytic copper, while its top is CNC-machined out of durable POM acetal. These 2nd generation Vector GPU water blocks also feature Acetal terminals. The watertight sealing is ensured by high-quality EPDM O-rings, while brass standoffs are already pre-installed and allow for a safe and easy installation procedure.

D-RGB lighting on EK-Quantum Vector FTW3 RTX 3070 D-RGB water block

The aesthetic corner end-piece is housing the addressable D-RGB LEDs. This water block boasts a total of 8 individually addressable RGB LEDs, and it is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB (addressable) header.

Backplate for the EK-Quantum Vector FTW3 3070 water block
EK recommends the purchase of a retention backplate, especially for the 3070 models of graphics cards. The backplate improves the overall aesthetics of your graphics cards and also provides additional passive cooling for the GPU core, and backside of the printed circuit board VRM section.

Enclosed:
- EK-Quantum Vector FTW3 RTX 3070 D-RGB series high-performance water block
- Mounting mechanism with screw-in brass standoffs
- Necessary mounting screws, nuts, and washers
- 2x Nickel plated brass plug G1/4”
- EK-Loop Multi Allen Key (6mm, 8mm, 9mm)
- Thermal pads
- Thermal grease EK-TIM Ectotherm (1g)
