Fractal Design Era 2 Mini-ITX Case, Walnut Wood Panel – Silver

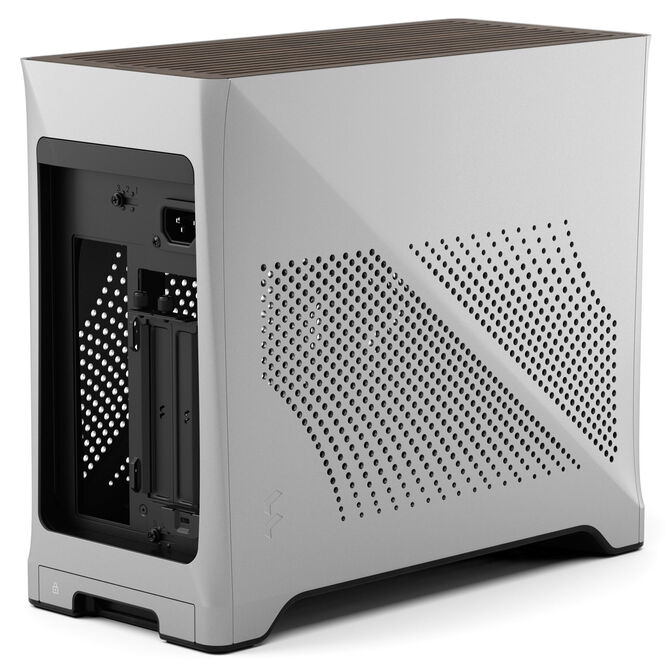

- Walnut wood panel on the top for an elegant look
- Two pre-installed Fractal Aspect 12 PWM fans
- Optimised for water cooling up to 280 mm
- Compatible with graphics cards up to three slots and 326 mm in length

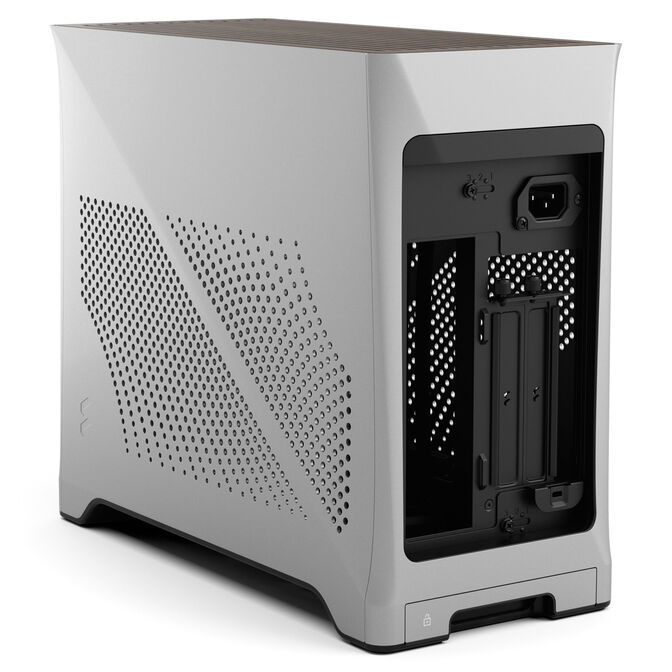

- Tool-free removable outer shell made of aluminium
- Fast PCIe 4.0 riser cable pre-installed
- Up to four 2.5-inch drives possible
The Fractal Design Era 2: Timeless elegance meets uncompromising design

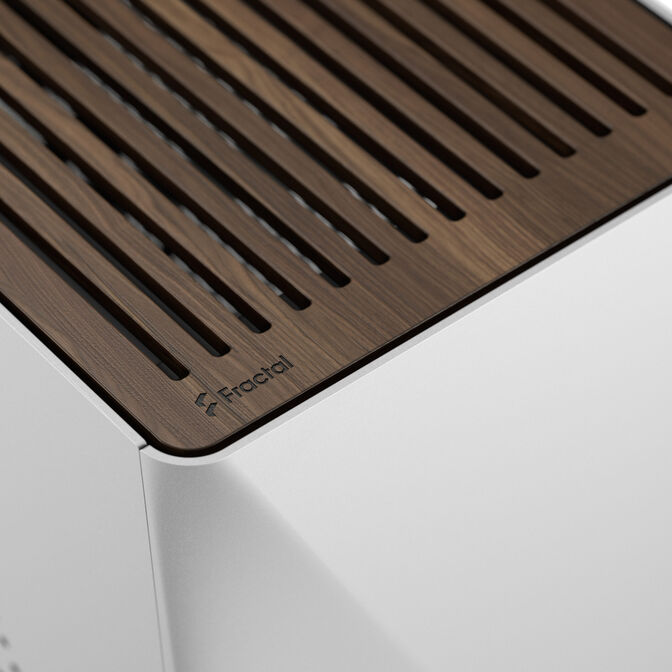

The Fractal Design Era 2 is a compact Mini-ITX case that combines the desire for aesthetics and performance. The certified walnut wood panel on the top is a real eye-catcher and provides a minimalist yet elegant look. It also offers ample space and optimal airflow for your hardware.
Thoughtful design with high functionality

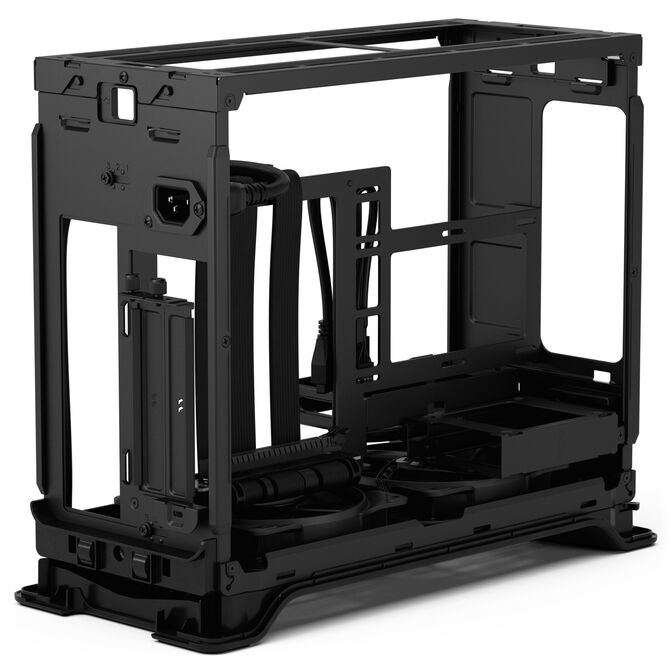

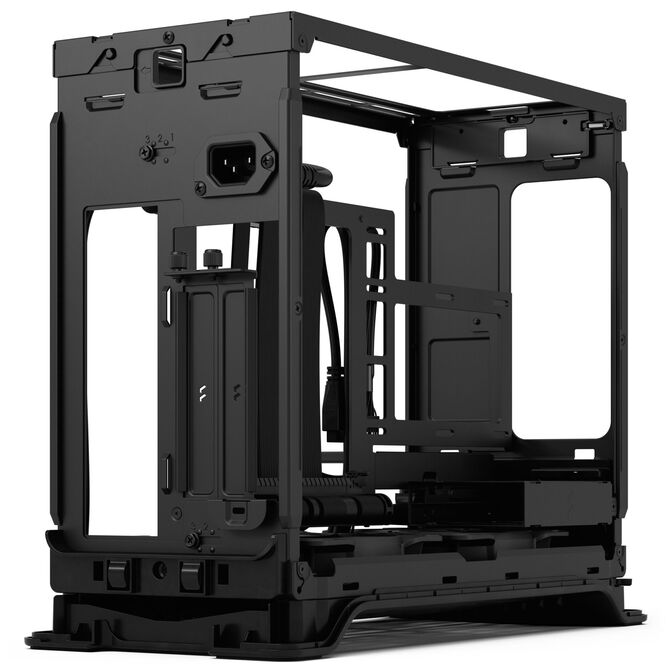

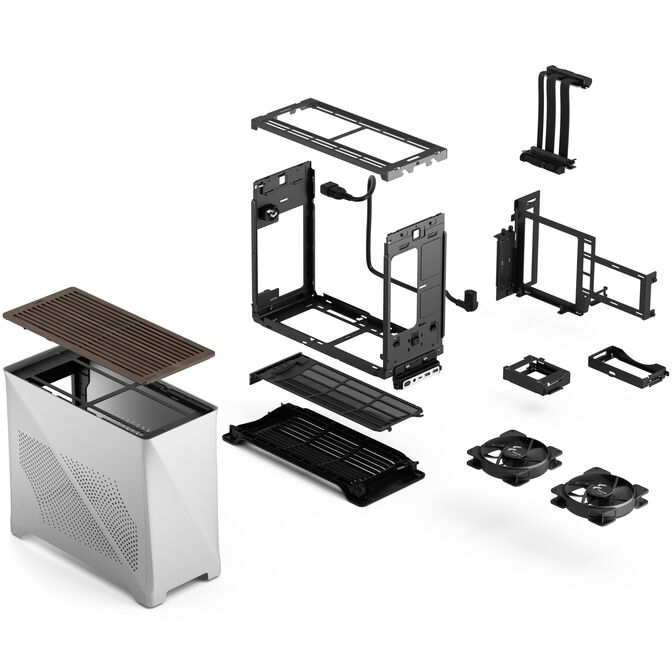

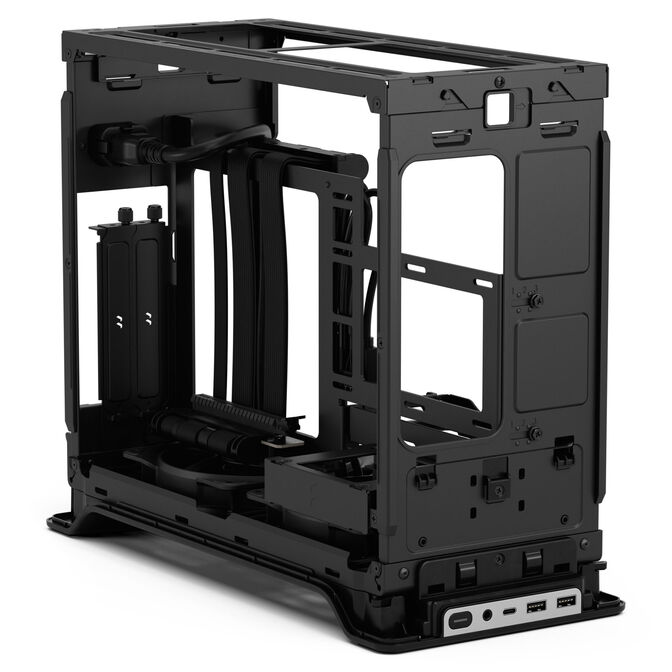

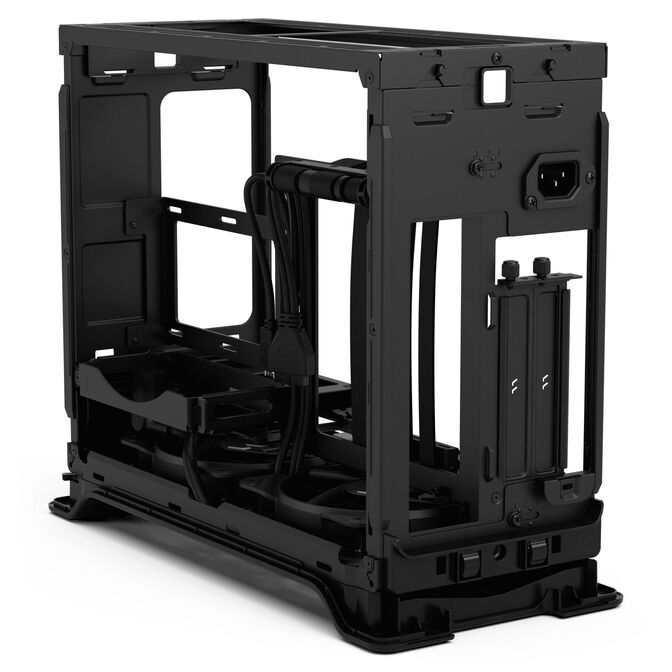

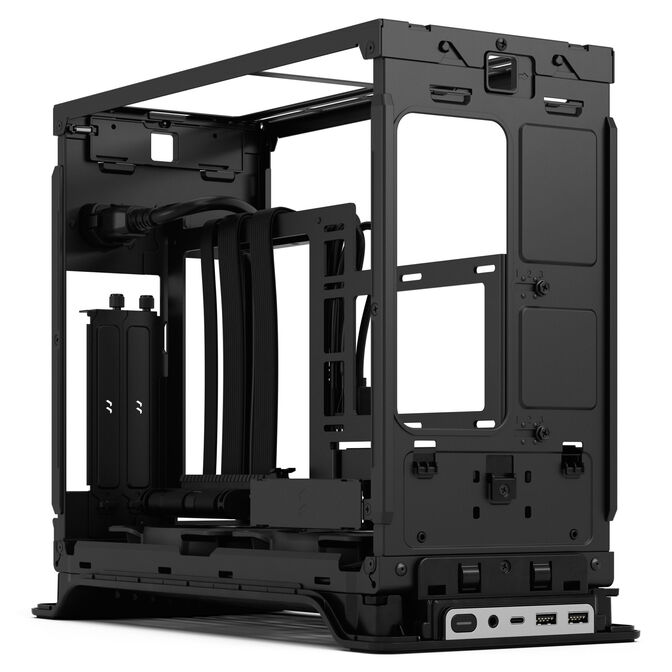

The magnetic top panel and frame can be easily and tool-free removed, making the installation of your hardware significantly faster and more pleasant. An already pre-installed PCIe 4.0 riser cable also makes cable management easier.
The case can accommodate motherboards up to Mini-ITX. It supports graphics cards up to a length of 326 mm. The CPU cooler must not exceed a height of 70 mm. The case also supports the installation of up to four 2.5-inch drives.

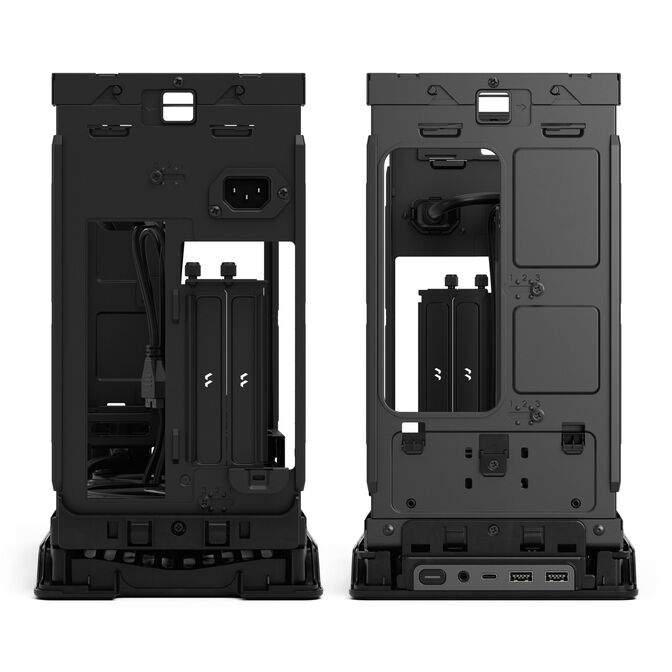

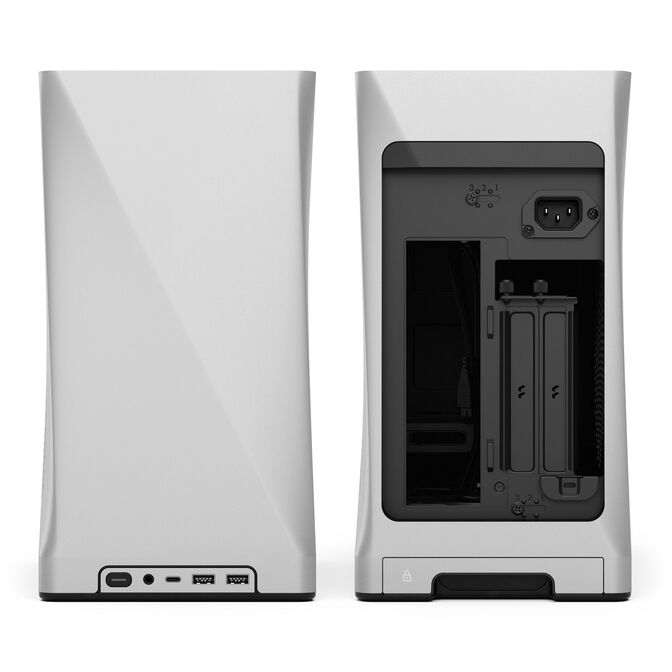

The I/O panel of the case provides sufficient connections for your peripherals. In addition to two USB-A ports and a 3.5 mm audio jack, the panel features a USB-C port that achieves a transfer speed of up to 20 Gbit/s.

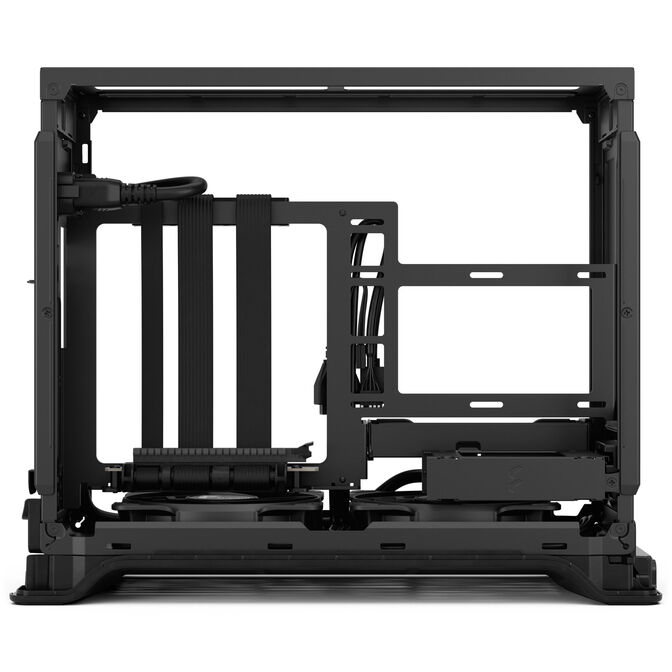

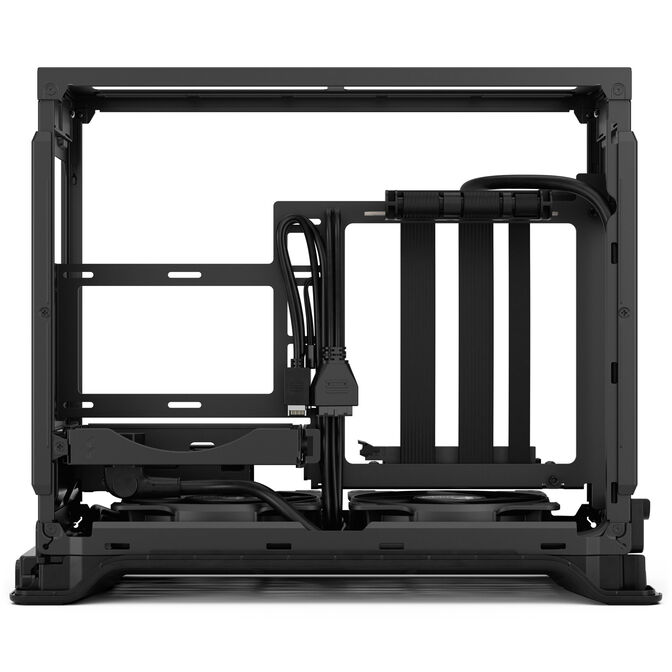

The position of the middle wall can be adjusted to achieve the optimal combination of maximum GPU width and CPU cooler height for your specific system. By shifting the middle wall, you can have a larger maximum GPU width. However, this may affect the height of the CPU cooler and vice versa.
Strong cooling performance in a small space
The Era 2 is optimised for excellent airflow and allows for direct airflow through the case thanks to the fan position. For cooling your CPU, the case supports radiators up to 280 mm in length.
Two pre-installed Aspect 12 PWM fans ensure reliable airflow through the bottom. Two additional 120 mm fans can be mounted as exhaust at the top.
|
Colour
|
|
|
Primary Colour
|
Silver
|
|
Dimensions
|
|
|
Length / Depth
|
366 mm
|
|
Width
|
165 mm
|
|
Height
|
314 mm
|
|
Weight
|
4.64 kg
|
|
Case
|
|
|
Case Type
|
Mini Case
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
Mini-ITX
|
|
Max. Motherboard Format
|
Mini-ITX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
70 mm
|
|
Max. GPU Length
|
326 mm
|
|
Max. PSU Length / Depth
|
130 mm
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
SFX, SFX-L
|
|
Power Supply Position
|
front
|
|
Fan Support
|
|
|
120 mm fans
|
4
|
|
Drive Bays
|
|
|
2.5 inch internal drive bay
|
4
|
|
External Ports
|
|
|
USB4 Gen 2x2 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|
I/O position
|
Front
|
|
Side panel
|
closed
|
|
Filters Included
|
Yes
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
3
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Materials
|
|
|
Materials
|
Aluminium, Wood
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Additional Contents
|
|
|
Included fans
|
2x 120 mm
|
