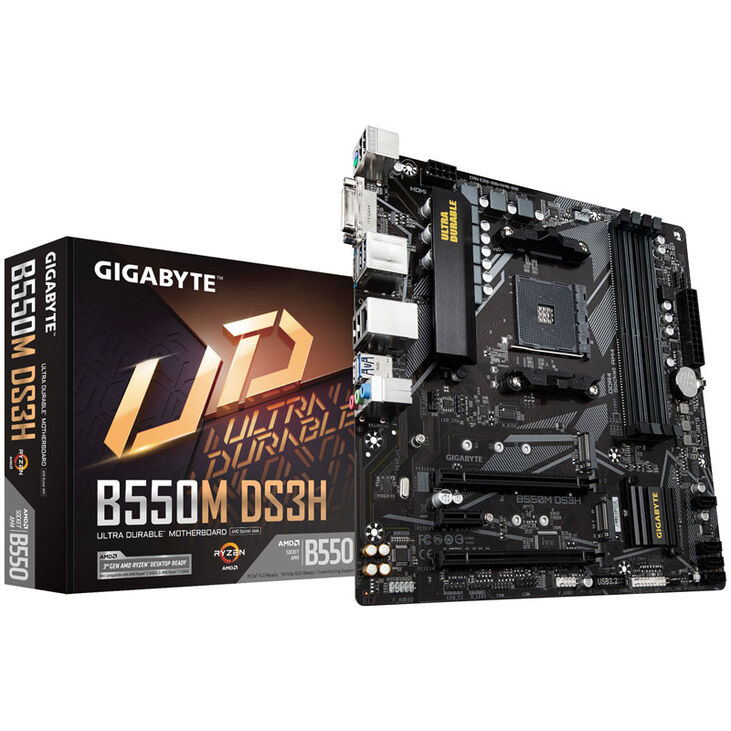

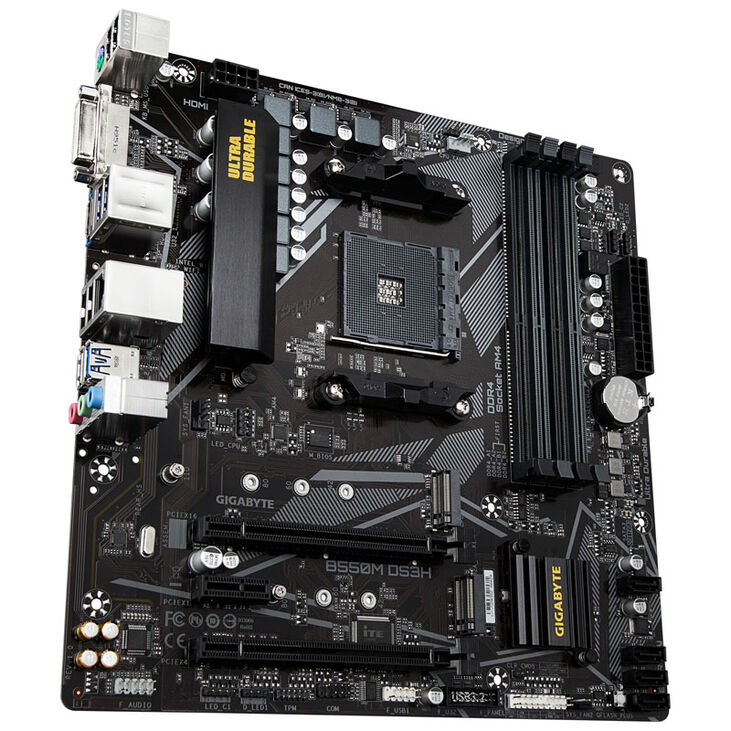

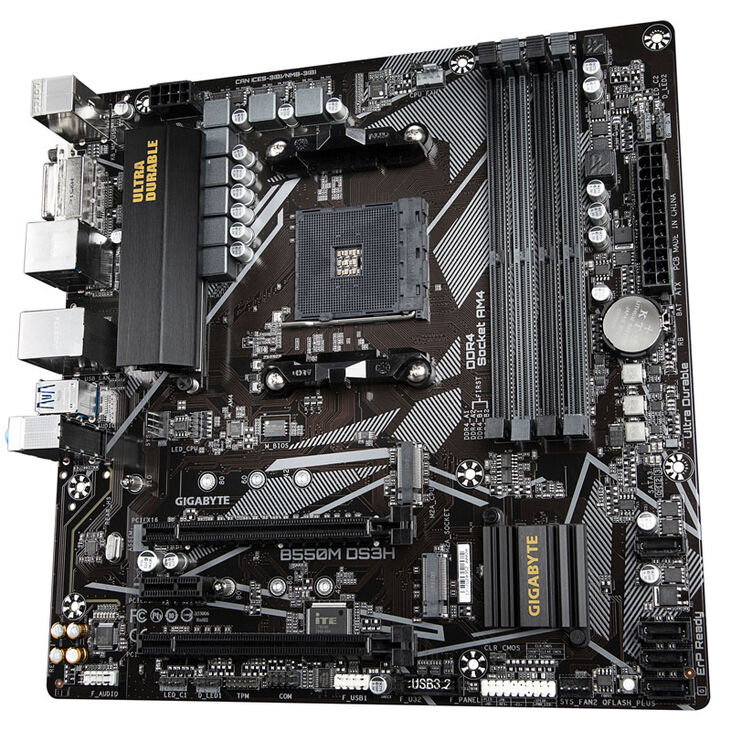

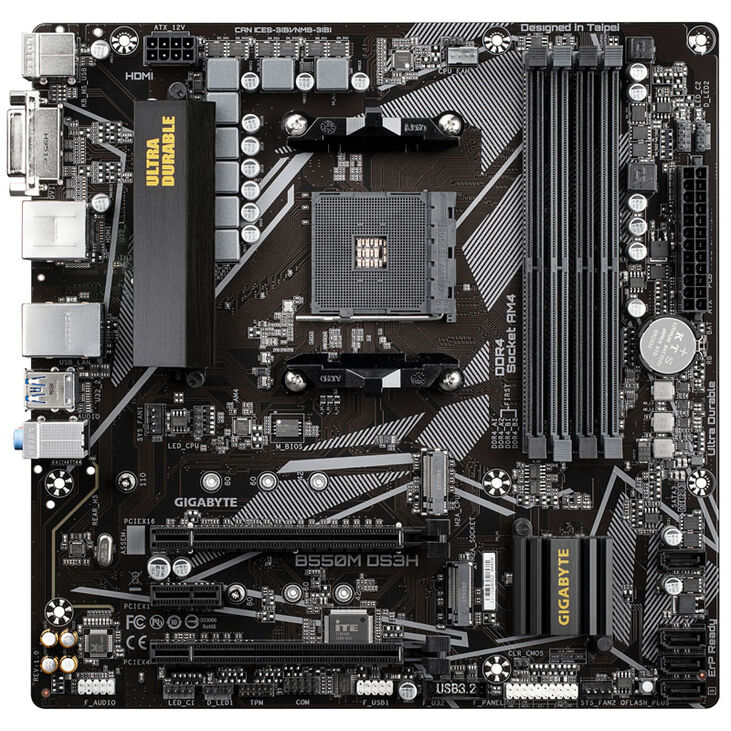

GIGABYTE B550M DS3H, Socket AM4, AMD B550M, Micro-ATX - DDR4
Well-equipped B550 motherboard, in Micro-ATX format, up to 128 GB DDR4 4733 MHz (OC) possible, a BIOS update may be required for Ryzen 5000 CPUs
95,06 €
incl. VAT
, add. delivery costs starting from 4.99€
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Silver, White
|
|
Dimensions
|
|
|
Length / Depth
|
24.4 cm
|
|
Width
|
24.4 cm
|
|
Form Factor
|
|
|
Motherboard formfactor
|
Micro-ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
AMD
|
|
CPU Socket
|
AM4
|
|
Motherboard
|
|
|
Motherboard Chipset
|
AMD B550
|
|
Memory
|
|
|
Max. Memory
|
128 GB
|
|
Memory Type
|
DDR4
|
|
Memory slots
|
4x
|
|
Wi-Fi & LAN
|
|
|
LAN Ports
|
1x 1 Gbit/s
|
|
Wi-Fi / Bluetooth
|
No
|
|
Internal Ports
|
|
|
CPU Power Supply
|
1x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
USB 2.0 (internal) Possible Ports
|
2
|
|
RGB / LED connectors
|
2x Digital RGB (3-Pin 5VDG), 3x RGB (4-Pin 5050 12VGRB)
|
|

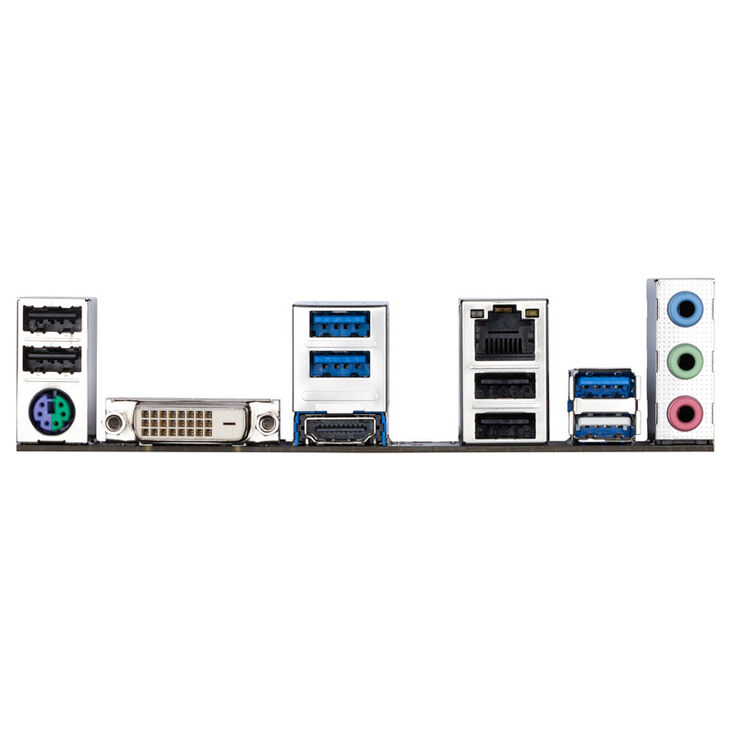

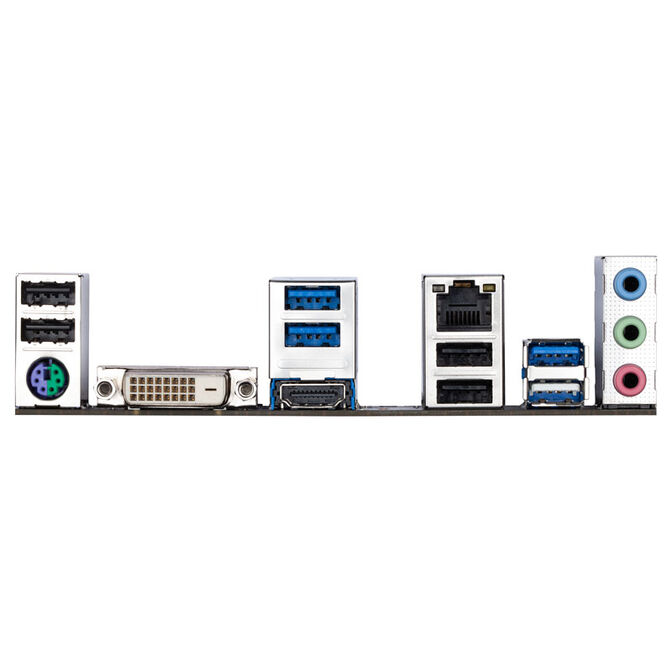

External Ports
|
|
|
USB 3.2 (external) Type C
|
4
|
|
USB 3.0 (external) Type A
|
4
|
|
USB 2.0 (external) Type A
|
4
|
|
Display Connectors
|
DVI-D (1x), HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 3.0 x4 & SATA 6G
|
1
|
|
M.2 PCIe 4.0 x4 & SATA 6G
|
1
|
|
SATA 6G (internal)
|
4
|
|
Expansion Slots
|
|
|
PCIe 4.0 x16 mechanical slot
|
1
|
|
PCIe 3.0 x16 mechanical slot
|
1
|
|
PCIe 3.0 x4 mechanical slot
|
1
|
|
PCIe 3.0 x1 mechanical slot
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
3
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
