GIGABYTE B840M D2H motherboard, AM5 socket, AMD B840, Micro-ATX, DDR5

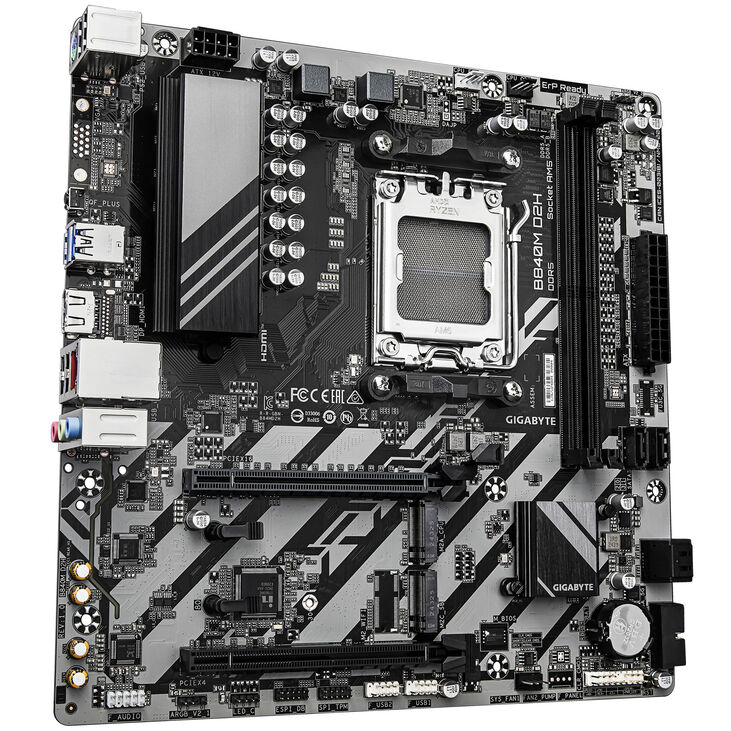

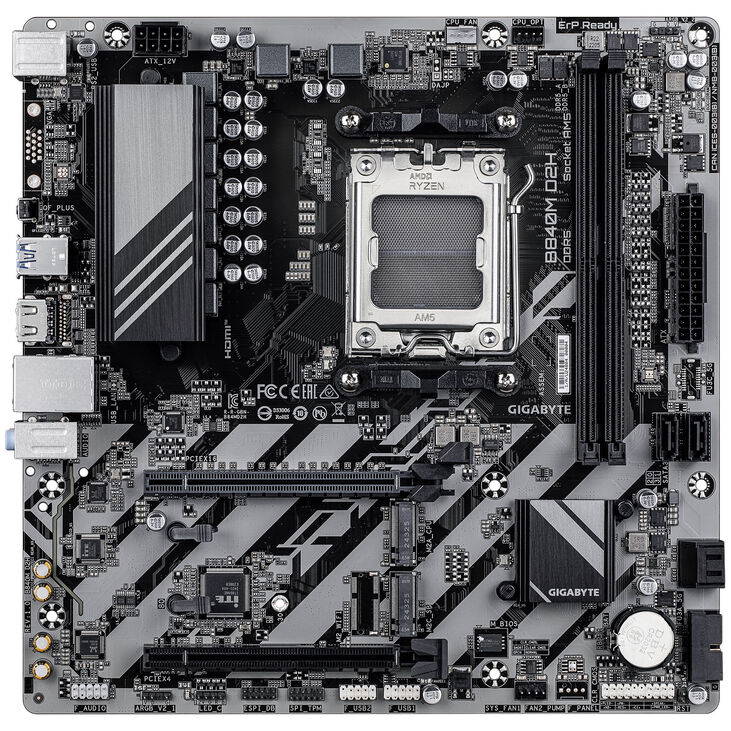

The GIGABYTE B840M D2H is a Micro-ATX motherboard featuring the AMD B840 chipset, designed for AMD Ryzen processors from the 7000, 8000, and 9000 series with the AM5 socket. It provides a solid foundation for modern gaming and work PCs.

• Supports Ryzen 7000–9000 CPUs – future-proof platform
• Up to 192 GB RAM at speeds of up to 7,200 MT/s (OC)
• 2x M.2 PCIe slots for fast NVMe SSDs
• 2.5 Gbit LAN for fast network connections
• Q-Flash Plus for BIOS updates without CPU

Powerful platform for modern applications

With support for the latest generation of AMD Ryzen processors and DDR5 memory, the B840M D2H provides a powerful base for demanding applications. The 5+2+2 phase VRM ensures stable power delivery, even under heavy load.

Fast storage and expansion options

Four DDR5 slots allow for the use of up to 192 GB of memory with high clock speeds. One M.2 PCIe 4.0 and one M.2 PCIe 3.0 slot provide space for fast NVMe SSDs, while four SATA 6 Gb/s ports offer additional storage options.

Modern connectivity and user-friendliness

The motherboard features an HDMI 2.1 output for high-resolution displays and a 2.5 Gbit LAN port for fast network connections. With X3D Turbo Mode and Q-Flash Plus, performance boosts and BIOS updates are easy to implement. The motherboard includes two USB-A 3.0 and four USB-A 2.0 ports to connect your peripherals without any issues.
