GIGABYTE B850 Eagle WiFi6E Motherboard, socket AM5, AMD B850, ATX, DDR5
ATX motherboard with AMD B850 chipset, supports PCI-Express 5.0, suitable for DDR5 RAM, with Wi-Fi and Bluetooth
190,26 €
incl. VAT
, add. delivery costs starting from 4.99€
- Slots: 1x PCIe 5.0 x16 (x16) and 3x PCIe 3.0 x16 (x1)
- RAM: 4x DIMM slots for a maximum of 256 GB DDR5 RAM up to 8,200 MT/s
- Storage: 2x M.2 (1x PCIe 5.0 & 1x PCIe 4.0) and 4x SATA
- USB: 1x USB-C 3.0, 2x USB 3.1, 2x USB 3.0, and 4x USB 2.0
- Cooling: 6x 4-pin PWM connectors for fans and radiators

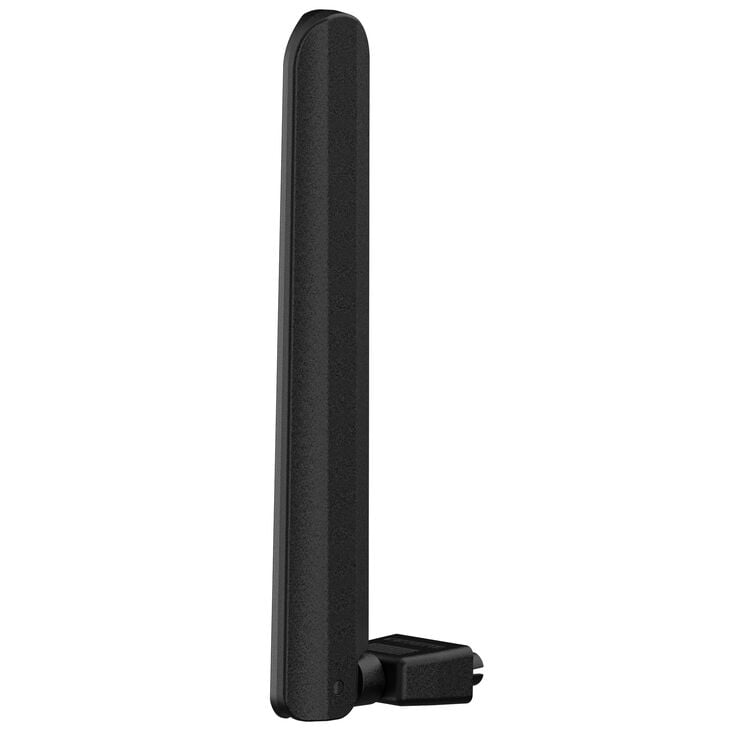

- Connectivity: Wi-Fi 6E and Bluetooth 5.3

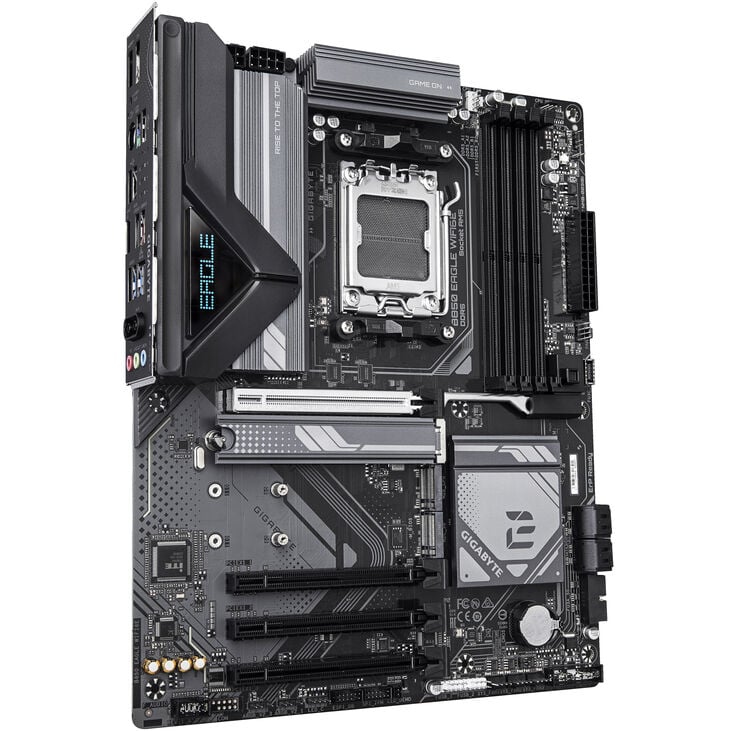

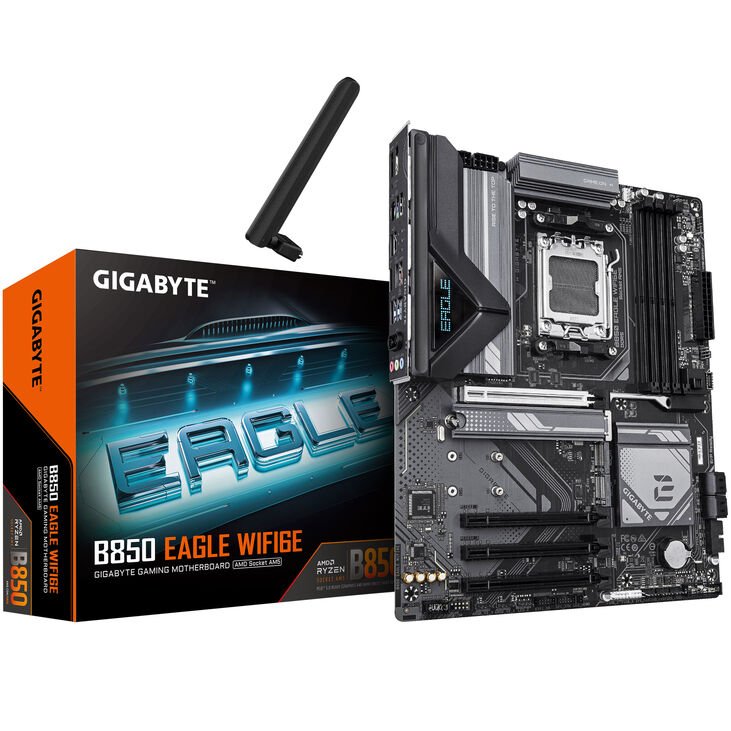

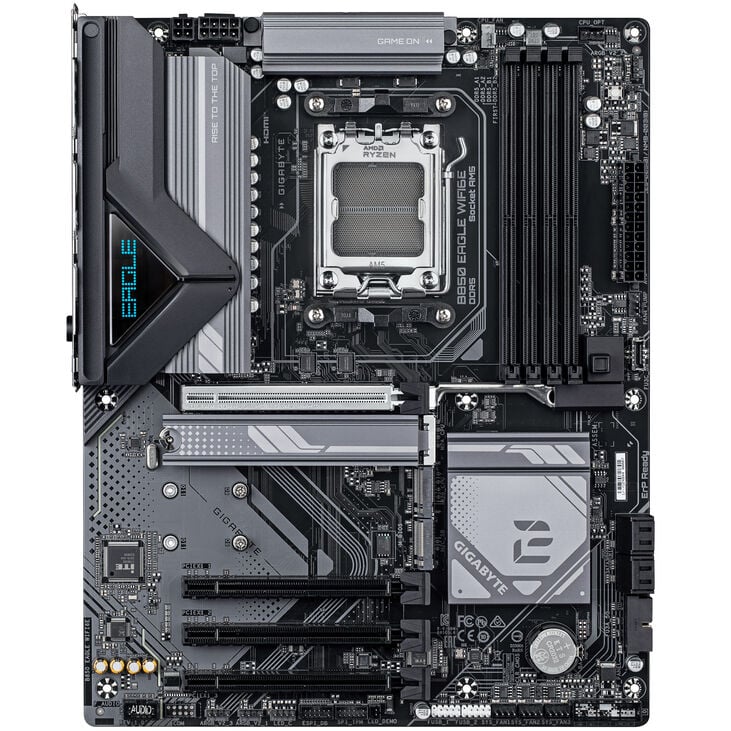

GIGABYTE B850 Eagle WiFi6E: ATX Motherboard with AMD AM5 Socket and B850 Chipset
The GIGABYTE B850 Eagle WiFi6E is an ATX motherboard featuring the mid-range AMD B850 chipset and the AMD AM5 socket. It supports Ryzen 9000, 8000, and 7000 CPUs.
Connection to graphics cards and NVMe SSDs is via PCIe 5.0. Data transfer rates of up to 10 Gbit/s are possible using USB 3.1.
Overclocking for Gamers
To get the most out of your gaming PC, the CPU can be overclocked through the motherboard to achieve higher clock rates. A stable power supply for the processor is ensured, allowing high-end CPUs to operate at full performance for extended periods. You can also fully utilise the DDR5 memory with overclocking. In case of emergencies, the GIGABYTE B850 Eagle WiFi6E offers Clear CMOS.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
305 mm
|
|
Width
|
244 mm
|
|
Form Factor
|
|
|
Motherboard formfactor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
AMD
|
|
CPU Socket
|
AM5
|
|
Motherboard
|
|
|
Motherboard Chipset
|
AMD B850
|
|
Built-In I/O Shield
|
Yes
|
|
Memory
|
|
|
Max. Memory
|
256 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
System Memory Subtype
|
UDIMM
|
|
Max. Memory Speed (Standard)
|
5200 MT/s
|
|
Max. Memory Speed (OC)
|
8200 MT/s
|
|
EEC Support
|
No
|
|
Memory slots
|
4x
|
|
Performance Profile
|
AMD EXPO
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 1 Gbit/s
|
|
LAN Chip
|
Realtek RTL8111H
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Wi-Fi Standard
|
Wi-Fi 6E
|
|
Bluetooth Standard
|
5.3
|
|
Wi-Fi Chip
|
Intel AX210NGW
|
|
Cooling
|
|
|
Backplate
|
Yes
|
|
M.2 Heatsinks
|
Yes
|
|
VRM Heatsinks
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
1x 4-Pin, 1x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Header
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
USB 2.0 (internal) Header
|
2
|
|
USB 2.0 (internal) Possible Ports
|
4
|
|
RGB / LED connectors
|
1x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG)
|
|
Front Panel Audio Header
|
Yes
|
|
SPI TPM Header
|
Yes
|
|

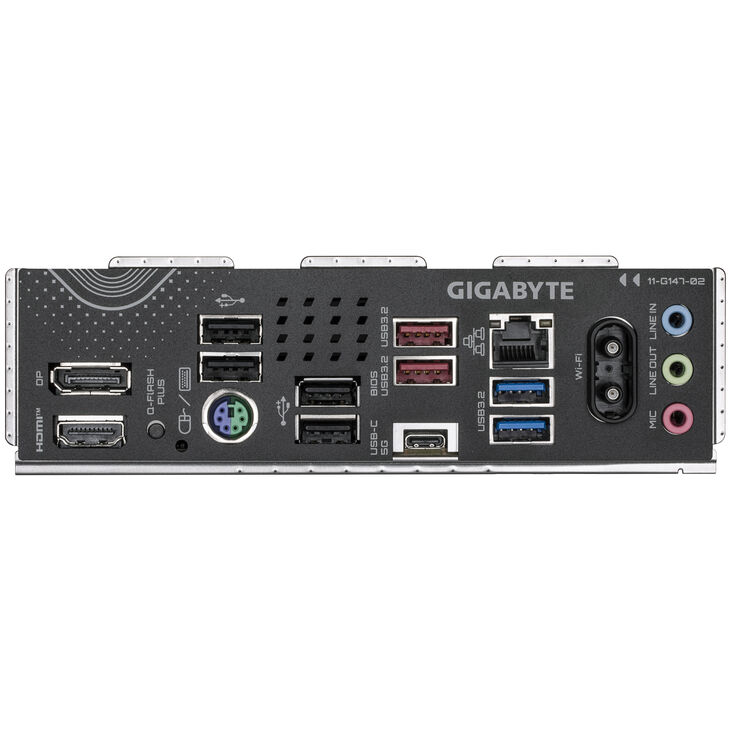

External Ports
|
|
|
USB 3.1 (external) Type A
|
2
|
|
USB 3.0 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
USB 2.0 (external) Type A
|
2
|
|
Display Connectors
|
HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
1
|
|
M.2 PCIe 5.0 x4
|
1
|
|
SATA 6G (internal)
|
4
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
1
|
|
PCIe x1 slots (total)
|
3
|
|
PCIe 5.0 x16 mechanical slot
|
1
|
|
PCIe 3.0 x16 mechanical slot
|
3
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
6
|
|
Audio
|
|
|
Soundchip
|
Realtek ALC897
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
