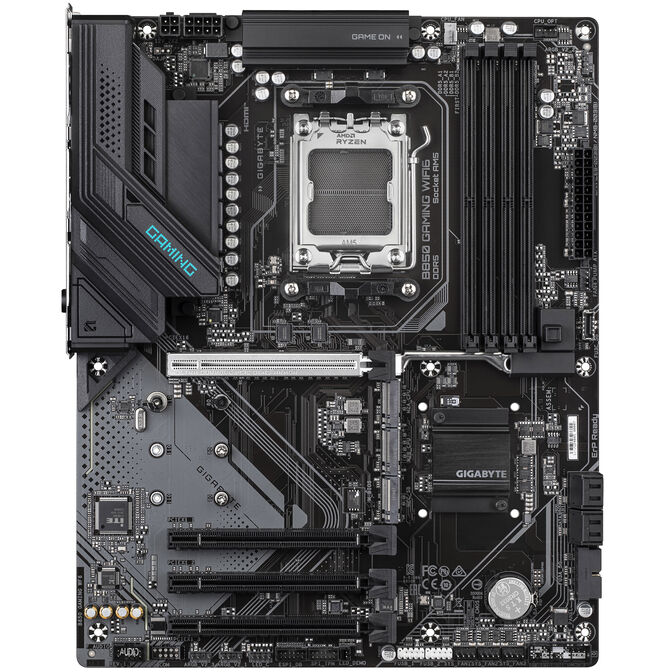

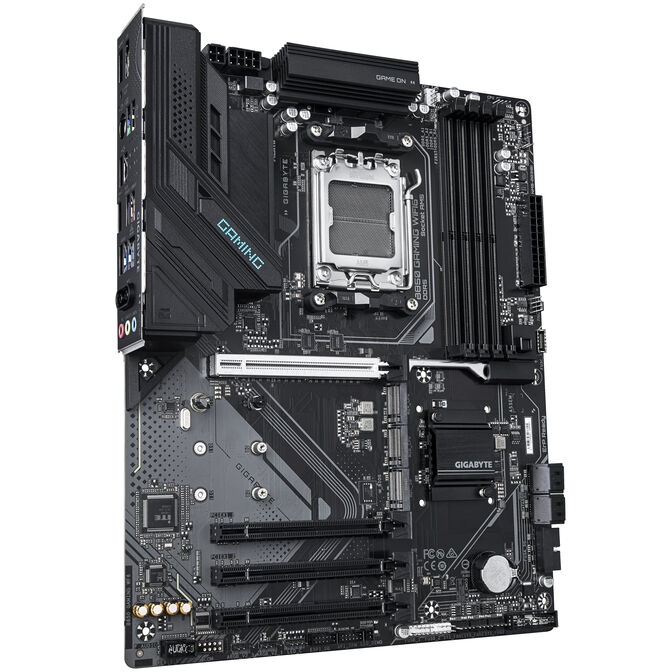

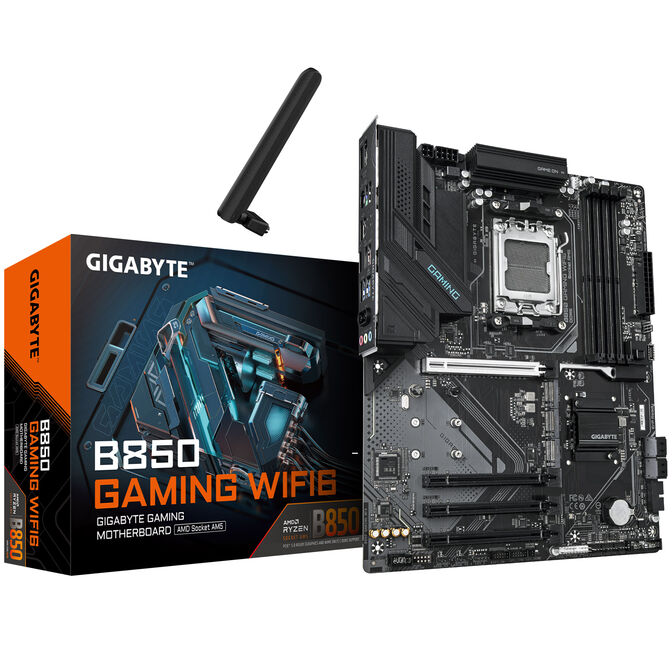

GIGABYTE B850 Gaming WiFi6 Motherboard, Socket AM5 (LGA 1718), AMD B850, ATX, DDR5
ATX motherboard with AMD B850 chipset, 1x PCIe 5.0 x16 / 3x PCIe 3.0 x1, 2x USB 3.1 / 6x USB 3.0 / 8x USB 2.0, 3x M.2 (1x PCIe 5.0, 2x PCIe 4.0) / 4x SATA 6G, 6x 4-pin PWM connectors.
175,80 €
incl. VAT
, add. delivery costs starting from 4.99€
This motherboard is an excellent choice for budget builds and light overclocking.
- 1x PCIe 5.0 x16 (x16 with Ryzen 9000/7000 series) and 3x PCIe 3.0 x1
- 4x DIMM slots supporting up to 256 GB of DDR5 RAM at speeds up to 8200 MHz (XMP & AMD EXPO support)
- 3x M.2 slots (1x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA 6G

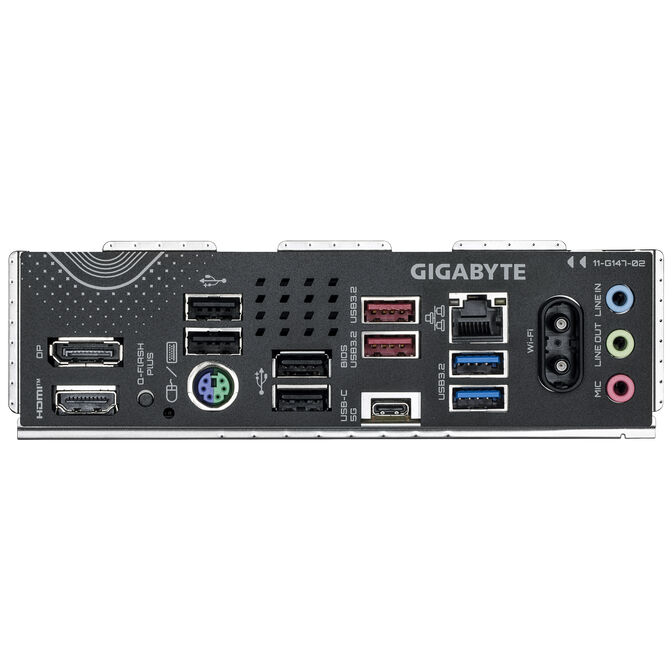

- USB on the I/O panel: 2x USB 3.1, 1x USB 3.0 Type-C, 2x USB 3.0, 4x USB 2.0
- Overclocking features: 6+2+2 phase VRMs, Q-Flash-Plus, DDR5 speeds up to 8200 MHz
- 6x 4-pin connectors for fans and pumps

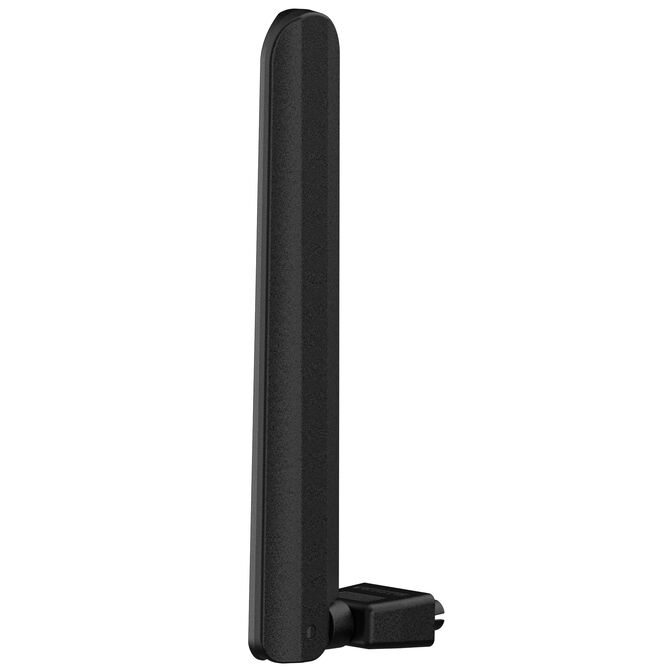

- Supports WiFi 6 and Bluetooth 5.3
GIGABYTE B850 Gaming WiFi6: ATX Motherboard with AMD AM5 Socket and B850 Chipset
The GIGABYTE B850 Gaming WiFi6 is an ATX motherboard featuring the mid-range AMD B850 chipset and the Socket LGA 1718. It supports AMD Ryzen processors from the 9000 series, codenamed Summit Ridge. The B850 platform offers advanced overclocking capabilities, enabling DDR5 memory speeds of up to 8200 MHz. Additionally, the GIGABYTE B850 Gaming WiFi6 impresses with full PCIe 5.0 connectivity, providing double the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Grey
|
|
Form Factor
|
|
|
Motherboard formfactor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
AMD
|
|
CPU Socket
|
AM5
|
|
Motherboard
|
|
|
Motherboard Chipset
|
AMD B850
|
|
Dual BIOS
|
No
|
|
Built-In I/O Shield
|
Yes
|
|
Memory
|
|
|
Max. Memory
|
256 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (Standard)
|
4400 MT/s
|
|
Max. Memory Speed (OC)
|
8200 MT/s
|
|
EEC Support
|
No
|
|
Memory slots
|
4x
|
|
Performance Profile
|
AMD EXPO, Intel XMP
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x (in total)
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Bluetooth Standard
|
5.3
|
|
Wi-Fi Chip
|
Realtek RTL8851BE
|
|
Cooling
|
|
|
Backplate
|
No
|
|
M.2 Heatsinks
|
Yes
|
|
VRM Heatsinks
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
1x 4-Pin + 1x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Header
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
USB 2.0 (internal) Header
|
2
|
|
USB 2.0 (internal) Possible Ports
|
4
|
|
RGB / LED connectors
|
1x RGB (4-Pin 5050 12VGRB), 2x Digital RGB (3-Pin 5VDG)
|
|
Front Panel Audio Header
|
Yes
|
|
SPI TPM Header
|
Yes
|
|
External Ports
|
|
|
USB 3.1 (external) Type A
|
2
|
|
USB 3.0 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
USB 2.0 (external) Type A
|
4
|
|
Display Connectors
|
Display Port (1x), HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x2
|
1
|
|
M.2 PCIe 4.0 x4
|
1
|
|
M.2 PCIe 5.0 x4
|
1
|
|
SATA 6G (internal)
|
4
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
4
|
|
PCIe 5.0 x16 mechanical slot
|
1
|
|
PCIe 3.0 x1 mechanical slot
|
3
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
6
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
|
Lighting Compatibility
|
GIGABYTE RGB Fusion
|
