GIGABYTE B850I Aorus Pro motherboard, socket AM5, AMD B850, Mini-ITX, DDR5
Mini-ITX motherboard with AMD B850 chipset, supports PCI-Express 5.0, suitable for DDR5 RAM, with Wi-Fi and Bluetooth
283,62 €
incl. VAT
, add. delivery costs starting from 4.99€
- Slots: 1x PCIe 5.0 x16 (x16)
- RAM: 4x DIMM slots for a maximum of 128 GB DDR5 RAM up to 8,400 MT/s
- Storage: 2x M.2 (1x PCIe 5.0 & 1x PCIe 4.0) and 4x SATA
- USB: 1x USB-C 3.1, 2x USB 3.1, 2x USB 3.0 and 2x USB 2.0
- Cooling: 3x 4-pin PWM connectors for fans and radiators

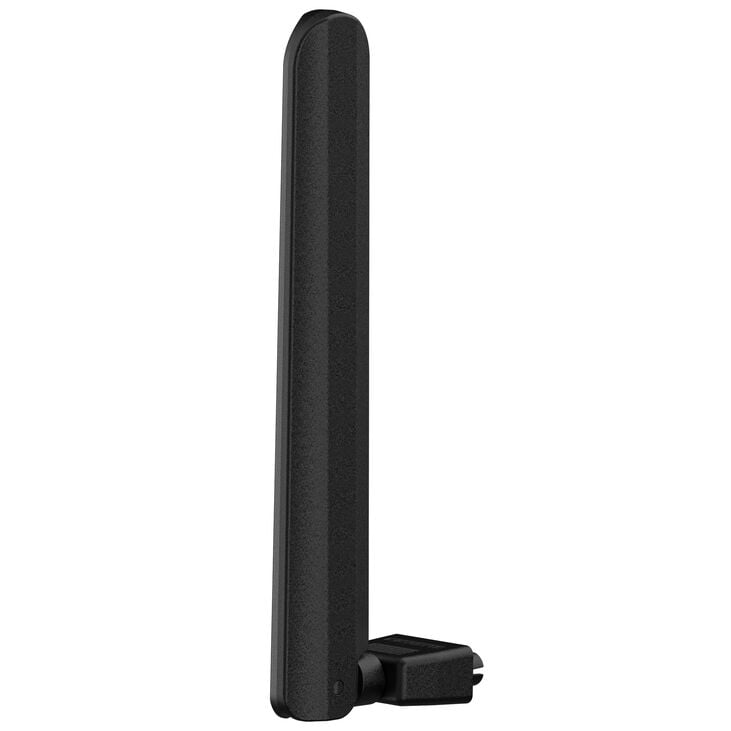

- Connectivity: Wi-Fi 7 and Bluetooth 5.4

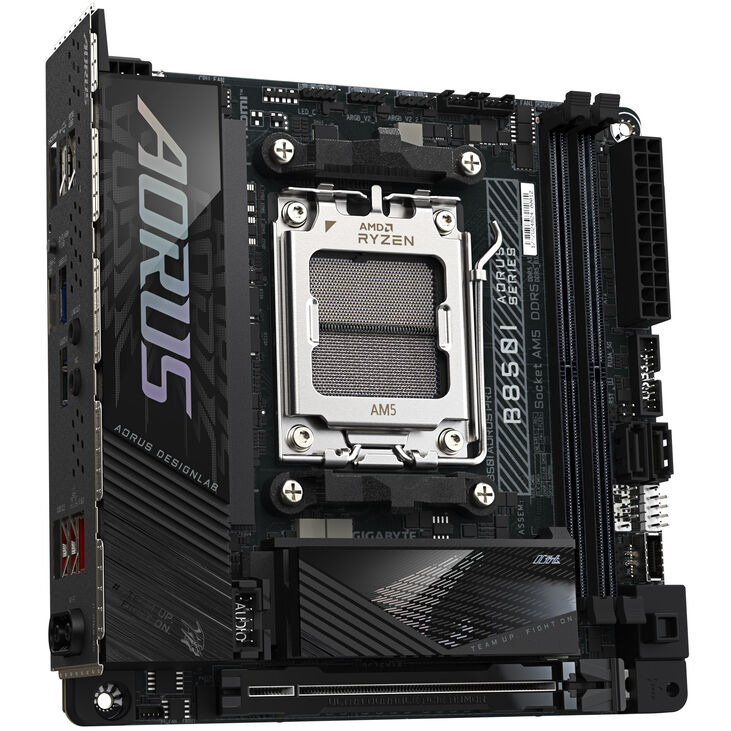

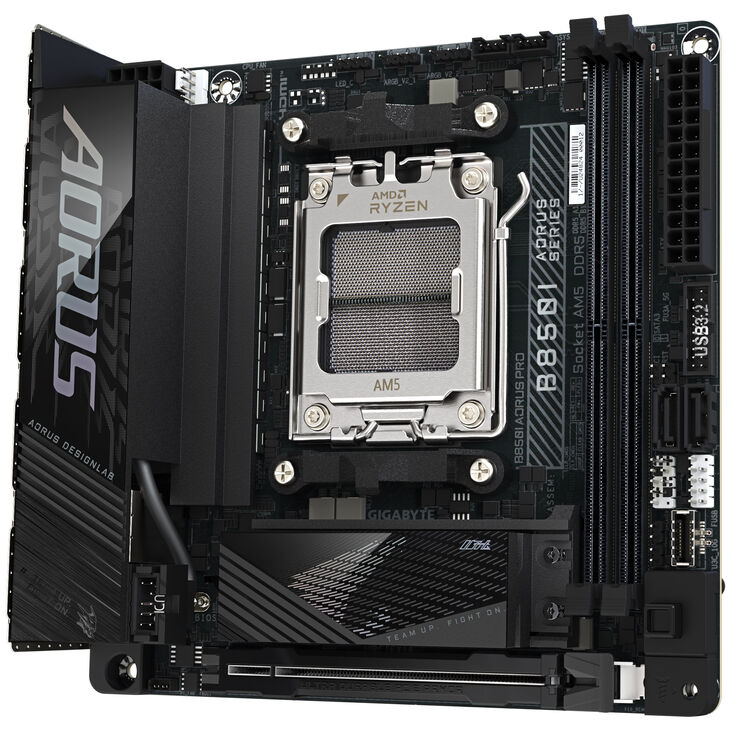

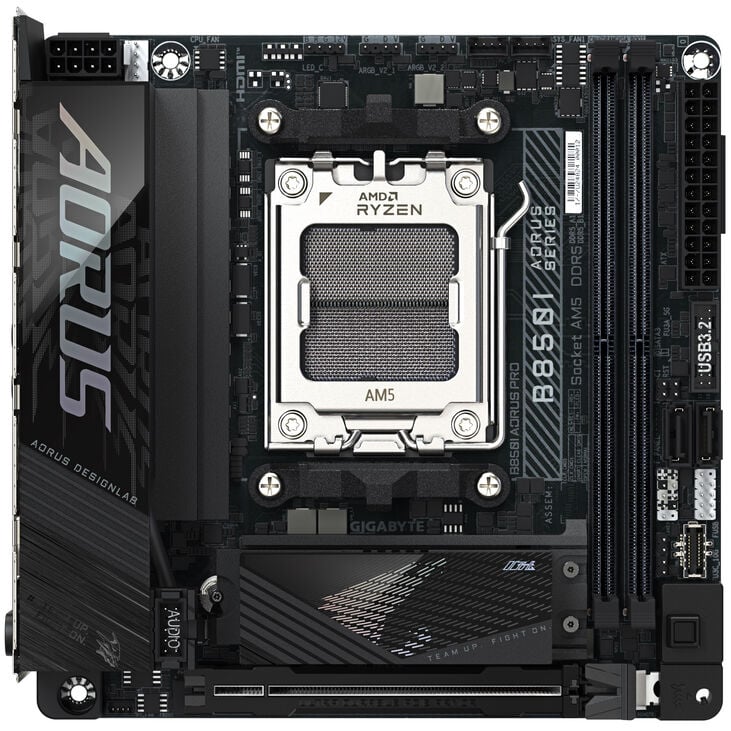

GIGABYTE B850I Aorus Pro: Mini-ITX motherboard with AMD AM5 socket and B850 chipset
The GIGABYTE B850I Aorus Pro is a Mini-ITX motherboard featuring the mid-range AMD B850 chipset and the AMD AM5 socket. It supports both the Ryzen 9000, 8000, and 7000 CPUs.
Connection to graphics cards and NVMe SSDs is via PCIe 5.0. Data transfer rates of up to 10 Gbit/s are possible using USB 3.1.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
170 mm
|
|
Width
|
170 mm
|
|
Form Factor
|
|
|
Motherboard formfactor
|
Mini-ITX
|
|
CPU
|
|
|
CPU Manufacturer
|
AMD
|
|
CPU Socket
|
AM5
|
|
Motherboard
|
|
|
Motherboard Chipset
|
AMD B850
|
|
Memory
|
|
|
Max. Memory
|
128 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
System Memory Subtype
|
UDIMM
|
|
Max. Memory Speed (Standard)
|
5200 MT/s
|
|
Max. Memory Speed (OC)
|
8400 MT/s
|
|
EEC Support
|
No
|
|
Memory slots
|
2x
|
|
Performance Profile
|
AMD EXPO
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|
LAN Chip
|
Realtek 8125
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Wi-Fi Standard
|
Wi-Fi 7
|
|
Bluetooth Standard
|
5.4
|
|
Wi-Fi Chip
|
Realtek RTL8922AE
|
|
Cooling
|
|
|
Backplate
|
Yes
|
|
M.2 Heatsinks
|
Yes
|
|
VRM Heatsinks
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
2x 4-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Header
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
USB 2.0 (internal) Header
|
1
|
|
USB 2.0 (internal) Possible Ports
|
2
|
|
RGB / LED connectors
|
1x RGB (4-Pin 5050 12VGRB), 2x Digital RGB (3-Pin 5VDG)
|
|
Front Panel Audio Header
|
Yes
|
|
SPI TPM Header
|
Yes
|
|

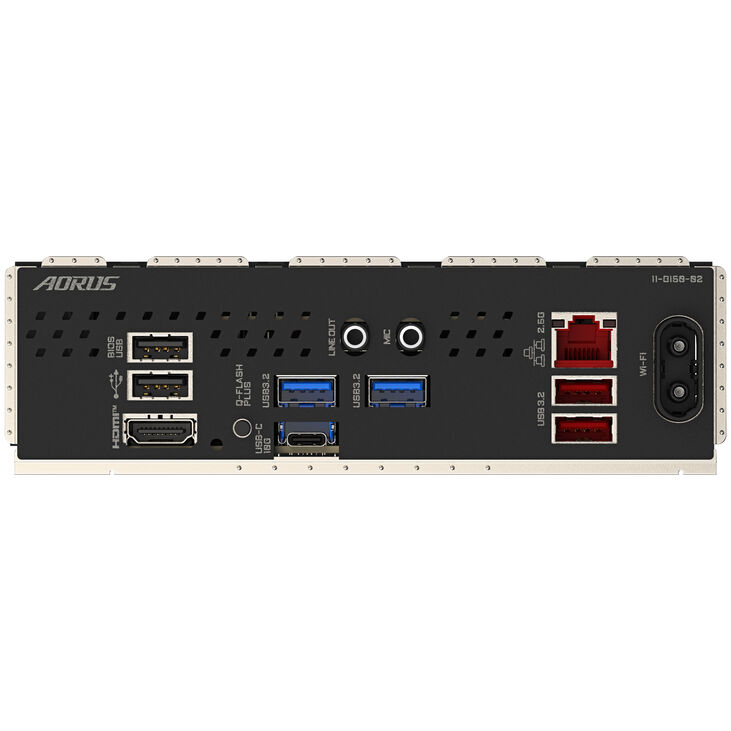

External Ports
|
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.1 (external) Type A
|
2
|
|
USB 3.0 (external) Type A
|
2
|
|
USB 2.0 (external) Type A
|
2
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
1
|
|
M.2 PCIe 5.0 x4
|
1
|
|
SATA 6G (internal)
|
4
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
1
|
|
PCIe 5.0 x16 mechanical slot
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
3
|
|
Audio
|
|
|
Soundchip
|
Realtek ALC4080
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
