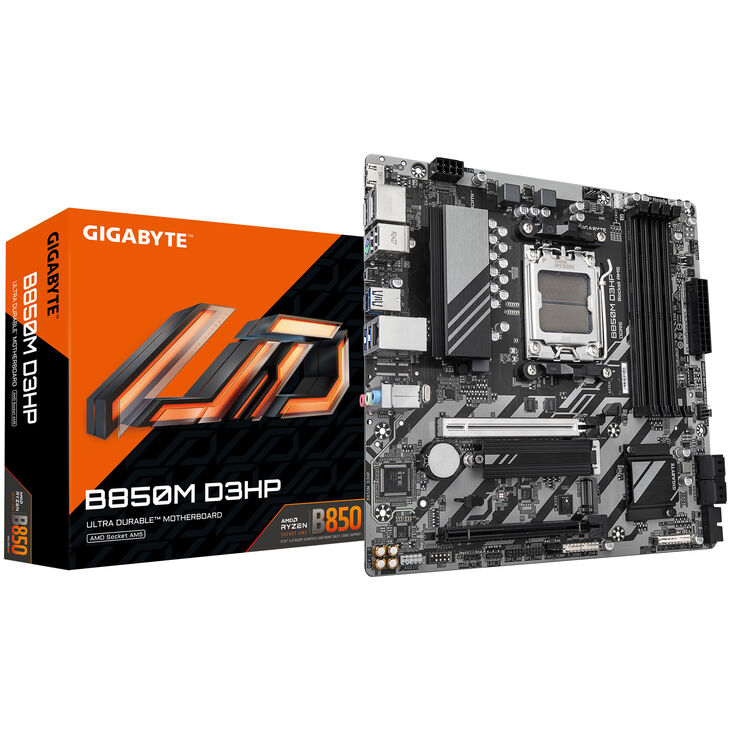

GIGABYTE B850M D3HP Motherboard, socket AM5, AMD B850, mATX, DDR5
Micro-ATX motherboard with B850 chipset from AMD, supports PCI-Express 5.0, suitable for DDR5 RAM
136,38 €
incl. VAT
, add. delivery costs starting from 4.99€
- Slots: 1x PCIe 5.0 x16 (x16) and 1x PCIe 3.0 x16 (x4)
- RAM: 4x DIMM slots for a maximum of 256 GB DDR5 RAM up to 8,200 MT/s
- Storage: 2x M.2 (1x PCIe 5.0 & 1x PCIe 4.0) and 4x SATA
- USB: 1x USB-C 3.1, 3x USB 3.0 and 2x USB 2.0
- Cooling: 4x 4-pin PWM connectors for fans and radiators

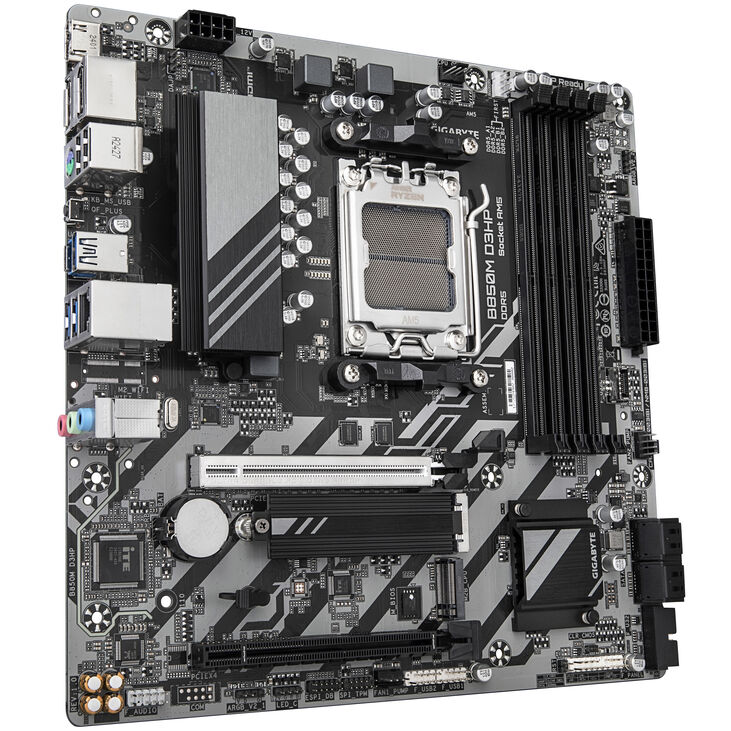

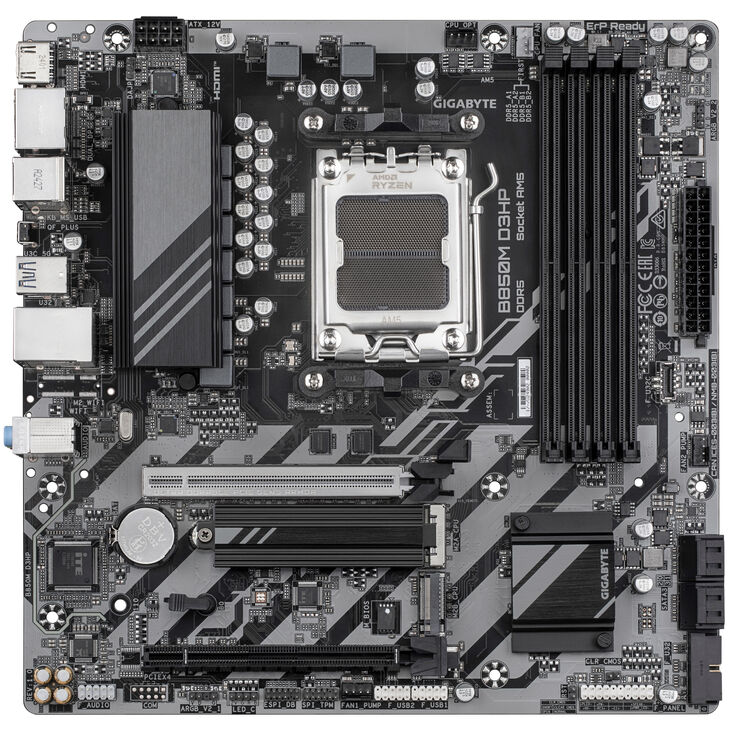

GIGABYTE B850M D3HP: Micro-ATX motherboard with AMD AM5 socket and B850 chipset
The GIGABYTE B850M D3HP is a Micro-ATX motherboard featuring the mid-range AMD B850 chipset and the AMD AM5 socket. It supports Ryzen 9000, 8000, and 7000 CPUs.
Connection to graphics cards and NVMe SSDs is achieved via PCIe 5.0. With USB 3.1, data transfer rates of up to 10 Gbit/s are possible.
Overclocking for Gamers
To get the most out of your gaming PC, the CPU can be overclocked via the motherboard for higher clock speeds. A stable power supply to the processor is ensured, allowing high-end CPUs to operate at full performance for extended periods. You can also fully utilise the DDR5 memory with overclocking. In case of any issues, the GIGABYTE B850M D3HP offers Clear CMOS.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Silver
|
|
Dimensions
|
|
|
Length / Depth
|
244 mm
|
|
Width
|
244 mm
|
|
Form Factor
|
|
|
Motherboard formfactor
|
Micro-ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
AMD
|
|
CPU Socket
|
AM5
|
|
Motherboard
|
|
|
Motherboard Chipset
|
AMD B850
|
|
Memory
|
|
|
Max. Memory
|
256 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
System Memory Subtype
|
UDIMM
|
|
Max. Memory Speed (Standard)
|
8200 MT/s
|
|
Max. Memory Speed (OC)
|
5200 MT/s
|
|
EEC Support
|
No
|
|
Memory slots
|
4x
|
|
Performance Profile
|
AMD EXPO
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 1 Gbit/s
|
|
Wi-Fi / Bluetooth
|
No
|
|
Cooling
|
|
|
Backplate
|
Yes
|
|
M.2 Heatsinks
|
Yes
|
|
VRM Heatsinks
|
Yes
|
|
Water Cooling
|
|
|
Watercooling
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
1x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Header
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
USB 2.0 (internal) Header
|
2
|
|
USB 2.0 (internal) Possible Ports
|
4
|
|
RGB / LED connectors
|
1x RGB (4-Pin 5050 12VGRB), 2x Digital RGB (3-Pin 5VDG)
|
|
Front Panel Audio Header
|
Yes
|
|
SPI TPM Header
|
Yes
|
|

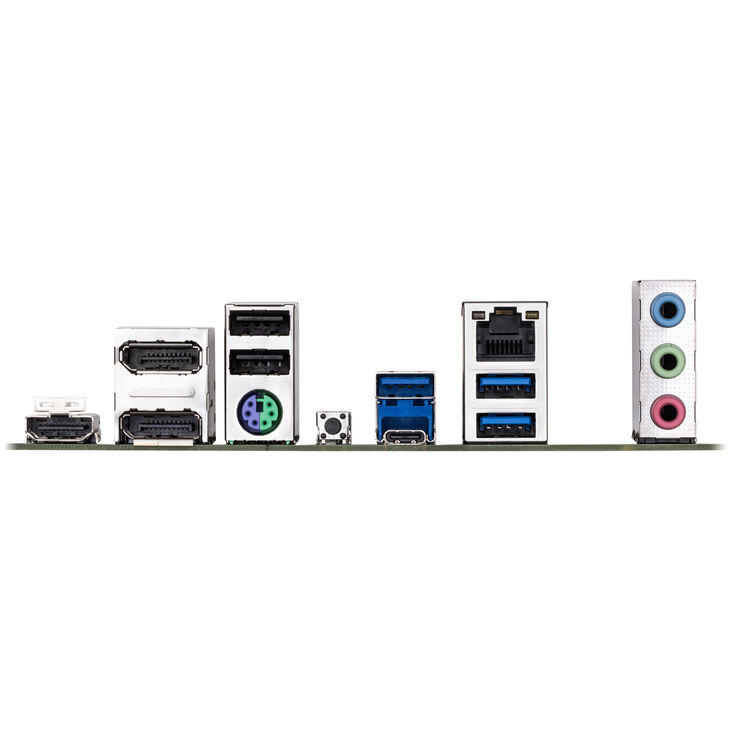

External Ports
|
|
|
USB 3.1 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
3
|
|
USB 2.0 (external) Type A
|
2
|
|
Display Connectors
|
Display Port (2x), HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
1
|
|
M.2 PCIe 5.0 x4
|
1
|
|
SATA 6G (internal)
|
4
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
1
|
|
PCIe x4 slots (total)
|
1
|
|
PCIe 5.0 x16 mechanical slot
|
1
|
|
PCIe 3.0 x16 mechanical slot
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
4
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
