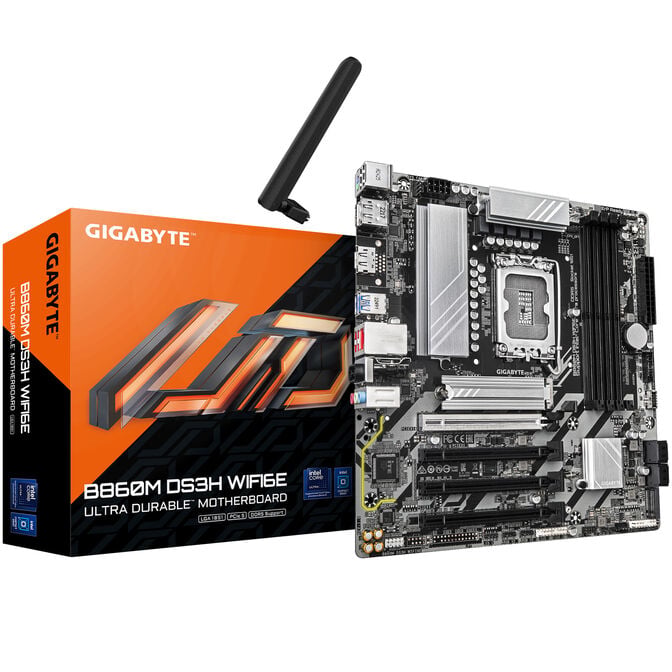

GIGABYTE B860M DS3H WiFi6E Motherboard, Socket 1851, Intel B860, mATX, DDR5
Micro-ATX motherboard with Intel B860 chipset, supports PCI-Express 5.0, compatible with DDR5 RAM, featuring built-in WiFi and Bluetooth
182,07 €
incl. VAT
, add. delivery costs starting from 4.99€
- Slots: 1x PCIe 5.0 x16 (x16) and 2x PCIe 4.0 x16 (x1)
- RAM: 4x DIMM slots supporting up to 256 GB DDR5 RAM at speeds up to 9,066 MT/s
- Storage: 2x M.2 (1x PCIe 5.0 & 1x PCIe 4.0) and 4x SATA
- USB: 1x USB 3.1, 5x USB 3.0, 7x USB 2.0
- Cooling: 4x 4-pin PWM connectors for fans and radiators

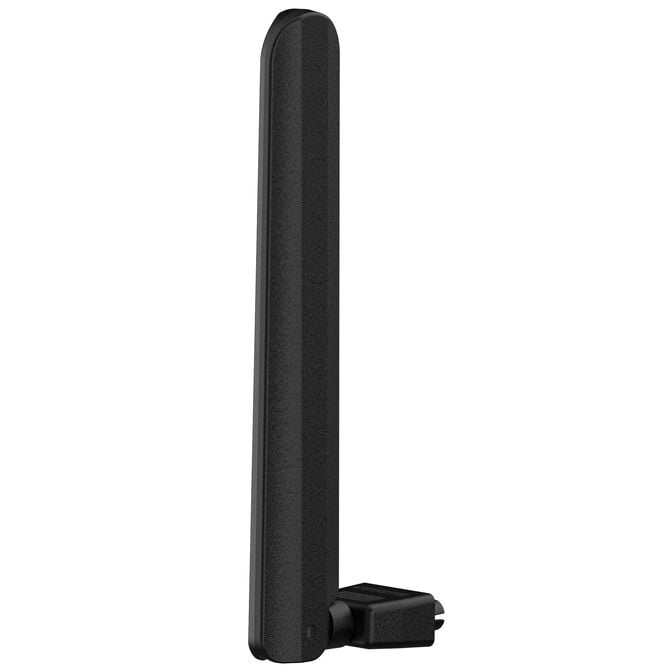

- Connectivity: Wi-Fi 6E and Bluetooth 5.3

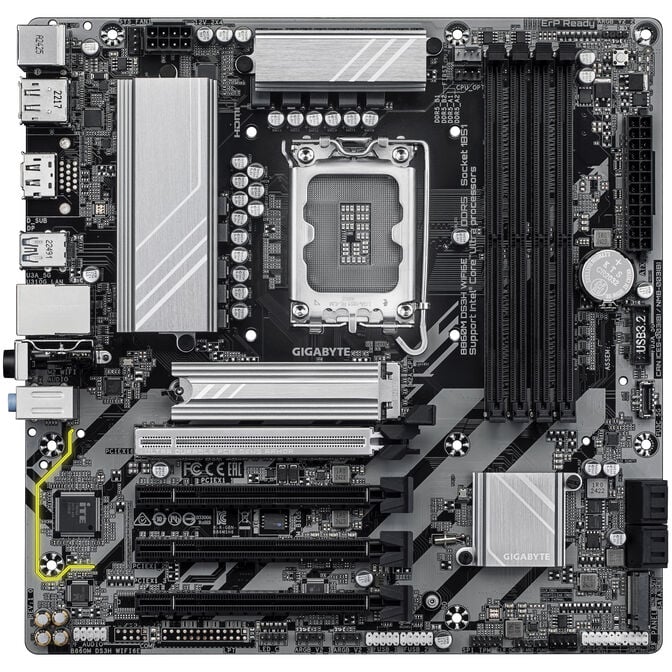

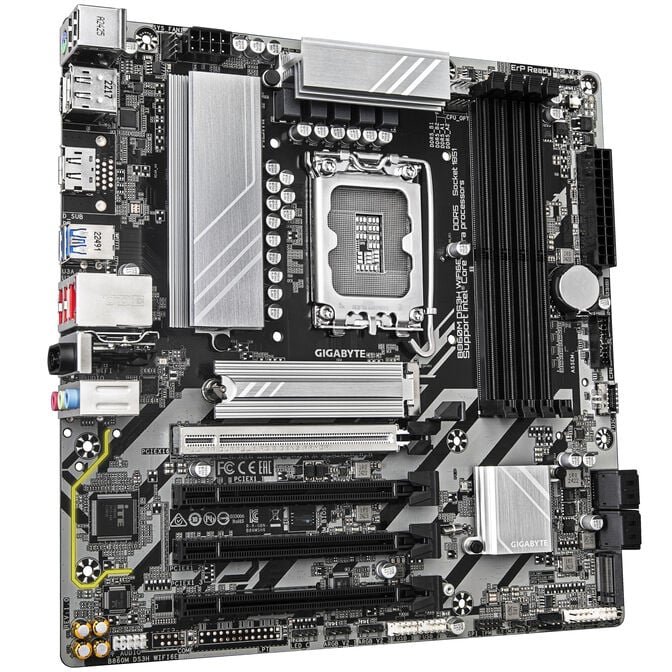

GIGABYTE B860M DS3H WIFI6E: Micro-ATX Motherboard with Intel LGA 1851 Socket and B860 Chipset
The GIGABYTE B860M DS3H WIFI6E is a micro-ATX motherboard featuring the mid-range Intel B860 chipset and Intel LGA 1851 socket. It supports Intel processors from the Arrow Lake generation, making it an excellent choice for gamers who do not prioritize extreme CPU overclocking.
Additionally, the GIGABYTE B860M DS3H WIFI6E offers PCIe 5.0 support for graphics cards and M.2 SSDs. The DDR5 memory is overclockable via XMP 3.0, allowing you to maximize your RAM's performance.
|
Colour
|
|
|
Primary Colour
|
Grey
|
|
Form Factor
|
|
|
Motherboard formfactor
|
Micro-ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
1851
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel B860
|
|
Dual BIOS
|
No
|
|
Built-In I/O Shield
|
No
|
|
Memory
|
|
|
Max. Memory
|
256 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (Standard)
|
6400 MT/s
|
|
Max. Memory Speed (OC)
|
9066 MT/s
|
|
EEC Support
|
No
|
|
Memory slots
|
4x
|
|
Performance Profile
|
Intel XMP
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Wi-Fi Standard
|
Wi-Fi 6E
|
|
Bluetooth Standard
|
5.3
|
|
Wi-Fi Chip
|
Realtek RTL8852CE
|
|
Cooling
|
|
|
Backplate
|
No
|
|
M.2 Heatsinks
|
Yes
|
|
VRM Heatsinks
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
1x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Header
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
USB 2.0 (internal) Header
|
2
|
|
USB 2.0 (internal) Possible Ports
|
4
|
|
RGB / LED connectors
|
1x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG)
|
|
Front Panel Audio Header
|
Yes
|
|
SPI TPM Header
|
Yes
|
|

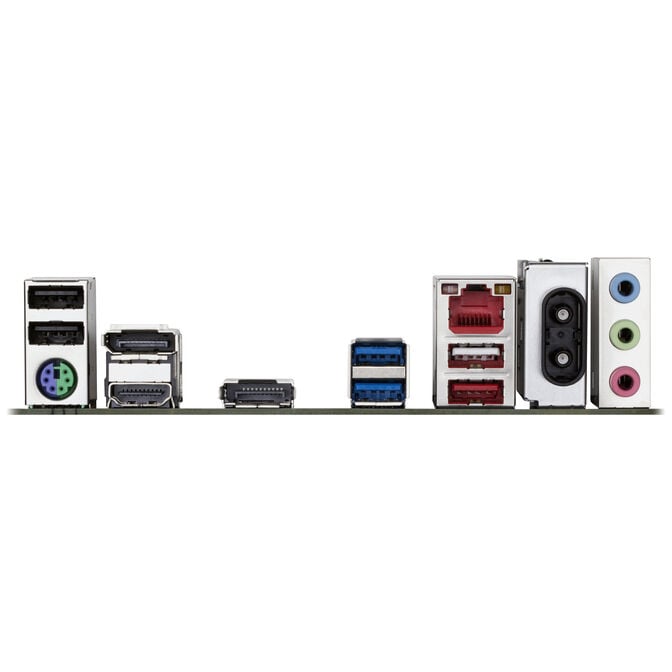

External Ports
|
|
|
USB 3.1 (external) Type A
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
USB 2.0 (external) Type A
|
3
|
|
Display Connectors
|
Display Port (2x), HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
1
|
|
M.2 PCIe 5.0 x4
|
1
|
|
SATA 6G (internal)
|
4
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
3
|
|
PCIe 5.0 x16 mechanical slot
|
1
|
|
PCIe 4.0 x1 mechanical slot
|
2
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
4
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
