GIGABYTE B860M Gaming X WiFi6E motherboard, Socket 1851, Intel B860, mATX, DDR5
Micro-ATX motherboard with Intel B860 chipset, supports PCI-Express 5.0, suitable for DDR5 RAM, with Wi-Fi and Bluetooth
191,62 €
incl. VAT
, add. delivery costs starting from 4.99€
- Slots: 1x PCIe 5.0 x16 (x16) and 1x PCIe 4.0 x16 (x4)
- RAM: 4x DIMM slots for up to 256 GB DDR5 RAM at 9,200 MT/s
- Storage: 2x M.2 (1x PCIe 5.0 & 1x PCIe 4.0) and 4x SATA
- USB: 1x USB 4, 1x USB 3.1, 5x USB 3.0, 9x USB 2.0
- Cooling: 4x 4-pin PWM connectors for fans and radiators

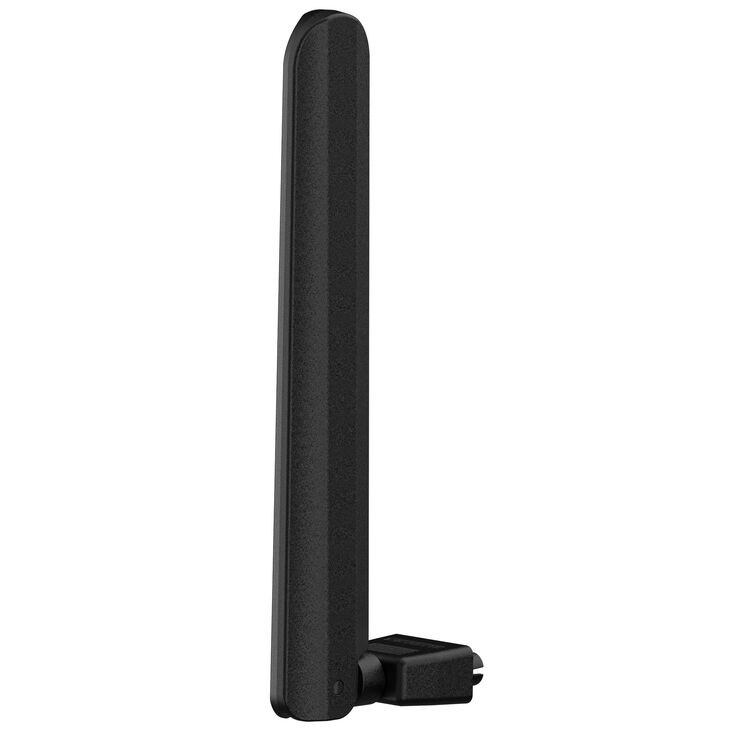

- Connectivity: Wi-Fi 6E and Bluetooth 5.3

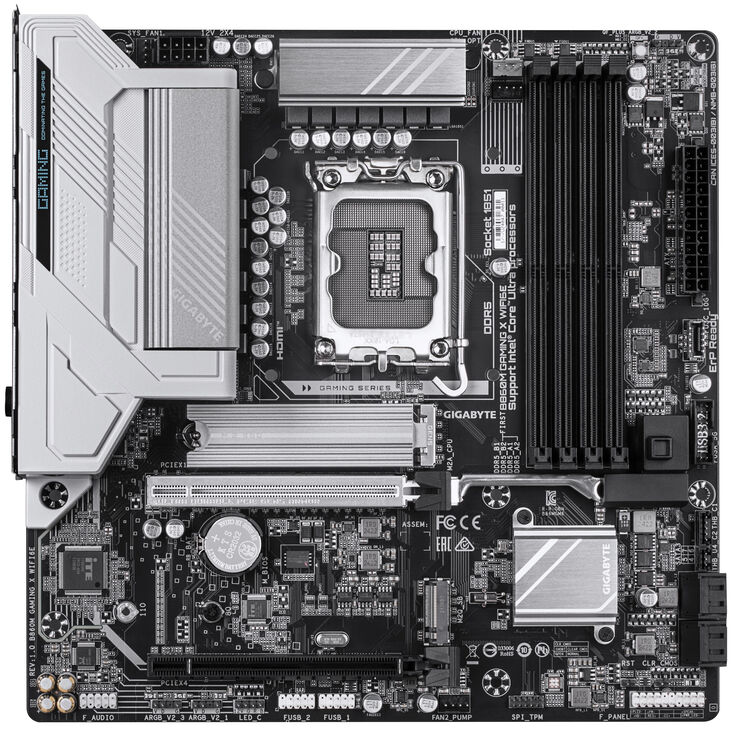

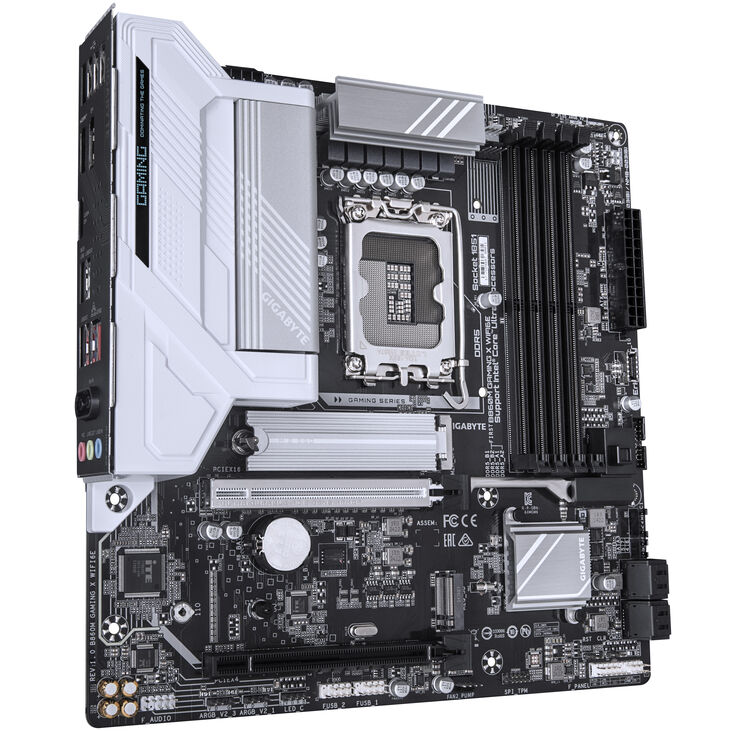

GIGABYTE B860M GAMING X WIFI6E: micro-ATX motherboard with Intel LGA 1851 socket and B860 chipset
The GIGABYTE B860M GAMING X WIFI6E is a micro-ATX motherboard featuring the mid-range Intel B860 chipset and Intel LGA 1851 socket. It supports Intel processors from the Arrow Lake generation and is ideal for gamers who do not prioritise extreme CPU overclocking.
Additionally, B860 motherboards support USB4, enabling ultra-fast data transfer rates of up to 40 Gbps. The B860M Gaming X WiFi6E also offers PCIe 5.0 compatibility for graphics cards and M.2 SSDs. DDR5 memory is overclockable with XMP, allowing you to maximise your RAM's performance.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Light grey, White
|
|
Form Factor
|
|
|
Motherboard formfactor
|
Micro-ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
1851
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel B860
|
|
Dual BIOS
|
No
|
|
Built-In I/O Shield
|
Yes
|
|
Memory
|
|
|
Max. Memory
|
256 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (Standard)
|
6400 MT/s
|
|
Max. Memory Speed (OC)
|
9200 MT/s
|
|
EEC Support
|
No
|
|
Memory slots
|
4x
|
|
Performance Profile
|
Intel XMP
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Wi-Fi Standard
|
Wi-Fi 6E
|
|
Bluetooth Standard
|
5.3
|
|
Wi-Fi Chip
|
Realtek RTL8852CE
|
|
Cooling
|
|
|
M.2 Heatsinks
|
Yes
|
|
VRM Heatsinks
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
1x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Header
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
USB 2.0 (internal) Header
|
2
|
|
USB 2.0 (internal) Possible Ports
|
4
|
|
RGB / LED connectors
|
1x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG)
|
|
Front Panel Audio Header
|
Yes
|
|
SPI TPM Header
|
Yes
|
|

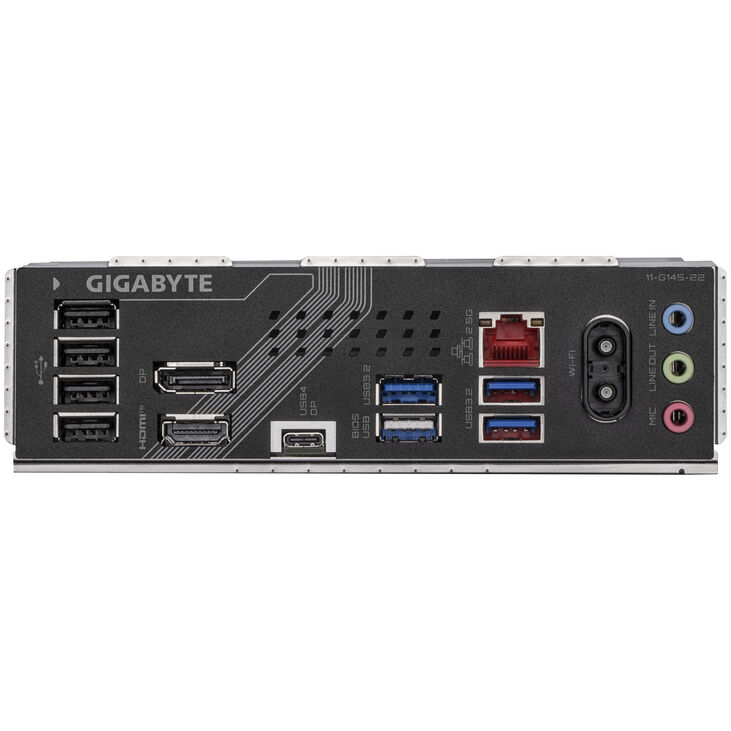

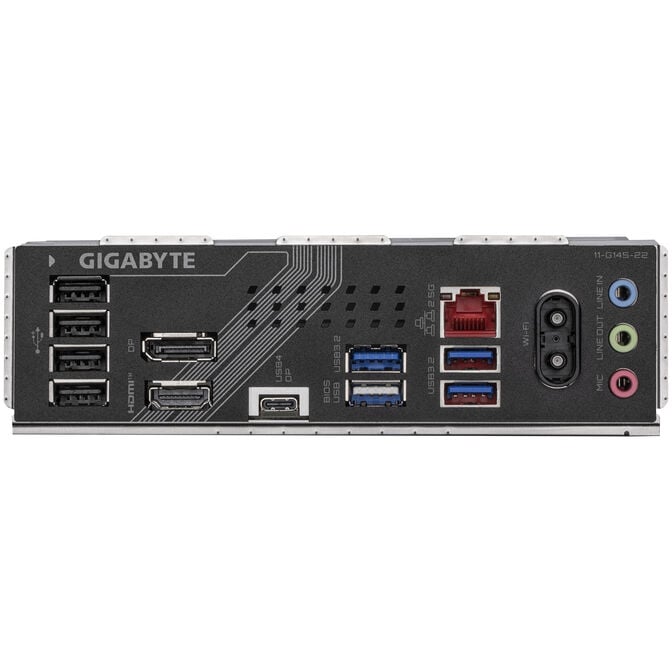

External Ports
|
|
|
USB4 Gen 3x2 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
3
|
|
USB 2.0 (external) Type A
|
5
|
|
Display Connectors
|
Display Port (1x), HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
1
|
|
M.2 PCIe 5.0 x4
|
1
|
|
SATA 6G (internal)
|
4
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
2
|
|
PCIe 5.0 x16 mechanical slot
|
1
|
|
PCIe 4.0 x4 mechanical slot
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
4
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
|
Lighting Compatibility
|
GIGABYTE RGB Fusion
|
