GIGABYTE H810M H motherboard, LGA 1851 socket, Intel H810, Micro-ATX, DDR5
Micro-ATX motherboard with Intel H810 chipset, supports PCI-Express 4.0 for graphics cards, compatible with DDR5 RAM
84,33 €
Incl. VAT, add. delivery costs starting from 4.99€
- Slots: 1x PCIe 4.0 x16 (x16) and 1x PCIe 3.0 x1
- RAM: 2x DIMM slots for a maximum of 128 GB DDR5 RAM up to 6,400 MT/s
- Storage: 1x M.2 (1x PCIe 4.0) and 2x SATA
- USB: 1x USB-C 3.0, 1x USB 3.0 and 5x USB 2.0
- Cooling: 3x 4-pin PWM connectors for fans and radiators
GIGABYTE H810M H: Micro-ATX motherboard with Intel LGA 1851 socket and H810 chipset
The GIGABYTE H810M H is a Micro-ATX motherboard featuring the entry-level Intel H810 chipset and the Intel LGA 1851 socket. It supports Intel processors from the Arrow Lake generation and is suitable for office tasks and casual gamers. Overclocking of the CPU and RAM is not possible.
The GIGABYTE H810M H also offers PCIe 4.0 for graphics cards and PCIe 4.0 for M.2 SSDs.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Width
|
24.4 mm
|
|
Height
|
21.5 mm
|
|
Form Factor
|
|
|
Motherboard Form Factor
|
Micro-ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
1851
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Specifications
|
|
|
Power Stages (VRMs)
|
4+1+2
|
|
Motherboard
|
|
|
BIOS Flashback Button
|
No
|
|
Clear CMOS Button
|
No
|
|
Motherboard Chipset
|
Intel H810
|
|
Motherboard Features
|
Debug LEDs, GPU Quick Release
|
|
Built-In I/O Shield
|
No
|
|
Memory
|
|
|
Max. Memory
|
128 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (OC)
|
6400 MT/s
|
|
EEC Support
|
Yes
|
|
Memory slots
|
2x
|
|
Performance Profile
|
Intel XMP 3.0
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 1 Gbit/s
|
|
Wi-Fi / Bluetooth
|
No
|
|
Cooling
|
|
|
M.2 Heatsinks
|
No
|
|
VRM Heatsinks
|
No
|
|
Water Cooling
|
|
|
Watercooling
|
No
|
|
Internal Ports
|
|
|
CPU Power Supply
|
1x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Header
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
USB 2.0 (internal) Header
|
1
|
|
USB 2.0 (internal) Possible Ports
|
2
|
|
RGB / LED connectors
|
2x Digital RGB (3-Pin 5VDG)
|
|
Front Panel Audio Header
|
Yes
|
|
SPI TPM Header
|
Yes
|
|

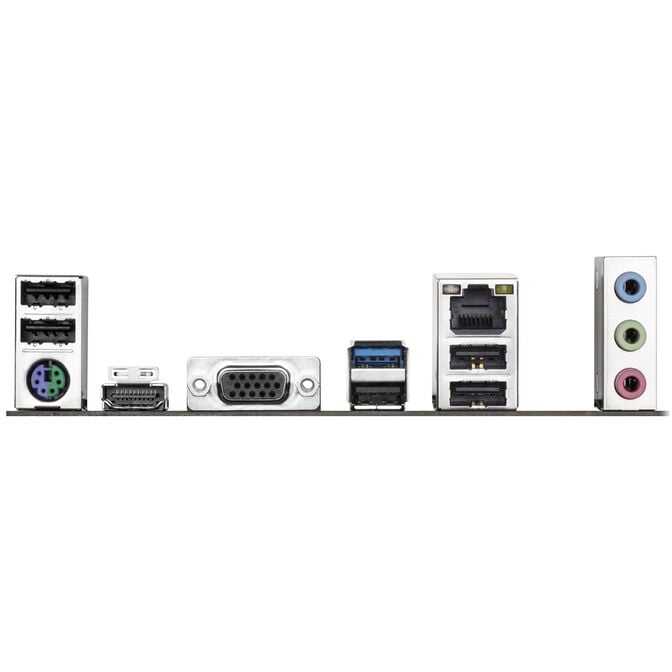

External Ports
|
|
|
USB 3.0 (external) Type A
|
1
|
|
USB 2.0 (external) Type A
|
5
|
|
Display Connectors
|
HDMI (1x), VGA (D-Sub) (1x)
|
|
Audio outputs
|
3.5 mm jack (total) 3x
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
1
|
|
SATA 6G (internal)
|
4
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
1
|
|
PCIe x1 slots (total)
|
1
|
|
PCIe 4.0 x16 mechanical slot
|
1
|
|
PCIe 3.0 x1 mechanical slot
|
1
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
3
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
