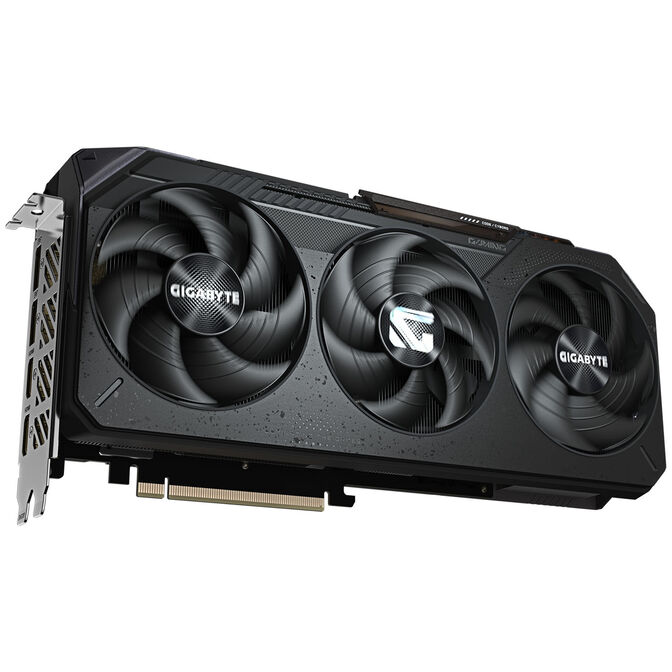

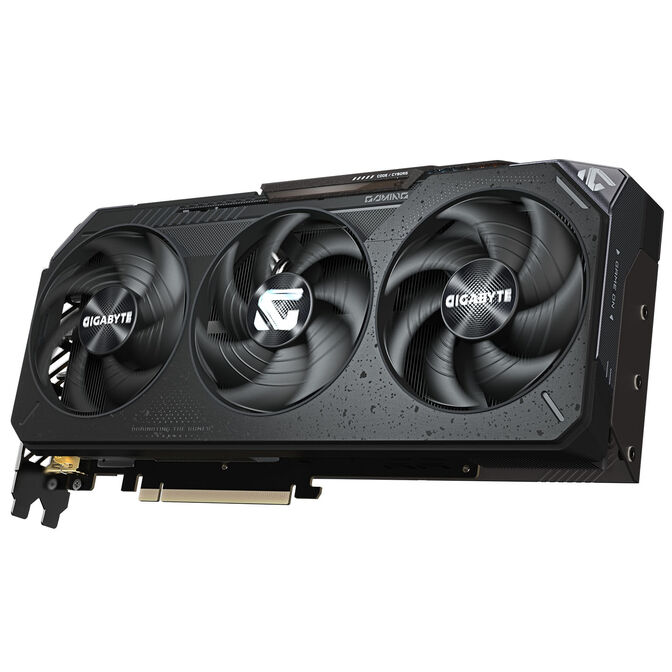

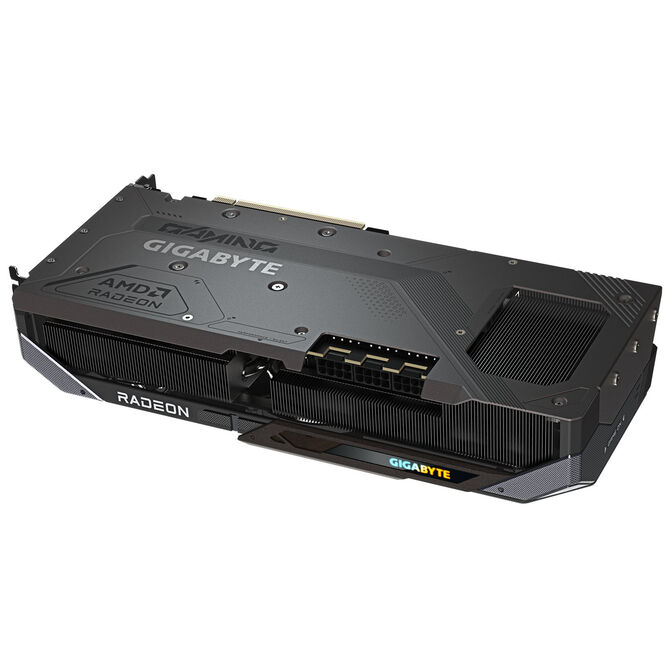

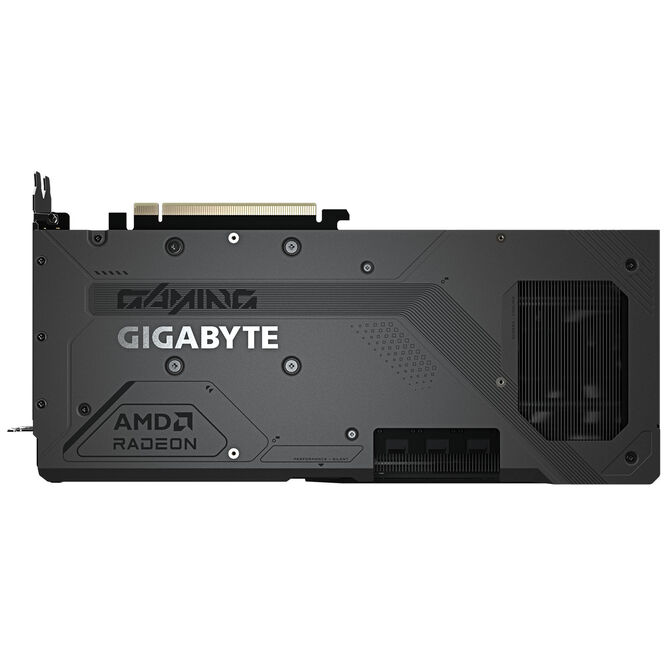

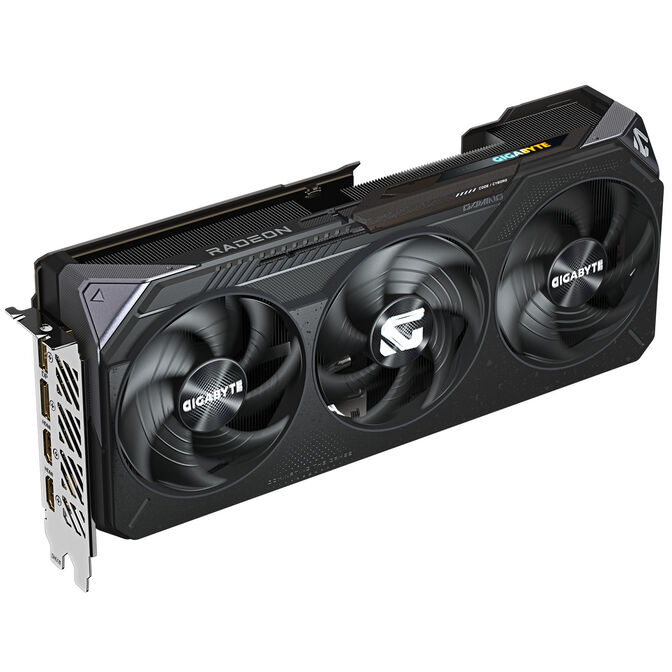

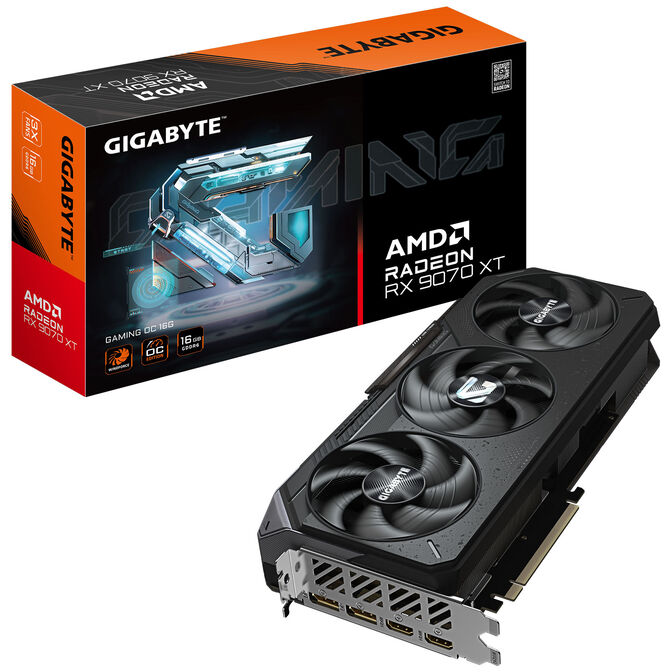

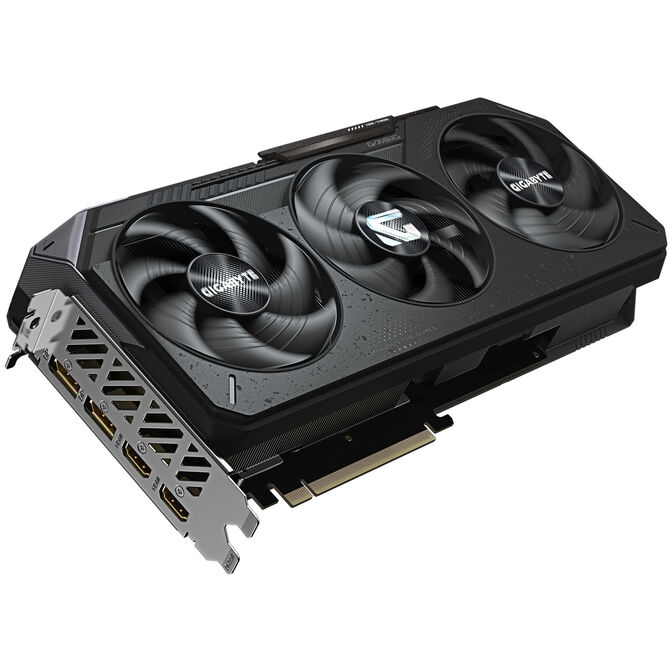

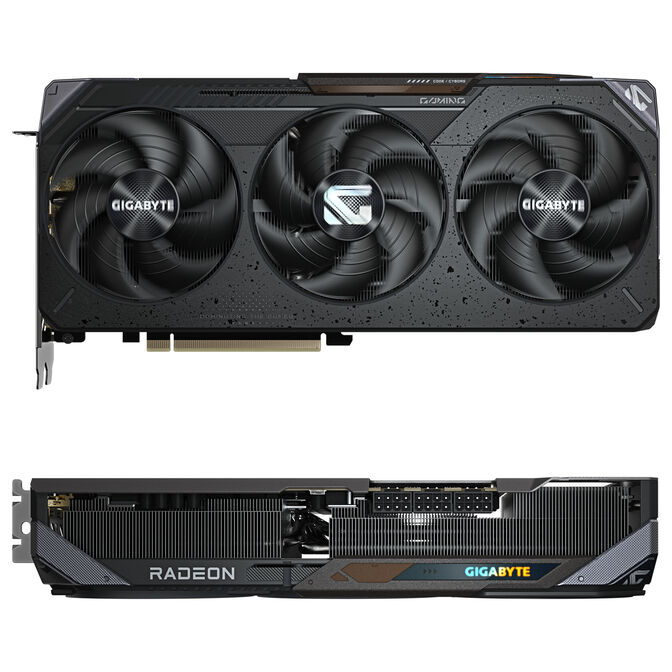

Gigabyte Radeon RX 9070 XT GAMING OC 16G graphics card, 16384 MB GDDR6
- Efficient triple-fan cooler design with semi-passive operation
- Striking RGB lighting
- High base and boost clock: 1,660 / 3,070 MHz
- 16 GB GDDR6 graphics memory with 64 MB Infinity Cache
- High memory clock: 20,000 MHz
- Wide 256-bit memory interface
- Large memory bandwidth of 640 GB/s

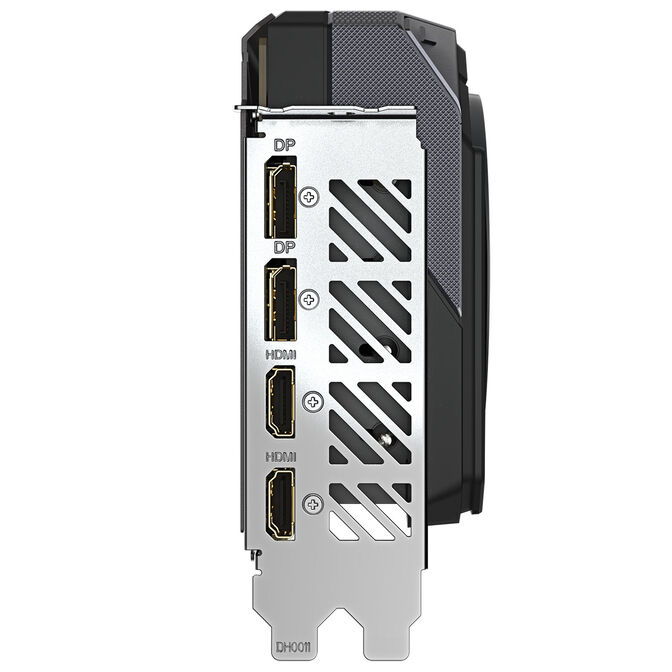

- Video outputs: 2x DisplayPort and 2x HDMI
- Power connectors: 3x 8-Pin
The Gigabyte Radeon RX 9070 XT GAMING OC 16G in Detail
Equipped with a powerful graphics processor, the AMD Radeon RX 9070 XT is the ideal choice for gamers seeking strong mid-range performance. Play the latest games at max settings and high 4K resolution with smooth frame rates.
AMD RDNA 4 Architecture: More Ray Tracing Power
With this new generation, AMD relies on the latest RDNA 4 architecture. The Navi 48 GPU operates at a maximum boost clock of 3,070 MHz and, together with 16 GB of GDDR6 memory, delivers high-performance graphics. The triple-fan cooling design ensures efficient cooling, keeping the Gigabyte Radeon RX 9070 XT GAMING OC 16G at optimal temperatures.
The third-generation ray tracing accelerators provide significantly improved ray tracing performance compared to RX 7000 GPUs. This enables much more realistic lighting, shadows, and reflections, allowing you to experience breathtaking visuals!
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
288 mm
|
|
Width
|
132 mm
|
|
Height
|
56 mm
|
|
Graphics Card
|
|
|
GPU Series
|
RX 9000 Series
|
|
GPU Model
|
AMD Radeon RX 9070 XT
|
|
GPU Series Name
|
AMD Radeon RX 9070 XT
|
|
Graphics Chip
|
Navi 48 XTX
|
|
Manufacturing Process
|
4 nm
|
|
Shader Units
|
4096
|
|
Raytracing Cores / Ray Acceleratorss
|
64
|
|
GPU Memory Type
|
GDDR6
|
|
Slot Type Standard
|
PCIe 5.0
|
|
Compute Units
|
64
|
|
GPU Memory Size (GB)
|
16
|
|
GPU Memory Interface (bit)
|
256
|
|
GPU Memory Bandwidth (GB/s)
|
644.6
|
|
GPU Memory Clock (MHz)
|
2518
|
|
GPU Memory Clock Effective (Gbps)
|
20.1
|
|
Clock Speeds
|
|
|
Max. GPU Clock (Base)
|
1660 MHz
|
|
Max. GPU Clock (Game)
|
2520 MHz
|
|
Max. GPU Clock (Boost)
|
3060 MHz
|
|
Cooling
|
|
|
Number of GPU Fans
|
3
|
|
Water Cooling
|
|
|
Watercooling
|
No
|
|
Internal Ports
|
|
|
Required Power Connectors
|
8-pin PCIe (3x)
|
|
External Ports
|
|
|
Display Connectors
|
Display Port (2x), HDMI (2x)
|
|
Display Connector Standards
|
DisplayPort 2.1, HDMI 2.1
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
Expansion Slots Required
|
3 Slots
|
|
Standards / Specifications
|
|
|
Adaptive Sync Technology (G-SYNC / FreeSync)
|
AMD Freesync
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
AI
|
|
|
AI Acceleration
|
Yes
|
|
AI Accelerator
|
AMD AI-Accelerator
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
