Gigabyte X870 Gaming motherboard, Socket AM5, AMD X870, ATX, DDR5
- 1x PCIe 5.0 x16 (x16) and 2x PCIe 3.0 x16 (x1)
- 4x DIMM slots for up to 192 GB DDR5-RAM at 8000 MHz (OC)
- 3x M.2 (1x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA 6G
- 2x USB4, 1x USB 3.1, 3x USB 3.0, and 4x USB 2.0 on the I/O panel
- OC features: 20-phase VRMs, BIOS Flashback
- Total support for 6x 4-pin PWM fans

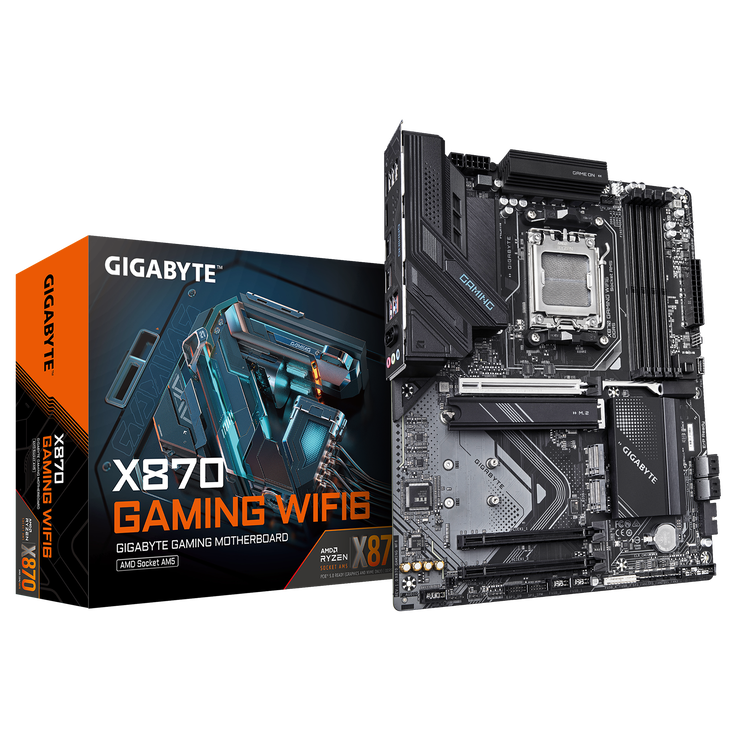

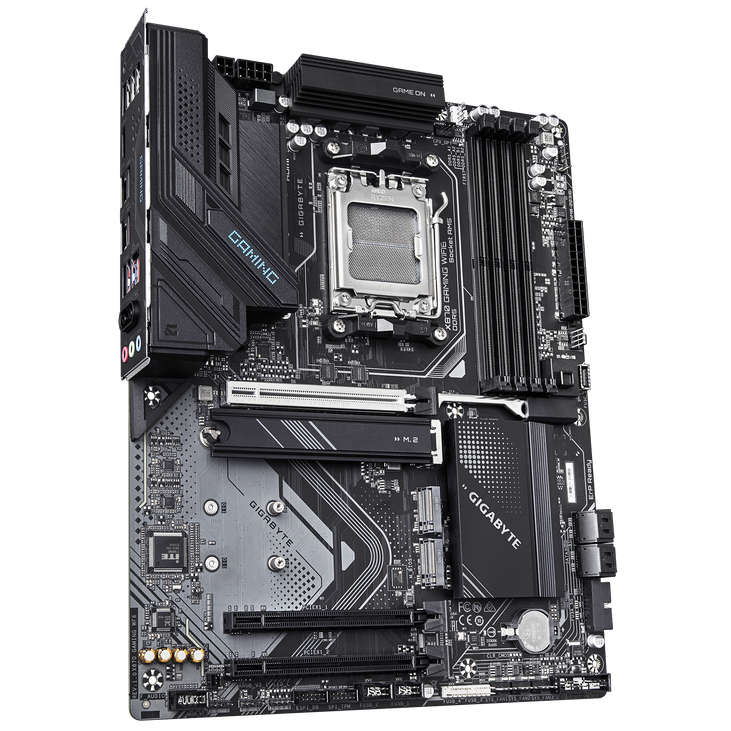

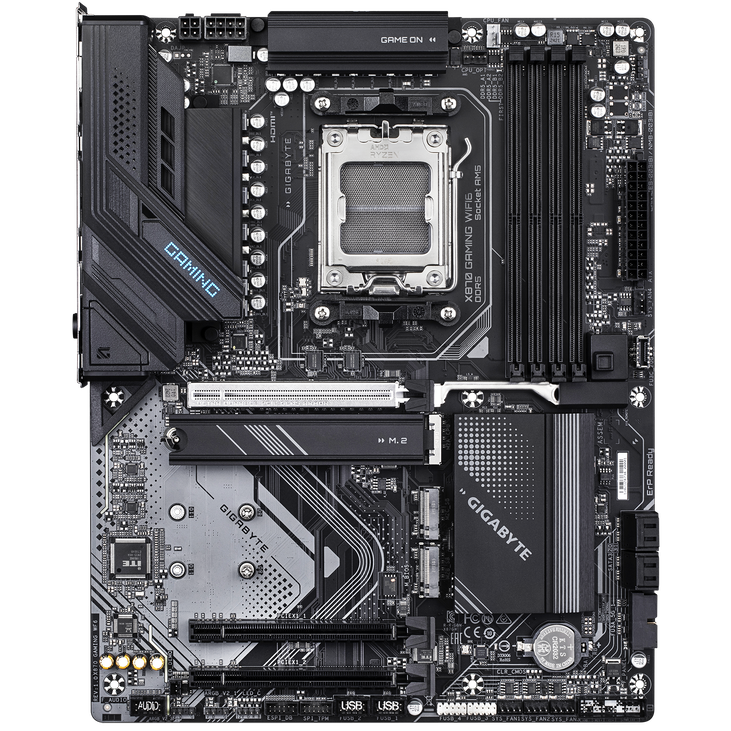

GIGABYTE X870 GAMING WIFI6: ATX Motherboard with AMD AM5 Socket and X870 Chipset
The GIGABYTE X870 GAMING WIFI6 is equipped with the mid-tier X870 chipset for AMD's Ryzen 9000 series processors and comes with numerous features aimed at gamers. The proven AM5 socket (LGA 1718) is also used for the Ryzen 9000 series processors.
Additionally, the AMD X870 motherboard offers USB 4.0, now available as a standard feature, reaching data transfer rates of up to 40 Gbit/s. Furthermore, the GIGABYTE X870 GAMING WIFI6 supports PCIe 5.0, providing you with double the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.
Optimised for Gaming
The GIGABYTE X870 GAMING WIFI6 is designed for high-end gaming, allowing you to enjoy even the most demanding games smoothly. The high-quality voltage regulators offer stable power delivery to the CPU, ensuring its high clock rates can be sustained over longer periods. Additional features like BIOS Flashback allow you to restore your PC in case of issues, and, as expected, the DDR5-RAM can also be pushed to higher clock speeds.
- Format:
ATX (305 x 244 mm) - Chipset:
AMD X870 (Single Promontory 21) - Socket:
AM5 (LGA 1718) - RAM:
4x DDR5 DIMM (up to 8000 MHz via OC)
Dual-Channel
Max. 192 GB - Slots (physical):
1x PCIe 5.0 x16 (electrical x16, CPU)
2x PCIe 3.0 x16 (electrical x1, Chipset) - Internal Connectors:
Total usable PCIe lanes: 36 (24 CPU and 12 PCIe)
4x SATA 6G (max.)
1x M.2 (PCIe 5.0 x4; 2280 / 2580 / 22110 / 25110, CPU)
1x M.2 (PCIe 4.0 x2; 2280 / 2580 / 22110 / 25110, Chipset)
1x M.2 (PCIe 4.0 x4; 2280 / 2580 / 22110 / 25110, Chipset)
1x USB-C (1 Header, USB 3.2 Gen 2x2, max. 20 Gbit/s)
2x USB 3.0 (1 Header, USB 3.2 Gen 1, max. 5 Gbit/s)
8x USB 2.0 (4 Header, max. 480 Mbit/s)
1x Front Panel Audio Connector
1x WiFi/Bluetooth Module
1x Start Button
1x Reset Button - Fan Connectors:
1x CPU-Fan Header (4-Pin)
1x CPU-Fan/Pump Header (4-Pin)
4x Fan Header (4-Pin) - RGB Headers:
2x 3-Pin ARGB Header (5 V)

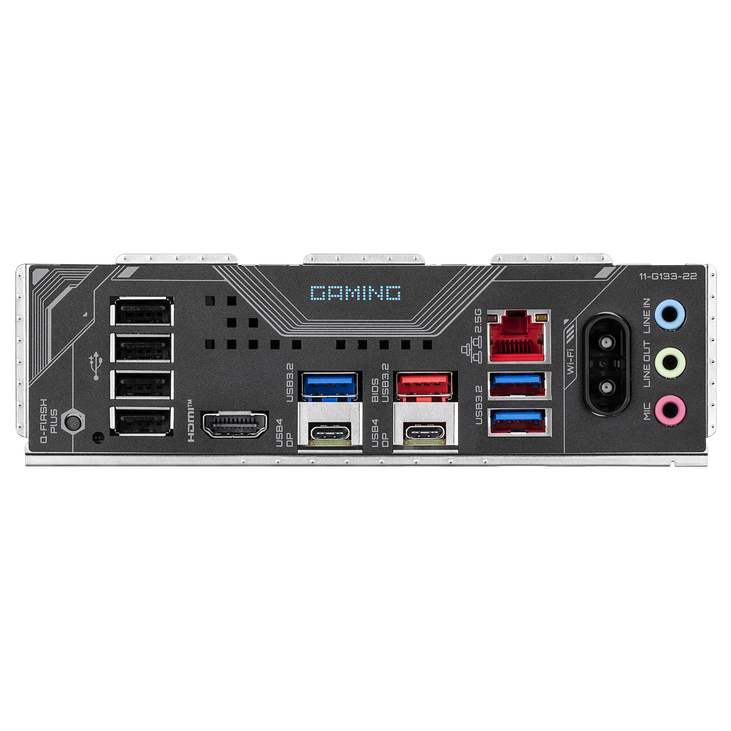

1x 4-Pin RGB Header (12 V) - External Ports:
2x USB4 (Type C, USB4 Gen 3x2, max. 40 Gbit/s with DisplayPort)
1x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
3x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
4x USB 2.0 (Type A, max. 480 Mbit/s)
1x HDMI 2.1
1x 2.5 Gigabit LAN (Realtek)
3x 3.5 mm Jack (Realtek ALC1220)
2x Antenna Connection RP-SMA Quick Connect
1x Reset
1x BIOS Flashback - Power Supply:
1x 24-Pin ATX
2x 8-Pin 12V
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Form Factor
|
|
|
Motherboard formfactor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
AMD
|
|
CPU Socket
|
AM5
|
|
Motherboard
|
|
|
Motherboard Chipset
|
AMD X870
|
|
Dual BIOS
|
No
|
|
Built-In I/O Shield
|
Yes
|
|
Memory
|
|
|
Max. Memory
|
256 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (OC)
|
8000 MT/s
|
|
EEC Support
|
No
|
|
Memory slots
|
4x
|
|
Performance Profile
|
AMD EXPO
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Bluetooth Standard
|
5.3
|
|
Cooling
|
|
|
Backplate
|
Yes
|
|
M.2 Heatsinks
|
Yes
|
|
VRM Heatsinks
|
Yes
|
|
Water Cooling
|
|
|
Watercooling
|
No
|
|
Internal Ports
|
|
|
CPU Power Supply
|
1x 4-Pin + 1x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Header
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
USB 2.0 (internal) Header
|
4
|
|
USB 2.0 (internal) Possible Ports
|
8
|
|
RGB / LED connectors
|
1x RGB (4-Pin 5050 12VGRB), 2x Digital RGB (3-Pin 5VDG)
|
|
Front Panel Audio Header
|
Yes
|
|
SPI TPM Header
|
No
|
|
External Ports
|
|
|
USB4 Gen 3x2 (external) Type C
|
2
|
|
USB 3.1 (external) Type A
|
1
|
|
USB 3.0 (external) Type A
|
3
|
|
USB 2.0 (external) Type A
|
4
|
|
Display Connectors
|
HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x2
|
1
|
|
M.2 PCIe 4.0 x4
|
1
|
|
M.2 PCIe 5.0 x4
|
1
|
|
SATA 6G (internal)
|
4
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
3
|
|
PCIe 5.0 x16 mechanical slot
|
1
|
|
PCIe 3.0 x16 mechanical slot
|
2
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
6
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Compatibility
|
GIGABYTE RGB Fusion
|
