GIGABYTE Z890 Gaming X WiFi7 motherboard, socket LGA 1851, Intel Z890, ATX, DDR5
ATX-Mainboard with Intel Z890 chipset, 1x PCIe 5.0 x16 / 1x PCIe 4.0 x4, 1x USB4 / 5x USB 3.0 / 6x USB 2.0, 4x M.2 (1x PCIe 5.0, 2x PCIe 4.0) / 4x SATA 6G, 6x 4-Pin PWM connectors
290,13 €
incl. VAT
, add. delivery costs starting from 4.99€
This motherboard is ideal for content creators and gamers.
- 1x PCIe 5.0 x16 (x16), 2x PCIe 4.0 x16 (x4)
- 4x DIMM slots for up to 256 GB DDR5 RAM at 8,800 MHz (XMP 3.0 support)
- 4x M.2 (including 1x PCIe 5.0 and 3x PCIe 4.0) / 4x SATA 6G

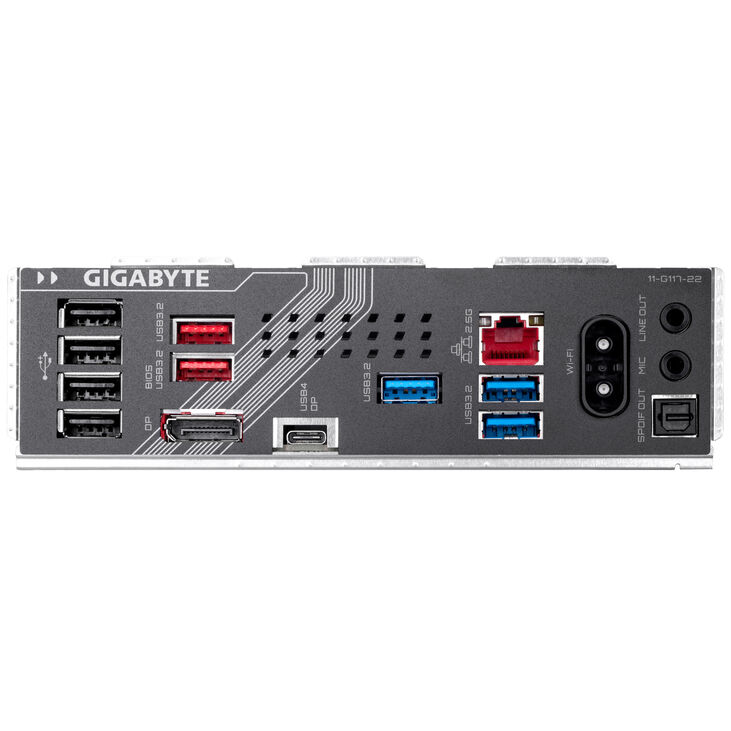

- USB on I/O panel: 1x USB4, 2x USB 3.1, 3x USB 3.0, 4x USB 2.0
- OC features: Support for Q-Flash, 16+1+2 power phases
- In total, 6x 4-pin connectors for fans & pumps

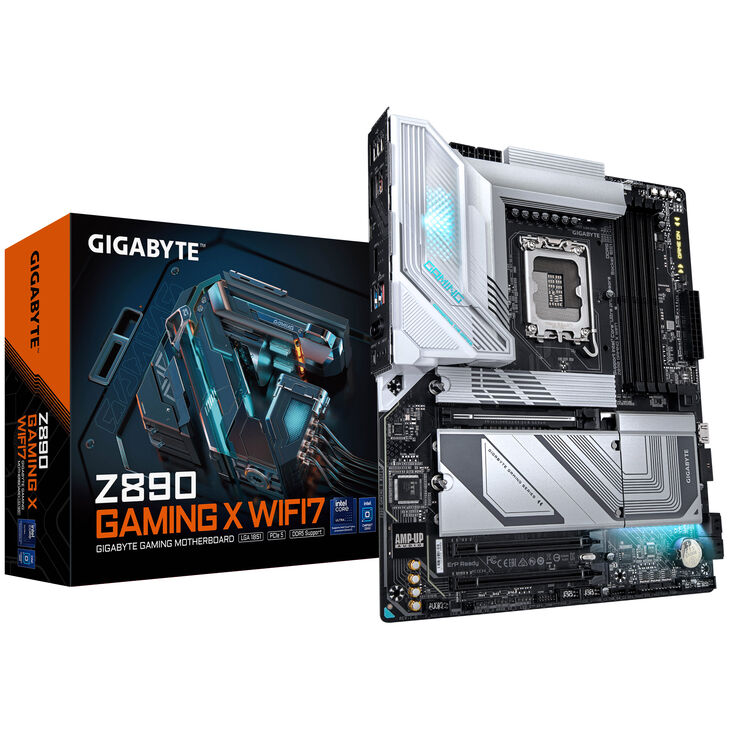

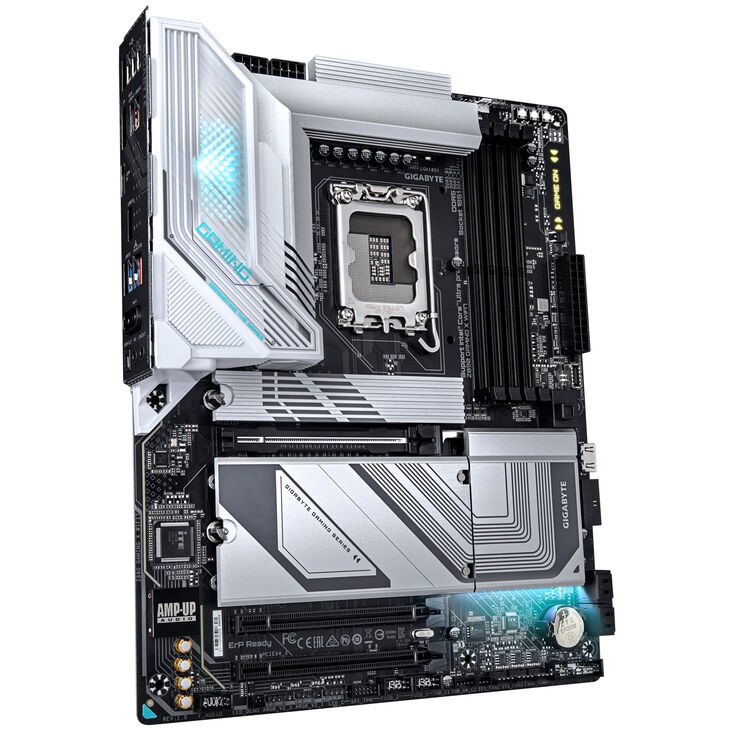

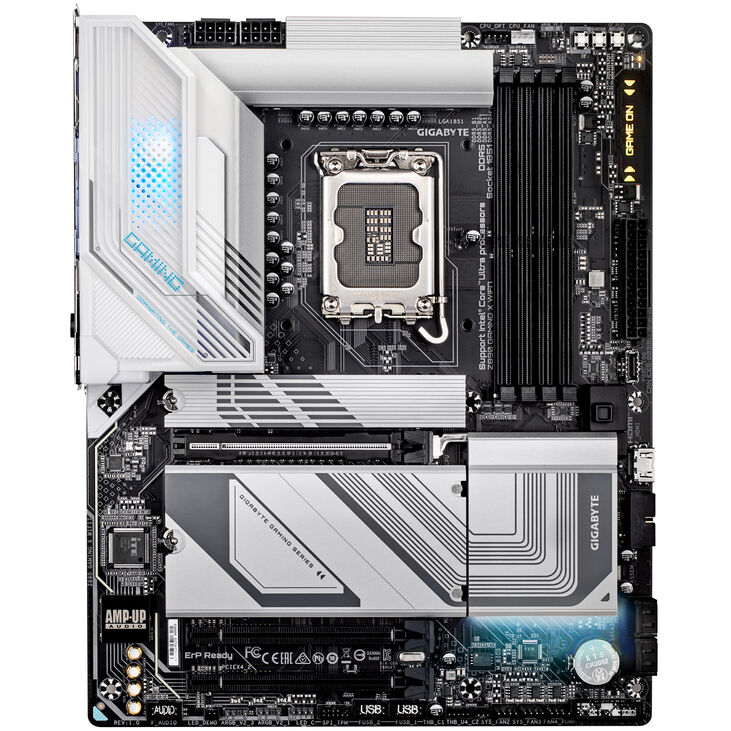

GIGABYTE Z890 GAMING X WIFI7: ATX-Mainboard with Intel LGA 1851 socket and Z890 chipset
The GIGABYTE Z890 GAMING X WIFI7 is an ATX motherboard with the high-end Intel Z890 chipset and the LGA 1851 socket. It supports Intel Core Ultra processors of the second generation with the codename Arrow Lake. The Intel Z890 motherboard natively supports USB4, offering data transfer rates of up to 40 Gbit/s. Additionally, the GIGABYTE Z890 GAMING X WIFI7 features full PCIe 5.0 connectivity, providing double the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
305 mm
|
|
Width
|
244 mm
|
|
Form Factor
|
|
|
Motherboard formfactor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
1851
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel Z890
|
|
Built-In I/O Shield
|
Yes
|
|
Memory
|
|
|
Max. Memory
|
256 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (OC)
|
8800 MT/s
|
|
EEC Support
|
Yes
|
|
Memory slots
|
4x
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Wi-Fi Standard
|
Wi-Fi 7
|
|
Cooling
|
|
|
Backplate
|
No
|
|
M.2 Heatsinks
|
Yes
|
|
VRM Heatsinks
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
2x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 (internal) Header
|
1
|
|
USB 2.0 (internal) Header
|
2
|
|
External Ports
|
|
|
USB4 Gen 2x2 (external) Type C
|
1
|
|
USB 3.1 (external) Type A
|
2
|
|
USB 3.0 (external) Type C
|
3
|
|
USB 2.0 (external) Type A
|
4
|
|
Display Connectors
|
Display Port (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
3
|
|
M.2 PCIe 5.0 x4
|
1
|
|
SATA 6G (internal)
|
4
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
3
|
|
PCIe 5.0 x16 mechanical slot
|
1
|
|
PCIe 4.0 x16 mechanical slot
|
2
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
6
|
|
Audio
|
|
|
Soundchip
|
Realtek ALC897
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
