Hyte Y70 Touch Infinite PC case, mid tower, ATX, tempered glass - Panda

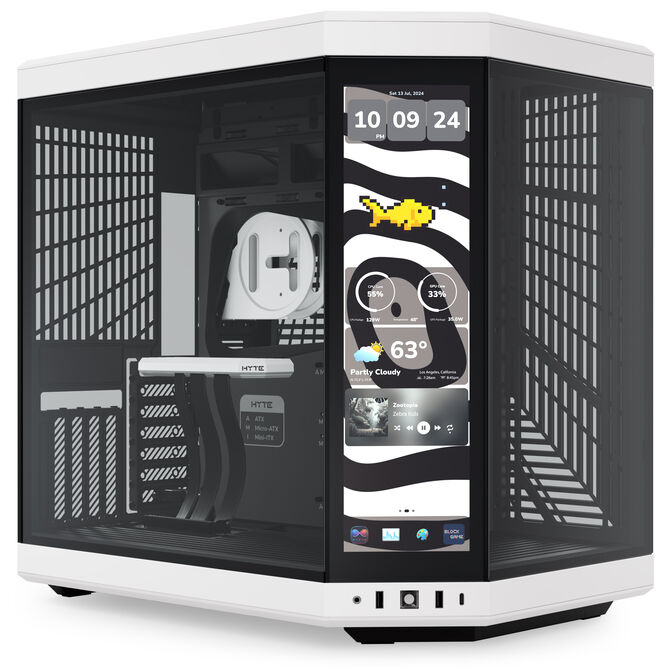

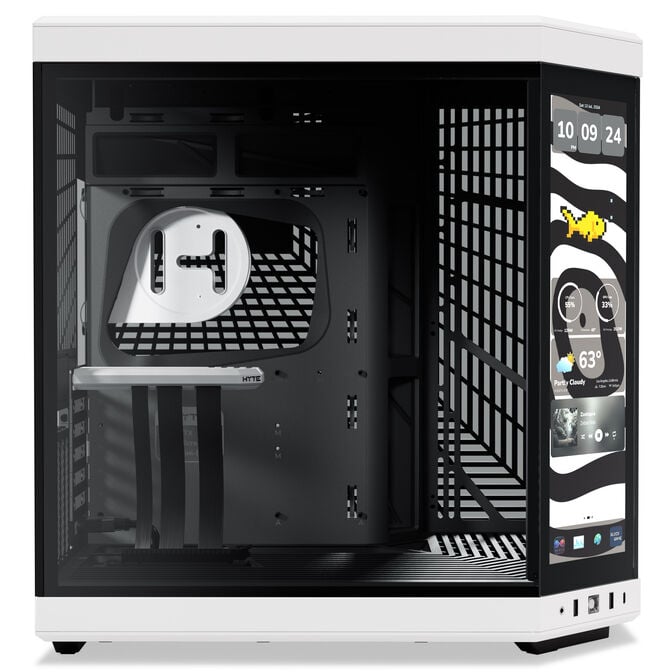

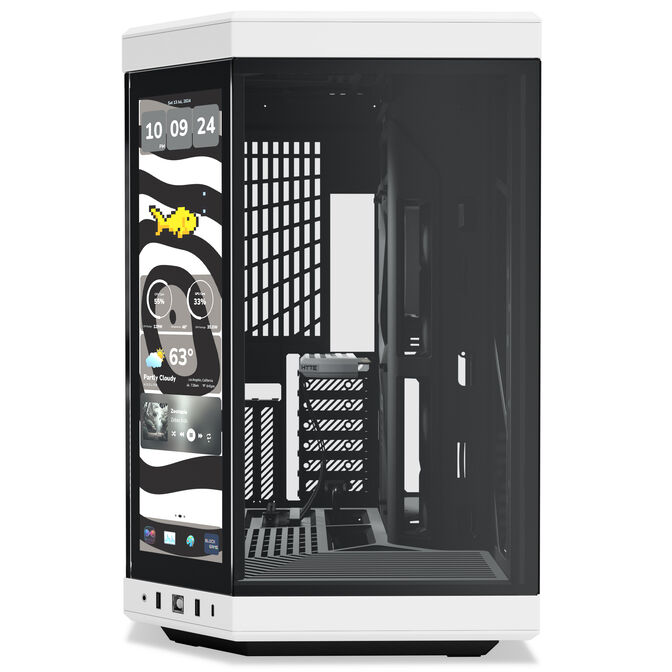

• Mid tower with improved integrated 2,5K screen including touch function
• 688 x 2,560 (2.5K) resolution and 60Hz refresh rate
• Tempered Glass side panel and front
• Fresh air intake at the bottom
• Vertical mounting of the graphics card possible
• PCIe 4.0 riser cable included
• Radiators possible on the side, top, or back
• Graphics cards up to a length of 390mm possible
• Maximum CPU cooler height of 180mm

Exceptional Design and Functionality

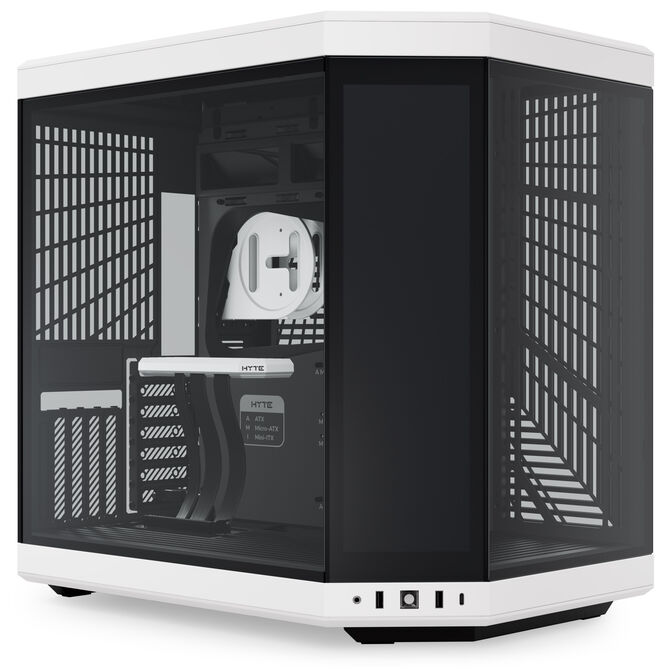

With the Hyte Y70 Touch Infinite, you enter new territory when it comes to the look of your PC build. The mid tower offers you a 360-degree view of your hardware with its front and large, three-part Tempered Glass panoramic window, allowing you to not only view it from the side. With built-in ventilation slots at the bottom and on the side of the case, you provide your hardware with optimal cooling.

Furthermore, you have the choice between water or air cooling for your components. Due to the exceptional layout, the Y70 is well-prepared for both options.

The horizontal PCI slots are low profile. You can optionally vertically mount your graphics card using the included PCIe 4.0 riser cable and show it off to everyone.

Good Airflow through Cold Floor Cooling

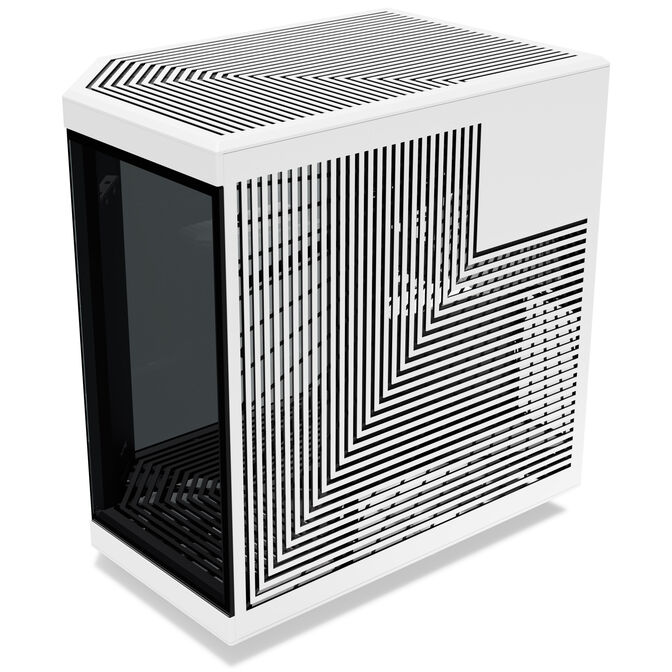

In the Hyte Y70 Touch Infinite, large components with high power requirements find a place. Therefore, the case is designed to be very open and focused on uninterrupted airflow. Through the Cold Floor, fresh air is drawn in from below and unobstructedly transported into the interior of the case. There, it then meets the most important and warmest components like the CPU and GPU, providing very effective cooling. The many fan options swiftly and efficiently remove the heated air from the case.

At the bottom, you can fit either 3x 120mm fans or 2x 140mm fans. On the top, three 120mm fans can be installed, on the side three 120mm or two 140mm fans, and on the back 1x 120mm or 1x 140mm fan. Additionally, easily cleanable dust filters are attached to the top, bottom, and side to prevent dust build-up.

For those planning to install a water cooling system, there is ample space on the side for a 280mm or 360mm radiator with a maximum height of 125mm. Radiators up to 280mm or 360mm can be placed on the top of the case. The rear provides the option to use a 120mm or 140mm radiator, for example, for small all-in-one water coolers.

Space for Components and Vertical GPU

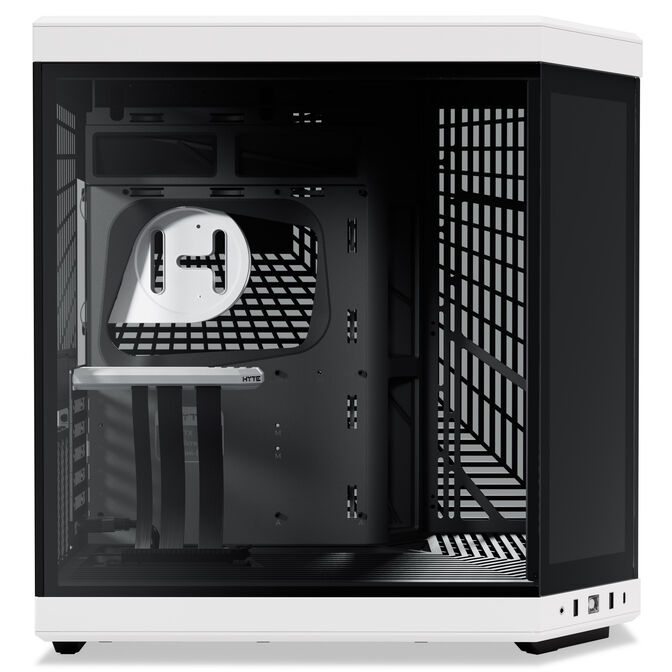

The Y70 Touch Infinite offers the possibility to install E-ATX, ATX, Micro-ATX, and Mini-ITX motherboards. This provides a wide range of platforms and configurations. In addition, CPU coolers up to a height of 180mm and high-end graphics cards up to a maximum length of 390mm fit. If you want to showcase your graphics card in the large window, you can optionally mount it vertically. The required riser cable is already included.

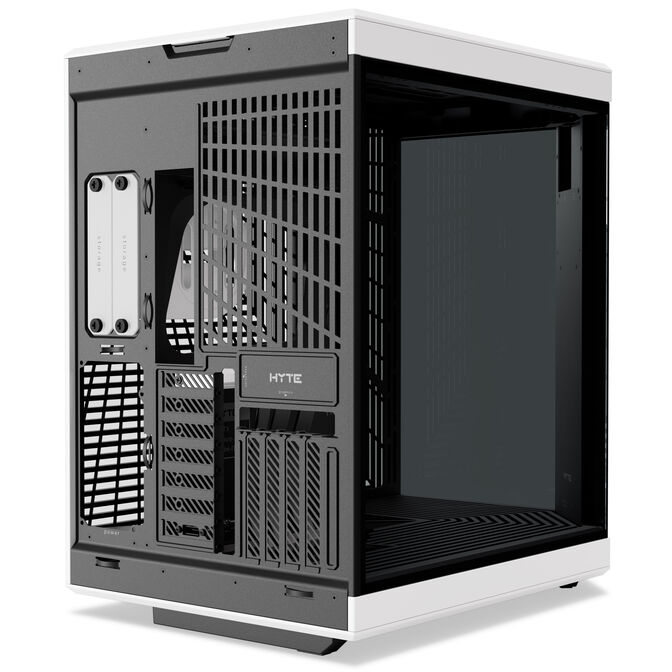

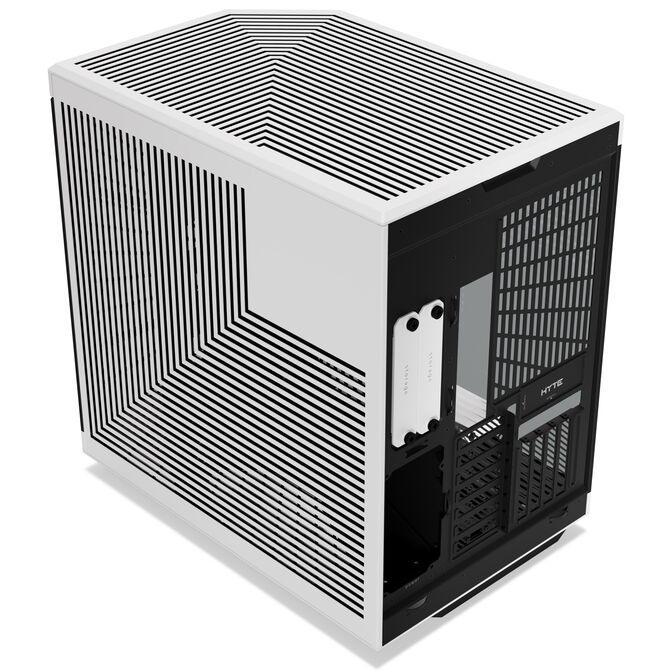

Due to its placement behind the motherboard, the power supply unit is shielded from the rest of the case. This ensures that the heat generated by the power supply does not enter the main chamber of the case, where the other warm components are located, resulting in lower temperatures inside the case. By orienting the power supply unit to draw fresh air from the side rather than the bottom, it helps prevent dust build-up and ensures a longer life for your power supply. For power-hungry hardware, optional ATX power supplies up to a size of 235mm (with cables) can be placed under the cover.

Mounting Options for Drives and I/O Panel

In the Y70 Touch Infinite, there are plenty of mounting options for drives. You can accommodate either two 3.5-inch or four 2.5-inch drives. This provides enough storage for your games and applications.

The sleek, aquarium-like design of the Y70 Touch Infinite allows for building discreet builds with good cooling performance. The side panel and front are made of Tempered Glass, offering a clear view of the internal components. This allows for a show-stopping RGB build. The I/O panel does not disappoint fans of mobile storage. It features a power button, reset button, 3.5mm combined audio and microphone jack, two USB 3.0 Type-A ports, and one USB 3.1 Type-C port for faster file transfer. Additionally, it is angled and facing towards you.
