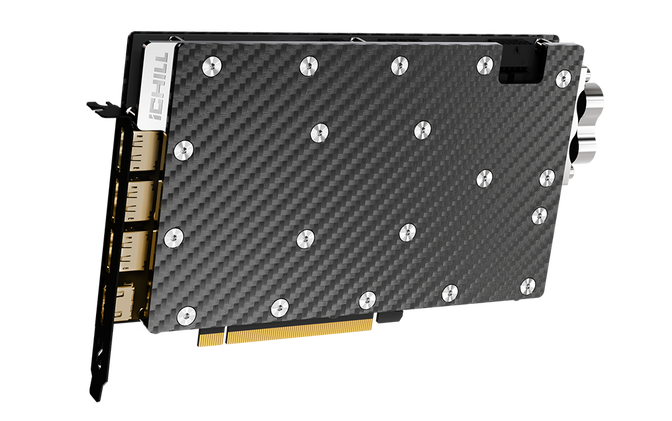

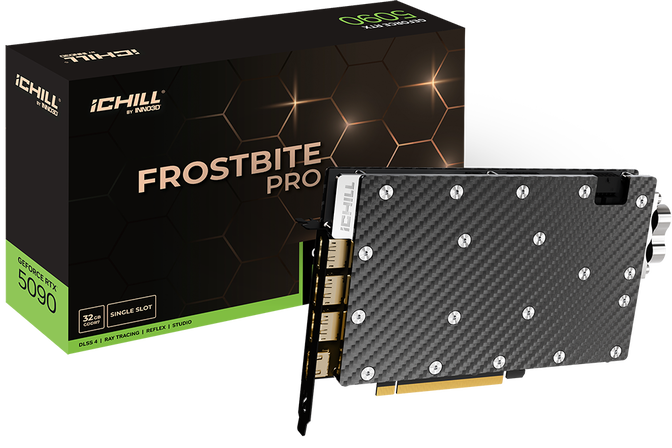

INNO3D GeForce RTX 5090 iCHILL Frostbite Pro, 32,768 MB GDDR7
- Integrated water block for custom water cooling
- Extensive RGB LED lighting
- Extremely high base GPU clock: 2,017 MHz
- Enormous GPU boost clock: 2,407 MHz
- Next-generation graphics memory: 32 GB GDDR7
- Extremely high memory clock: 2,209 MHz (effective 28,000 MHz)
- Wide 512-bit memory interface
- Very large memory bandwidth of 1,792 GB/s
- Pure computing power: 21,760 CUDA cores (shaders)
- Additional PCIe power connectors: 1x 16-pin 12VHPWR
- Video outputs: 3x DP 2.1b, 1x HDMI 2.1
- Supports DLSS 4 and NVIDIA Reflex 2
The INNO3D GeForce RTX 5090 iChill Frostbite Pro in Detail
The GeForce RTX 5090 is the ultimate choice for enthusiasts and high-end gamers who refuse to compromise. Equipped with an extremely powerful graphics processor and new GDDR7 graphics memory, it sets new standards in gaming performance. With its unparalleled computing power, the RTX 5090 delivers top performance even in the most demanding applications and games.
Compared to the RTX 4090 series, rasterisation and ray tracing performance have been significantly improved once again, allowing realistic lighting, shadow, and reflection effects to be rendered with unprecedented quality. The new Blackwell generation also supports PCI Express 5.0, making the card perfectly prepared for the next generation of motherboards and systems.
The RTX 5090 enables extremely high frame rates in 4K, offers impressively smooth gaming even in 8K, and is therefore the perfect choice if you don’t want to worry about graphics settings. Simply set maximum graphics presets and start playing!
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
223 mm
|
|
Width
|
134 mm
|
|
Height
|
20 mm
|
|
Graphics Card
|
|
|
GPU Series
|
RTX 50 Series
|
|
GPU Model
|
NVIDIA GeForce RTX 5090
|
|
GPU Series Name
|
NVIDIA GeForce RTX 5090
|
|
Graphics Chip
|
GB202-300
|
|
Manufacturing Process
|
5 nm
|
|
Shader Units
|
21760
|
|
Tensor Cores
|
680
|
|
Raytracing Cores / Ray Acceleratorss
|
170
|
|
GPU Memory Type
|
GDDR7
|
|
Slot Type Standard
|
PCIe 5.0
|
|
GPU Memory Size (GB)
|
32
|
|
GPU Memory Interface (bit)
|
512
|
|
GPU Memory Bandwidth (GB/s)
|
1792
|
|
GPU Memory Clock (MHz)
|
1750
|
|
GPU Memory Clock Effective (Gbps)
|
28
|
|
Clock Speeds
|
|
|
Max. GPU Clock (Base)
|
2017 MHz
|
|
Max. GPU Clock (Boost)
|
2407 MHz
|
|
Cooling
|
|
|
Number of GPU Fans
|
0
|
|
Water Cooling
|
|
|
Watercooling
|
Yes
|
|
Internal Ports
|
|
|
Required Power Connectors
|
16-Pin PCIe 5.0 - 12v-2x6 (1x)
|
|
External Ports
|
|
|
Display Connectors
|
Display Port (3x), HDMI (1x)
|
|
Display Connector Standards
|
DisplayPort 2.1, HDMI 2.1
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
Expansion Slots Required
|
1 Slot
|
|
Standards / Specifications
|
|
|
Adaptive Sync Technology (G-SYNC / FreeSync)
|
NVIDIA G-SYNC
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
AI
|
|
|
AI Acceleration
|
Yes
|
|
AI Accelerator
|
Tensor Cores
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
