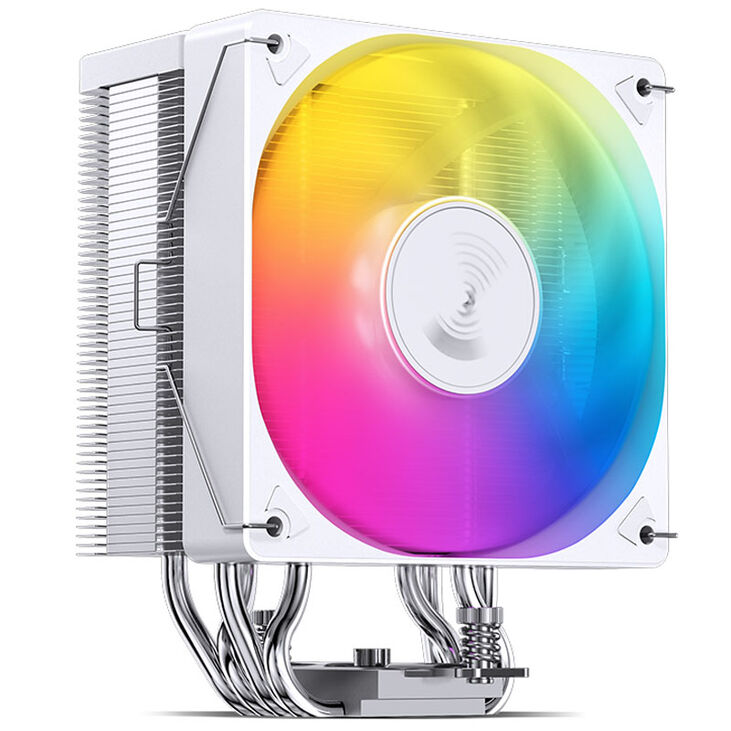

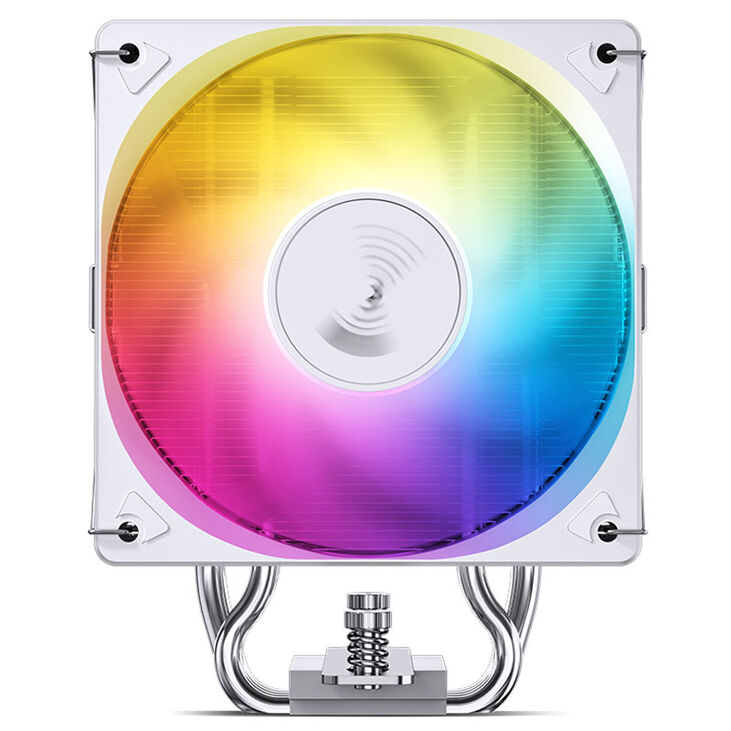

Jonsbo CR-1000 EVO ARGB CPU Cooler, 120mm - white
- Extremely powerful single tower cooler with 220 W TDP
- Four 6 mm heat pipes
- 1x 120 mm PWM fan
- High compatibility with AMD and Intel
- Mounting bracket for easy installation
- Integrated controllable ARGB lighting
The Jonsbo CR-1000 EVO CPU Cooler:
The Jonsbo CR-1000 EVO CPU Cooler offers extremely high cooling performance thanks to its four heat pipes and PWM fan. This very quiet cooler has immense cooling reserves with 220 W TDP for overclocked CPUs and can be installed even with the motherboard in place, despite its size.
Sleek design with strong cooling performance
The CR-1000 EVO is a powerful single tower cooler that allows for very efficient and quiet cooling thanks to the fan. The quiet fan motor reduces vibrations and, combined with the bearing, ensures a very long lifespan.

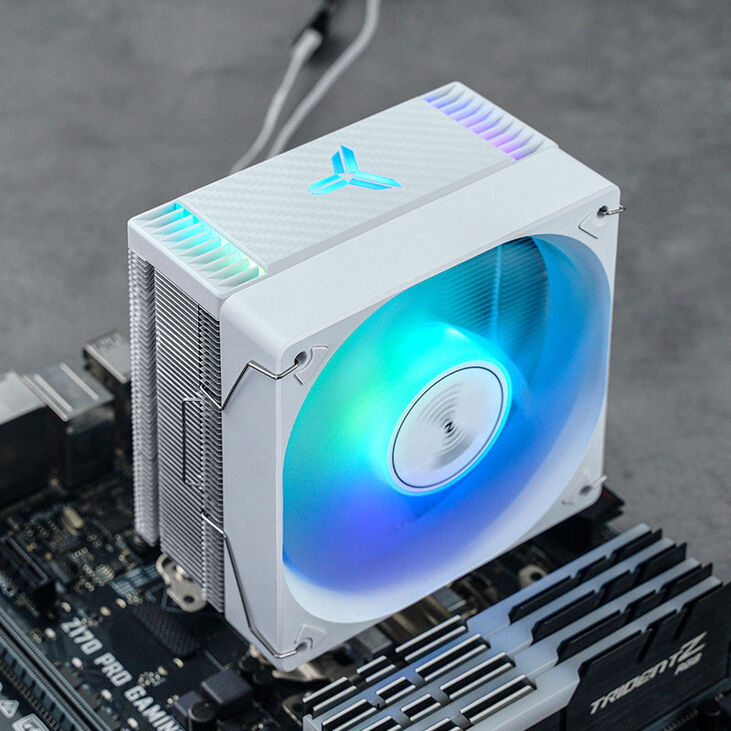

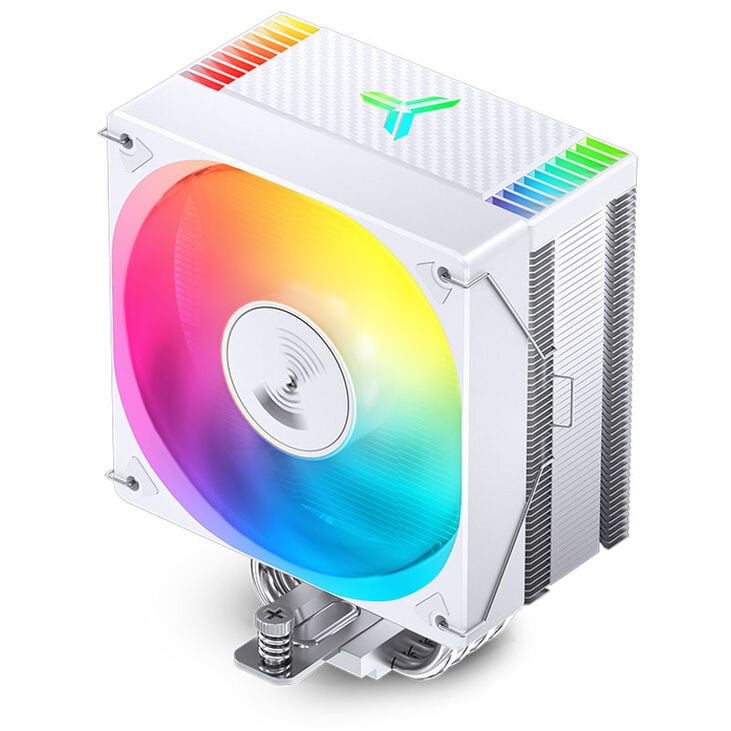

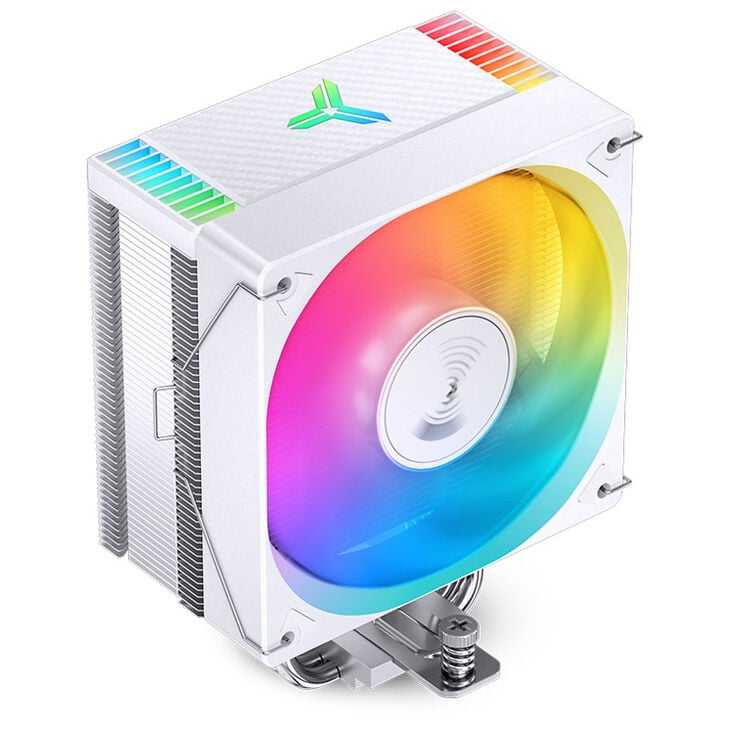

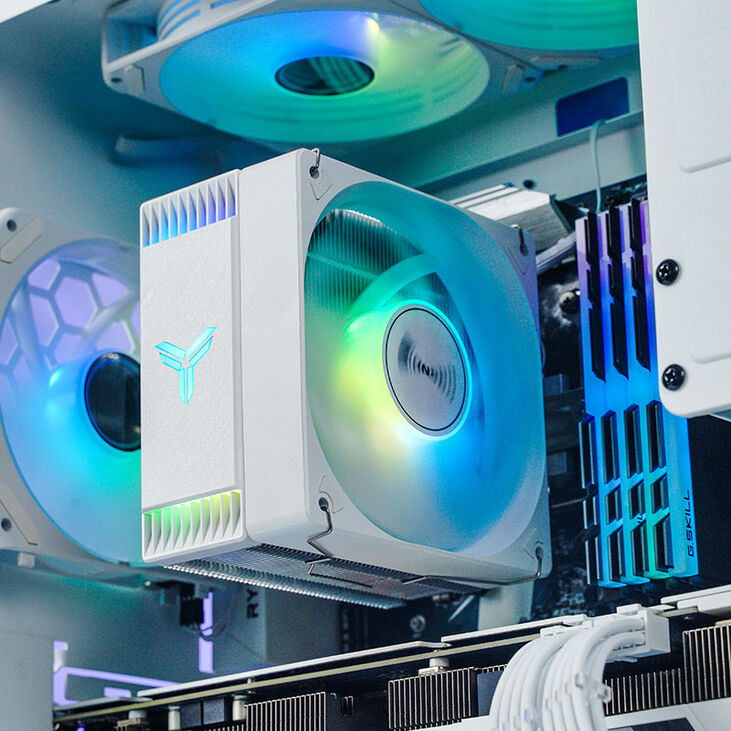

With the controllable ARGB lighting, you can make your build shine and give it a unique touch.
Perfect cooling for your CPU

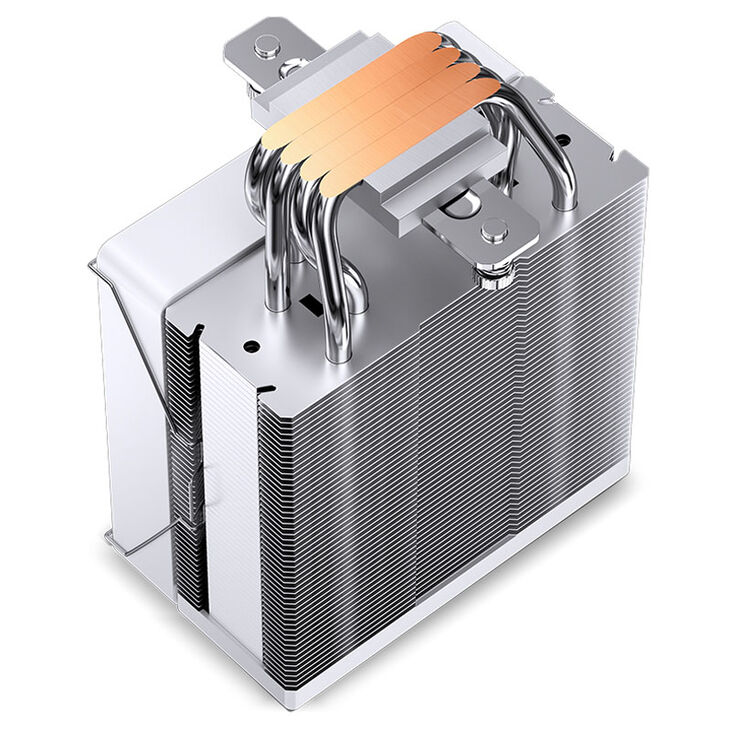

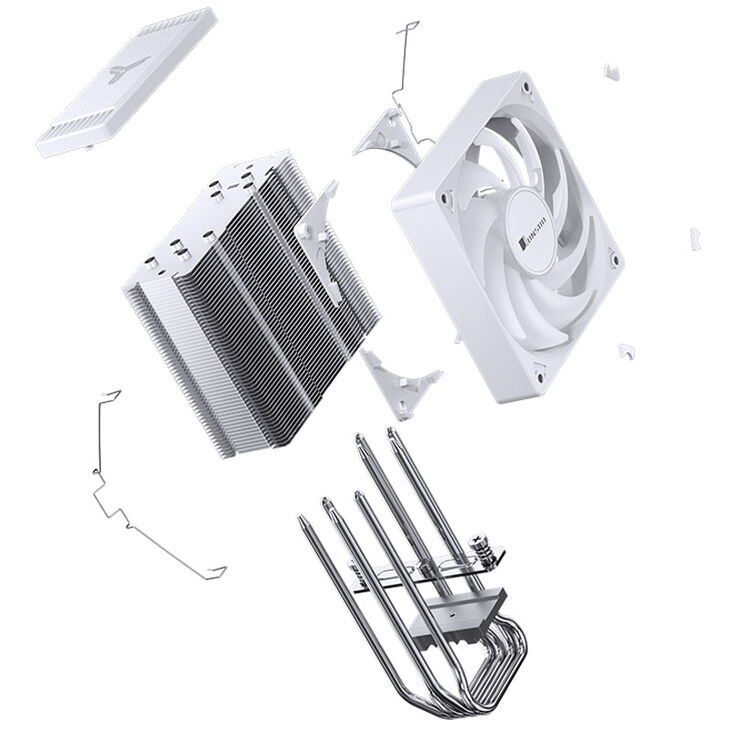

Thanks to four high-performance heat pipes, the cooler ensures excellent heat dissipation. The fin area of the cooler is very large due to the single tower design, allowing a significant amount of heat to be transferred to the airflow.
Technical Details:

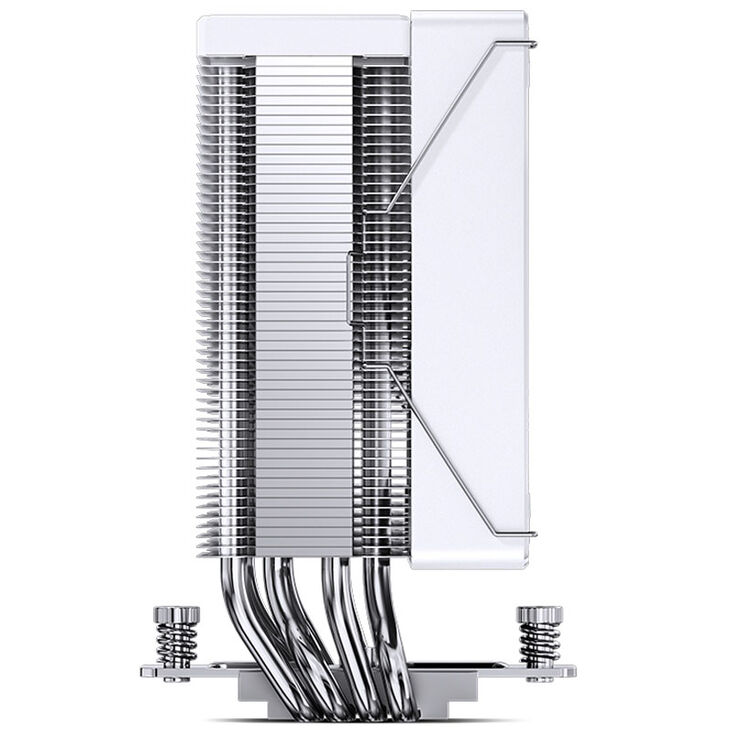

- Dimensions: 71 × 154 × 120 mm (W x H x D)
- Material: Copper (heat pipes, base plate), Aluminium (fins, top plate)
- Weight: 554 g
- Colour: White, Silver
- Heat pipes: 4x Ø 6 mm
- Cooling performance: 220 W TDP
- Fan:
1x 92 mm PWM (max. 1,500 RPM)
Connection: 4-pin PWM
Total noise level: max. 32 dB(A) - Compatibility:
Intel Socket LGA 1700, 1200, 1151, 115x
AMD Socket AM5, AM4 - Scope of delivery:
1x cooler including 1x fan

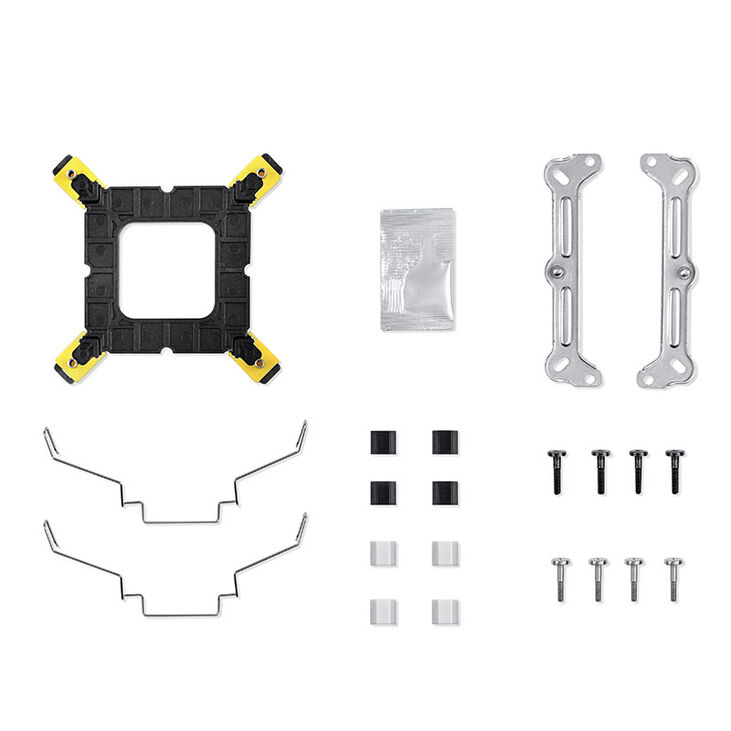

1x installation kit and accessories for Intel & AMD
1x manual
|
Colour
|
|
|
Primary Colour
|
White
|
|
Fan Main Colour (Frame)
|
White
|
|
Fan Main Colour (Rotor)
|
Transparent
|
|
Dimensions
|
|
|
Length / Depth
|
120 mm
|
|
Width
|
71 mm
|
|
Height
|
154 mm
|
|
Weight
|
554 g
|
|
Cooler Specifications
|
|
|
Additional fans possible
|
No
|
|
Heatpipe diameter
|
6 mm
|
|
Number of heatpipes
|
4
|
|
Ventilation type
|
active
|
|
Type
|
|
|
CPU Cooler Type
|
Single Tower
|
|
CPU
|
|
|
CPU Socket
|
115X, 1200, 1700, AM4, AM5
|
|
Fan Specifications
|
|
|
Min. Fan RPM
|
600 rpm
|
|
Max. Fan RPM
|
1500 rpm
|
|
Min. Single Fan Airflow
|
47 m³/h
|
|
Max. Single Fan Airflow
|
101 m³/h
|
|
Min. Static Pressure
|
0.26 mmH2O
|
|
Max. Static Pressure
|
1.81 mmH2O
|
|
Noise
|
|
|
Min. Single Fan Noise dB(A)
|
22 dB(A)
|
|
Max. Single Fan Noise dB(A)
|
32 dB(A)
|
|
Internal Ports
|
|
|
Fan connectors
|
4 Pin (PWM)
|
|
RGB / LED connectors
|
1x Digital RGB (3-Pin 5VDG)
|
|
Thermal Specifications
|
|
|
Max. TDP
|
220 W
|
|
Materials
|
|
|
Materials
|
Aluminium, Plastic
|
|
Heat Sink Material
|
Aluminium
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
|
Additional Contents
|
|
|
Included fans
|
1x 120 mm
|
