Jonsbo N10 PC case, mini-tower, mini-ITX - black
- Small case for simple systems
- Two fans built-in
- Support for ITX-sized motherboards and CPU cooler height up to 38mm
- Up to four 2.5-inch SSDs possible
- Power supply: 1U Flex up to 150mm
The Jonsbo N10 in detail

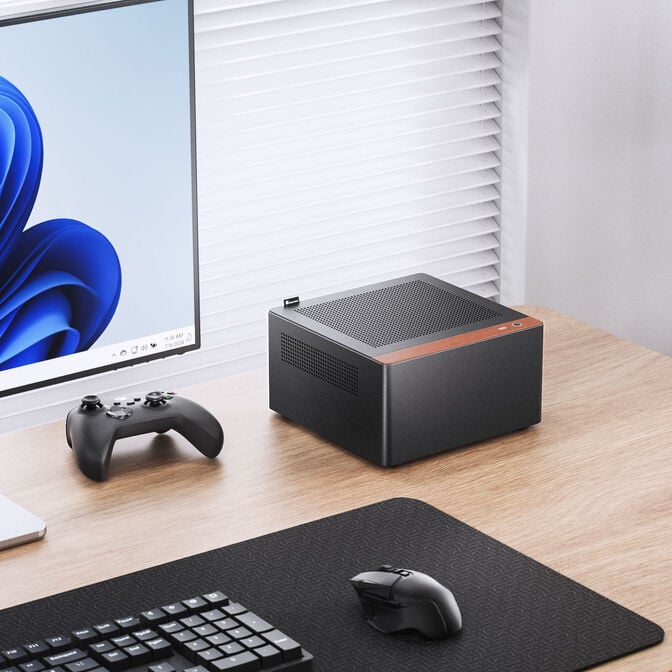

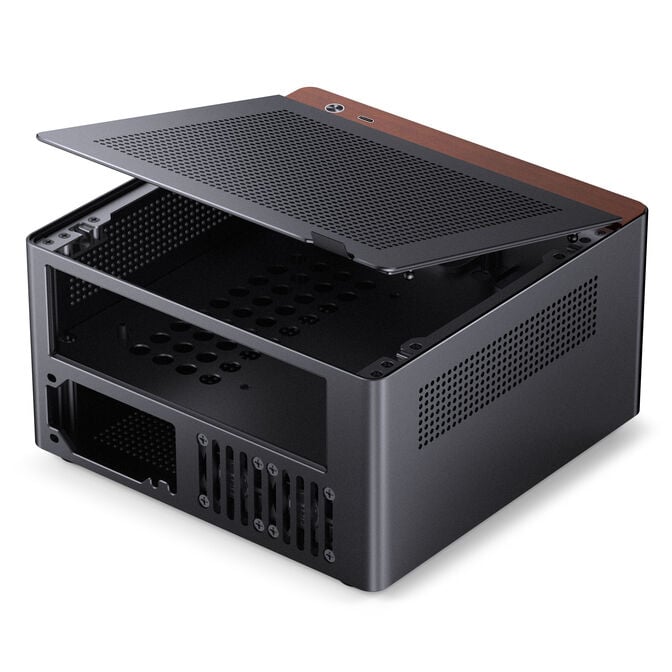

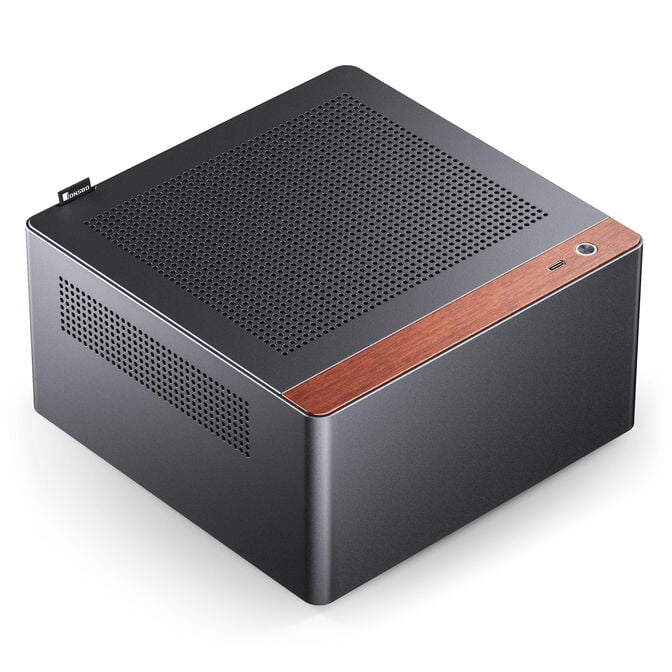

The Jonsbo N10 is a small case that can be placed on the table due to its light weight and fits into any setup with its silver, simple design.
Cooling

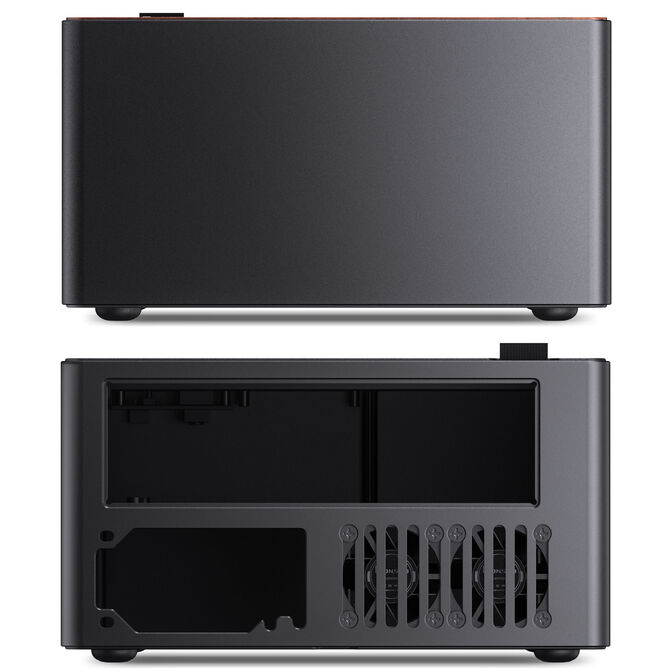

The mini tower already has two small fans installed, which provide adequate cooling. No additional fans are possible. For this reason, the tower does not support the installation of graphics cards, as they require more cooling. Nevertheless, a processor with an integrated graphics unit can be easily installed.
Hardware options

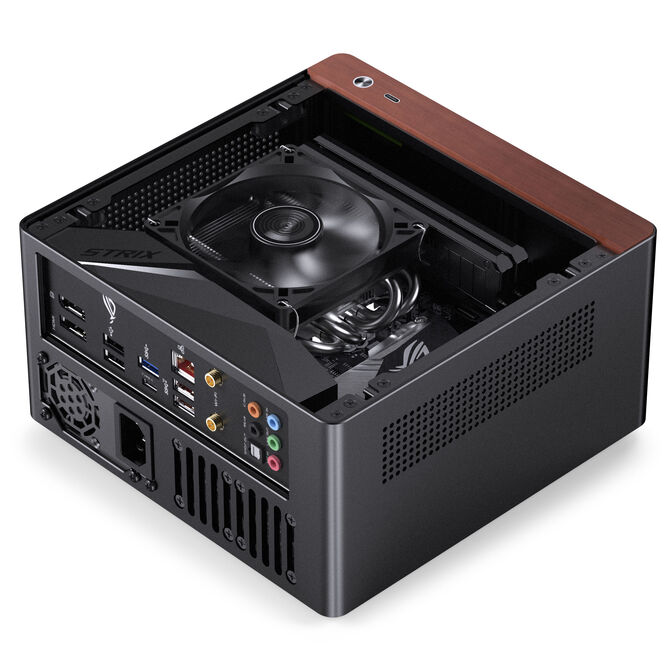

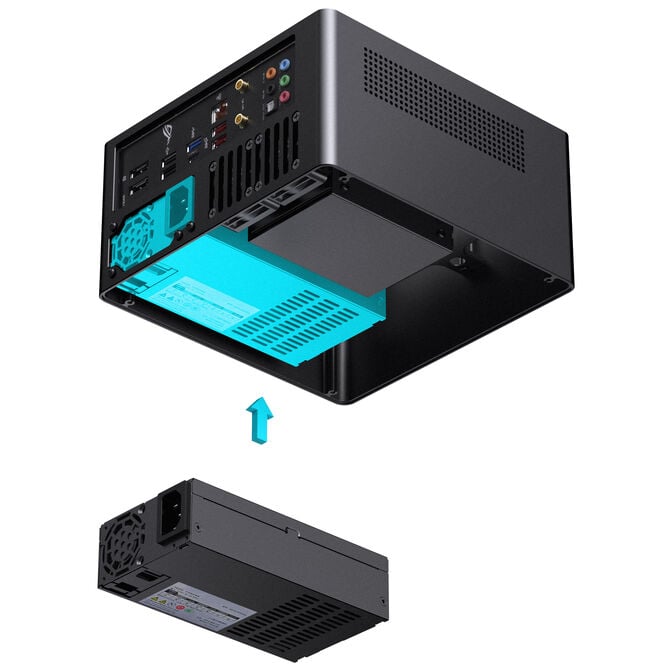

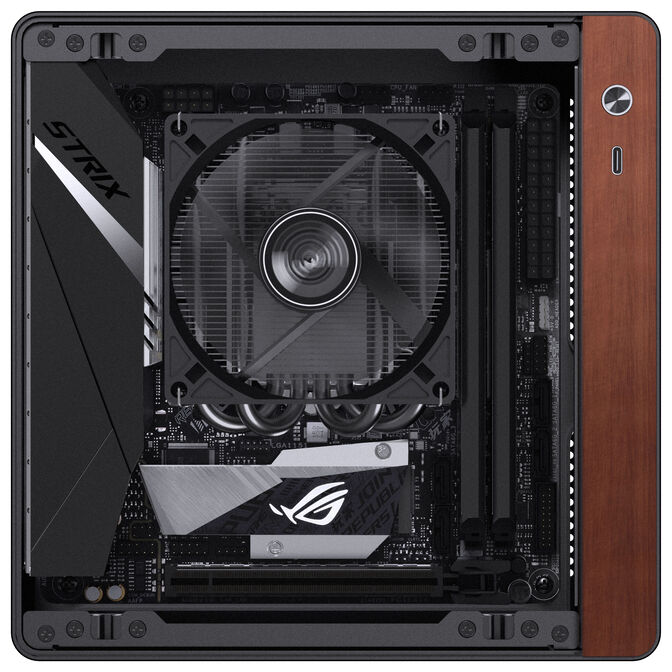

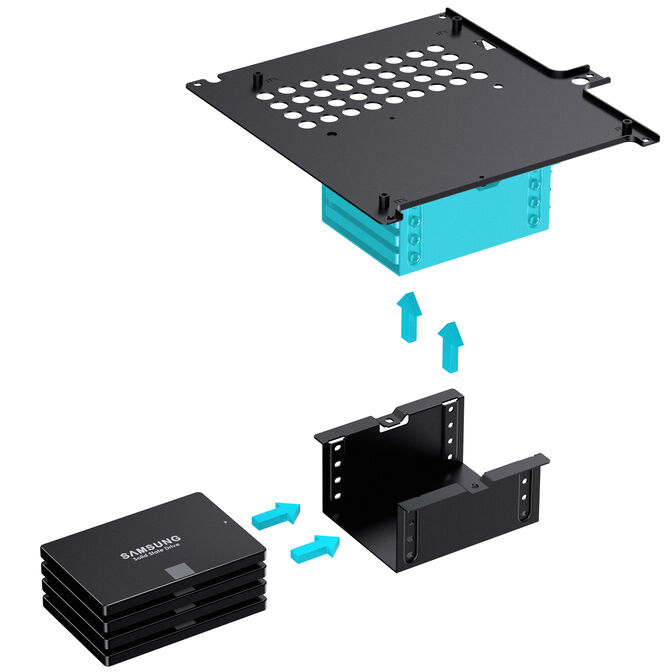

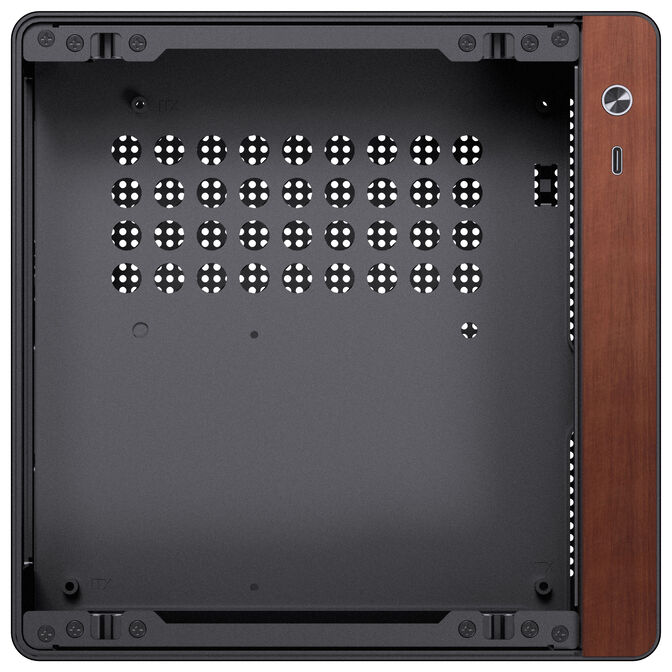

The mini tower supports the installation of ITX sized motherboards. The CPU cooler should not exceed a height of 38mm. To store programs and games, up to four 2.5-inch SSDs can be installed. When it comes to the power supply, it is important to note that only a 1U Flex power supply is possible, which should not be larger than 150mm.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
205 mm
|
|
Width
|
205 mm
|
|
Height
|
108 mm
|
|
Weight
|
1.5 kg
|
|
Case
|
|
|
Case Type
|
Mini Case
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ITX
|
|
Max. Motherboard Format
|
ITX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
38 mm
|
|
Max. GPU Length
|
0 mm
|
|
Max. PSU Length / Depth
|
150 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
other
|
|
Power Supply Position
|
Internal
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Max. Number of Fans
|
1
|
|
40 mm fans
|
2
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
4
|
|
Max. 3.5 Inch Drives
|
0
|
|
Max. 5.25 Inch Drives
|
0
|
|
2.5 inch internal drive bay
|
4
|
|
Hot swap drive bays
|
Yes
|
|
External Ports
|
|
|
Front I/O – USB Type C Ports Total
|
1
|
|
USB 3.1 (external) Type C
|
1
|
|
Case Features
|
|
|
I/O position
|
Side
|
|
Side panel
|
closed
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
No
|
|
Filters Included
|
No
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
0
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
Aluminium, Steel
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Additional Contents
|
|
|
Fans Included
|
Yes
|
|
Included fans
|
1x 40 mm
|
