Jonsbo N4 NAS Case, Micro-ATX - White
- Compact case for NAS systems
- Space for 2x 2.5 inch and 6x 3.5 inch drives
- Four low-profile slots for expansion cards up to 230 mm
- Supports CPU coolers up to 70 mm height
- 1x USB-C and 1x USB-A on the front panel

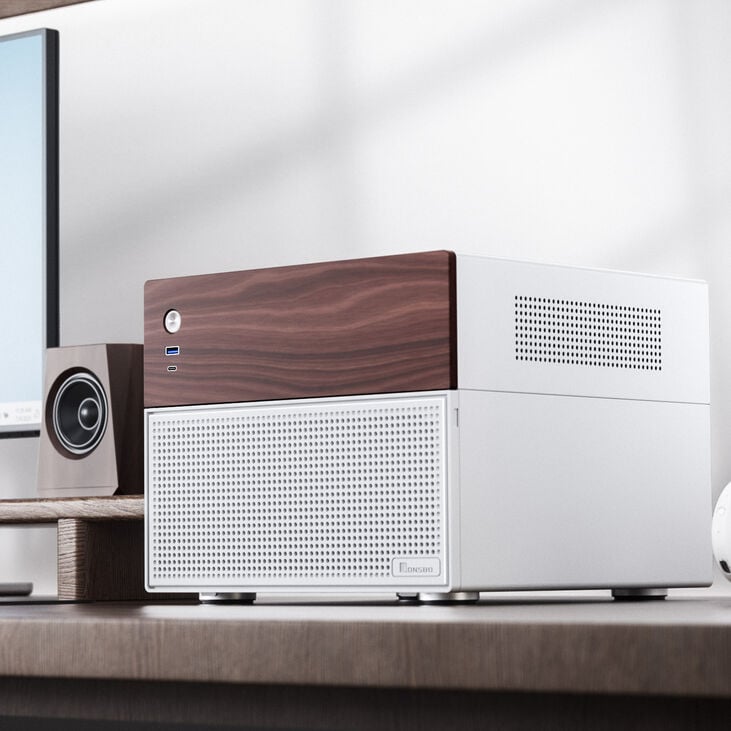

Jonsbo N4: White NAS Case with Wood Decoration

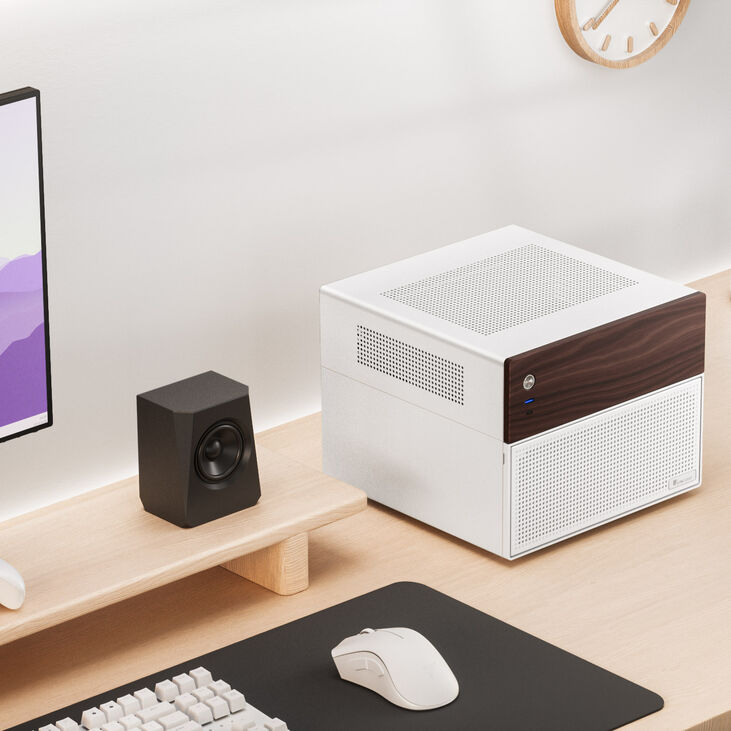

The Jonsbo N4 is a cube-shaped Micro-ATX case for DIY NAS servers. The NAS case features a stylish design with an elegant dark walnut wood trim, enhancing its appeal.
Hardware Capabilities

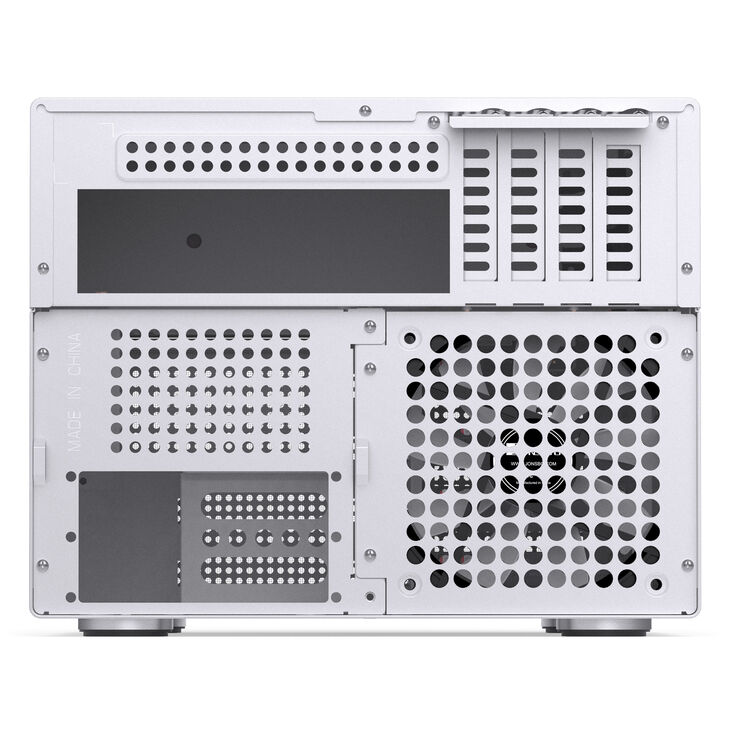

The Jonsbo N4 offers four half-height expansion slots and supports the installation of expansion cards such as RAID controllers, Host Bus Adapters (HBA), and Network Interface Cards (NIC) up to 230 mm in length.

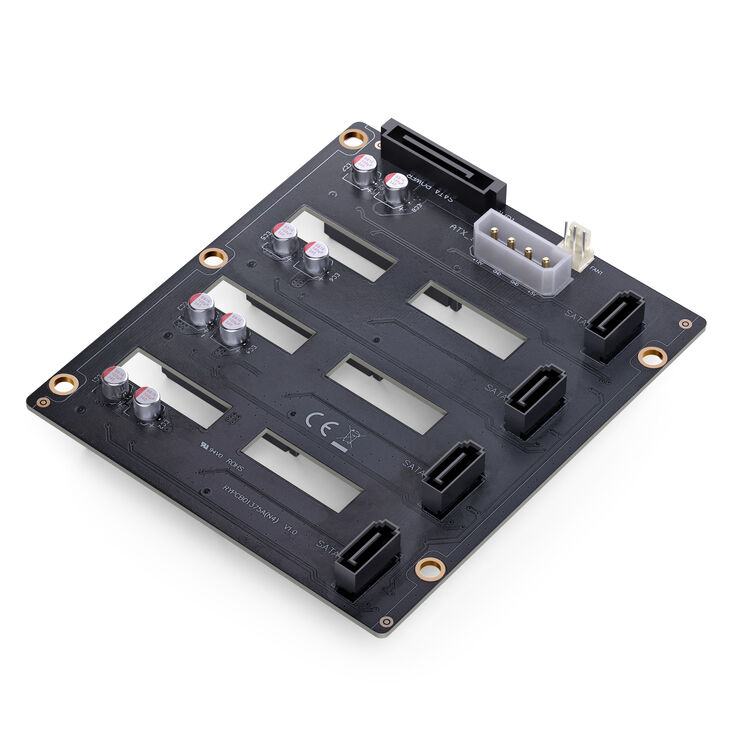

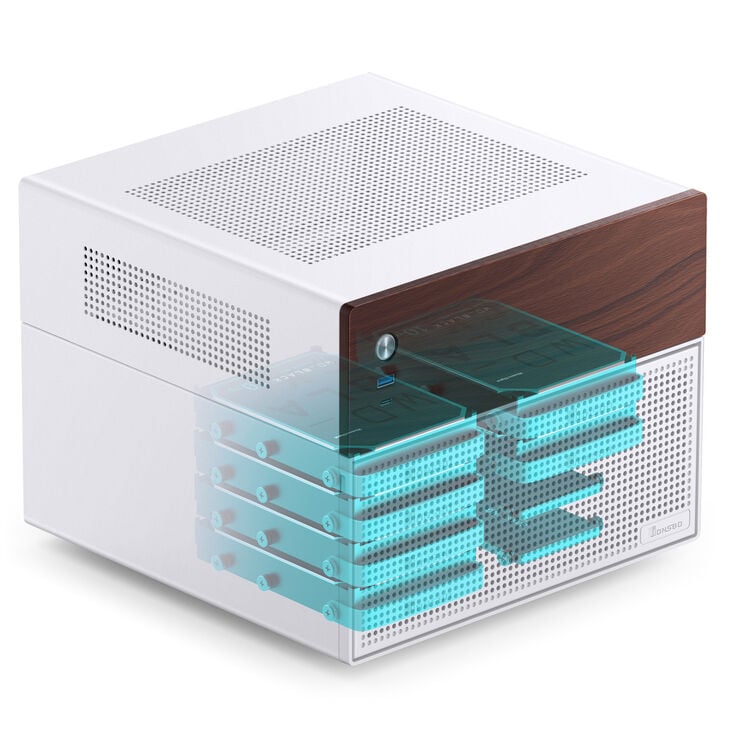

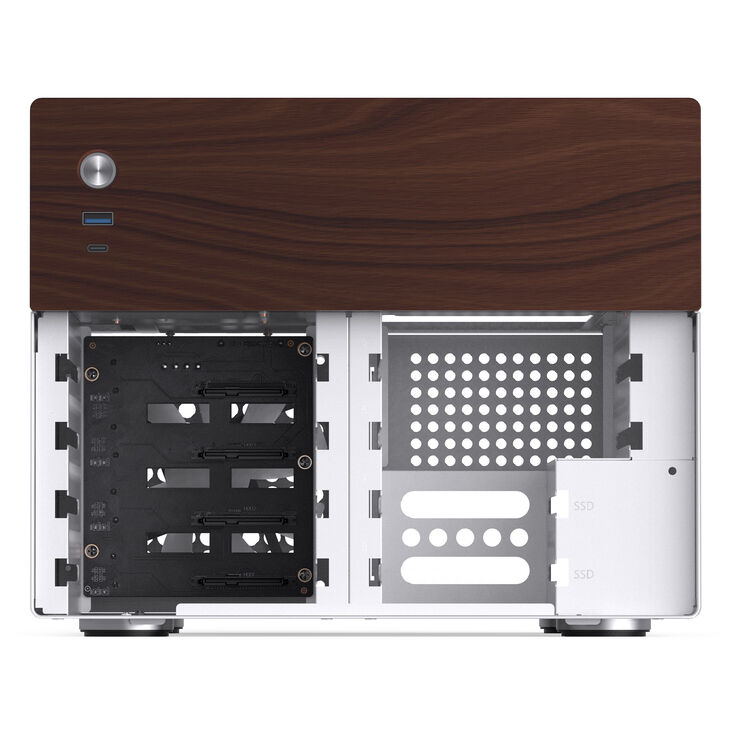

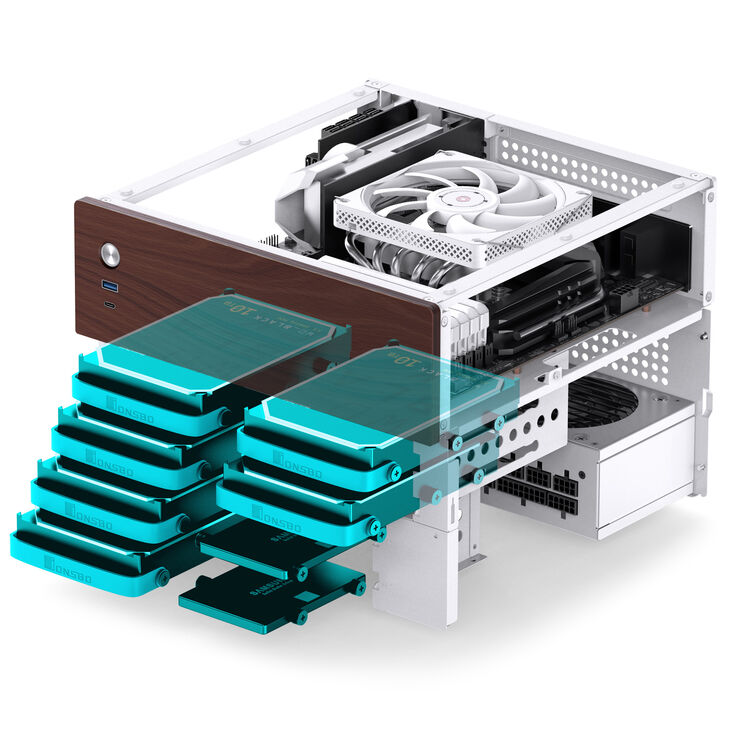

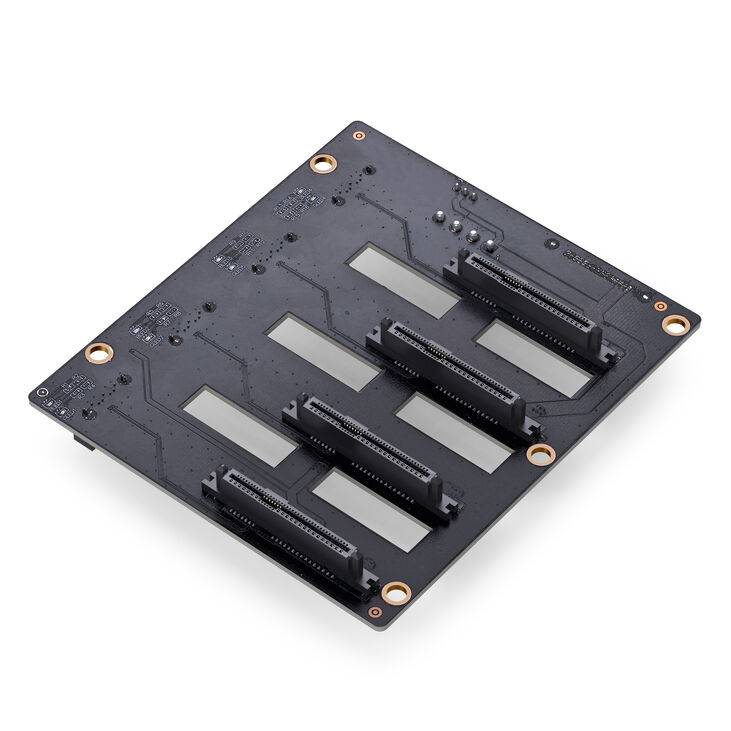

The key factor is the storage capacity, allowing you to install up to six 3.5-inch hard drives and two 2.5-inch drives simultaneously. Thanks to the pre-installed backplanes, these can be easily slotted in.
Effective Cooling for Continuous Operation

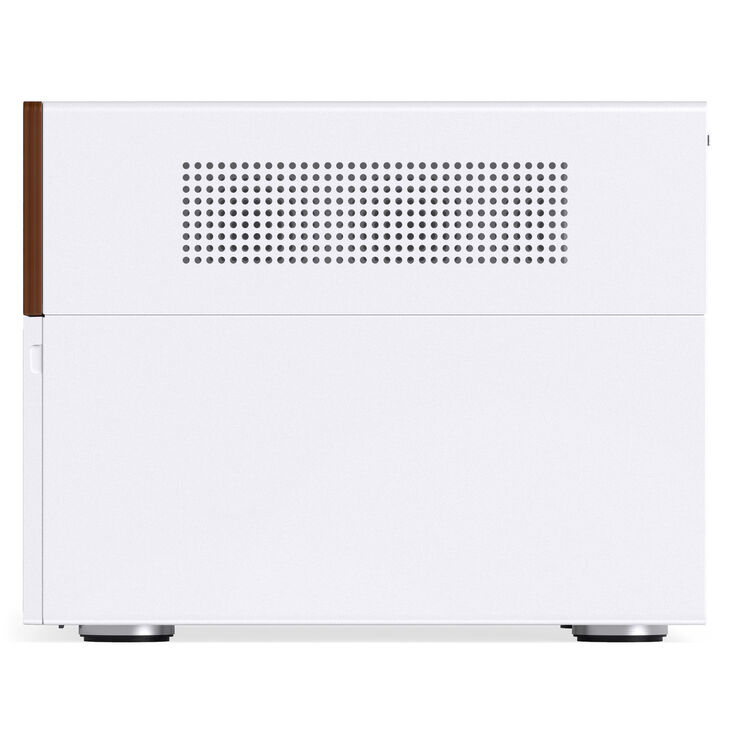

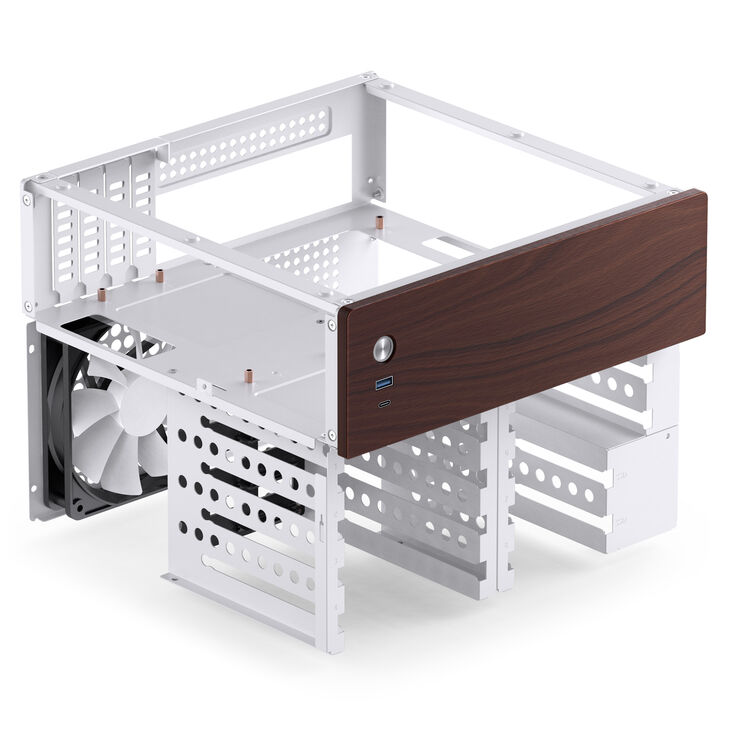

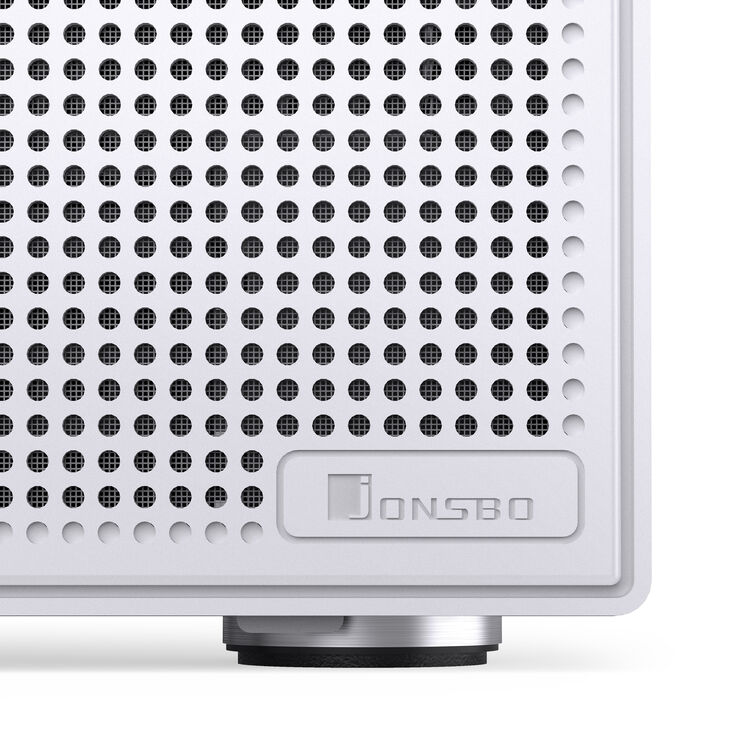

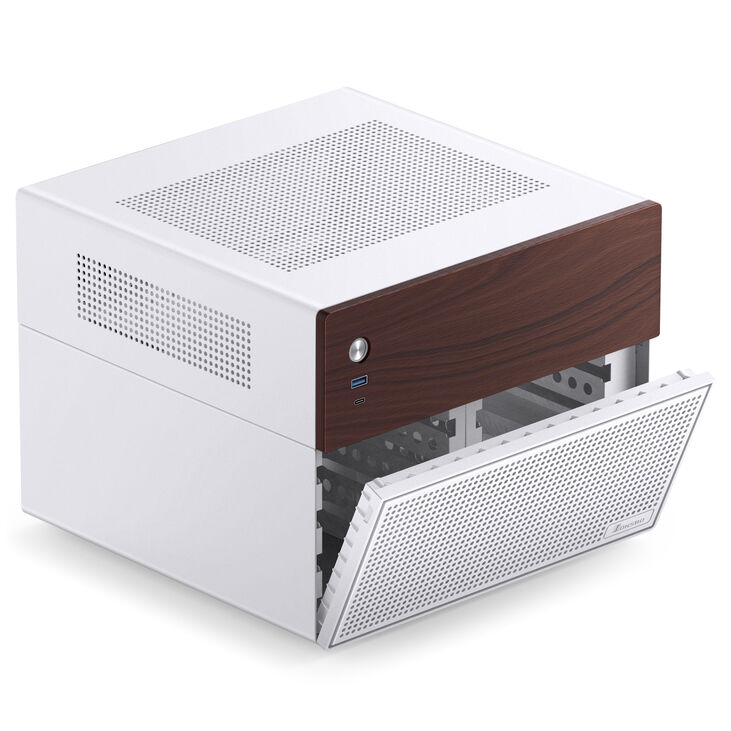

The CPU cooler can be up to 70 mm high. An integrated 120 mm fan at the rear ensures optimal cooling for your NAS hardware. The perforated front panel in front of the drive bay and additional perforations on the sides and top also contribute to sufficient cooling of your NAS system, ensuring longevity.

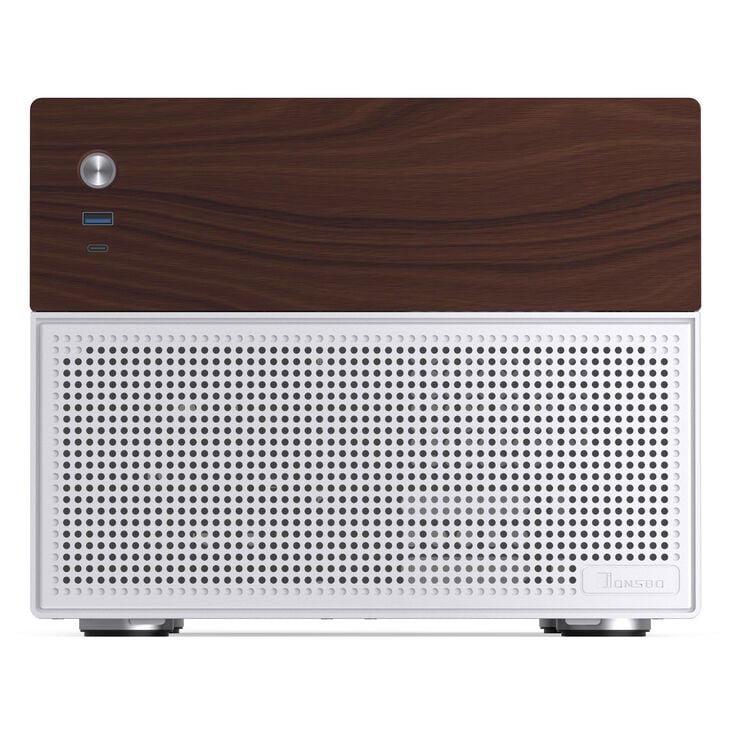

The wood panel features a USB-C port with 10 Gbit/s and a USB-A port with 5 Gbit/s.
- Dimensions: 286 x 228 x 300 mm (W x H x D)
- Material: Steel, Wood
- Weight: 3.75 kg
- Colour: White, Brown
- Form Factor: ITX / Micro-ATX
- Total possible fans: 1x 120 mm (pre-installed)
- Drive bays:
6x 3.5 inch
2x 2.5 inch - Power Supply: 1x SFX (optional)
- Expansion slots: 4 (Low Profile)
- I/O Panel:
1x USB-C 3.1 (USB 3.2, Gen 2, 10 Gbit/s)
1x USB-A 3.0 (USB 3.2 Gen 1, 5 Gbit/s) - Maximum Graphics Card Length: 230 mm
- Maximum CPU Cooler Height: 70 mm
- Maximum Power Supply Length: 125 mm
|
Colour
|
|
|
Primary Colour
|
White
|
|
Secondary Colour
|
Dark brown
|
|
Dimensions
|
|
|
Width
|
286 mm
|
|
Depth
|
300 mm
|
|
Height
|
228 mm
|
|
Weight
|
3.75 kg
|
|
Display
|
|
|
Display Included
|
No
|
|
Case
|
|
|
Case Type
|
Server Case
|
|
Motherboard Support
|
|
|
Compatible motherboard formats
|
ITX, Micro-ATX
|
|
Max. Motherboard Format
|
Micro-ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
70 mm
|
|
Max. GPU Lenght
|
230 mm
|
|
Max. PSU Length / Depth
|
125 mm
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
SFX
|
|
Fan Support
|
|
|
120 mm fans
|
1
|
|
Drive Bays
|
|
|
2.5 inch internal drive bay
|
2
|
|
3.5 inch internal drive bay
|
6
|
|
Hot swap drive bays
|
Yes
|
|
External Ports
|
|
|
USB 3.1 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
1
|
|
Card reader
|
No
|
|
Case Features
|
|
|
I/O position
|
Front
|
|
Side panel
|
closed
|
|
Front door
|
Yes
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Remote included
|
No
|
|
Transport system
|
No
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
4
|
|
Materials
|
|
|
Materials
|
Steel, Wood
|
|
Lighting
|
|
|
Lighting
|
No
|
|
Fan / RGB control
|
No
|
|
Additional Contents
|
|
|
Included fans
|
1x 120 mm
|
