Jonsbo NV10 PC case, mini case, ITX - silver
- Compact case for simple mini-PCs
- Two low-profile expansion slots for graphics cards
- Support for ITX-sized motherboards
- Space for CPU coolers with a height of up to 38 mm

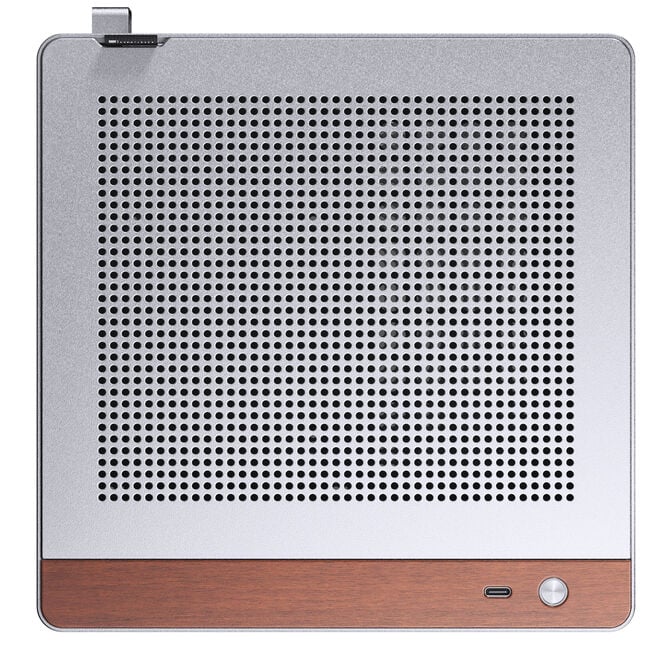

- Minimal I/O panel with a USB-C port
The Jonsbo NV10 PC case in detail

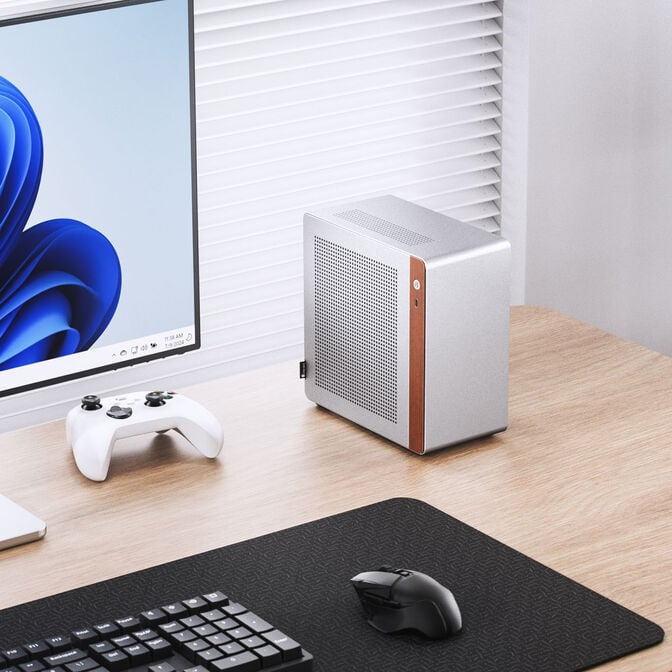

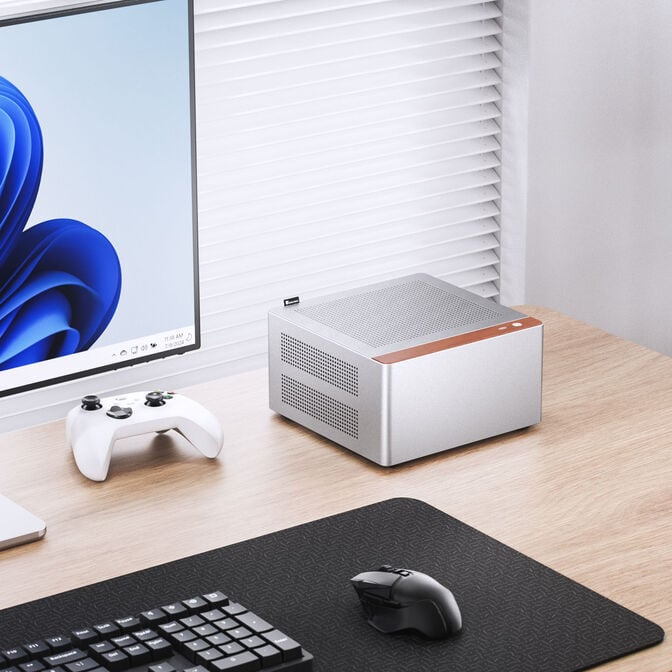

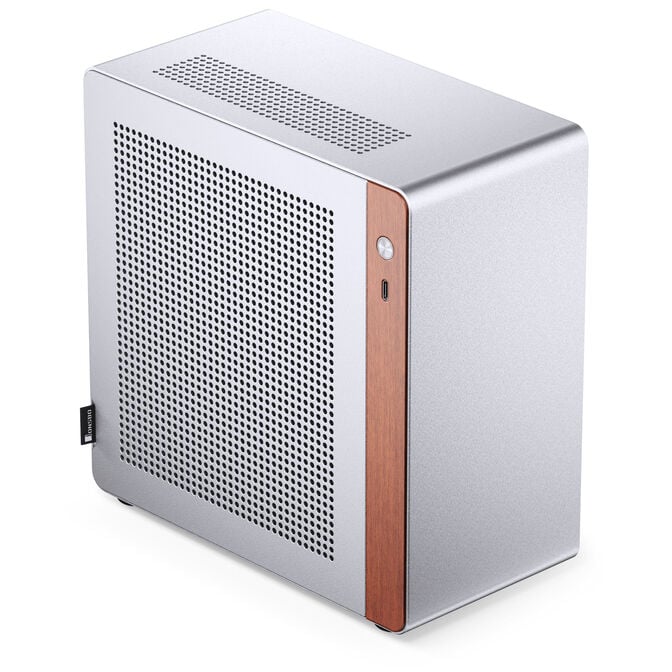

The Jonsbo NV10 is a small case that can be placed on a desk due to its lightweight design and fits into any setup with its silver, simple design. The practical USB-C port allows for the connection of various external devices.
Hardware options

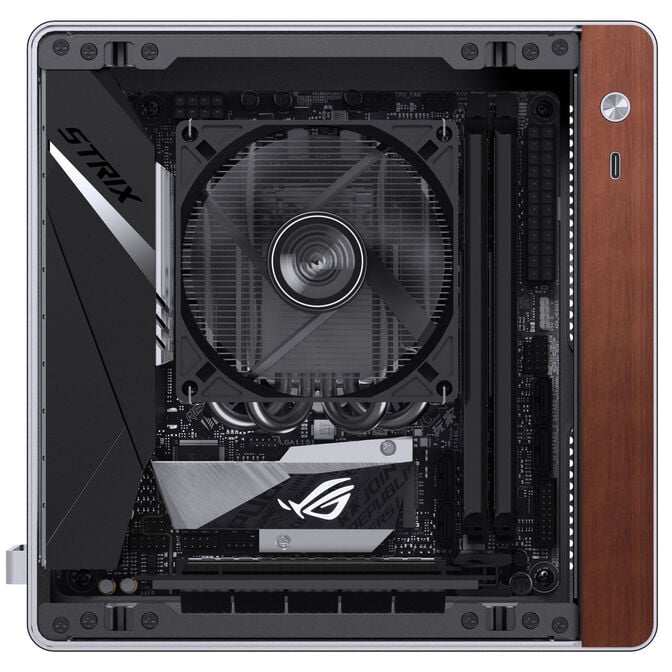

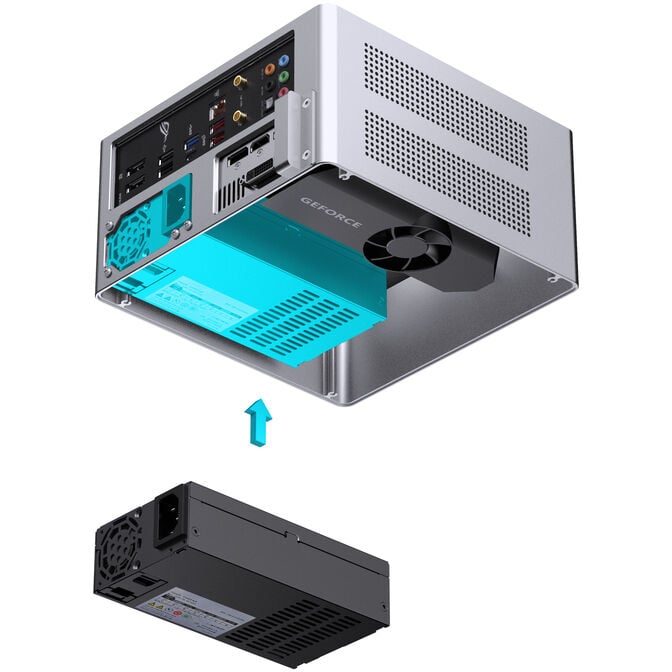

The mini case supports the installation of motherboards with the ITX form factor. The CPU cooler must not exceed a height of 38 mm. Power is supplied by a 1U flex power supply, which must not be longer than 150 mm.

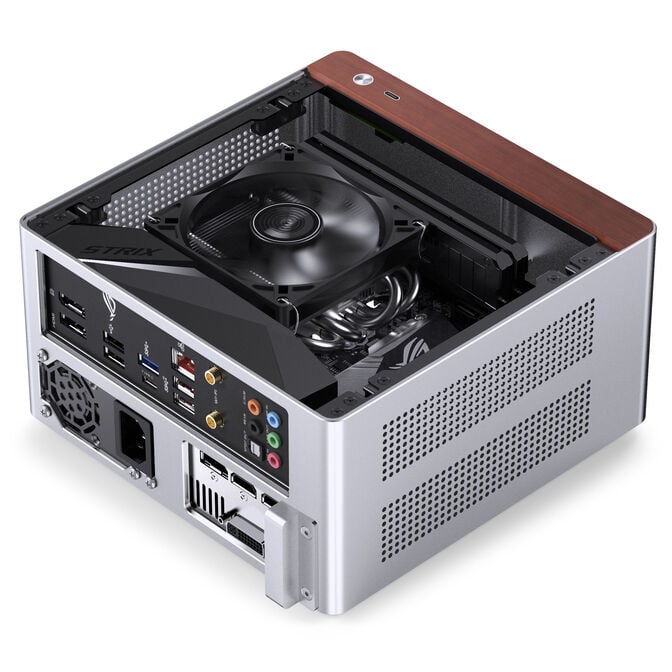

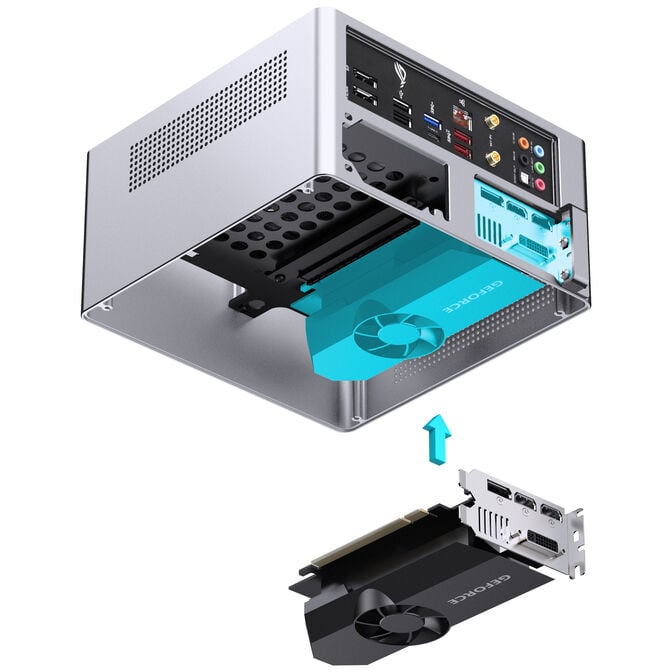

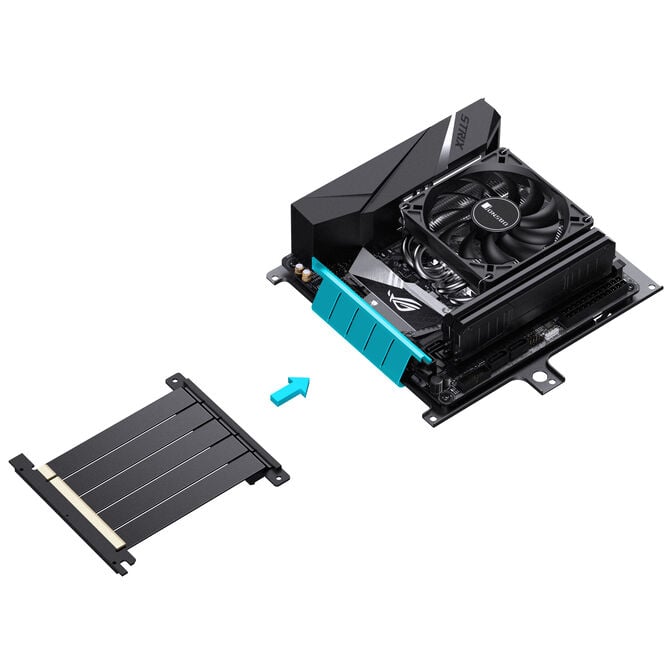

Thanks to the two low-profile expansion slots, the installation of a low-profile GPU up to 190 mm in length is enabled. With the included PCIe 4.0 x16 riser cable, the graphics card is mounted on the back of the motherboard, next to the power supply. This saves as much space as possible and fully utilises the volume of the case.
|
Colour
|
|
|
Primary Colour
|
Silver
|
|
Dimensions
|
|
|
Length / Depth
|
205 mm
|
|
Width
|
205 mm
|
|
Height
|
108 mm
|
|
Weight
|
1.5 kg
|
|
Case
|
|
|
Case Type
|
Mini Case
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ITX
|
|
Max. Motherboard Format
|
ITX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
38 mm
|
|
Max. GPU Length
|
190 mm
|
|
Max. PSU Length / Depth
|
170 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
other
|
|
Power Supply Position
|
Internal
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
Yes
|
|
Riser Cable Generation
|
PCIe 4.0
|
|
Fan Support
|
|
|
Max. Number of Fans
|
0
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
0
|
|
Max. 3.5 Inch Drives
|
0
|
|
Max. 5.25 Inch Drives
|
0
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
USB 3.1 (external) Type C
|
1
|
|
Case Features
|
|
|
I/O position
|
Cover
|
|
Side panel
|
closed
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
No
|
|
Filters Included
|
No
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
2
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
Aluminium, Plastic, Steel
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
