Jonsbo TK-3 PC Case, Mid Tower, ATX, Tempered Glass - White
- Sleek mid-tower with dual-chamber design
- 270° panoramic view with curved tempered glass
- Compatible with ASUS BTF and MSI Project Zero back-connect motherboards
- Space for up to 10 case fans
- Supports GPUs up to 420 mm in length
- Supports CPU coolers up to 165 mm in height
- Up to two 360 mm radiators possible
- 1x USB-C and 2x USB-A on the front panel
Jonsbo TK-3: White Mid Tower with Panoramic View

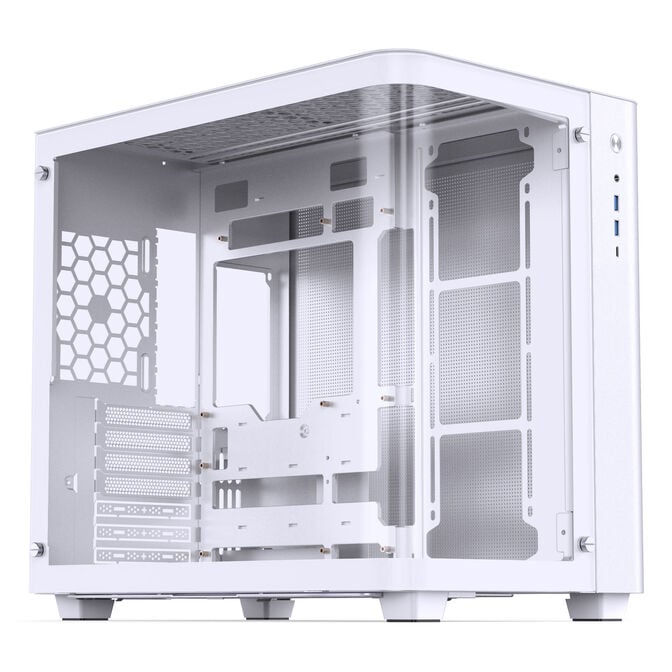

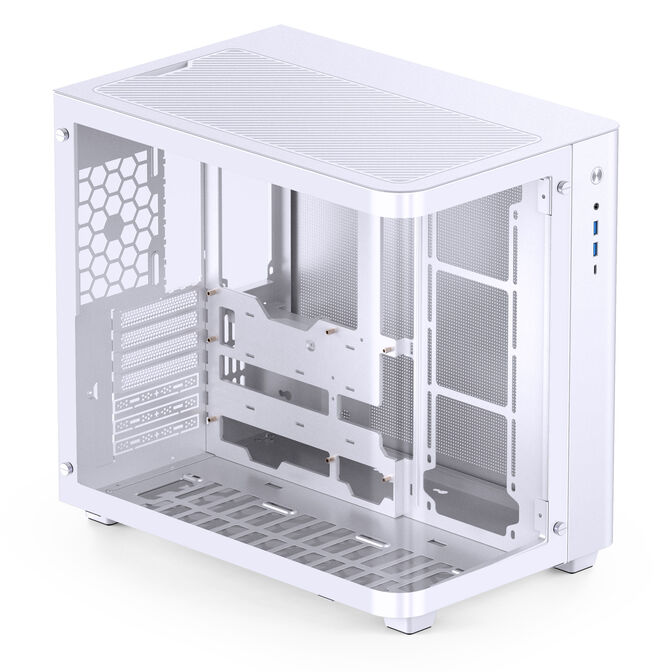

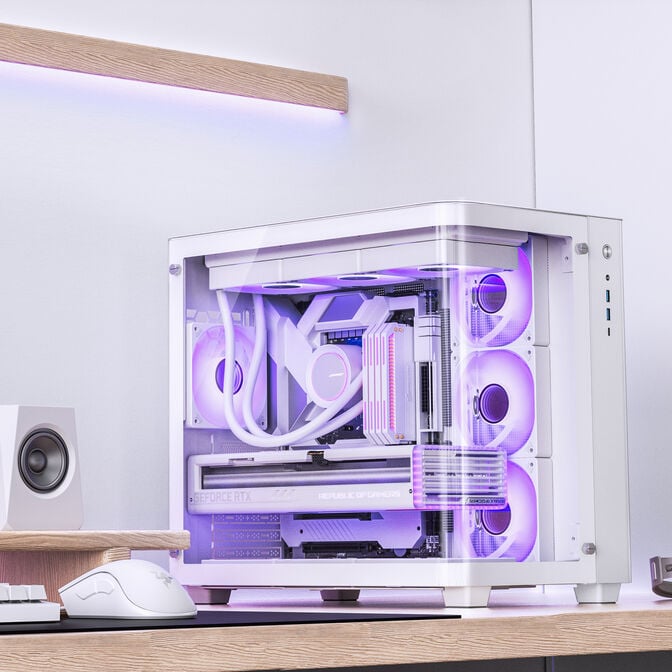

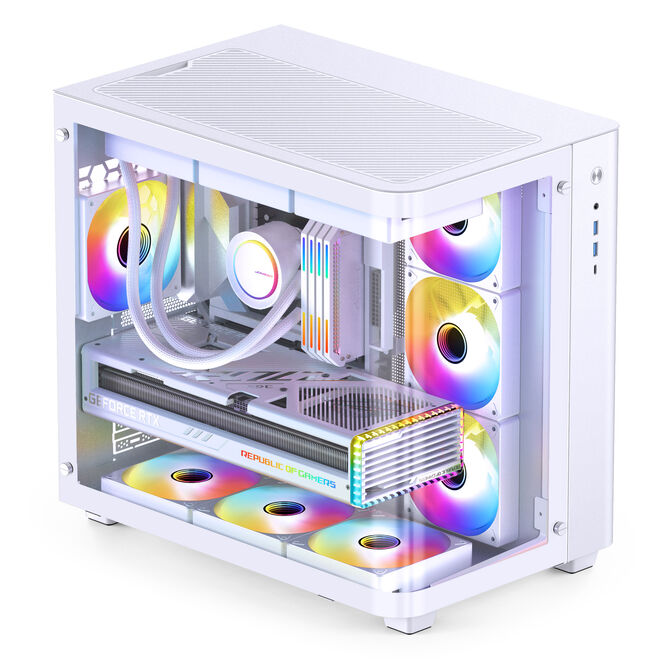

The Jonsbo TK-3 showcases your gaming hardware beautifully. At first glance, it's evident that not only the side but also a large part of the front is made of glass. The curved tempered glass offers a 270° panoramic view into your PC, allowing you to display your hardware excellently.
Ample Space for PC Components

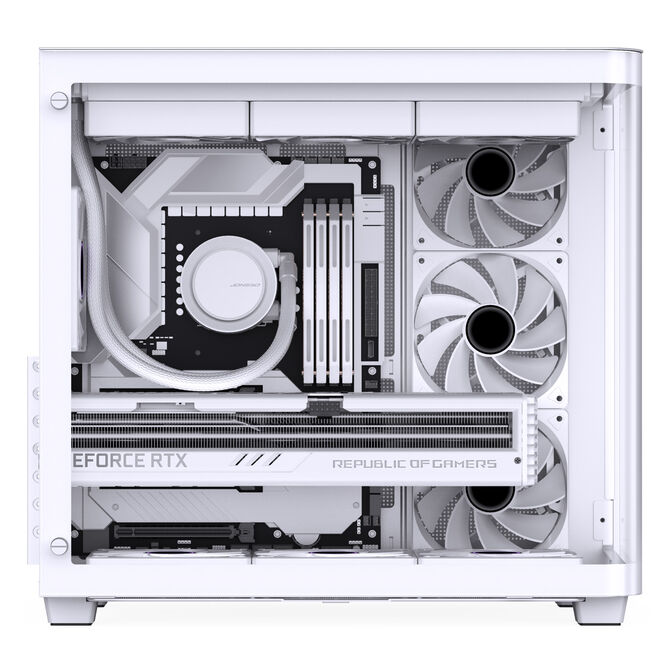

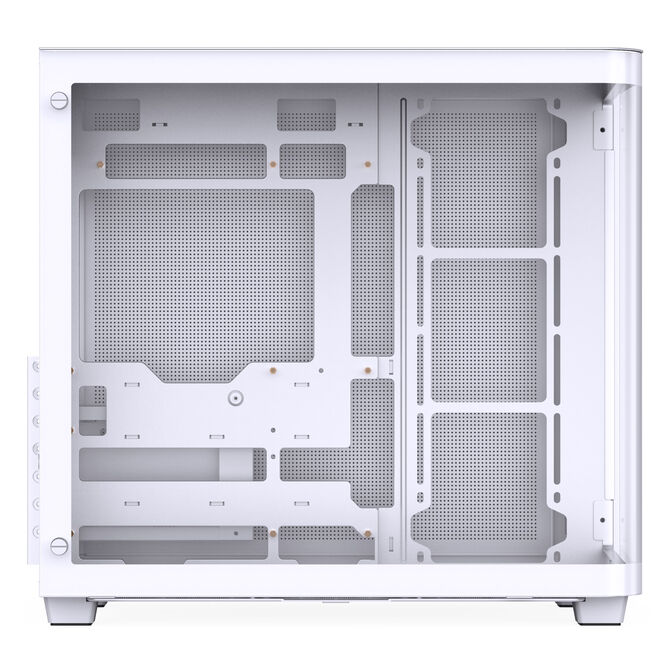

This PC case supports the installation of graphics cards up to 420 mm in length, giving you the freedom to choose any model. It also accommodates ATX power supplies up to 220 mm in length, offering the necessary space for extremely powerful PSUs. The motherboard tray supports motherboards from Mini-ITX to ATX sizes and includes seven PCI slots for expansion cards.
PC Cooling: Space for Fans, CPU Coolers, and Radiators
High-performance PC parts require excellent cooling, and the Jonsbo TK-3 offers the necessary options for installation. Up to ten 120 mm fans can be accommodated in this mid tower, providing excellent airflow. There's also space for large CPU coolers up to 165 mm in height. Radiators up to 360 mm can be installed on the top and bottom of the case.
Drive Options: HDDs and SSDs

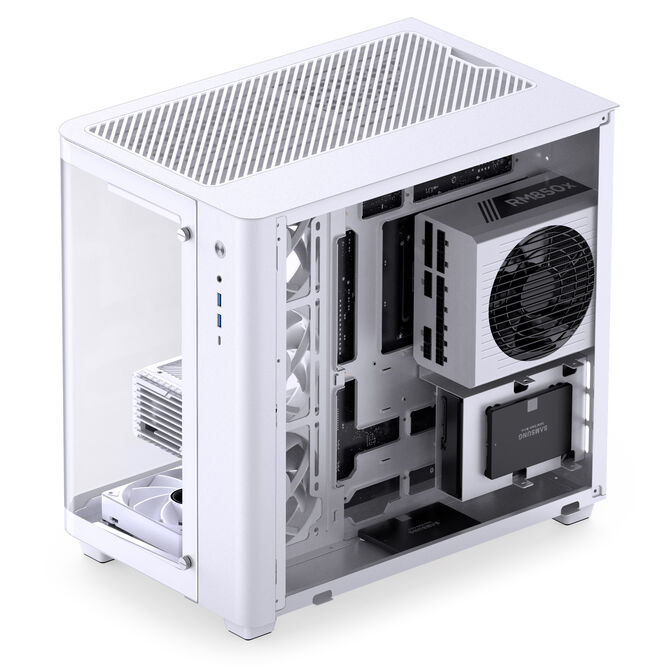

The second chamber can house a total of three SATA hard drives and SSDs. One 3.5-inch HDD and one 3.5-inch or 2.5-inch drive can be installed in the hard drive cage, and one 2.5-inch SSD can be mounted at the bottom of the case.

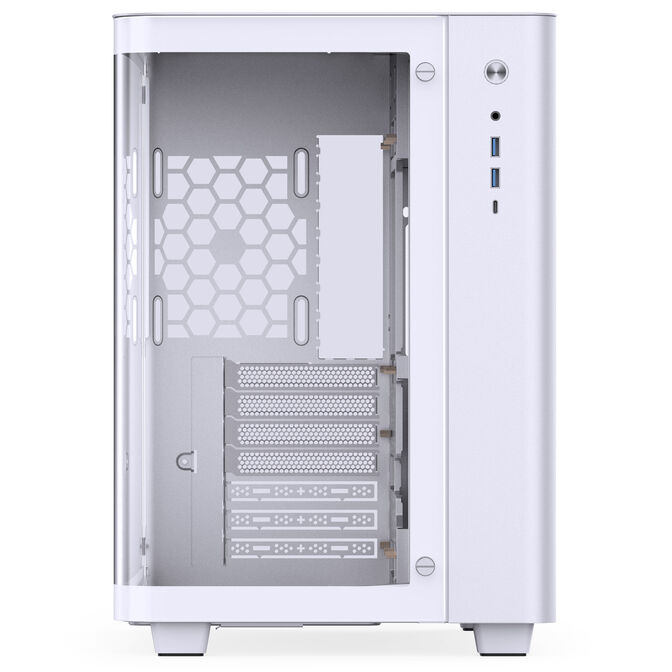

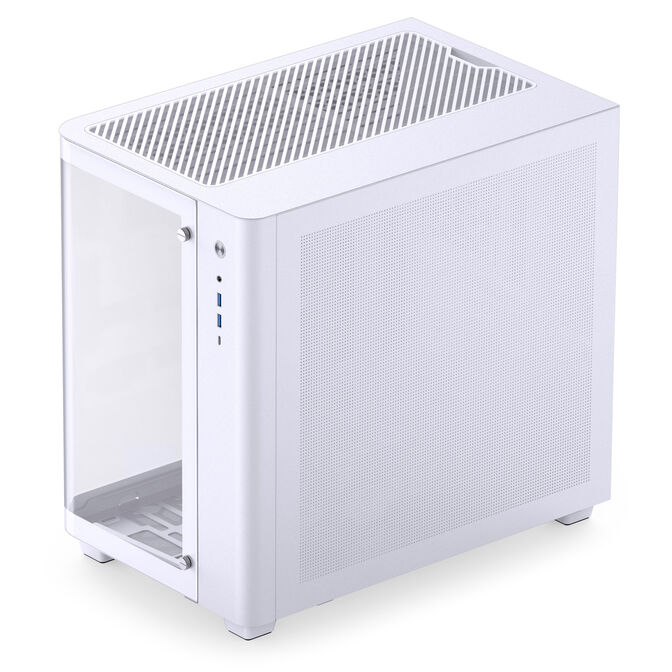

The front panel features a fast USB-C port, two USB-A ports, and a combined 3.5 mm jack for your headset.
- Colour: White
- Materials: Steel, plastic, tempered glass
- Dimensions: 288 x 415 x 438 mm (W x H x D)
- Weight: 7.3 kg
- Form factor: ATX, Micro-ATX, ITX
- Back connect: Yes (ASUS BTF, MSI Project Zero)
- Possible fans:
Top: 3x 120 / 2x 140 mm
Bottom: 3x 120 mm
Side: 3x 120 mm
Rear: 1x 120 mm - Possible radiators:
Top: 1x 360 / 280 mm
Bottom: 1x 360 mm - Drive bays:
1x 3.5 inch
1x 3.5 inch / 2.5 inch
1x 2.5 inch - Power supply: 1x ATX (optional)
- Expansion slots: 7
- I/O panel:
1x USB-C 3.1 (3.2 Gen 2, 10 Gbit/s)
2x USB-A 3.0 (3.2 Gen 1, 5 Gbit/s)
1x 3.5 mm jack (4-pole, TRRS, audio in/out) - Maximum GPU length: 420 mm
- Maximum CPU cooler height: 165 mm
- Maximum PSU length: 220 mm
|
Colour
|
|
|
Primary Colour
|
White
|
|
Dimensions
|
|
|
Length / Depth
|
438 mm
|
|
Width
|
288 mm
|
|
Height
|
415 mm
|
|
Weight
|
7.3 kg
|
|
Case
|
|
|
Case Type
|
Mid Tower
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, ITX, Micro-ATX
|
|
Max. Motherboard Format
|
ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
165 mm
|
|
Max. GPU Length
|
420 mm
|
|
Max. PSU Length / Depth
|
220 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear side
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Bottom)
|
120mm Fan (3x)
|
|
Case Fan Support (Rear)
|
120mm Fan (1x)
|
|
Case Fan Support (Side)
|
120mm Fan (3x)
|
|
Case Fan Support (Top)
|
120mm Fan (3x), 140mm Fan (2x)
|
|
Max. Number of Fans
|
10
|
|
120 mm fans
|
10
|
|
140 mm fans
|
2
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
360
|
|
Radiator/AIO Support (Bottom)
|
360mm Radiator
|
|
Radiator/AIO Support (Top)
|
280mm Radiator, 360mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
2
|
|
Max. 3.5 Inch Drives
|
2
|
|
Max. 5.25 Inch Drives
|
0
|
|
2.5 inch internal drive bay
|
1
|
|
3.5 inch internal drive bay
|
1
|
|
1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined)
|
1
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
Front I/O – USB Type C Ports Total
|
1
|
|
Front I/O – USB Type A Ports Total
|
2
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|
I/O position
|
Front
|
|
Side panel
|
with window
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
Yes
|
|
Filter Position
|
Bottom, Top
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
Yes
|
|
Back-Connect Compatibility
|
ASUS BTF, MSI Project Zero
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
7
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
Steel, Tempered Glass
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Additional Contents
|
|
|
Fans Included
|
No
|
|
Included fans
|
None
|
