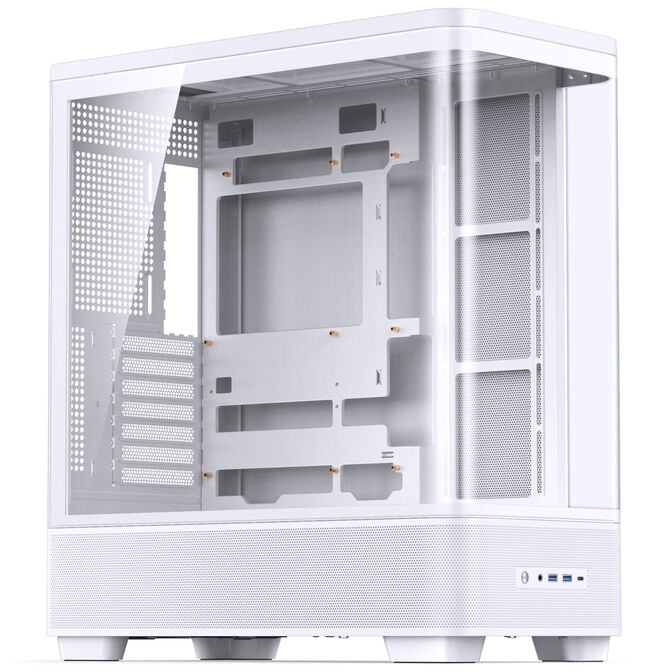

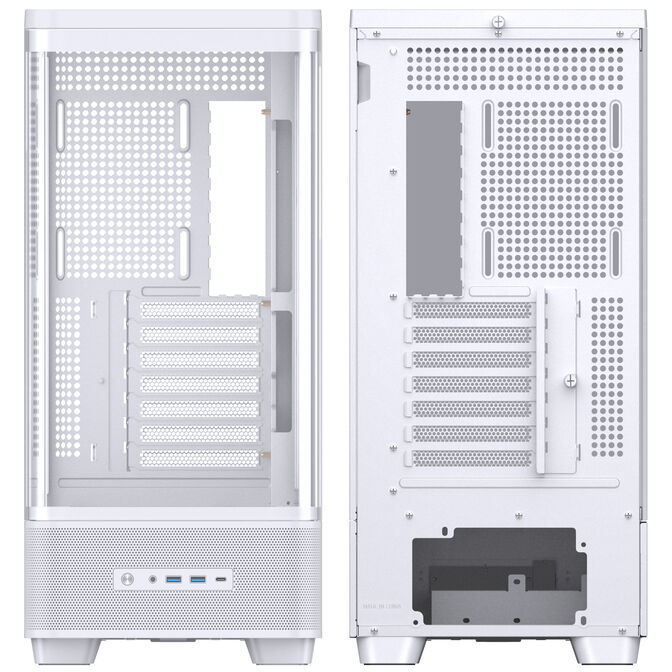

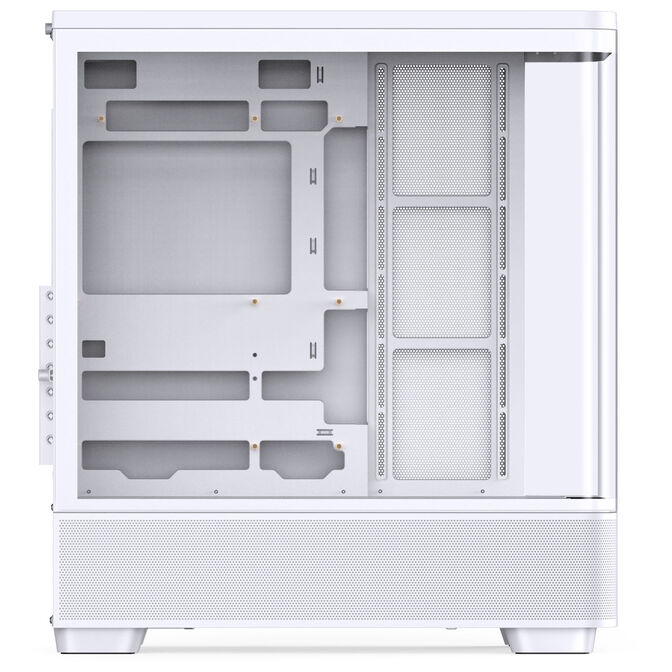

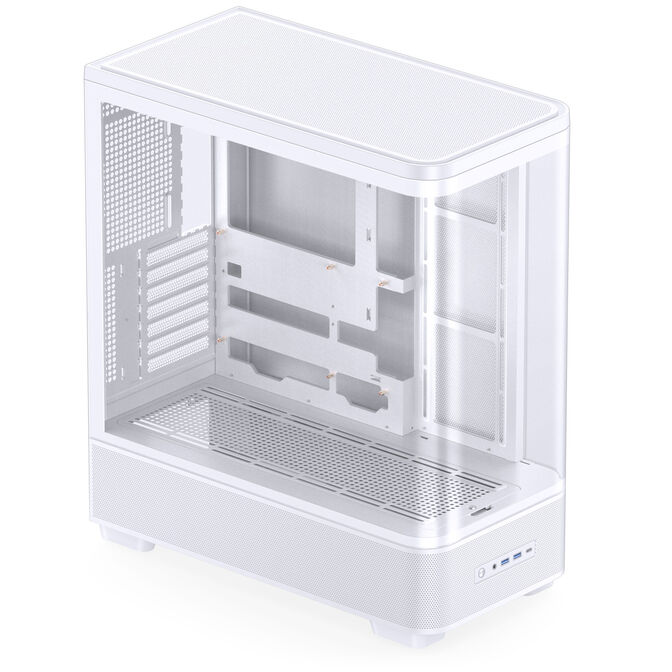

Jonsbo TK-5 PC Case, Mid Tower, ATX, Tempered Glass - white

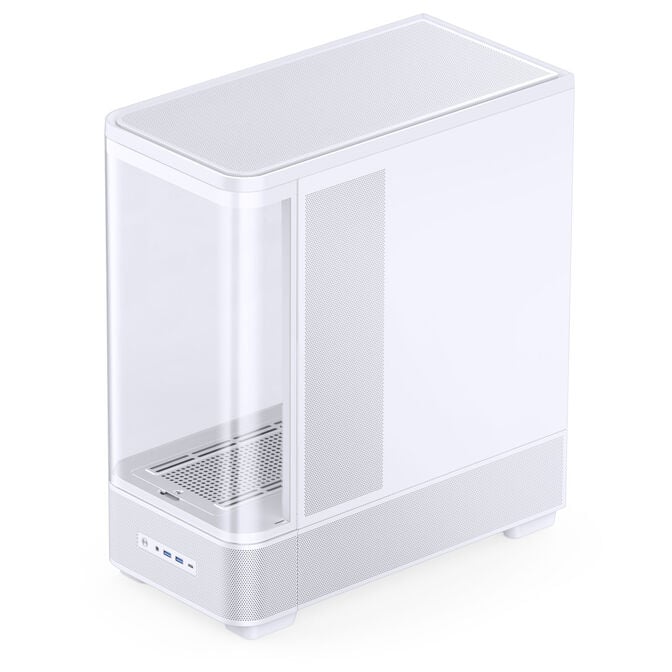

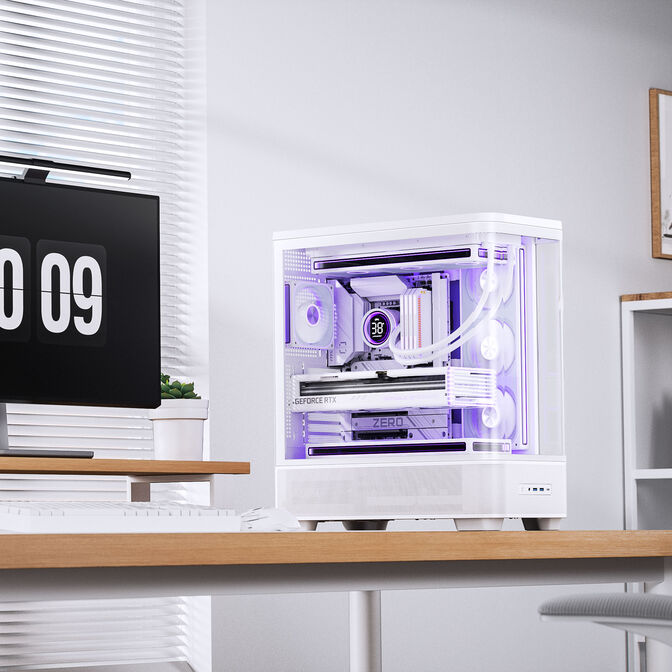

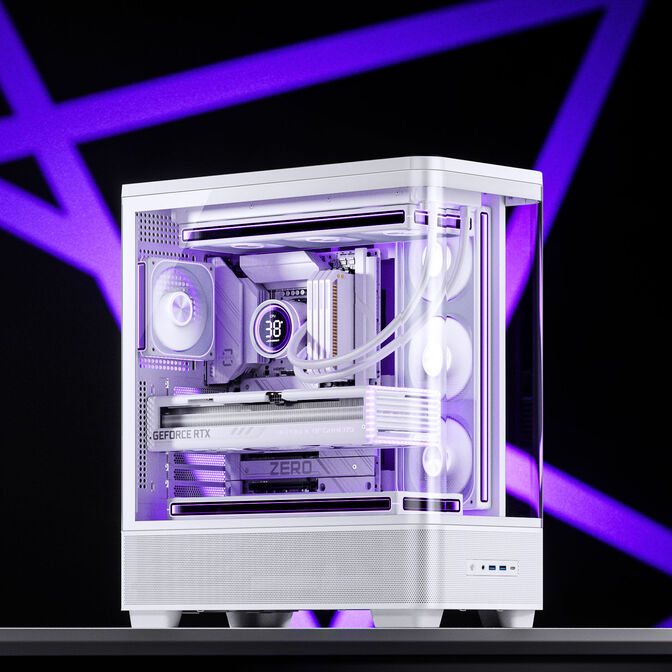

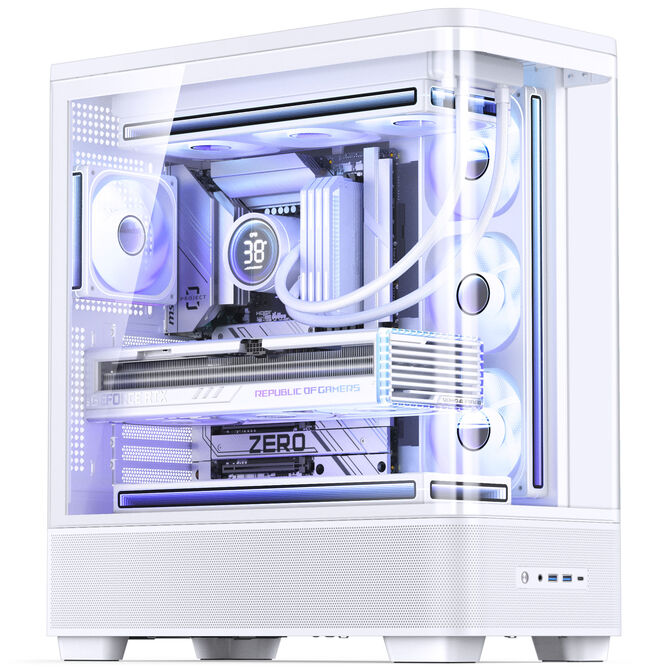

The Jonsbo TK-5 turns your gaming setup into a real eye-catcher. Thanks to its open design, you have a full view of your installed hardware.
- White mid-tower with panorama glass design
- Numerous fan and radiator mounting options for effective cooling performance
- Supports motherboards up to ATX size
- Space for graphics cards up to 460mm and CPU coolers up to 180mm in height
Jonsbo TK-5: PC Case with Panorama Design
The Jonsbo TK-5 mid-tower offers the perfect balance between size and functionality. With ample room for high-performance hardware and efficient cooling, it is the ideal choice for gaming builds.
Extensive Cooling Options with Fans and Radiators

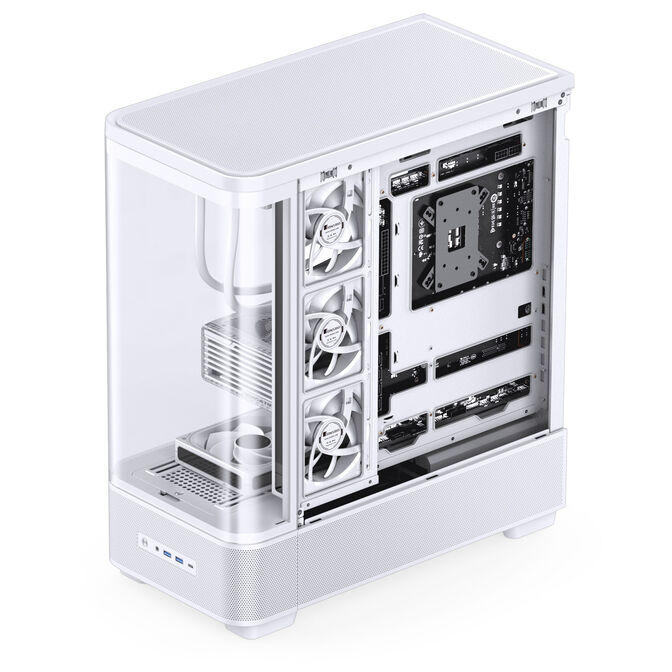

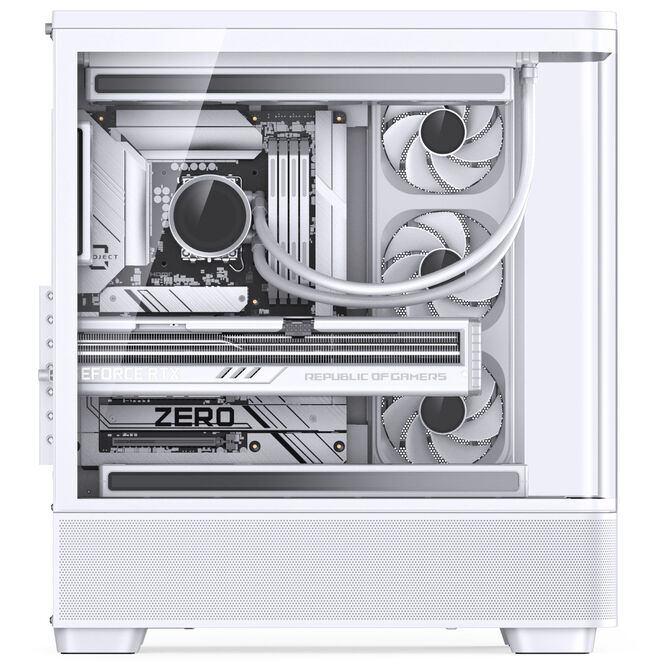

To keep your hardware cool under any load, the Jonsbo TK-5 can accommodate up to ten fans simultaneously. The case provides space for three 120mm or 140mm fans at the top and bottom. You can install three 120mm fans on the side and one at the rear.

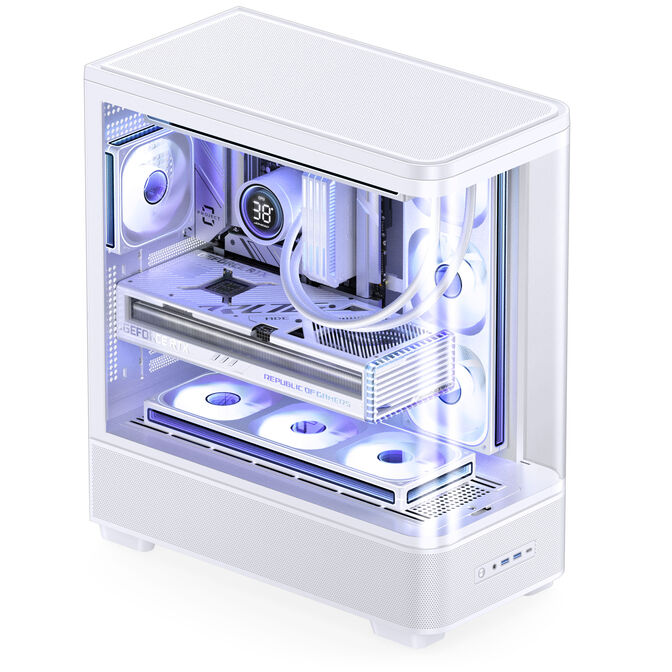

An AiO water cooling system can also be easily installed if you prefer to cool your high-performance hardware with liquid cooling. There is space for a 360mm water cooling radiator at both the top and bottom.
Installing Your Hardware

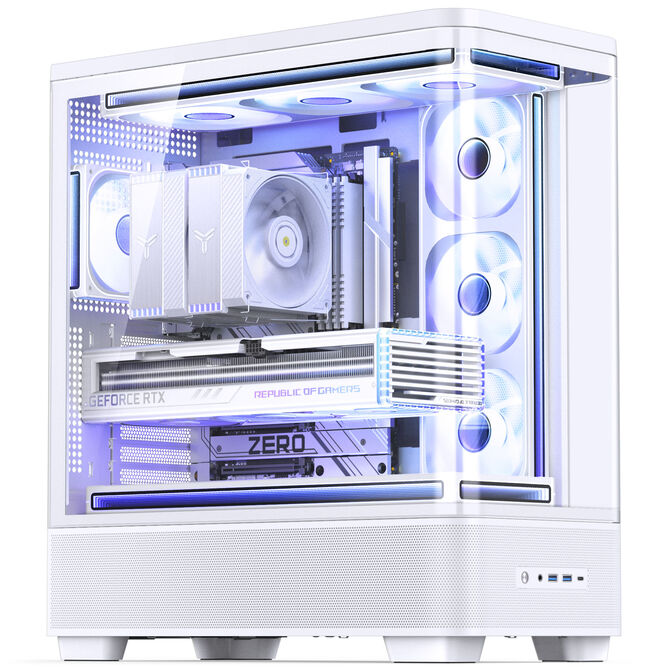

The case offers enough room for powerful gaming hardware. It supports the installation of long graphics cards up to 460mm. The CPU cooler should not exceed 180mm in height. To store programs and games, a total of eight drives can be installed.
|
Colour
|
|
|
Primary Colour
|
White
|
|
Dimensions
|
|
|
Length / Depth
|
474 mm
|
|
Width
|
245 mm
|
|
Height
|
539 mm
|
|
Weight
|
10.4 kg
|
|
Case
|
|
|
Case Type
|
Mid Tower
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, Micro-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
180 mm
|
|
Max. GPU Length
|
460 mm
|
|
Max. PSU Length / Depth
|
220 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear bottom
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Bottom)
|
120mm Fan (3x), 140mm Fan (3x)
|
|
Case Fan Support (Rear)
|
120mm Fan (1x)
|
|
Case Fan Support (Side)
|
120mm Fan (3x)
|
|
Case Fan Support (Top)
|
120mm Fan (3x), 140mm Fan (3x)
|
|
Max. Number of Fans
|
10
|
|
120 mm fans
|
10
|
|
140 mm fans
|
6
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
2x Triple (360 mm)
|
|
Radiator/AIO Support (Bottom)
|
360mm Radiator
|
|
Radiator/AIO Support (Top)
|
360mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
2
|
|
Max. 3.5 Inch Drives
|
4
|
|
Max. 5.25 Inch Drives
|
0
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
Front I/O – USB Type C Ports Total
|
1
|
|
Front I/O – USB Type A Ports Total
|
2
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|
I/O position
|
Front
|
|
Side panel
|
with window
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
Yes
|
|
Filter Position
|
Bottom
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
Yes
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
7
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
Steel, Tempered Glass
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Additional Contents
|
|
|
Fans Included
|
No
|
|
Included fans
|
None
|
