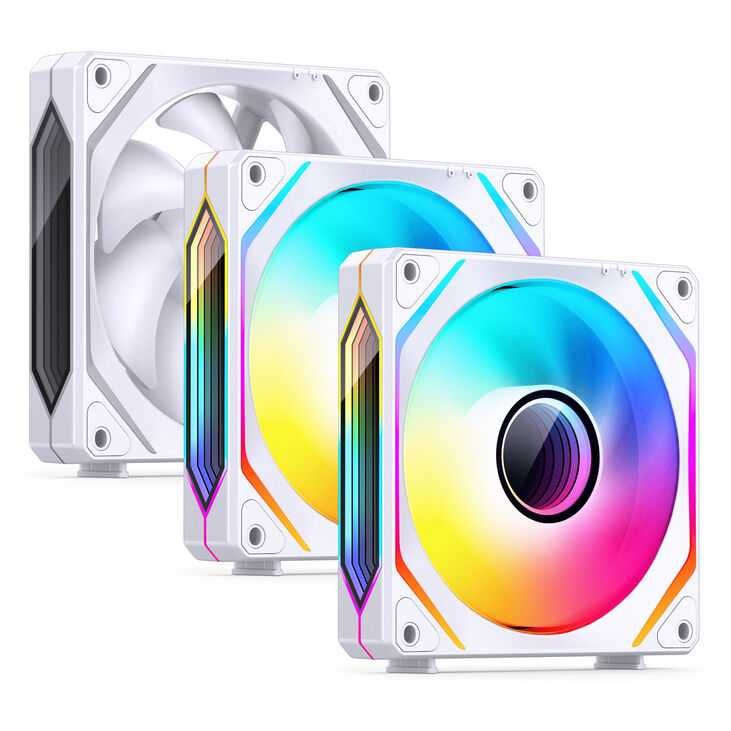

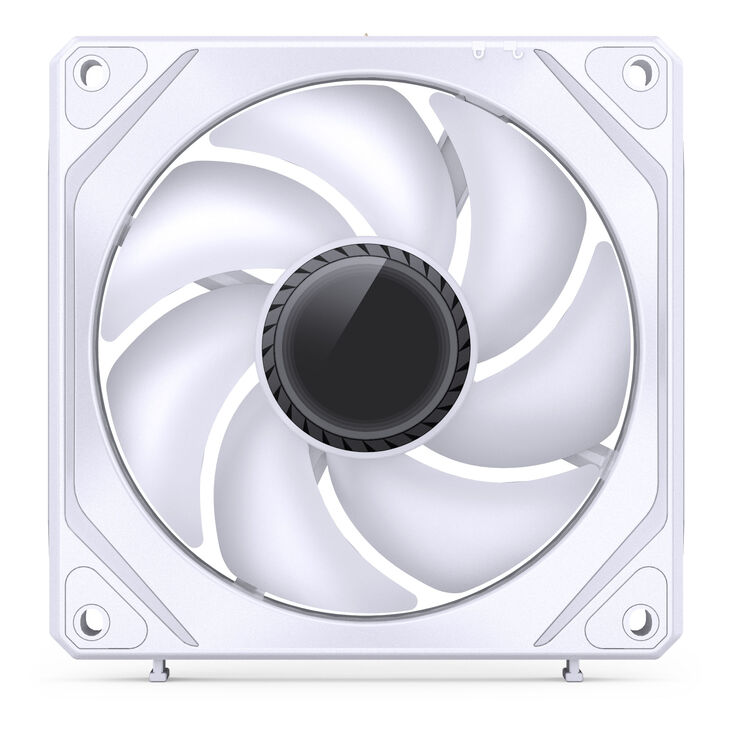

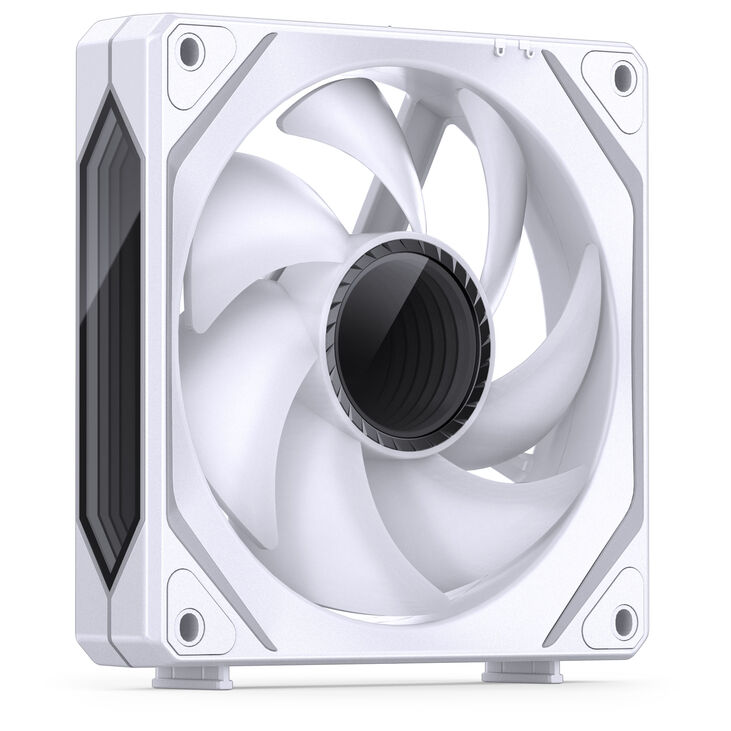

Jonsbo ZL-120W Fan, PWM, ARGB - 120mm, white, 3-pack
- 3x 120mm PWM fans optimised for case use

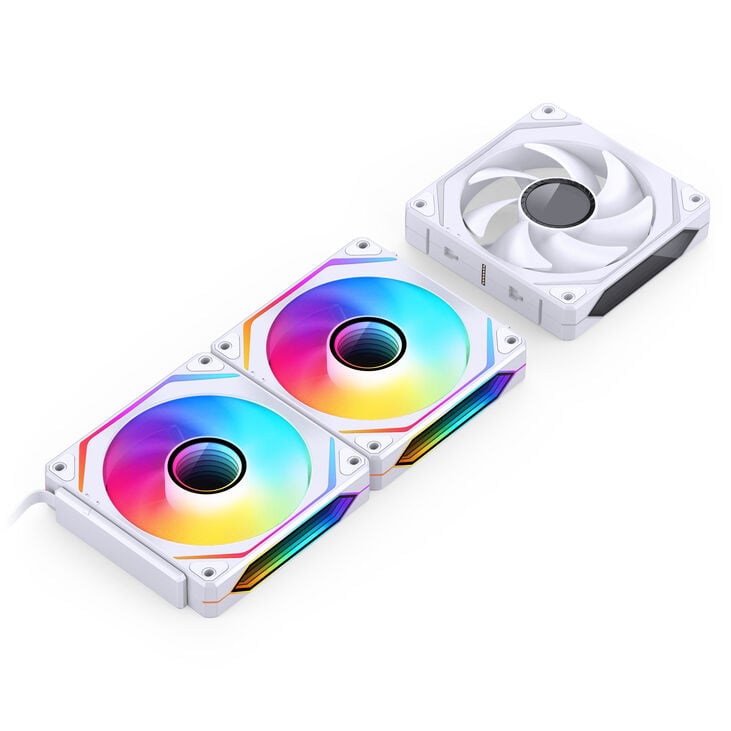

- Daisy-chain for reduced cable clutter
- Good cooling performance at max. 1.800 RPM and quiet operation with max. 23.8 dB(A)

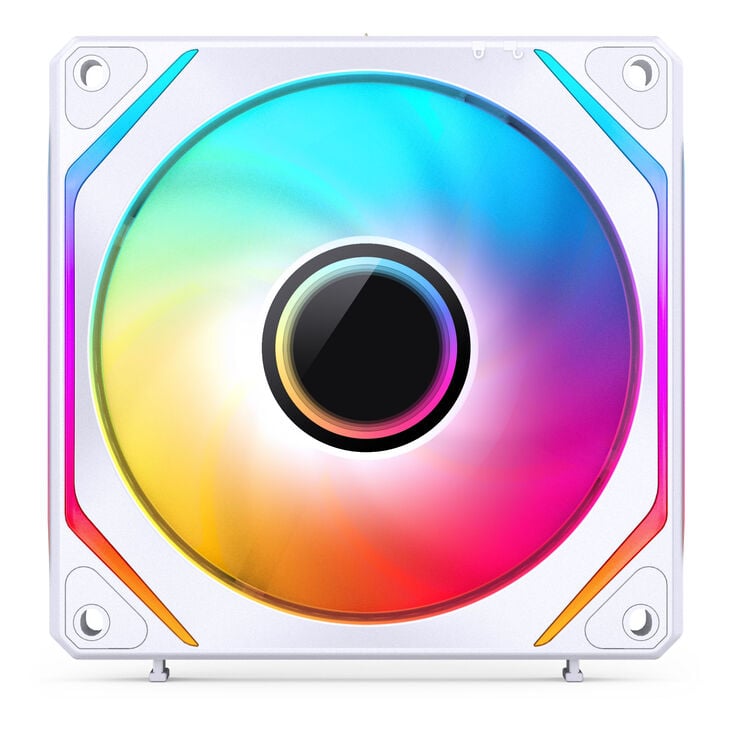

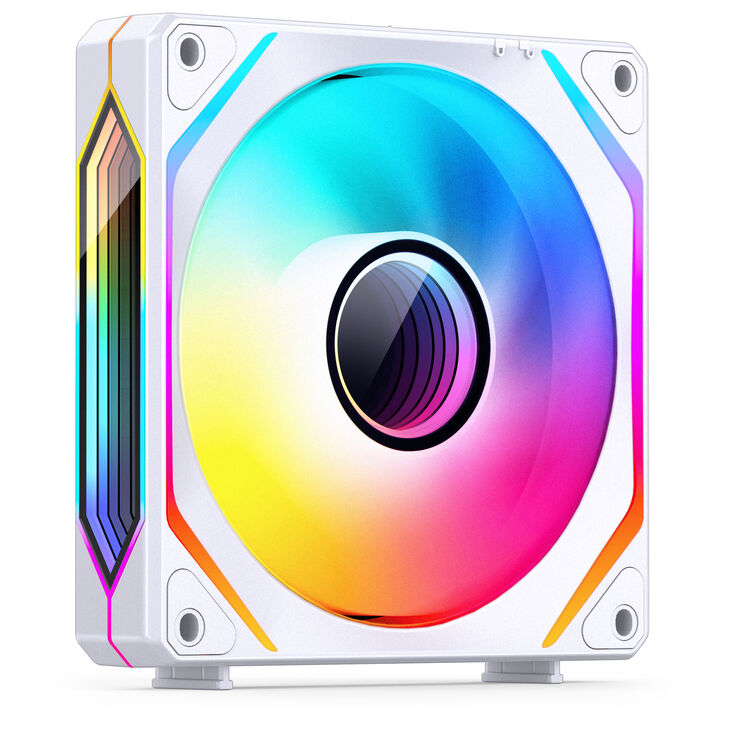

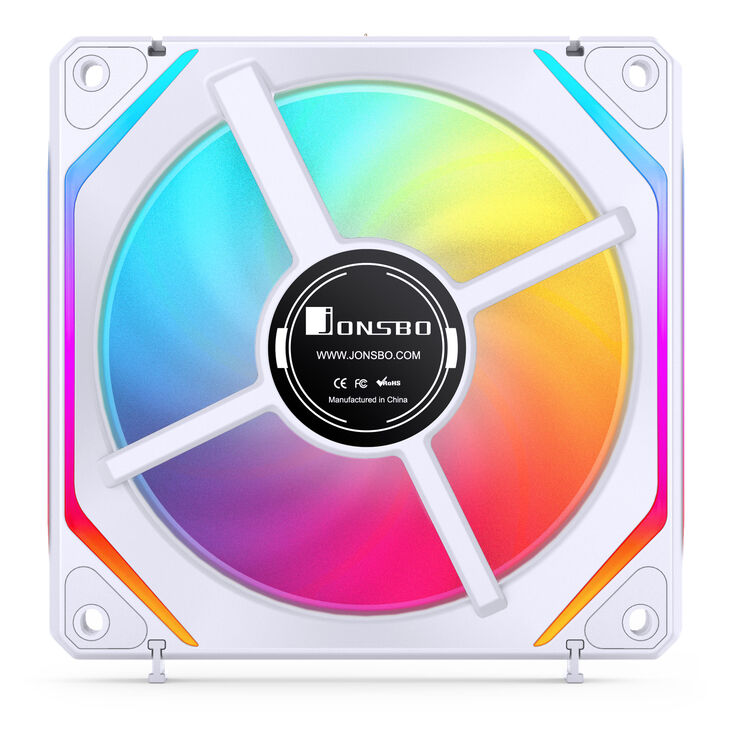

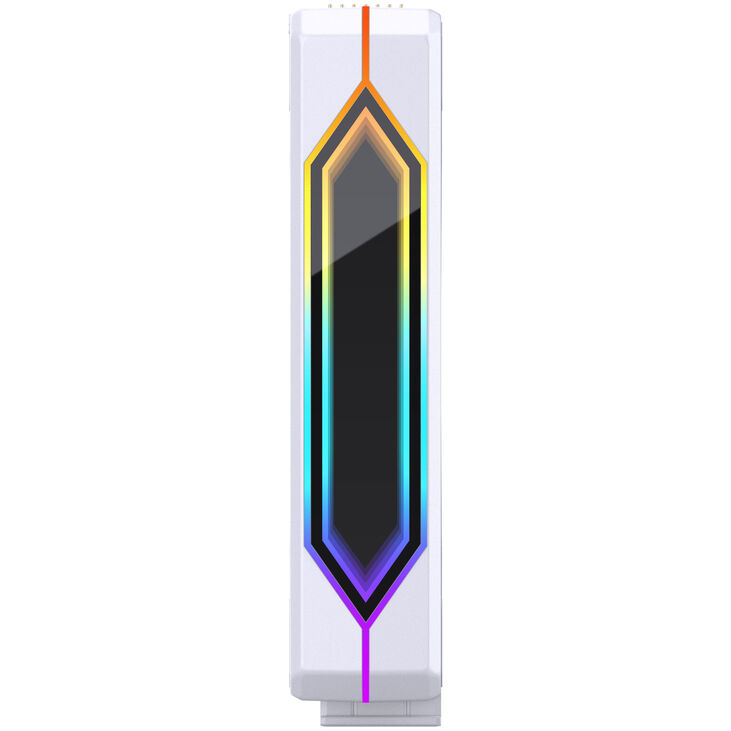

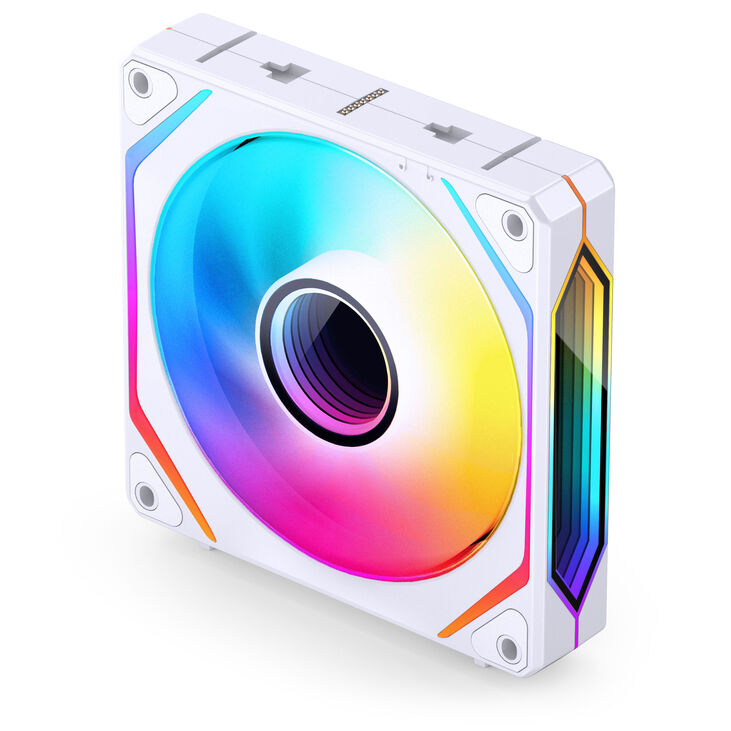

- Stylish lighting thanks to addressable RGB LEDs
- Regular orientation for standard airflow
- High airflow of 60.35 CFM

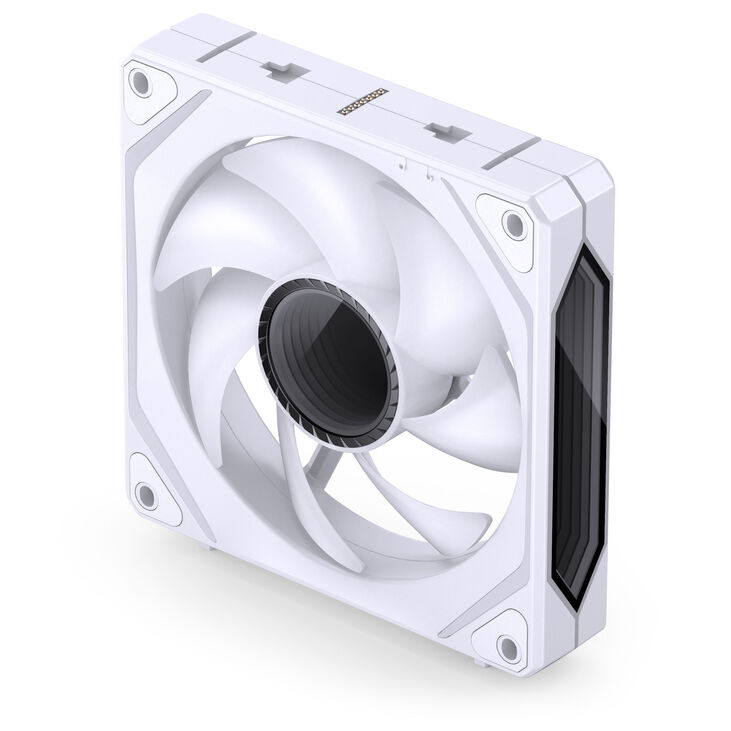

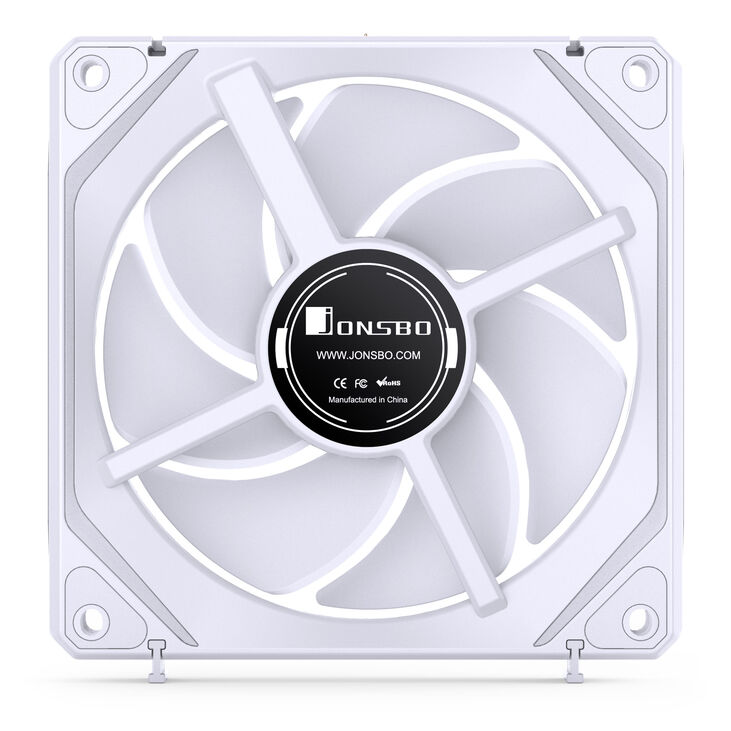

Jonsbo ZL-120W ARGB Fan in Detail

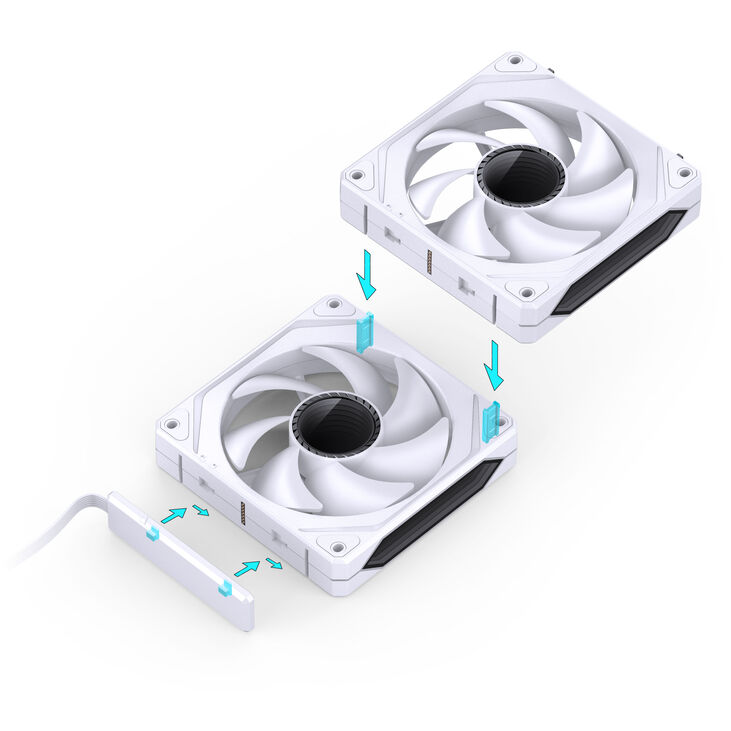

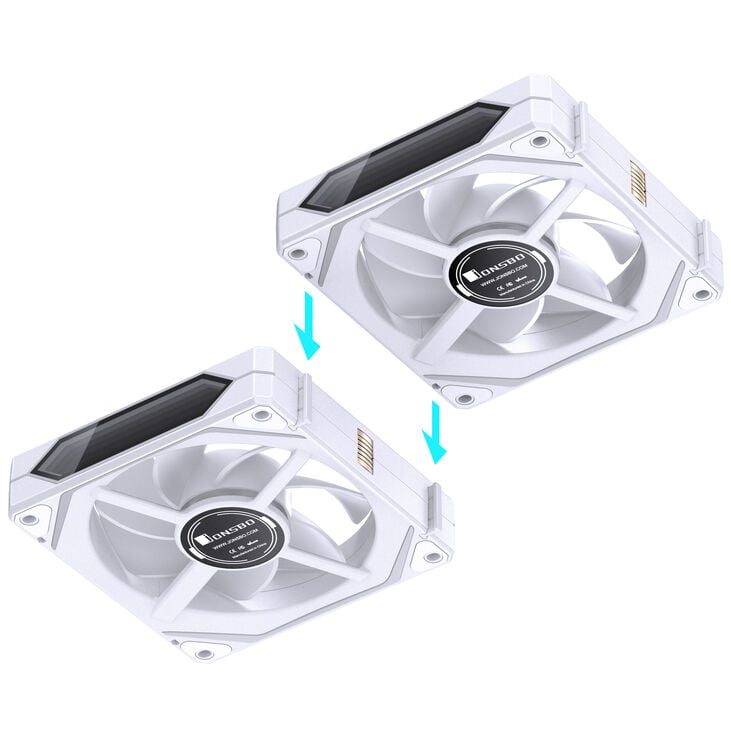

The Jonsbo ZL-120W is a powerful 120mm fan specifically designed for use as a case fan. It features daisy-chain, a connector system that reduces the cables from your gaming PC and contributes to a cleaner look.

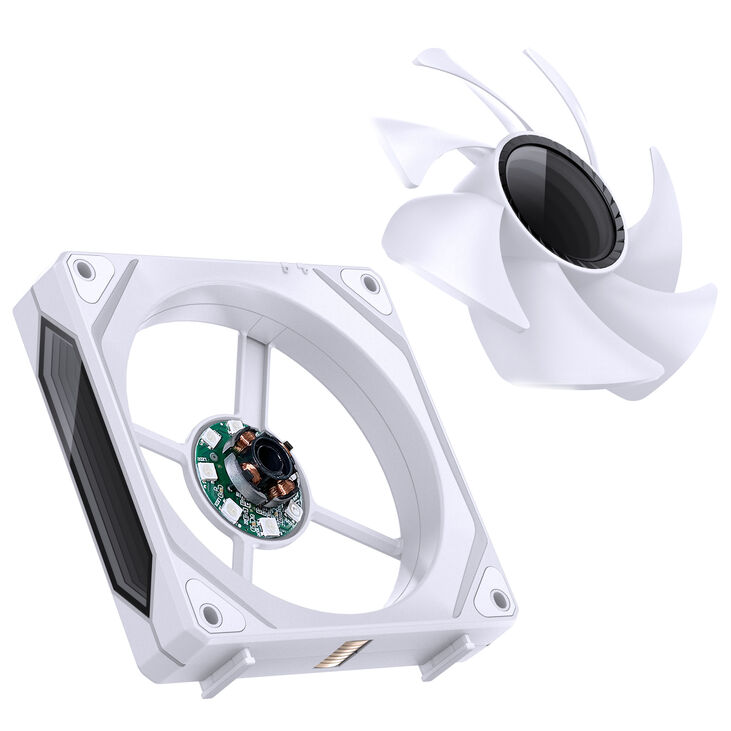

With its addressable RGB lighting, it not only looks stylish but also brings plenty of power. Thanks to the built-in hydraulic bearing, you benefit from a significantly extended lifespan of your device, ensuring long-term reliable and maintenance-free operation.
Efficient Cooling Performance with Low Noise
The Jonsbo ZL-120W adjusts its speed via a PWM signal to match the required system performance. This allows precise adjustment of the fan speed from 800 to 1,800 RPM. Even at full load, it operates with a noise level of just 23.8 dB(A). Additionally, each corner is equipped with rubber to decouple vibrations and minimise the noise level.
With an airflow of up to 60.35 CFM and a static pressure of 2.21 mmH₂O, the CPU is effectively cooled.
- Dimensions: 120 x 25 x 120 mm (W x H x D)
- Material: Plastic / Rubber
- Colour: White
- Bearing: Hydraulic bearing
- Noise Level: 15.3 - 23.8 dB(A)
- Speed: 800 - 1.800 RPM
- Static Pressure: 0.68 - 2.21 mmH₂O
- Airflow: 9.63 - 60.35 CFM
- Lifetime: Up to 40.000 h
- Lighting: ARGB-LED
- Current:
Fan: 0.14 A
ARGB: 0.85 A - Voltage: 12 V
- Connectors:
RGB: ARGB 3-Pin
Fan: PWM 4-Pin
|
Colour
|
|
|
Primary Colour
|
White
|
|
Fan Main Colour (Frame)
|
White
|
|
Fan Main Colour (Rotor)
|
White
|
|
Dimensions
|
|
|
Length / Depth
|
120 mm
|
|
Width
|
120 mm
|
|
Fan height
|
25 mm
|
|
Fan Specifications
|
|
|
Fan Size
|
120 mm
|
|
Min. Fan RPM
|
800 rpm
|
|
Max. Fan RPM
|
1800 rpm
|
|
Min. Single Fan Airflow
|
16.3 m³/h
|
|
Max. Single Fan Airflow
|
102.5 m³/h
|
|
Min. Static Pressure
|
0.68 mmH2O
|
|
Max. Static Pressure
|
2.21 mmH2O
|
|
Power Specifications
|
|
|
Starting voltage
|
12 V
|
|
Noise
|
|
|
Min. Single Fan Noise dB(A)
|
15.3 dB(A)
|
|
Max. Single Fan Noise dB(A)
|
23.8 dB(A)
|
|
Internal Ports
|
|
|
Fan connectors
|
4 Pin (PWM)
|
|
RGB / LED connectors
|
1x Digital RGB (3-Pin 5VDG)
|
|
Materials
|
|
|
Materials
|
Plastic, Rubber
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
|
Set
|
|
|
Set
|
Yes
|
|
Number of products in set
|
3
|
