Kolink Umbra Void ARGB
TITEL:
Kolink Umbra Void ARGB LED PWM Fan - 120mm
SHORT:
Efficient and stylish 120mm fan, Up to 1500RPM, ARGB, Daisy chain PWM connector, Hydraulic Bearing, Anti-vibration pads, Curved fan blades
TEXT:
Add style to your cooling with the Kolink Umbra Void ARGB PWM fan. Equipped with nine white blades, each has been curved for increased performance. Compatible with 3-pin, 5V ARGB, you'll be able to fully utilise this fan's 24 LEDs for captivating lighting displays. Plus, these fans will create a stunning lightshow thanks to the mirror effect, a Kolink exclusive.
The Features of Kolink Umbra 120mm PWM at a Glance:
-120mm white 9-bladed ARGB PWM fan with a curved design
-12 LEDs on the inside and 9 LEDs outside of the fan for rich colours
-ARGB 3-pin 5V compatible with Asus Aura Sync for full lighting control
-Adjustable speed controls via a Daisy Chain PWM connector
-Hydraulic bearing to further maintain reliable performance
-Anti-vibration pads to ensure quiet operation
Stylish Lighting and Cooling
Armed with 12 LEDs both on inside and outside of the fan, the Kolink Umbra Void delivers jaw-dropping lighting displays along with impressive cooling performance. Courtesy of the 3-pin 5V header, this 120mm fan is compatible with software like Asus Aura Sync to provide optimal control over your ARGB displays. The cherry on top, however, is the Kolink Umbra Void fan's mirror effect. Gaze into the void as this sensational feature turns your gaming PC into an endless reflective tunnel of vivid colours.
Curved to further increase performance, the Kolink Umbra Void 120mm fan is capable of speeds of up to 1500 RPM, along with an airflow of 41CFM. What's more, you'll be able daisy-chain multiple units via this ARGB fan's male and female PWM connectors. The daisy chain PWM connectors can also link up with adjustable speed controls. Depending on the task at hand, you can adjust your fan speed to how you like.
Built to Last
In conjunction with its fantastic features, the Kolink Umbra Void has been designed and manufactured with premium components to make this fan last. An implemented hydraulic bearing not only bolsters fan life to 40,000 MTBF, but the reduced internal friction boosts overall performance as well. Furthermore, the Kolink Umbra Void's anti-vibration pads ensure that even when you've adjusted the fan to top speed, you'll enjoy a smooth and quiet operation; a sound level of just 19.6dB(A).
Technical Details:
Dimensions: 120 x 120 x 25mm
Colour: Black (Frame), White (Fan blades)
Material: Plastic / Rubber
Sound Level: max. 19.6dB(A)
Speed: 500 bis 1500 RPM
Airflow: max. 41CFM (69,66m³/h)
Static Pressure: max. 1.42mmH2O
Rate Current:
Fan: 0.12A
ARGB-LEDs: 4.5 to 5.5A
Rated Voltage:
Fan: 10.8 to 13.2V
Startup Voltage: 5V
ARGB-LEDs: 5V
Bearing: Hydraulic Bearing
MTBF: 40,000h
Connections:
ARGB: 3-Pin Male and Female (5VDG)
Fan: 4-Pin PWM Male and Female
Cable Length: 550mm
Kolink Umbra ARGB
TITEL:
Kolink Umbra ARGB LED PWM Fan - 120mm
SHORT:
Efficient and stylish 120mm fan, Up to 1500RPM, ARGB, Daisy chain PWM connector, Hydraulic Bearing, Anti-vibration pads, Curved fan blades
TEXT:
Add style to your cooling with the Kolink Umbra ARGB PWM fan. Equipped with nine white blades, each has been curved for increased performance. Compatible with 3-pin, 5V ARGB, you'll be able to fully utilise this fan's 21 LEDs for captivating lighting displays.
The Features of Kolink Umbra 120mm PWM at a Glance:
-120mm white 9-bladed ARGB PWM fan with a curved design
-12 LEDs on the inside and 9 LEDs outside of the fan for rich colours
-ARGB 3-pin 5V compatible with Asus Aura Sync for full lighting control
-Adjustable speed controls via a Daisy Chain PWM connector
-Hydraulic bearing to further maintain reliable performance
-Anti-vibration pads to ensure quiet operation
Stylish Lighting & Cooling
Armed with 12 LEDs on inside and 9 LEDs outside of the fan, the Kolink Umbra delivers jaw-dropping lighting displays along with impressive cooling performance. Courtesy of the 3-pin 5V header, this 120mm fan is compatible with software like Asus Aura Sync to provide optimal control over your ARGB displays.
Curved to further increase performance, the Kolink Umbra 120mm fan is capable of speeds of up to 1500 RPM, along with an airflow of 35CFM. What's more, you'll be able daisy-chain multiple units via this ARGB fan's male and female PWM connectors. The daisy chain PWM connectors can also link up with adjustable speed controls. So, depending on the task at hand, you can adjust your fan speed to how you like.
Built to Last
In conjunction with its fantastic features, the Kolink Umbra has been designed and manufactured with premium components to make this fan last. An implemented hydraulic bearing not only bolsters fan life to 40,000 MTBF, but the reduced internal friction boosts overall performance as well. Furthermore, the Kolink Umbra's anti-vibration pads ensure that even when you've adjusted the fan to top speed, you'll enjoy a smooth and quiet operation; a sound level of just 17.8dB (A).
Technical Details:
Dimensions: 120 x 120 x 25mm
Colour: Black (Frame), White (Fan blades)
Material: Plastic / Rubber
Sound Level: max. 17.8dB(A)
Speed: 500 to 1500 RPM>
Airflow: max. 35CFM (59.46m³/h)
Static Pressure: max. 1.22mmH2O
Rate Current:
Fan: 0.1A
ARGB-LEDs: 4.5 to 5.5A
Rated Voltage:
Fan: 10.8 to 13.2V
Startup Voltage: 5V
ARGB-LEDs: 5V
Bearing: Hydraulic Bearing
MTBF: 40,000h
Connections:
ARGB: 3-Pin Male and Female (5VDG)
Fan: 4-Pin PWM Male and Female
Cable Length: 550mm
TEXT:

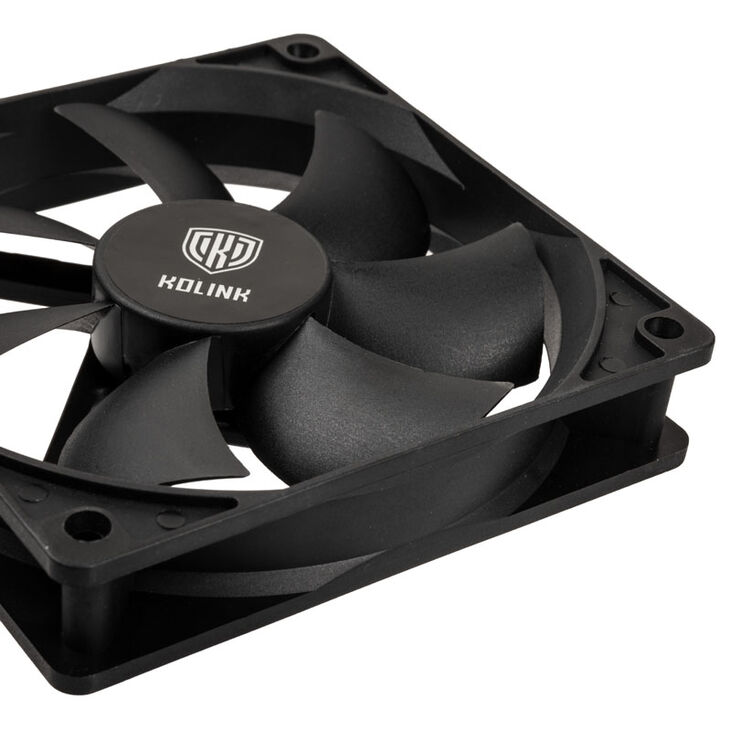

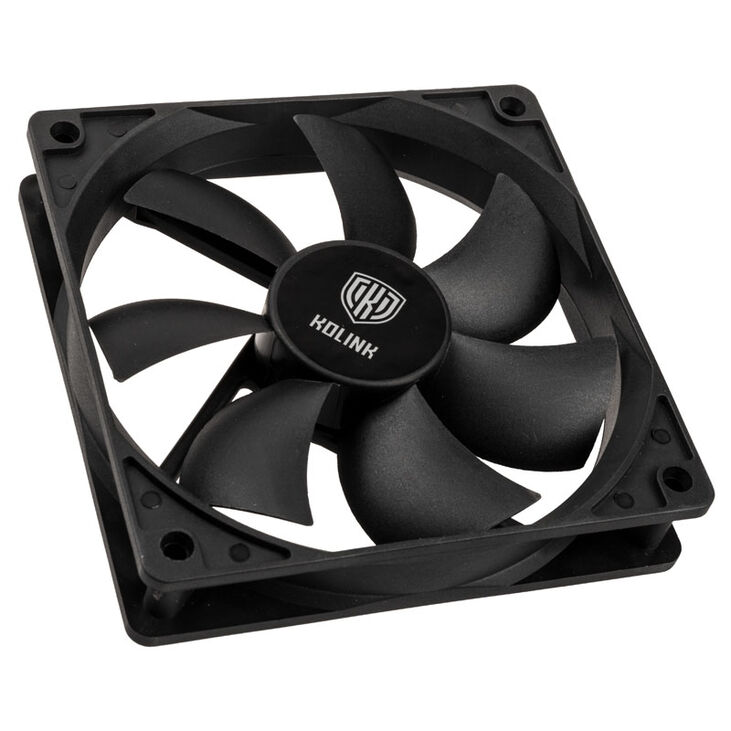

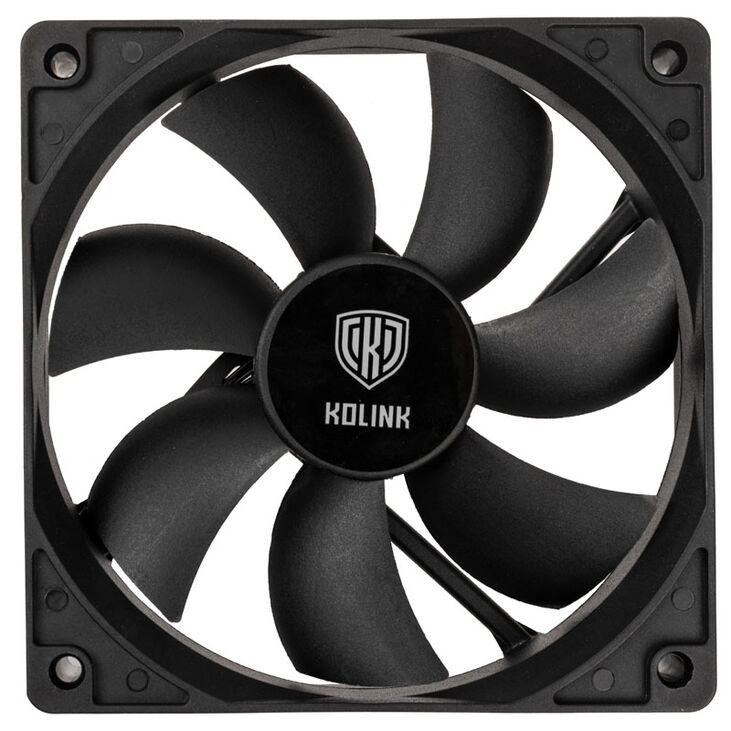

Add style to your cooling with the sleek Kolink Classic 120mm PWM fan. Equipped with seven black blades, you'll be able to enjoy impressive and reliable cooling performance. With a PWM connector for adjustable controls, you'll be able to alter for your speed for the task at hand.
In conjunction with its fantastic features, the Kolink Classic has been designed and manufactured with premium components to make this fan last. An implemented hydraulic bearing not only bolsters fan life to 40,000 MTBF, but the reduced internal friction boosts overall performance as well. Using the Kolink Classic Fan you'll enjoy a smooth operation with a sound level of just 21.6dB (A).
The Features of Kolink Classic 120mm PWM Fan at a Glance:
- 120mm black 7-bladed PWM fan
- Adjustable speed controls via a female PWM connector
- Hydraulic bearing to further maintain reliable performance
Stylish Cooling
Complemented by its chic design, the Kolink Classic 120mm fan is capable of speeds of up to 1500 RPM, along with an airflow of 52.15CFM. What's more, using the female PWM connector, can also link up with adjustable speed controls. Depending on the task at hand, you can adjust your fan speed to how you like.In conjunction with its fantastic features, the Kolink Classic has been designed and manufactured with premium components to make this fan last. An implemented hydraulic bearing not only bolsters fan life to 40,000 MTBF, but the reduced internal friction boosts overall performance as well. Using the Kolink Classic Fan you'll enjoy a smooth operation with a sound level of just 21.6dB (A).
Technical Details:
- Dimension: 120 x 120 x 25mm
- Colour: Black
- Material: Plastic / Rubber
- Sound Level: max. 21,6 dB(A)
- Speed: 500 bis 1,500RPM
- Airflow: max. 52.15CFM (88.35m³/h)
- Static Pressure: max. 1.31mmH2O
- Rate Current: 0.18A
- Operating Voltage: 10.8 to 13.2V
Startup Voltage: 5V - Bearing Type: Hydraulic Bearing
- MTBF: 40.000h

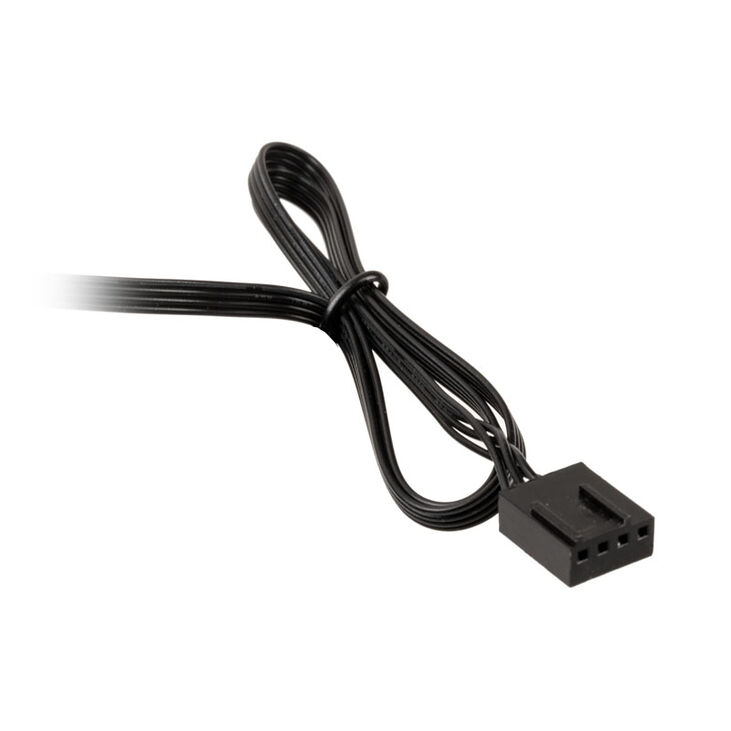

- Connections:
4-Pin PWM Male und Female
Cable Length: 550mm
Colour
|
|
Primary Colour
|
Black
|
Secondary Colour
|
Black
|
Dimensions
|
|
Length / Depth
|
120 mm
|
Width
|
120 mm
|
Fan height
|
25 mm
|
Fan Specifications
|
|
Fan Size
|
120 mm
|
Fan mounting size
|
120 mm
|
Min. Fan RPM
|
500 rpm
|
Max. Fan RPM
|
1500 rpm
|
Max. Single Fan Airflow
|
88.35 m³/h
|
Min. Static Pressure
|
1.31 mmH2O
|
Max. Static Pressure
|
1.31 mmH2O
|
Power Specifications
|
|
Starting voltage
|
5 V
|
Noise
|
|
Max. Single Fan Noise dB(A)
|
21.6 dB(A)
|
Internal Ports
|
|
Fan connectors
|
4 Pin (PWM)
|
Lighting
|
|
Lighting / RGB
|
No
|
Product Series
|
|
Product Series/Family
|
Classic
|
Set
|
|
Set
|
No
|
