- High-performance single-tower cooler with 4 copper heatpipes
- Powerful 120 mm PWM fan
- Minimalistic all-black looks
- Slim design with high RAM compatibility
- For CPUs with up to 180 W TDP

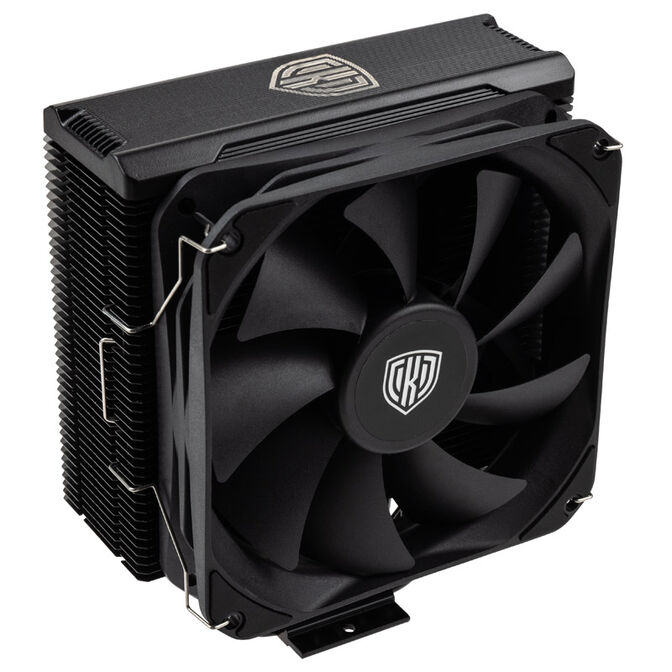

The Umbra EX180 Black Edition: High-Performance Single-Tower CPU Cooler

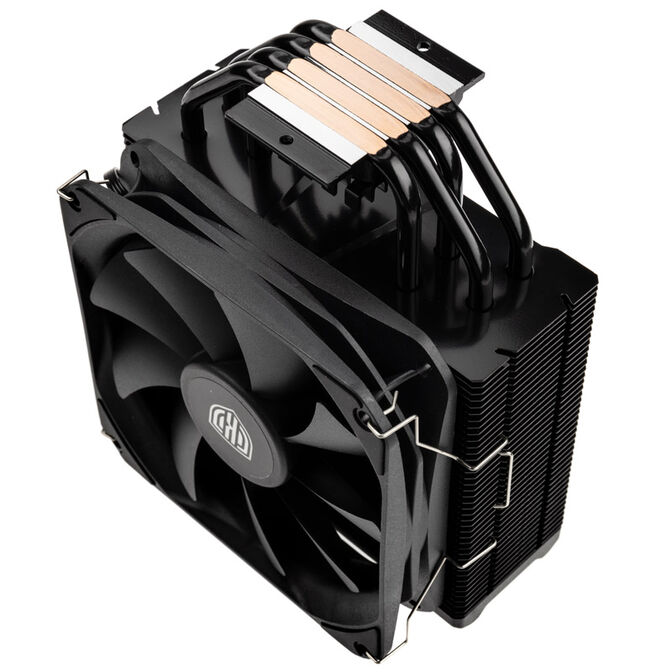

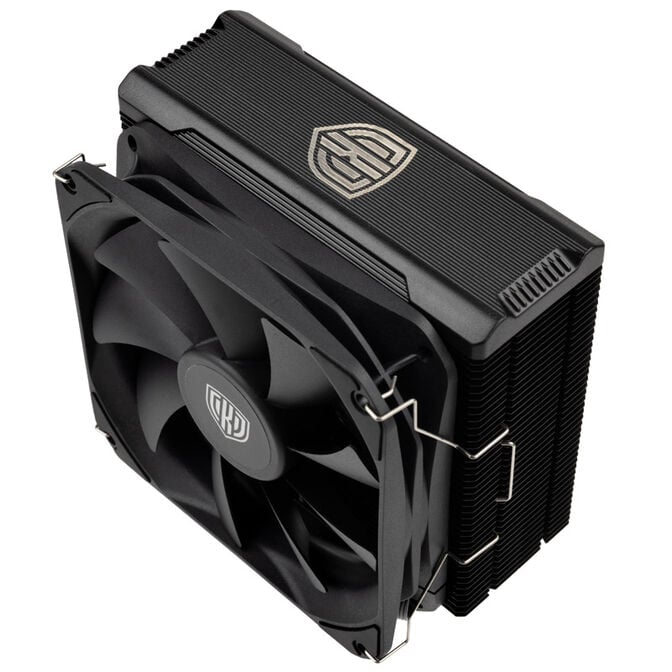

The Umbra EX180 Black Edition is a high-performance single-tower CPU cooler. Equipped with four 6 mm copper heatpipes and the powerful 120 mm fan, it is up to the task to deal with CPUs with up to 180 W TDP. The highlight of the matte all-black design is the PWM fan with its digitally addressable RGB lighting. The mounting system and the asymmetrical design with high RAM compatibility allow for an easy installation.The Umbra EX180 Black Edition in Detail

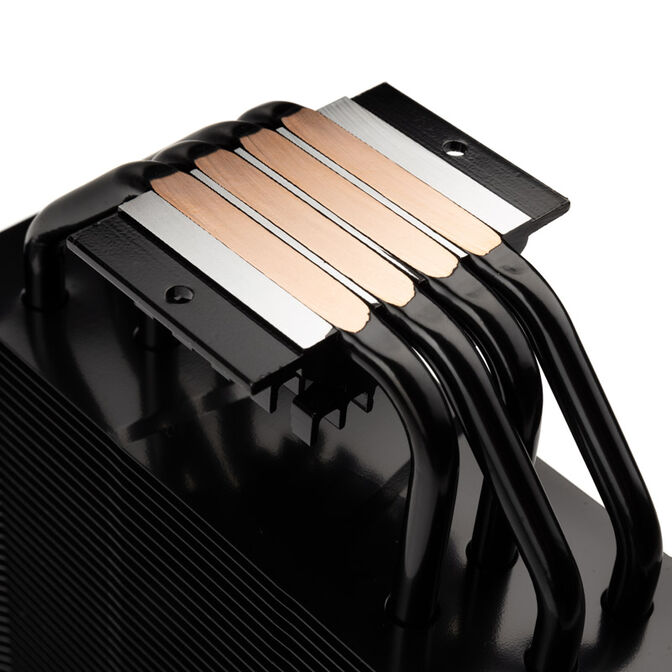

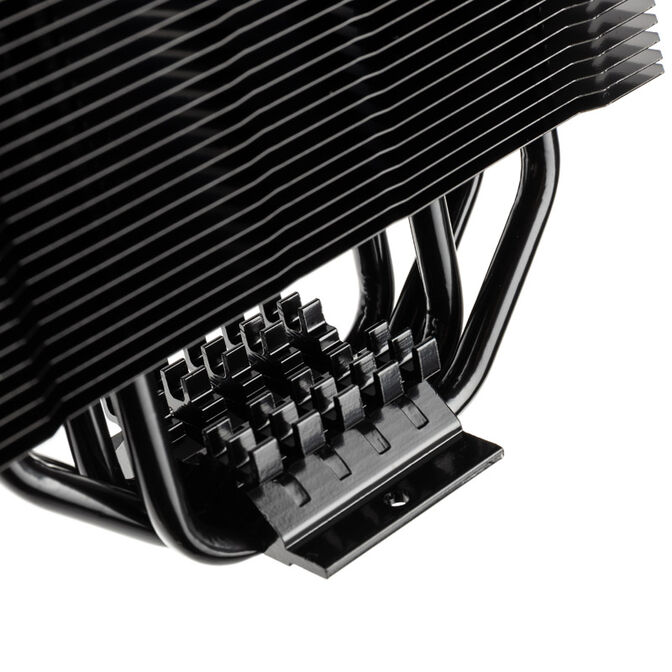

The Umbra EX180 Black Edition features four 6 mm heatpipes, which are embedded in the aluminium cooler base. The Umbra EX-180 Black Edition comes with a powerful and stylish PWM fan. Thanks to its high static pressure and remarkable performance, the CPU cooler is capable of handling CPUs with a TDP of up to 180 watts.Design and Lighting

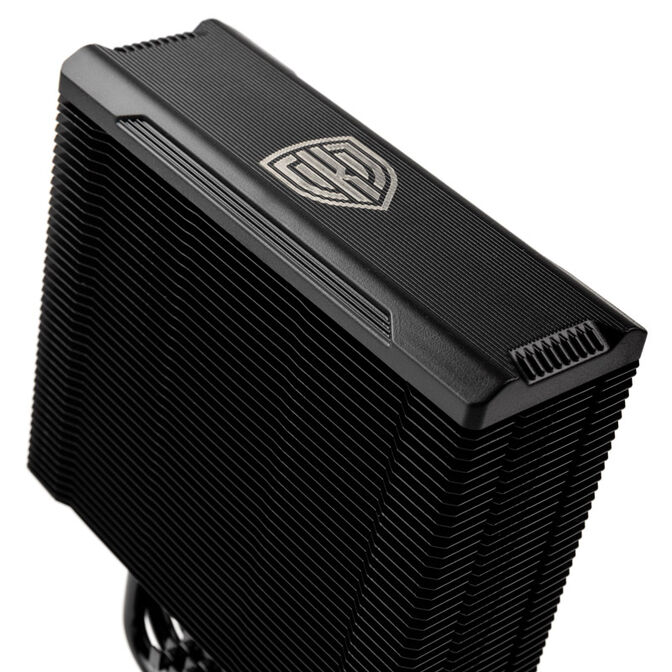

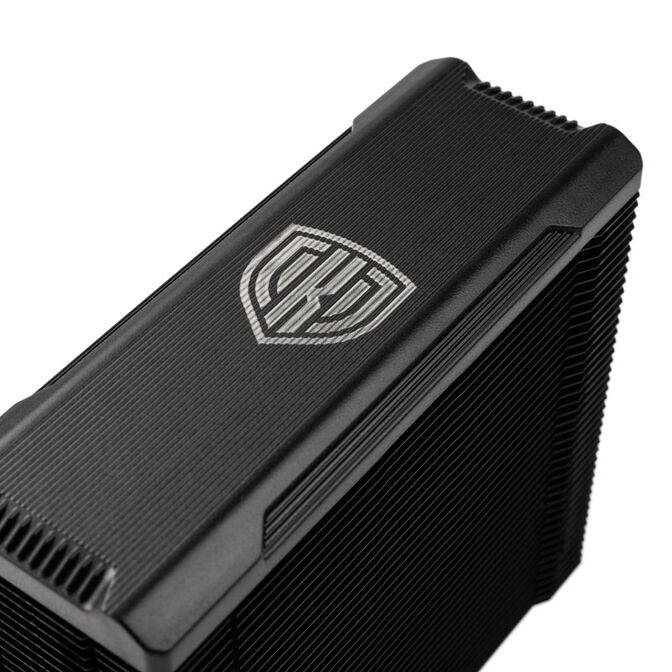

All parts of the cooler have a matte black finish. The aluminium parts of the cooler have undergone a black electrophoresis surface process. This process helps avoid oxidation and corrosion, ensuring durability and an immaculate look.High Compatibility and Easy to Upgrade

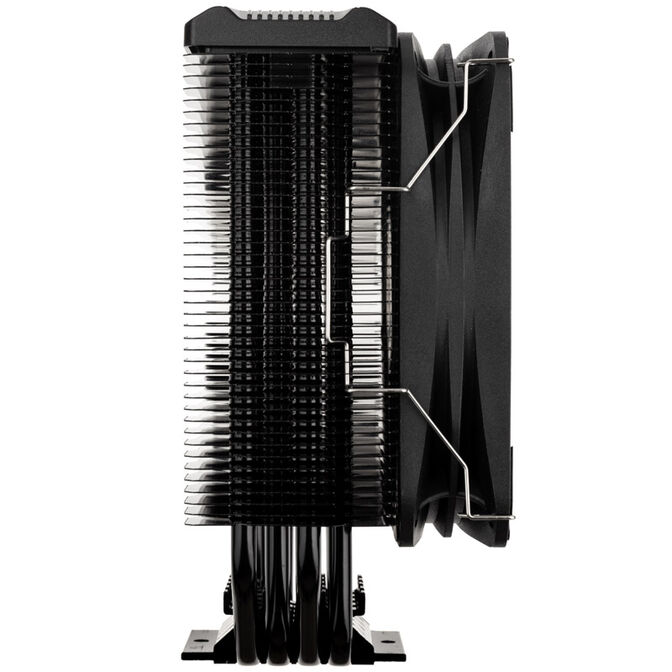

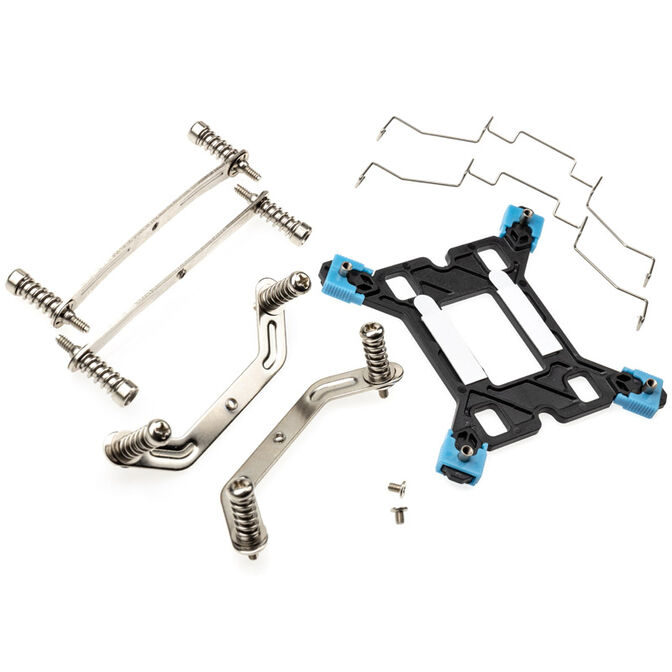

The slim cooler design ensures high compatibility with RAM modules. This enables you to use any RAM module of your choice without being limited in size and shape.Thanks to the versatile mounting system, the Umbra EX180 Black Edition is easy to install and guarantees high compatibility with Intel and AMD CPU sockets, including AMD AM5 and Intel 1700. The package contents include the high-end thermal paste with 12.8 W(m-K) conductivity to achieve maximum cooling performance.
Technical Details:
- Measurements: 130 x 157 x 75 mm (W x H x D)
- Weight: 500 g
- Materials: Aluminium (cooler base), copper (heatpipes), aluminium (fins, electrophoresis surface process)
- Colour: Black
- Heatpipes: 4x Ø 6mm
- TDP: 180 W
- Fan:
Type: 1x 120mm ARGB PWM
Measurements: 120 x 25 x 120mm (W x H x D)
Noise: max. 28.6 dB(A)
Speed: 800 - 1,800 rpm
Airflow: 125 m³/h (73.6 CFM)
Static pressure: 2.12 mmH2O
Voltage range: 7 - 12 V
Rated current: 0.38 A
Input power: 4.5 W
Fan connector: 4-pin PWM - Compatibility:
Intel LGA 1700, 1200, 115x, 20xx
AMD AM4, AM5
Colour
|
|
Primary Colour
|
Black
|
Fan Main Colour (Frame)
|
Black
|
Dimensions
|
|
Length / Depth
|
130 mm
|
Width
|
75 mm
|
Height
|
157 mm
|
Weight
|
500 g
|
Cooler Specifications
|
|
Additional fans possible
|
No
|
Heatpipe diameter
|
6 mm
|
Number of heatpipes
|
4
|
Ventilation type
|
active
|
Type
|
|
CPU Cooler Type
|
Single Tower
|
CPU
|
|
CPU Socket
|
115X, 1200, 1700, 2011, 2011-V3, 2066, AM4, AM5
|
Fan Specifications
|
|
Min. Fan RPM
|
800 rpm
|
Max. Fan RPM
|
1800 rpm
|
Max. Single Fan Airflow
|
125 m³/h
|
Max. Static Pressure
|
2.12 mH2O
|
Noise
|
|
Max. Single Fan Noise dB(A)
|
28.6 dB(A)
|
Internal Ports
|
|
Fan connectors
|
4 Pin (PWM)
|
Thermal Specifications
|
|
Max. TDP
|
180 W
|
Materials
|
|
Materials
|
Aluminium, Copper
|
Base Plate Material
|
Aluminium
|
Heat Sink Material
|
Aluminium
|
Lighting
|
|
Lighting
|
No
|
Product Series
|
|
Product Series/Family
|
Umbra
|
Additional Contents
|
|
Included fans
|
1x 120 mm
|
