- Compact midi tower with glass side panels for enthusiasts
- 360 mm AiO water cooling with 3D AMOLED display
- Maximum cooling: Up to 11 fans and 3 radiators possible
- Back-connect compatibility for clean cable management
- Ideal for high-performance hardware and stylish builds

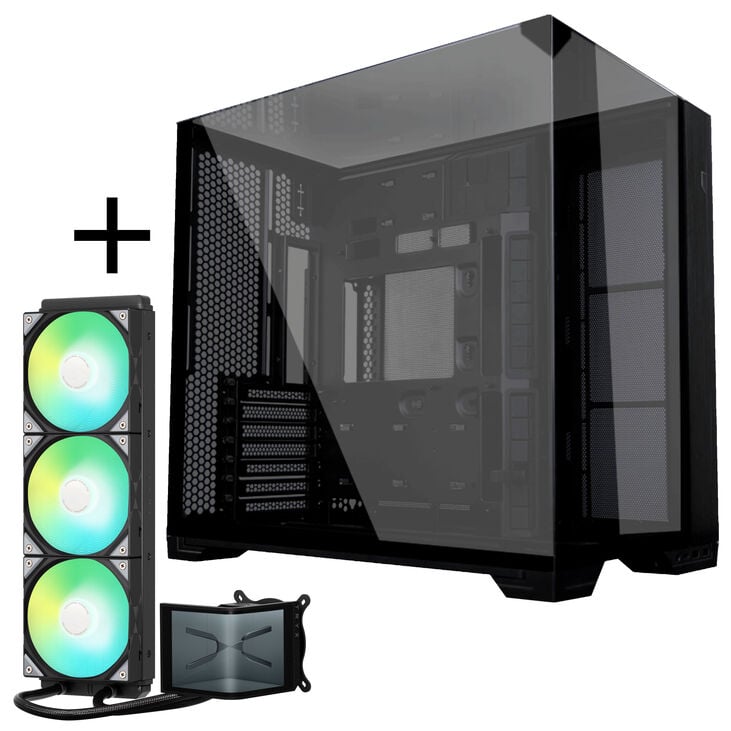

Lian Li O11 Vision Compact & TRYX PANORAMA SE ARGB 360 – Compact, cool & spectacular
Are you looking for a case that not only provides space for high-end hardware but also showcases it properly? Then the Lian Li O11 Vision Compact combined with the TRYX PANORAMA SE ARGB 360 AiO is the perfect duo for your next PC build. The O11 Vision Compact features elegant tempered glass on three sides, while the TRYX AiO guarantees to impress with its ARGB lighting and spectacular 3D AMOLED display.
Optimised for performance – with space for powerful components

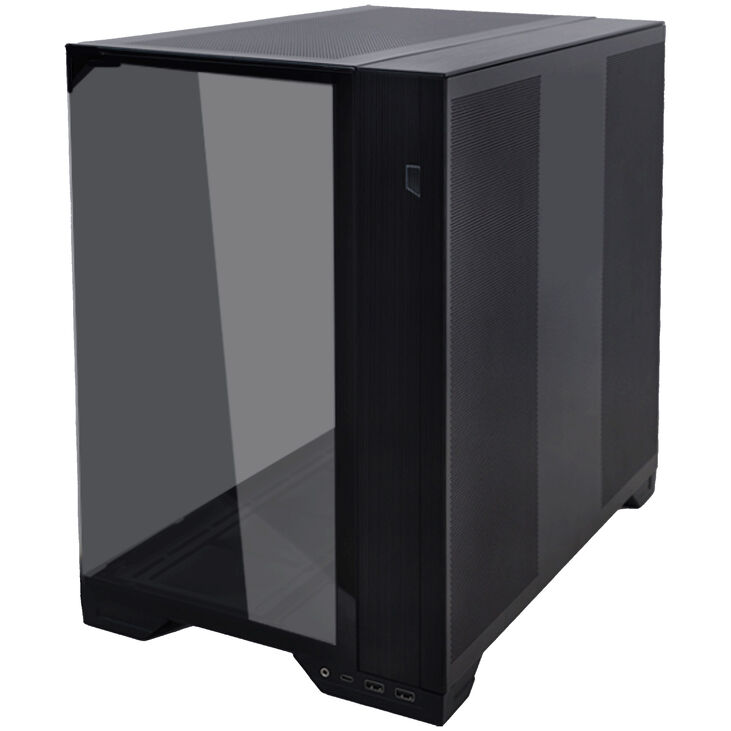

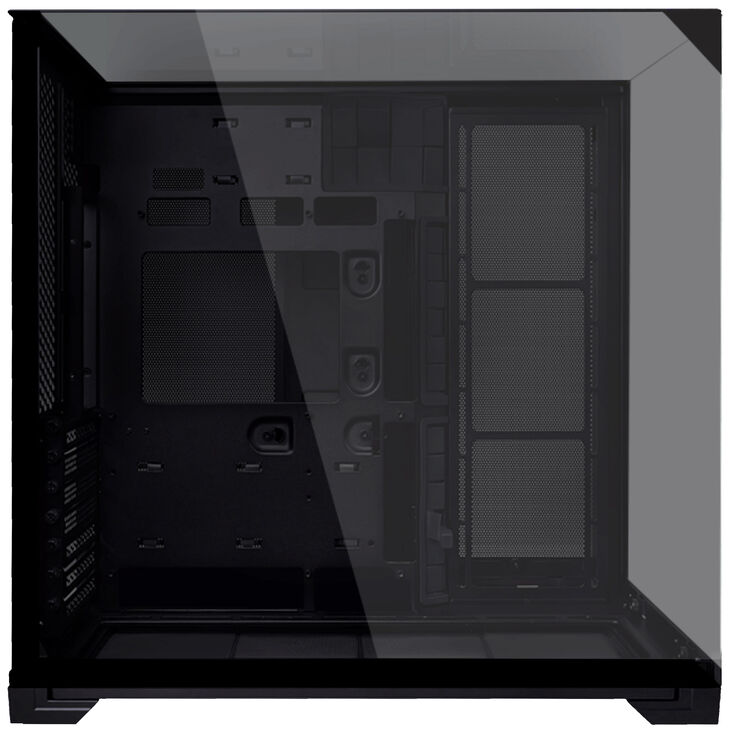

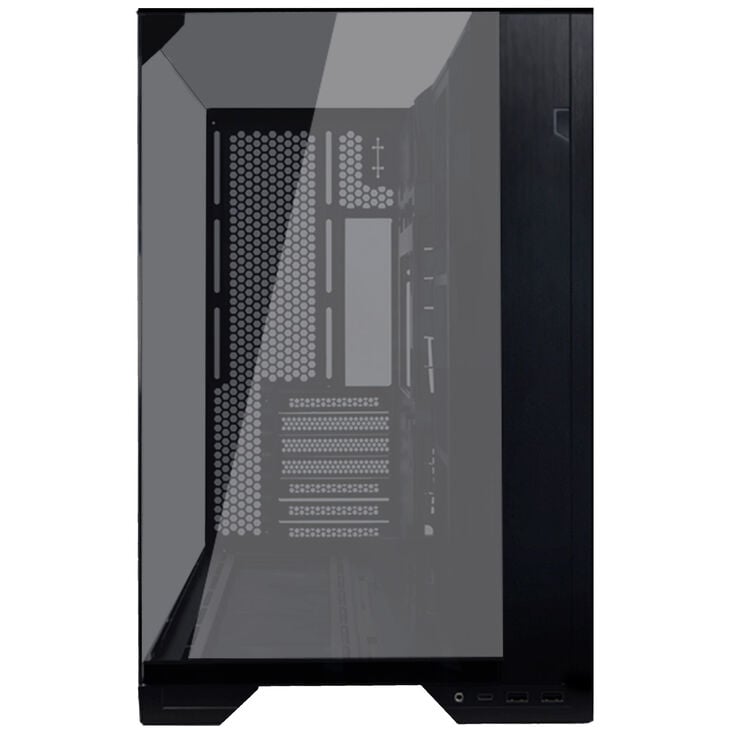

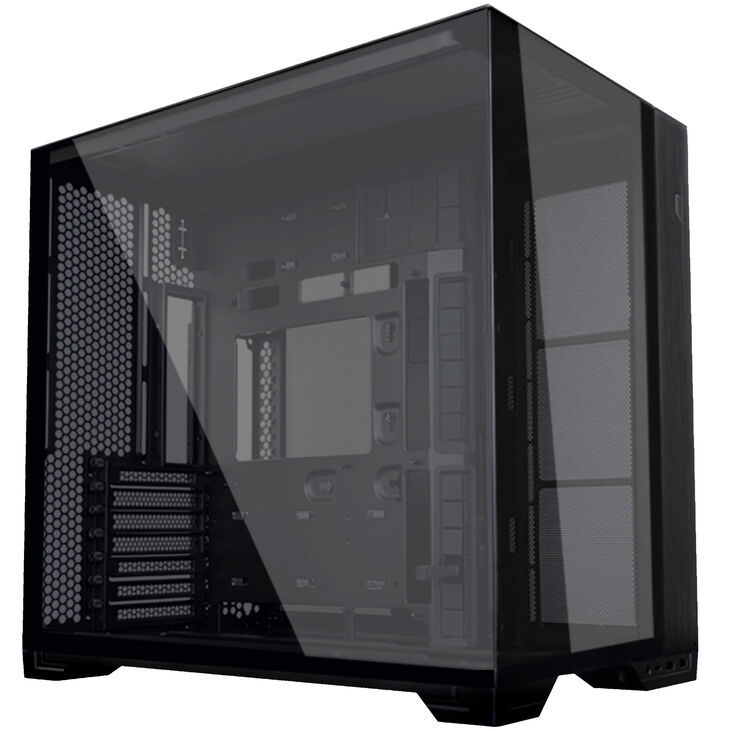

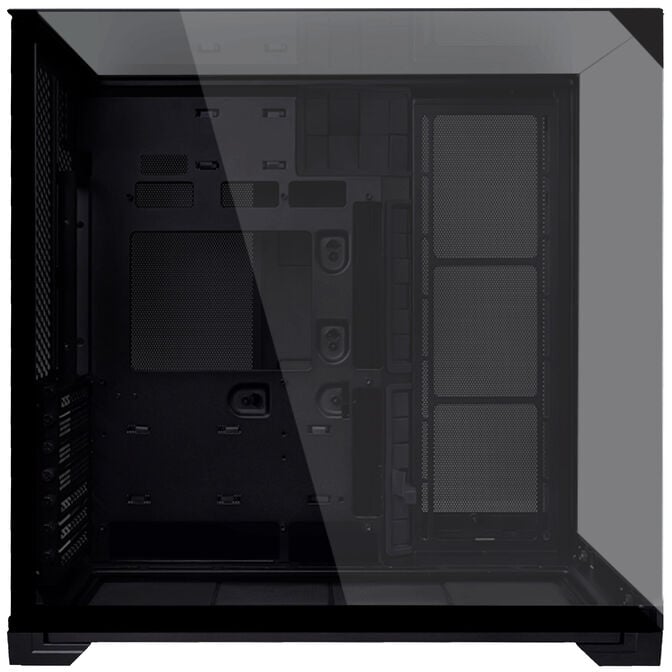

The Lian Li O11 Vision Compact accommodates motherboards up to E-ATX, graphics cards up to 408 mm, and power supplies up to 220 mm. Particularly convenient: thanks to support for ASUS BTF & MSI Project Zero, you can rely on clean back-connect cable management.
Flexible cooling options – Vision or Mesh Mode
Choose between the stylish Vision Mode with a glass top or the Mesh Mode with an additional fan cover for maximum airflow, depending on your needs. Up to eleven 120 mm fans or three 360 mm radiators can be installed – perfect for extreme builds.

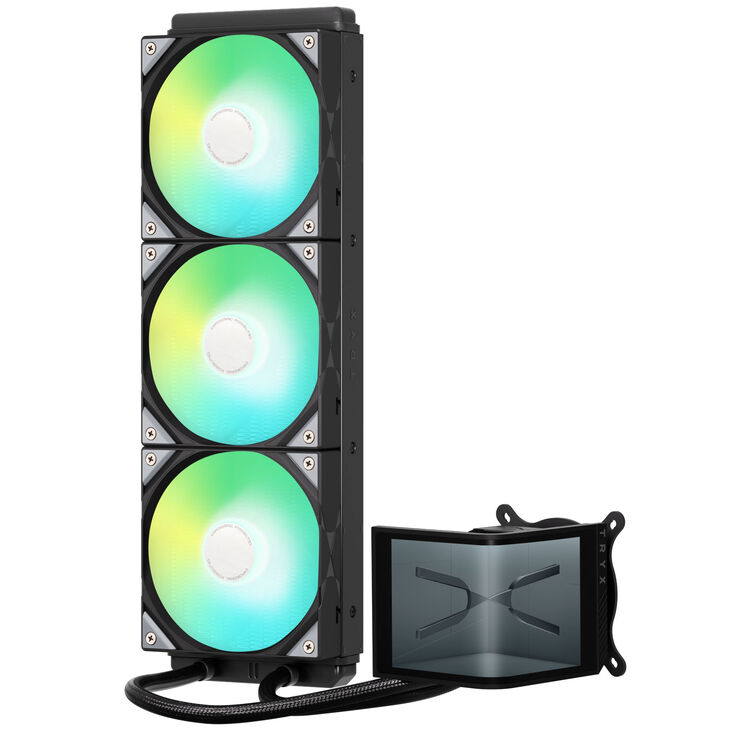

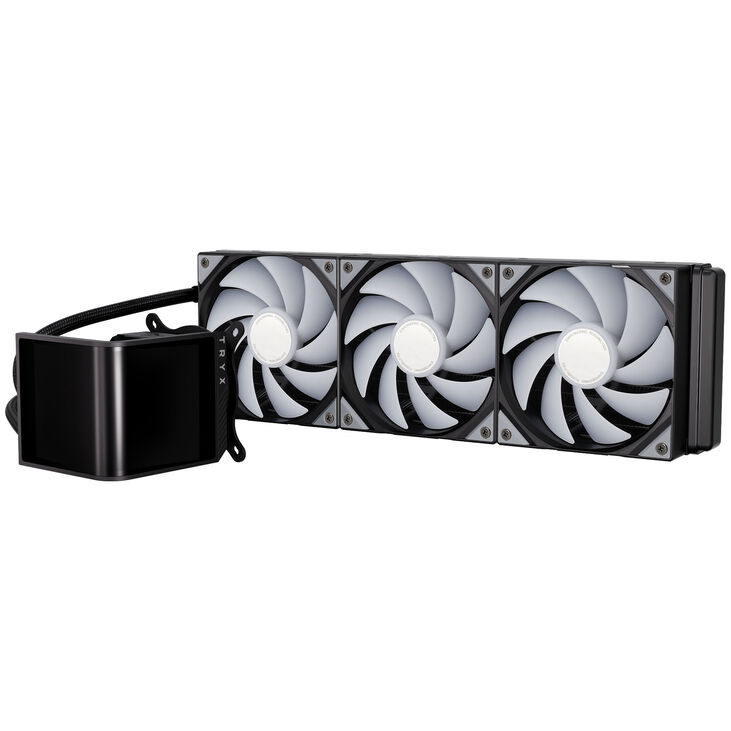

TRYX AiO – Water cooling with a wow factor

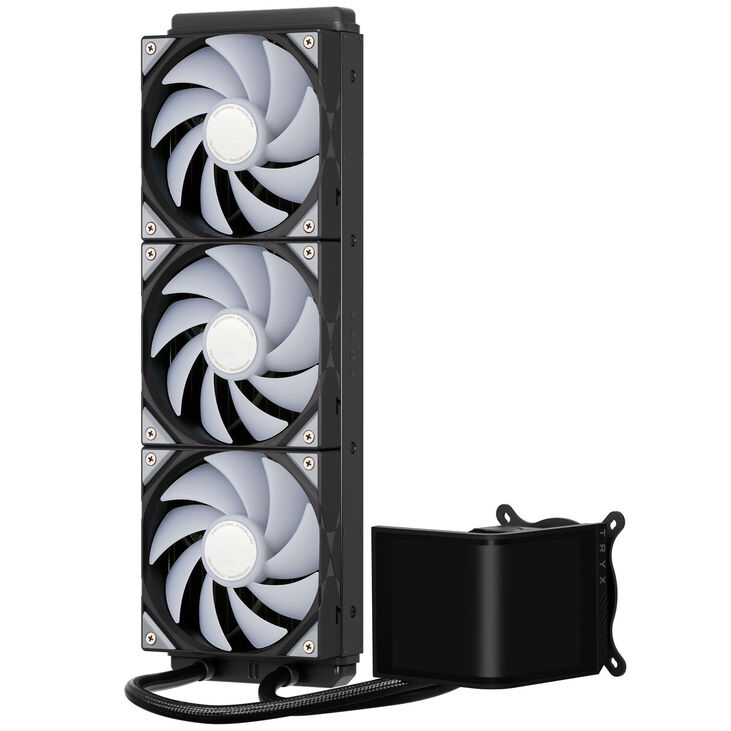

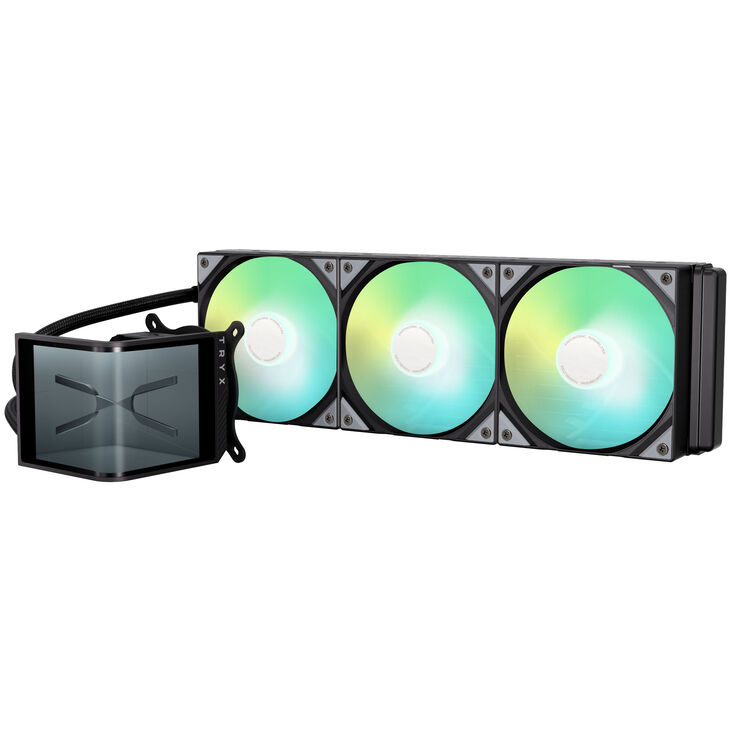

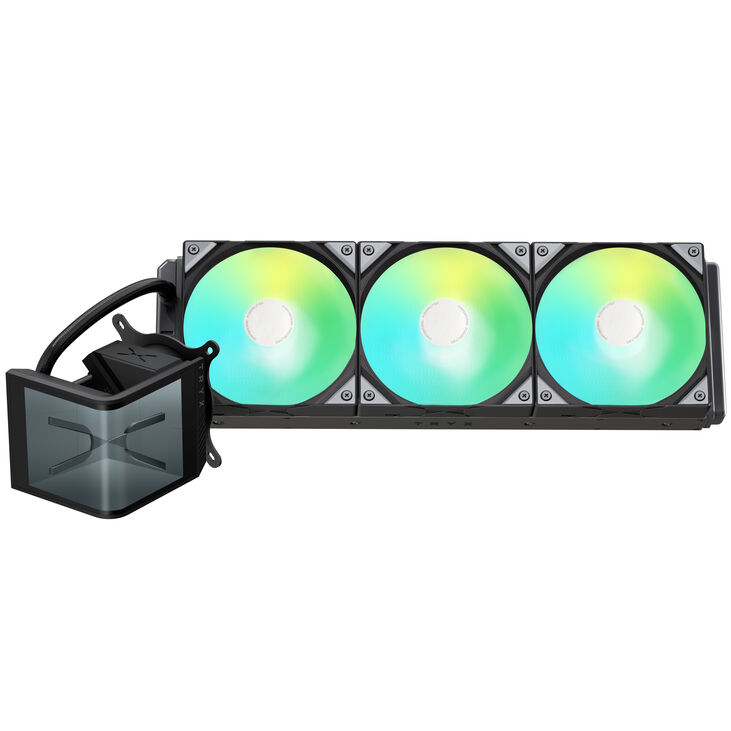

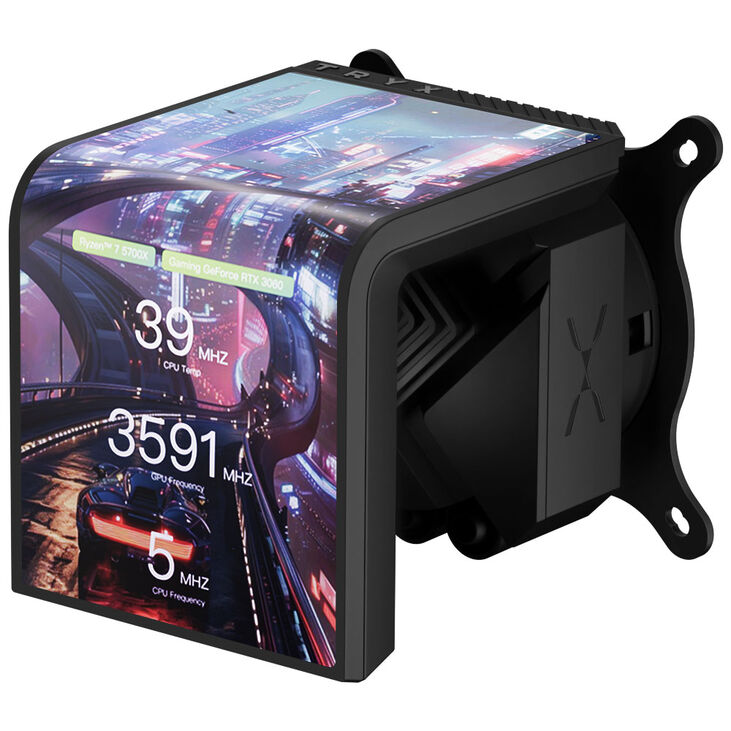

The TRYX PANORAMA SE ARGB 360 is not only powerful but also a true design statement: the 360 mm radiator combined with the Asetek Adela pump ensures low temperatures at high performance. The highlight is the 3D AMOLED display, which you can customise with animations, system information, and videos using the KANALI software.
Quiet, strong & smart
With three ROTA ARGB fans, the AiO achieves a maximum airflow of 112.29 m³/h at only 27.86 dB(A) – ideal for whisper-quiet performance. Control is conveniently managed via the KANALI software.
This bundle offers you the best of both worlds: showroom aesthetics and uncompromising cooling – ideal for your compact high-end system!
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
447.5 mm
|
|
Width
|
287.5 mm
|
|
Height
|
446.4 mm
|
|
Weight
|
11.35 kg
|
|
Case
|
|
|
Case Type
|
Mid Tower
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, E-ATX, Micro-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
E-ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
167 mm
|
|
Max. GPU Length
|
408 mm
|
|
Max. PSU Length / Depth
|
220 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear side / top
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Bottom)
|
120mm Fan (3x)
|
|
Case Fan Support (Rear)
|
120mm Fan (2x)
|
|
Case Fan Support (Side)
|
120mm Fan (3x)
|
|
Case Fan Support (Top)
|
120mm Fan (3x), 140mm Fan (2x)
|
|
Max. Number of Fans
|
11
|
|
120 mm fans
|
11
|
|
140 mm fans
|
2
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
3x Triple (360 mm)
|
|
Radiator/AIO Support (Bottom)
|
240mm Radiator, 360mm Radiator
|
|
Radiator/AIO Support (Side)
|
240mm Radiator, 360mm Radiator
|
|
Radiator/AIO Support (Top)
|
240mm Radiator, 280mm Radiator, 360mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
4
|
|
Max. 3.5 Inch Drives
|
2
|
|
Max. 5.25 Inch Drives
|
0
|
|
2.5 inch internal drive bay
|
2
|
|
1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined)
|
2
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
Front I/O – USB Type C Ports Total
|
1
|
|
Front I/O – USB Type A Ports Total
|
2
|
|
USB 3.1 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|
I/O position
|
Front
|
|
Side panel
|
with window
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
Yes
|
|
Filter Position
|
Bottom
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Remote included
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
Yes
|
|
Back-Connect Compatibility
|
ASUS BTF, MSI Project Zero
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
7
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
Aluminium, SPCC (steel), Tempered Glass
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Additional Contents
|
|
|
Fans Included
|
No
|
|
Included fans
|
None
|
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Fan Main Colour (Frame)
|
Black
|
|
Fan Main Colour (Rotor)
|
Transparent (matt / frosted)
|
|
Main radiator colour (cage)
|
Black
|
|
Main radiator colour (fins)
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
394 mm
|
|
Width
|
120 mm
|
|
Height
|
27 mm
|
|
Fan height
|
25 mm
|
|
Radiator Size
|
360 mm
|
|
Radiator Height
|
27 mm
|
|
Radiator Height With Fan
|
52 mm
|
|
Tube length
|
450 mm
|
|
Type
|
|
|
CPU Cooler Type
|
AiO Liquid Cooler
|
|
CPU
|
|
|
CPU Socket
|
115X, 1200, 1700, 1851, AM4, AM5
|
|
Display
|
|
|
Display Included
|
Yes
|
|
Fan Specifications
|
|
|
Fan Size
|
120 mm
|
|
Fan Support
|
|
|
Included fans
|
3
|
|
Noise
|
|
|
Max. Pump Noise dB(A)
|
25.3 dB(A)
|
|
Max. Single Fan Noise
|
27.86 dB(A)
|
|
Internal Ports
|
|
|
Fan connectors
|
4 Pin (PWM)
|
|
Pump connectors
|
4 Pin (PWM control)
|
|
Materials
|
|
|
Materials
|
Aluminium, Copper, Plastic
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
|
Additional Contents
|
|
|
Included fans
|
3x 120 mm
|
