The Lian Li UNI FAN TL LCD Wireless fans impress with their elegant appearance and visually enhance any setup. The LCD display allows extensive personalisation of your gaming PC, while the fans keep your hardware cool—even under heavy load.
- 140mm PWM fan with LCD display
- Reduced cable clutter thanks to practical plug-in system and daisy-chaining
- Full control of fan and display via L-Connect 3 software
- Infinity mirror and LED strips on the side for a refined look
- High airflow of 115.7m³/h and static pressure up to 3.5mmH2O
Lian Li UNI FAN TL LCD Wireless: fan with Display and stylish design

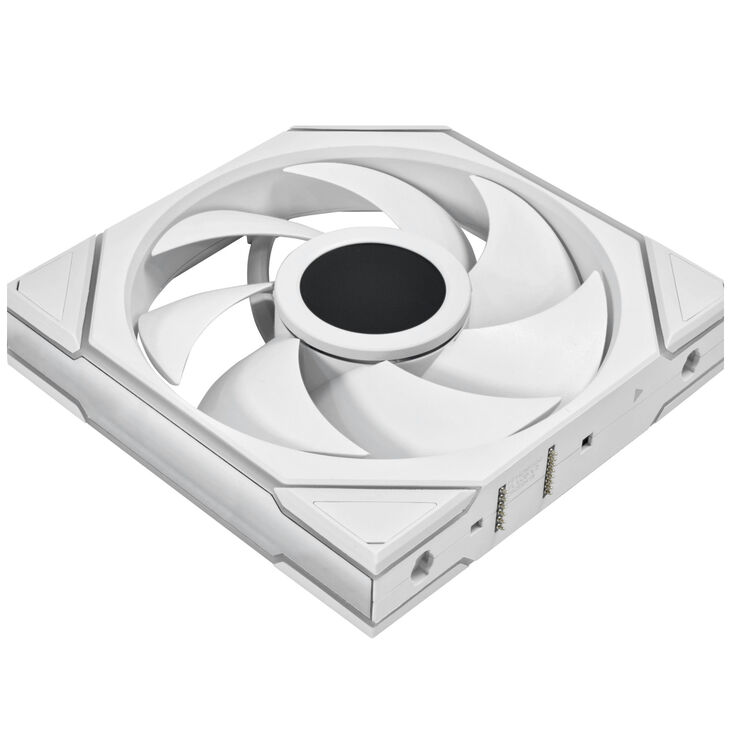

The Lian Li UNI FAN TL LED Wireless is a 140mm fan with standard-oriented fan blades in white. Thanks to its strong cooling performance, this PC fan is also suitable for high-end systems.
Personalise your build with the LCD display

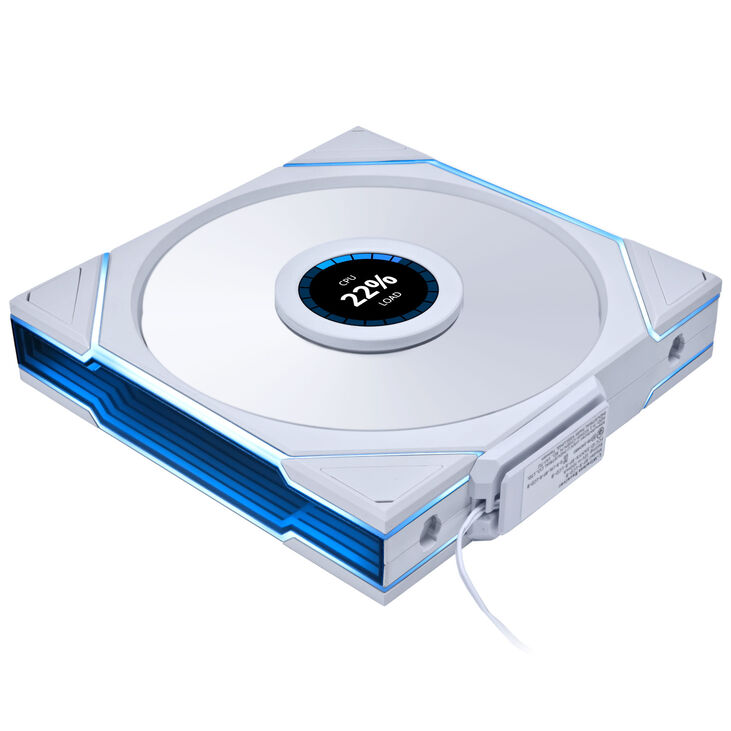

A true highlight of the UNI FAN TL LCD Wireless is the display in the centre of the fan. The 1.6-inch screen with a resolution of 400 × 400 pixels can be fully customised via the L-Connect 3 software—you can display information such as temperature or fan speeds. You can also upload your own images, GIFs, or even videos, giving your gaming setup a unique look.
Impressive cooling Pperformance
High airflow of up to 115.7m³/h and a static pressure of up to 3.5mmH2O, combined with speeds of up to 1,600 RPM, result in effective cooling of your gaming hardware. The increased height of 28 mm further supports lower temperatures. Despite its powerful cooling capabilities, the fan remains barely audible under full load at just 28.5 dB(A).
Smart Plug-in system and Daisy-Chaining
Thanks to the practical plug-in system, individual fans can be easily connected. You’ll need fewer cables, making your build much cleaner. Even less cable clutter is achieved with the Lian Li wireless controller, which can be connected to the motherboard and paired with the fans.
Please note that the wireless controller must be purchased separately. You can also combine the LCD variant with fans from the LED version, as long as no more than four fans are connected to one controller.
The plug-in system is not only practical but also enables a seamless transition between fans. This particularly benefits the LED strips along the edges—when connected, sleek RGB effects can be configured. The infinity mirror also gives the fan an appealing aesthetic.
Colour
|
|
Primary Colour
|
White
|
Fan Main Colour (Frame)
|
White
|
Fan Main Colour (Rotor)
|
White
|
Dimensions
|
|
Length / Depth
|
142 mm
|
Width
|
140 mm
|
Fan height
|
28 mm
|
Fan Specifications
|
|
Fan Size
|
140 mm
|
Fan Blade Direction
|
Standard
|
Fan Bearing
|
Fluid Dynamic Bearing
|
Min. Fan RPM
|
0 rpm
|
Max. Fan RPM
|
1600 rpm
|
Max. Single Fan Airflow
|
3.5 m³/h
|
Max. Static Pressure
|
115.7 mmH2O
|
Power Specifications
|
|
Rated voltage
|
12 V
|
Starting voltage
|
5 V
|
Noise
|
|
Max. Single Fan Noise dB(A)
|
28.5 dB(A)
|
Internal Ports
|
|
Fan connectors
|
4 Pin (PWM)
|
RGB / LED connectors
|
1x Digital RGB (3-Pin 5VDG)
|
Lighting
|
|
Lighting / RGB
|
Yes
|
Lighting Colour
|
RGB
|
