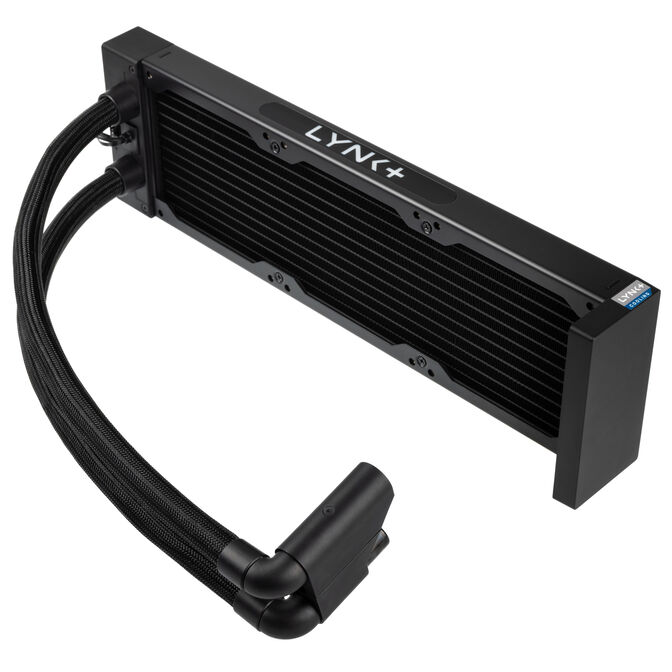

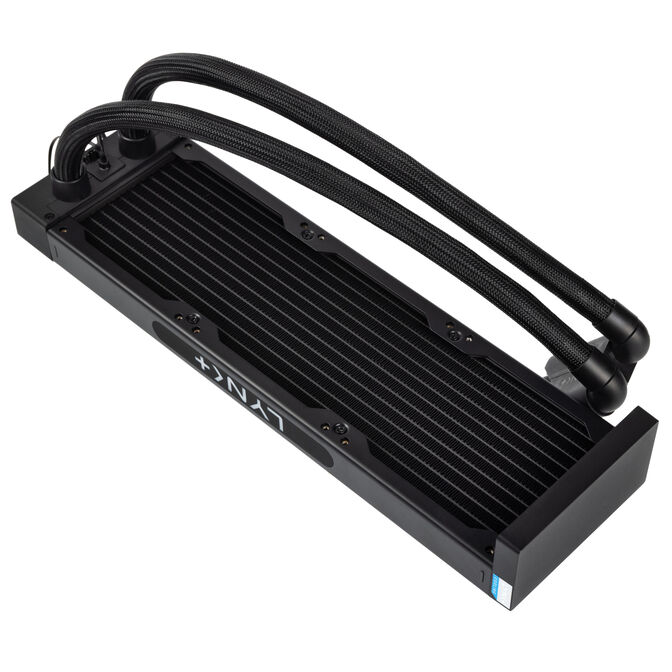

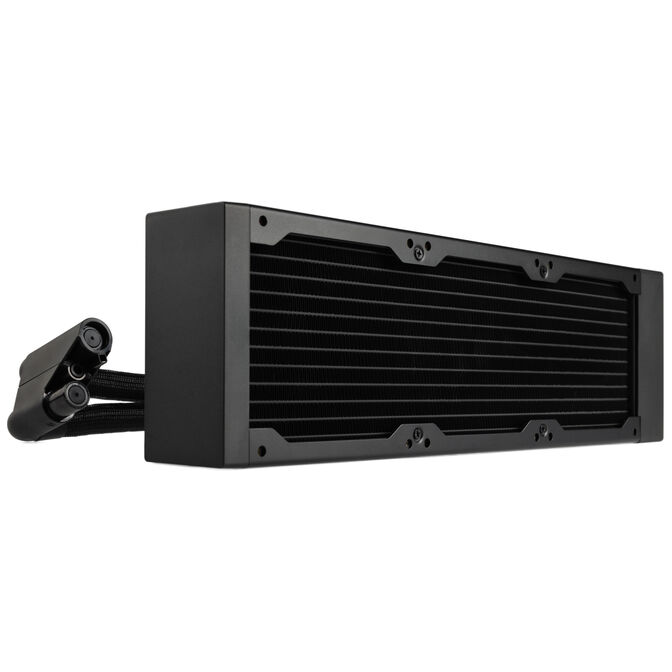

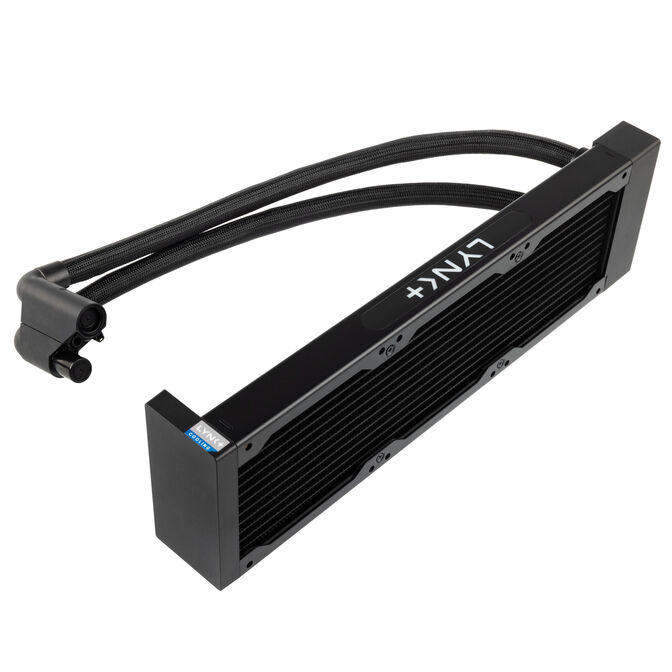

LYNK+ 360 Slim LED Radiator Module - black
With the LYNK+ 360 Slim LED Radiator Module, you can build your own modular water cooling system – without the typical hurdles of classic custom loops. The radiator comes pre-filled, is ready to use immediately, and can be connected via quick-connect. You get powerful cooling, quiet operation, and a water circuit in your PC that you can expand at any time.
To check if the radiator fits in your case, visit lynk.plus/compatibility.
- No hassle: no filling, no bleeding, no risk
- High cooling performance: 360 mm slim radiator for low temperatures despite compact height
- Modular system: compatible with LYNK+ GPU or CPU cooler modules

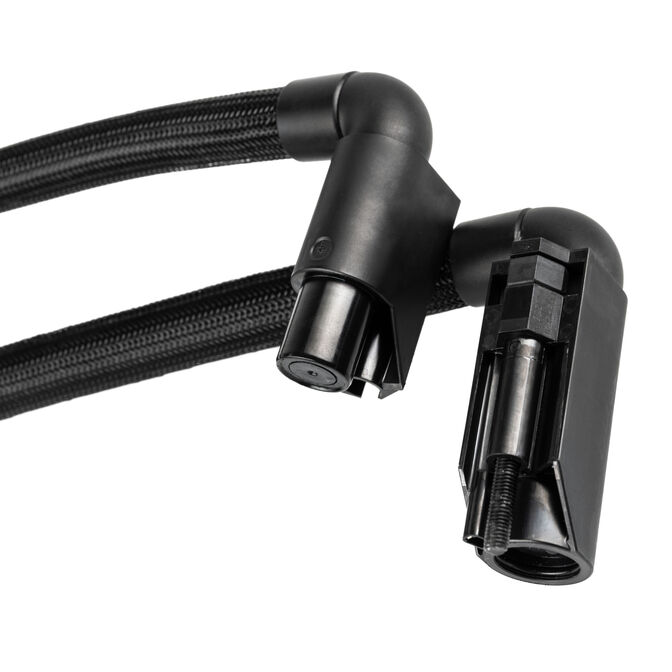

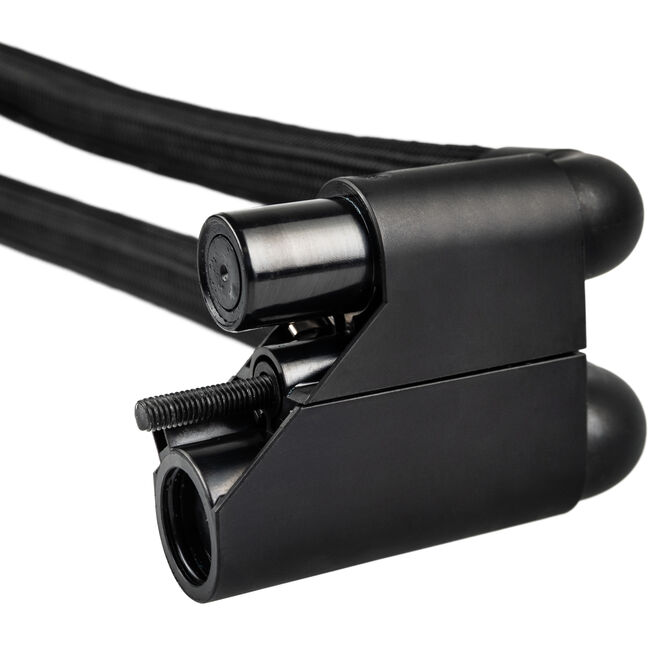

- Drip-free quick connect: tool-free connection without leaking fluid
- Integrated pump: quiet, efficient, and automatically controllable
What exactly is LYNK+?
LYNK+ is a modular water cooling system specially designed for graphics cards such as the GeForce RTX 5090. Instead of planning a complete custom loop, you use pre-filled modules with drip-free quick-connect fittings: radiator with integrated pump, full-cover GPU cooler, and matching plate kit.
All parts are coordinated, arrive filled and ready to install, and can be connected without cutting, filling, or bleeding. This way, you get the performance of true water cooling – only much easier, cleaner, and more relaxed.
LYNK+ 360 Slim LED Radiator Module: Why this radiator is a real advantage
Many users want the performance of water cooling but shy away from the effort. This is exactly where LYNK+ scores: the radiator is already filled with fluid. You don’t have to plan anything, cut anything, or seal hoses or fittings. Simply mount, connect – done. This achieves temperatures that otherwise only complex custom loops deliver.
A water cooling system that grows with your PC
With the quick-connect, you can easily add another GPU module or additional cooling units later. No rebuilding, no draining the fluid – you expand your system in just a few minutes. This makes LYNK+ especially attractive for users who want to upgrade their gaming PC over the years.
The robust hoses ensure that the cooling circuit remains permanently sealed. In everyday use, this means for you: No maintenance. No compromises.
Better temperatures, lower noise
- Quiet operation thanks to integrated high-quality pump
- Large cooling surface with 30 mm thickness

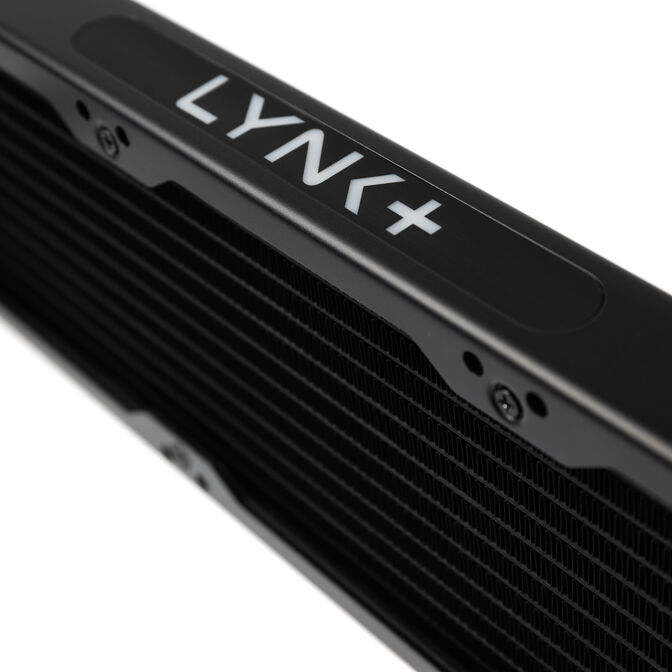

- RGB logo for subtle lighting
- Compatible with every LYNK+ component
Ideal for gamers who want maximum reliability – and for everyone who finally wants water cooling performance without the associated water cooling hassle.
Flexible, clean, prepared for the coming years
The radiator module forms the starting point of your cooling system. In combination with a GPU or CPU cooler module, you create your water cooling without ever having to dive into the world of complicated custom loops.
Easy positioning in the case
Thanks to the slim design, the radiator fits in many current cases. This way, you benefit from water cooling without having to completely rebuild your system.
Important compatibility notes
- Fan compatibility: The system is compatible with all common wired 120 mm fans. Screws for 25 mm and 30 mm high fans are included.
- Daisy-chain fans: Some daisy-chain models may be incompatible due to their external dimensions. Please check measurements or use fans recommended in the configurator.
- Fan curve: The fan curve should always be adjusted to the maximum speed of the fans used.
- Software: No additional software is needed for Asus motherboards. For other manufacturers, external software like “FanControl” may be required.
- Case: Most cases that support 360 mm radiators are compatible. Please check the maximum installation height of the radiator in your case.
For more information, visit lynk.plus/compatibility. There you will also find a list of compatible cases.
If you have installed LYNK+ in a case not listed, you can help the community by sending a photo of your LYNK+ setup – either directly by email or via Discord.
If your case is not listed, please check whether it supports 360 mm radiators. Not all cases that have space for 3×120 mm fans also support radiators.
Also note that radiators are not always the same length. The LYNK+ triple-fan radiators are 410 mm long – so please ensure your case has sufficient space.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Main radiator colour (cage)
|
Black
|
|
Main radiator colour (fins)
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
409 mm
|
|
Width
|
120 mm
|
|
Height
|
30 mm
|
|
Weight
|
1500 g
|
|
Radiator Size
|
360 mm
|
|
Radiator Height
|
30 mm
|
|
Tube length
|
450 mm
|
|
Pump Specifications
|
|
|
Max. Pump Speed RPM
|
4700 rpm
|
|
Min. Pump Speed RPM
|
3900 rpm
|
|
Pump Bearing
|
Ceramic Bearing
|
|
Type
|
|
|
CPU Cooler Type
|
AiO Liquid Cooler
|
|
Display
|
|
|
Display Included
|
No
|
|
Fan Specifications
|
|
|
Fan Size
|
120 mm
|
|
Water Cooling
|
|
|
Water cooling connectors
|
LYNK+ Quick Connect
|
|
Fan Support
|
|
|
Included fans
|
0
|
|
Fan Compatibility
|
3x 120 mm
|
|
Noise
|
|
|
Max. Pump Noise dB(A)
|
21.75 dB(A)
|
|
Internal Ports
|
|
|
Pump connectors
|
SATA (power)
|
|
RGB / LED connectors
|
1x Digital RGB (3-Pin 5VDG)
|
|
Materials
|
|
|
Materials
|
Aluminium
|
|
Heat Sink Material
|
Aluminium
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Product Series
|
|
|
Product Series/Family
|
LYNK+ RTX 50 Series
|
