Noctua NF-A9 PWM chromax.black.swap Fan - 92mm

Noctua NF-A9 PWM chromax.black.swap Fan - 92mm

High-quality 92mm PWM fan from Noctua, from the chromax.black.swap series with interchangeable anti-vibration pads, A-series blade geometry with flow acceleration channels, durable SS02 premium bearing and AAO frame, Black
23,90 €
incl. VAT , add. delivery costs starting from 4.99€
SKU LUNA-096 |
EAN 9010018100488 |
MPN NF-A9 PWM CH.BK.S |
Manufacturer Noctua
  • Award-winning NF-A9 design: Having received dozens of recommendations from the international press, Noctua’s NF-A9 has become a proven premium choice for 92mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world

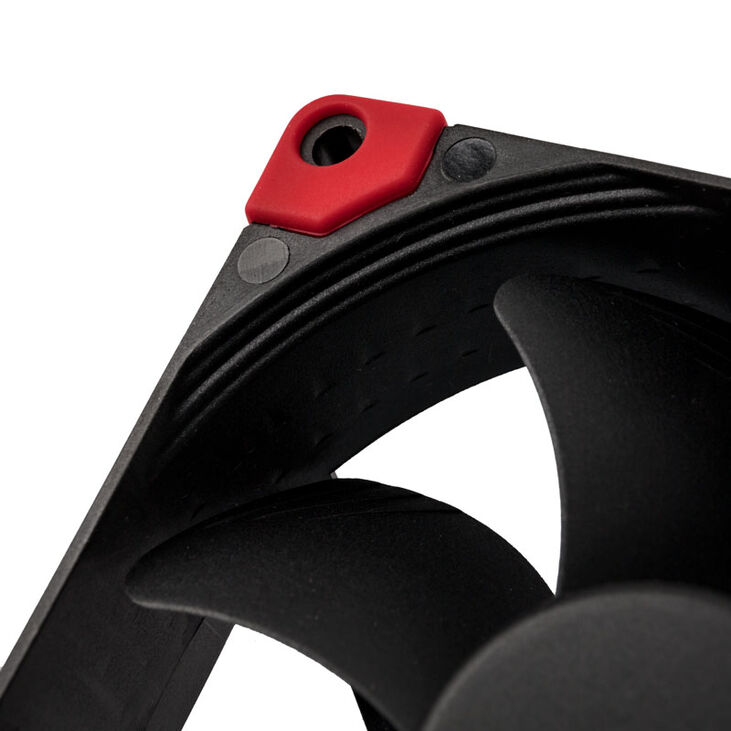

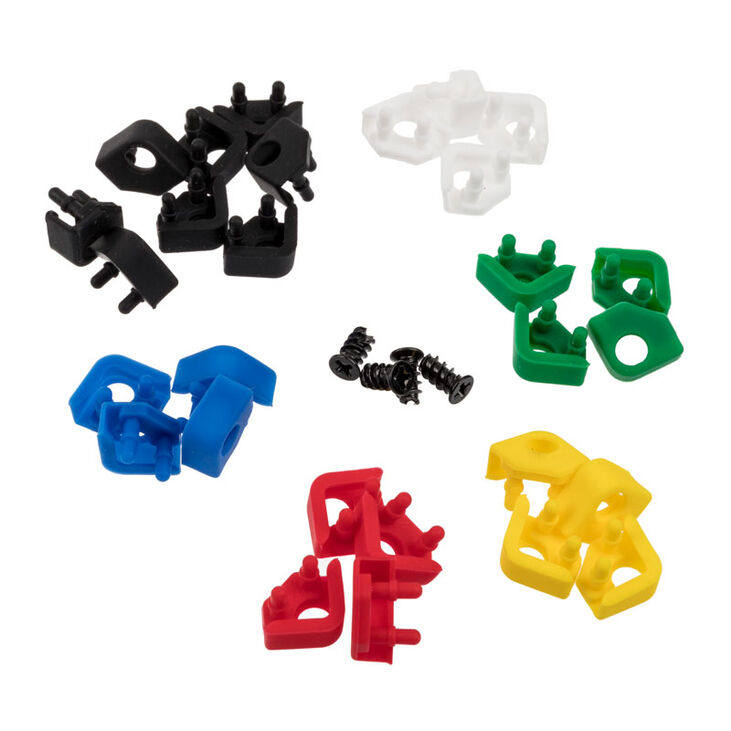

  • chromax.black.swap edition: Maximising colour choices, Noctua’s chromax.black.swap edition fans can be colour-customised using the included swappable anti-vibration pads as well as optional anti-vibration mounts and cables. This makes them ideal for enthusiasts looking for true premium-grade fans that can be colour-coordinated with popular build themes such as all black, black & white or black & red

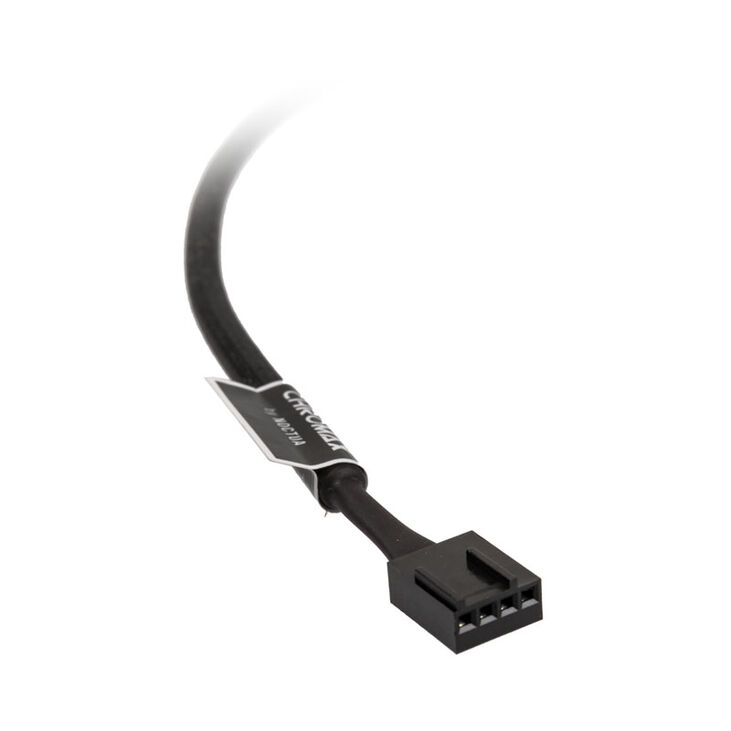

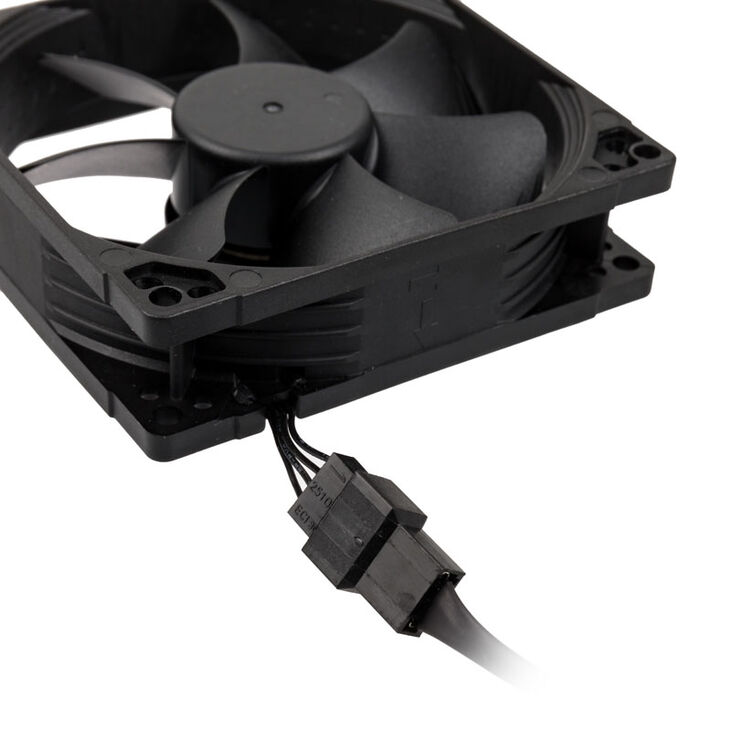

  • Optional coloured cables: Noctua’s chromax line fans use a modular cabling system and come pre-fitted with a fully sleeved black NA-EC1 30cm cable. For refined colour coordination, white, red, blue, green and yellow 30cm NA-EC1 cables plus corresponding NA-YC1 y-cables are available separately
  • Optional coloured anti-vibration mounts: To complement the coloured anti-vibration pads included with the fans, users can purchase chromax line NA-SAV2 anti-vibration mounts that enable the convenient, quick and vibration-free installation of fans in standard mounting holes for case fans
  • Flow Acceleration Channels: The NF-A9 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise
  • AAO frame: Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency
  • Stepped Inlet Design: Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments
  • Inner Surface Microstructures: With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency
  • SSO2 Bearing: The NF-A9 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability
Having received dozens of awards and recommendations from international hardware websites and magazines, the NF-A9 has established itself as a default choice when it comes to premium-quality 92mm fans. The chromax.black.swap edition combines the NF-A9’s signature quiet cooling performance with an attractive all-black design and a bundle of swappable red, white, blue, green, yellow and black anti-vibration pads that allow the colour-customisation of the fan to match individual build colour schemes. For further customisation, a wide range of accessories such as coloured cables and anti-vibration mounts are available separately. Topped off with Noctua’s trusted premium-grade SSO2 bearing, more than 150,000 hours MTTF and 6-year manufacturer’s warranty, the NF-A9 PWM chromax.black.swap is the perfect choice for all users who value individual, focused build aesthetics just as much as class-leading quality and performance.
Colour
Primary Colour
Black
Secondary Colour
Black
Dimensions
Width
92 mm
Fan height
25 mm
Fan Specifications
Fan Size
92 mm
Fan mounting size
92 mm
Min. Fan RPM
400 rpm
Max. Fan RPM
2000 rpm
Max. Single Fan Airflow
78.9 m³/h
Max. Static Pressure
2.28 mmH2O
Power Specifications
Rated voltage
12 V
Noise
Max. Single Fan Noise dB(A)
22.8 dB(A)
Internal Ports
Fan connectors
4 Pin (PWM)
Lighting
Lighting / RGB
No
