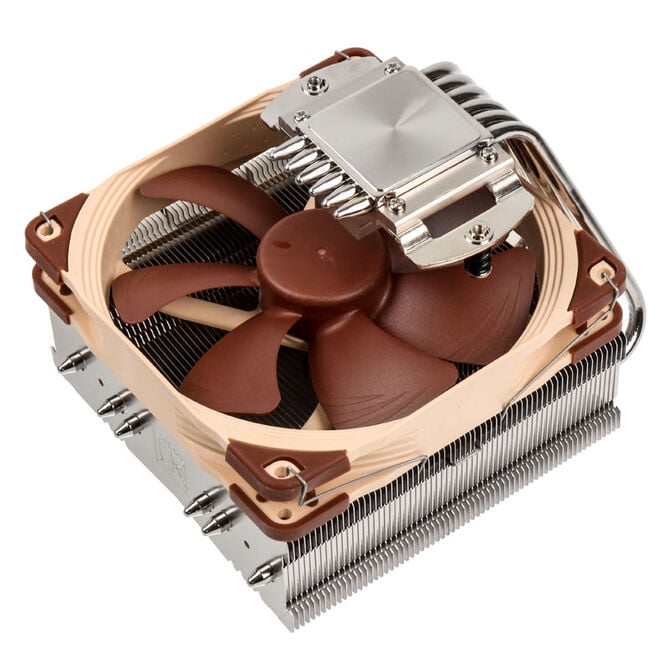

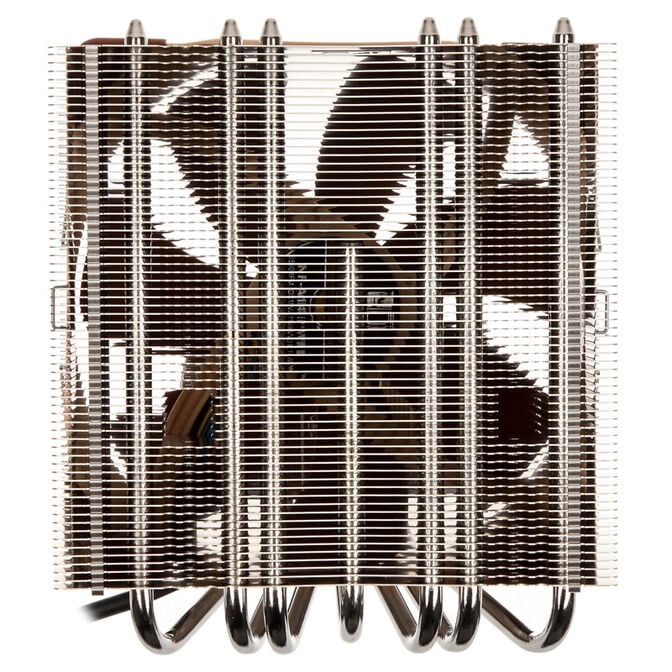

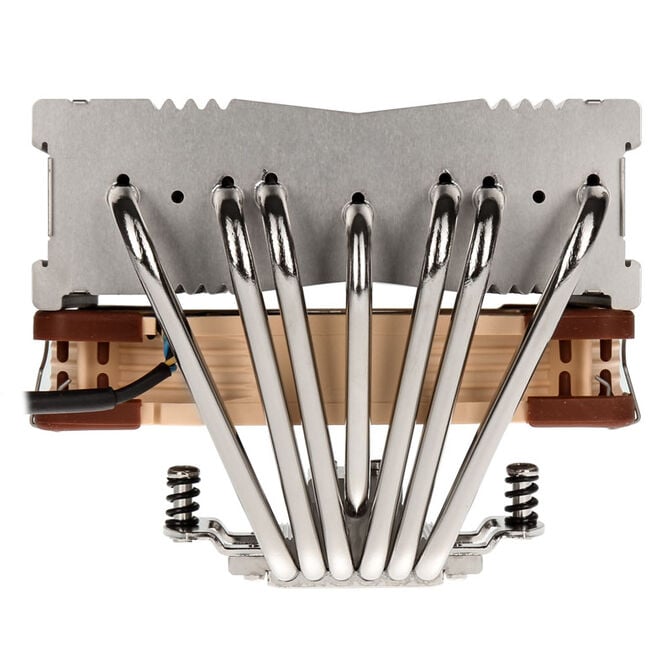

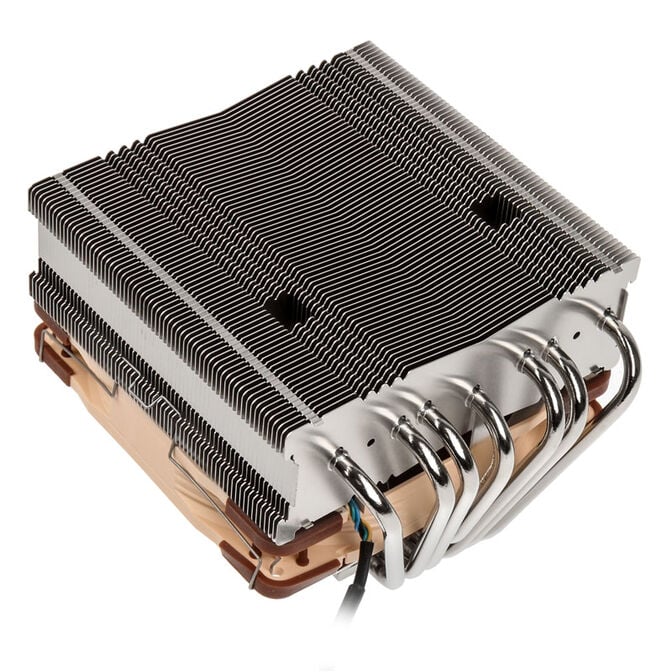

Noctua NH-C14S CPU cooler - 140mm

Noctua NH-C14S CPU cooler - 140mm

(2 Ratings)
Very high-quality top-down high-performance cooler, with a 140mm fan and voltage adapter
89,90 €
In Stock
Incl. VAT, add. delivery costs starting from 4.99€
In Stock
SKU CPNA-038 |
EAN 4716123315698 |
MPN NH-C14S |
Successor to the award-winning NH-C14, the NH-C14S is an elite class top-flow CPU cooler that is extremely efficient, highly compatible and remarkably adjustable. Thanks to its deeper fin stack and the renowned NF-A14 PWM fan, the single fan NH-C14S provides similar quiet cooling performance to its dual fan predecessor while being even more versatile: With the fan installed on top of the fins, the cooler is compatible with RAM modules of up to 70mm height. With the fan installed underneath the fins, the total height of the cooler is only 115mm, making it suitable for use in many HTPC cases. At the same time, the new offset layout allows it to clear the top PCIe slot on most µATX and ATX motherboards. Topped off with the trusted, pro-grade SecuFirm2™ multi-socket mounting system, Noctua’s proven NT-H1 thermal compound and full 6 years manufacturer’s warranty, the NH-C14S is a premium quality top-flow solution for the highest demands.


Based on the award-winning NH-C14
Having received more than 200 awards and recommendations from leading international hardware websites and magazines, the NH-C14 has become an established reference for 140mm top-flow coolers. With its deeper fin stack and more efficient NF-A14 PWM fan, the new S-version provides similar performance and further improved compatibility

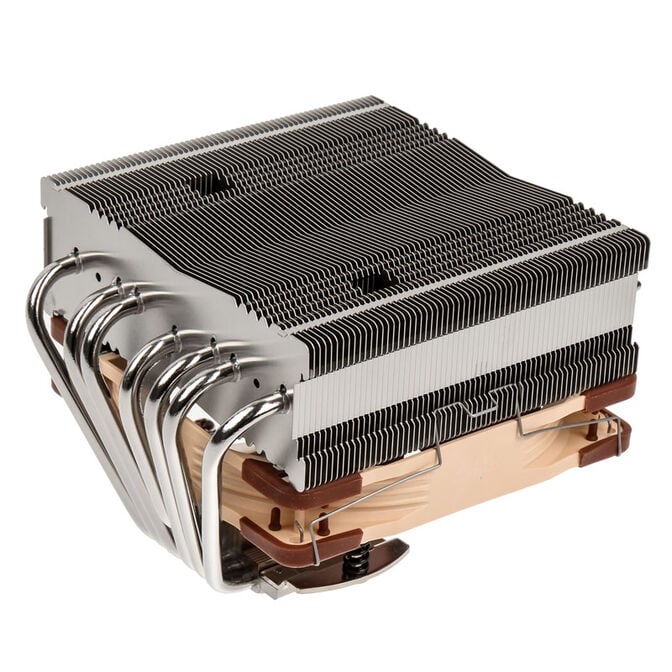

C-Type top-flow design
The c-type top-flow design of the NH-C14S not only allows for superb quiet cooling performance while maintaining a much lower profile than today's 140mm tower-style coolers but also ensures excellent airflow over RAM modules and near-socket motherboard components.

Low Profile Mode
Run with the NF-A14 fan installed underneath the fin stack, the NH-C14S stands only 115mm tall, which is much lower than tower coolers with 140mm or 120mm fans and allows it to fit many desktop style or HTPC cases.

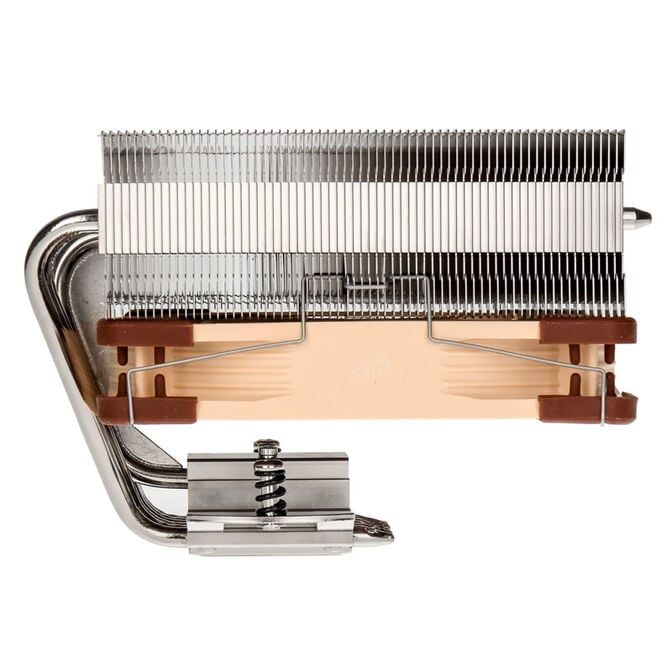

High Clearance Mode
Run with the NF-A14 fan installed on top, the NH-C14S provides extended clearance underneath the fin stack. This way, it is fully compatible with chipset coolers and RAM modules with heat-spreaders of up to 70mm height.

Offset design for PCIe clearance
Compared to the original NH-C14, the layout of the NH-C14S has been offset in two axis. Thanks to this measure, the heatsink will clear the top PCIe slot on most µATX and ATX motherboards when the bendings of the heatpipes face the PCIe slots or the I/O panel.

NF-A14 140mm premium fan
Featuring sophisticated aerodynamic optimisations such as Flow Acceleration Channels, the NF-A14 is renowned to be among the best quiet 140mm fans on the market. Combined with the deeper fin stack of the NH-C14S, it allows the cooler to achieve similar performance levels as its dual fan predecessor despite only using a single NF-A14.

PWM support and Low-Noise Adaptor
The NF-A14 premium fan supplied with the NH-C14S supports PWM for convenient automatic speed control through the motherboard. In addition, the maximum fan speed can be reduced from 1500 to 1200rpm using the supplied Low-Noise Adaptor for even quieter operation.

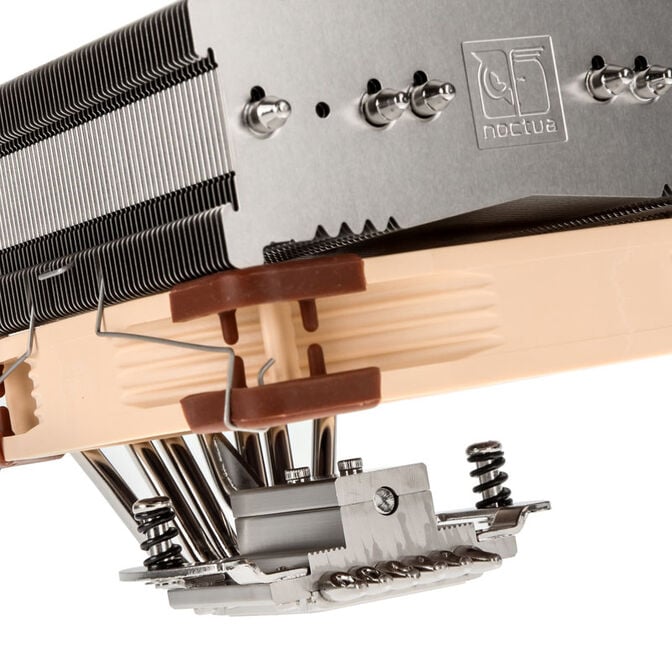

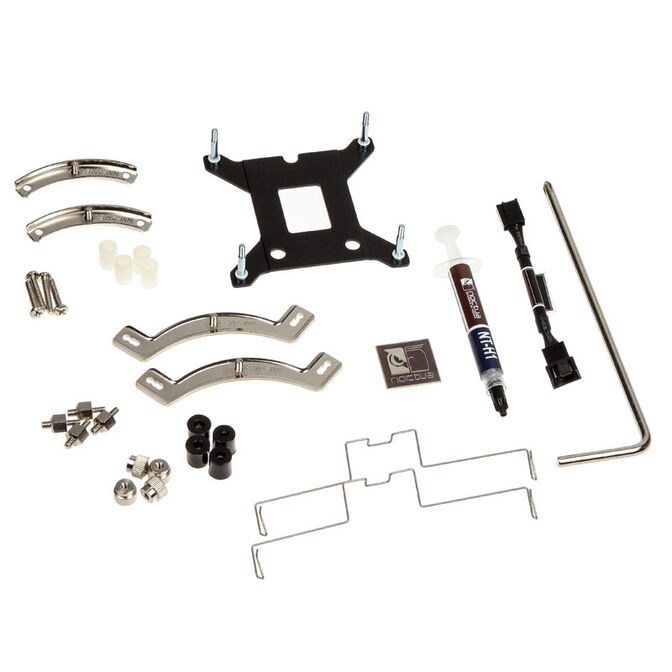

SecuFirm2™ mounting system
Noctua's SecuFirm2™ mounting systems have become synonymous with quality, safety and easy installation. Supporting Intel LGA1851, LGA1700 (since 2021), LGA1200, LGA115x (LGA1150, LGA1151, LGA1155, LGA1156), as well as AMD AM4 and AM5 (AM4 (since 2019), the SecuFirm2™ mounting included with the NH-C14S is straightforward to install, provides perfect contact pressure and will stand the test of time even under heavy use.

NT-H1 thermal compound
Having received more than 100 awards and recommendations from hardware journalists around the world, Noctua's NT-H1 is a proven professional grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability.
Colour
Primary Colour
Silver
Fan Main Colour (Frame)
Brown
Dimensions
Length / Depth
140 mm
Width
140 mm
Height
142 mm
Weight
1.015 g
Cooler Specifications
Additional fans possible
Yes
Heatpipe diameter
6 mm
Number of heatpipes
6
Ventilation type
active
Type
CPU Cooler Type
Top Blower
CPU
CPU Socket
1150, 1151, 1155, 1156, 1200, 1700, 1851, 2011, 2011-V3, 2066, AM5
Fan Specifications
Max. Fan RPM
1500 rpm
Max. Single Fan Airflow
140.2 m³/h
Noise
Max. Single Fan Noise
24.6 dB(A)
Internal Ports
Fan connectors
4 Pin (PWM)
Materials

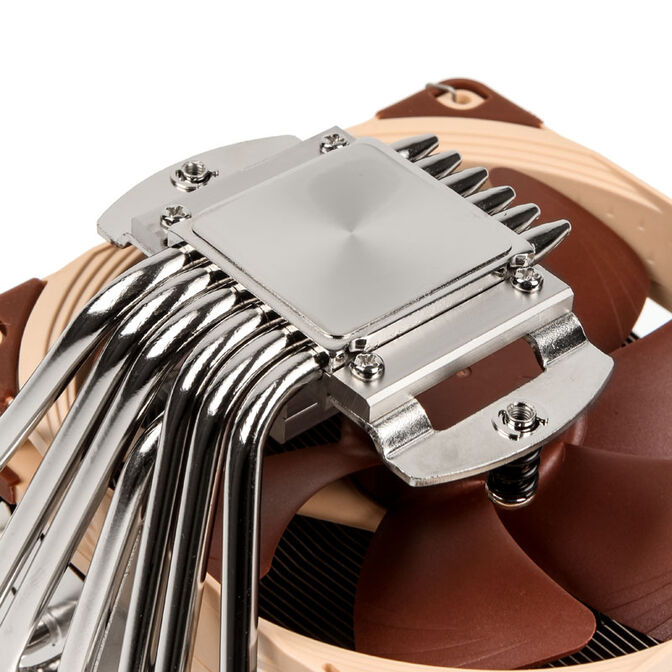

Base Plate Material
Nickel-plated copper
Heat Sink Material
Aluminium
Lighting
Lighting / RGB
No
Additional Contents
Included fans
1x 140 mm
TechnologyX - Noctua NH-C14S C-Type Premium CPU Cooler
TechnologyX - Noctua NH-C14S C-Type Premium CPU Cooler

The Noctua NH-C14S C-Type Premium CPU Cooler is one heck of a CPU cooler that we would recommend for anyone looking to upgrade their system to get that added bit of performance, don't forget that second NF-A14 fan though!

Learn more
Hardwareluxx - Noctuas flexibler Top-Flow-Kühler NH-C14S
Hardwareluxx - Noctuas flexibler Top-Flow-Kühler NH-C14S

Auch ein leistungsstarker Prozessor wie der Core i7-4790K wird von Noctuas runderneuertem Top-Flow-Kühler mühelos in Schach gehalten. Leistungsstarke Towerkühler sorgen zwar für noch etwas niedrigere Temperaturen, aber auch der NH-C14S hat noch ordentlich Reserven für heiße Sommertage, Übertaktungsversuche oder schlicht auch den Betrieb mit weit heruntergereltem Lüfter. Dabei profitiert auch dieser Kühler wieder von Noctuas Premiumanspruch. Egal ob Kühler, Lüfter oder Montagezubehör - alle Teile fallen wertig und überzeugend aus und sorgen dafür, dass der NH-C14S ein zwar teures, aber ungemein stimmiges Gesamtpaket darstellt.

Learn more
PCGameware - Noctua NH-C14S
PCGameware - Noctua NH-C14S

When you hold the Noctua NH-C14S in your hands you can immediately feel the difference in quality compared to most other CPU coolers. You can see the workmanship and feel the quality materials that make up the whole product, the well milled base, the SecuFirm2 mounting system and the non-flimsy aluminium fins to bring a few areas to point.

Learn more
Mod-your-case - Noctua - NH-C14S - Top-Flow-Kühler
Mod-your-case - Noctua - NH-C14S - Top-Flow-Kühler

Mit dem NH-C14S hat Noctua es wieder einmal geschafft, einen vorhandenen Kühler durch verschiedene Optimierungen nicht nur, was die Leistung angeht zu verbessern, sondern auch die Kompatibilität zu steigern. Durch den asymmetrischen Aufbau kann der Kühler so montiert werden, dass auf fast allen Mainboards der obere PCIe Slot nicht blockiert wird. Mit der Option den Lüfter unter oder auf dem Kühler montieren zu können kann man zudem entweder eine hohe Kompatibilität zu Speichern mit einem großen Kühlkörper oder zu kleinen und flachen Gehäusen erreichen. Die Verarbeitungsqualität liegt auf einem sehr hohen Niveau. Auch die Kühlleistung konnte in unserem Test vollkommen überzeugen und bietet zudem noch Potenzial um die verbaute CPU zu übertakten.

Learn more
PC-Max - Noctua NH-C14S und NH-D15S
PC-Max - Noctua NH-C14S und NH-D15S

Positiv ist uns am Noctua NH-C14S die Kühl-Performance in Verbindung mit einer guten Kompatibilität zu dem obersten PCIe-Steckplatz, den RAM-Modulen bis zu einer möglichen Höhe von 65 Millimetern und einer möglichen Gesamthöhe von 105 Millimetern aufgefallen.

Learn more
qwertymag - Noctua NH-C14S
qwertymag - Noctua NH-C14S

A product specially designed for configurations Micro-ATX and Mini-ITX that despite being compact in height manages to keep up with the heat sink vertical higher performance. If you look for a power dissipating from top of the range but have homes that do not allow coolers too high, well, the Noctua NH-C14S is probably the solution for you!

Learn more

Product reviews displayed are aggregated from all Pro Gamers Group websites.
