Noctua NH-L9i-17xx CPU cooler - 92mm
CPU cooler in low-profile design, low height of 3.7 cm, 1x 92mm slim fan, for Intel LGA 17xx
49,90 €
Incl. VAT, add. delivery costs starting from 4.99€
- High-performance CPU cooler in low-profile design
- Low height of only 37 mm
- 100% RAM compatibility
- Includes ultra-slim "Noctua NF-A9x14 HS-PWM" fan
- Suitable for Intel 12th generation processors
The Noctua NH-L9i-17xx: Flat and powerful
The NH-L9i-17xx is a quiet low-profile CPU cooler from Noctua with an extremely slim design. The pre-installed 92 mm fan has a height of only 14 mm, making the NH-L9i-17xx especially suitable for HTPC and Mini-ITX cases.The low-profile cooler is ideal for Mini-ITX and HTPC cases where flat yet powerful coolers are required. Its compact design also achieves maximum compatibility with motherboards and memory modules. Thanks to the large cooling surface, the cooling performance of the 37 mm high top blower is impressive. This effectively dissipates heat from the processor, allowing it to deliver its full performance.
The pre-installed fan is a very quiet, 92 mm slim model with a 4-pin PWM connector. It achieves surprisingly good values for its size with a maximum noise level of 23.6 dB(A), up to 2,500 RPM, and an airflow of 57.5 m³/h. The PWM signal allows it to be controlled by the motherboard. Automatic adjustment regulates the fan according to the performance demand.
Thanks to the SecuFirm2 mounting system, the NH-L9i-17xx is particularly easy to install and sits very firmly and stably on the processor. This also provides greater security for regularly transported systems. Additionally, the mounting kit is compatible with all modern sockets from Intel's LGA17xx family.
Technical details:
- Dimensions (including fan): 95 x 95 x 37 mm (W x H x D)
- Dimensions (without fan): 95 x 95 x 23 mm (W x H x D)
- Weight (including fan): 380 g
- Weight (without fan): 320 g
- Material: Copper (base & heatpipes), Aluminium (fins)
- Heatpipes: 4 pieces
- Fan:
Model: NF-A9x14 HS-PWM
Dimensions: 92 x 92 x 25 mm
Noise level: max. 23.6 dB(A)
Speed: max. 2,500 RPM
Airflow: 57.5 m³/h
Static pressure: max. 2.11 mm H2O
Connector: 4-pin PWM - Compatibility: Intel LGA 17xx

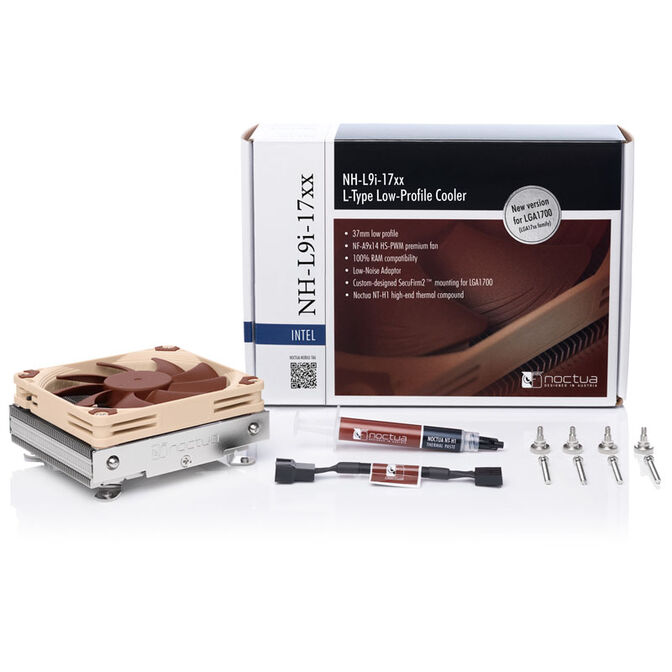

- Accessories:
NH-L9i-17xx heatsink
NF-A9x14 HS-PWM premium fan
Low-Noise Adapter (L.N.A.)
NT-H1 thermal paste
SecuFirm2 mounting kit
4x fan screws - Manufacturer’s warranty: 6 years
|
Colour
|
|
|
Primary Colour
|
Silver
|
|
Fan Main Colour (Frame)
|
Brown
|
|
Dimensions
|
|
|
Length / Depth
|
37 mm
|
|
Width
|
95 mm
|
|
Height
|
95 mm
|
|
Weight
|
380 g
|
|
Cooler Specifications
|
|
|
Additional fans possible
|
Yes
|
|
Number of heatpipes
|
4
|
|
Ventilation type
|
active
|
|
Type
|
|
|
CPU Cooler Type
|
Top Blower
|
|
CPU
|
|
|
CPU Socket
|
1700, 1851
|
|
Fan Specifications
|
|
|
Max. Fan RPM
|
2500 rpm
|
|
Max. Single Fan Airflow
|
57.5 m³/h
|
|
Max. Static Pressure
|
2.11 mmH2O
|
|
Noise
|
|
|
Max. Single Fan Noise
|
23.6 dB(A)
|
|
Internal Ports
|
|
|
Fan connectors
|
4 Pin (PWM)
|
|
Materials
|
|
|
Base Plate Material
|
Copper
|
|
Heat Sink Material
|
Aluminium
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Additional Contents
|
|
|
Included fans
|
1x 92 mm
|
