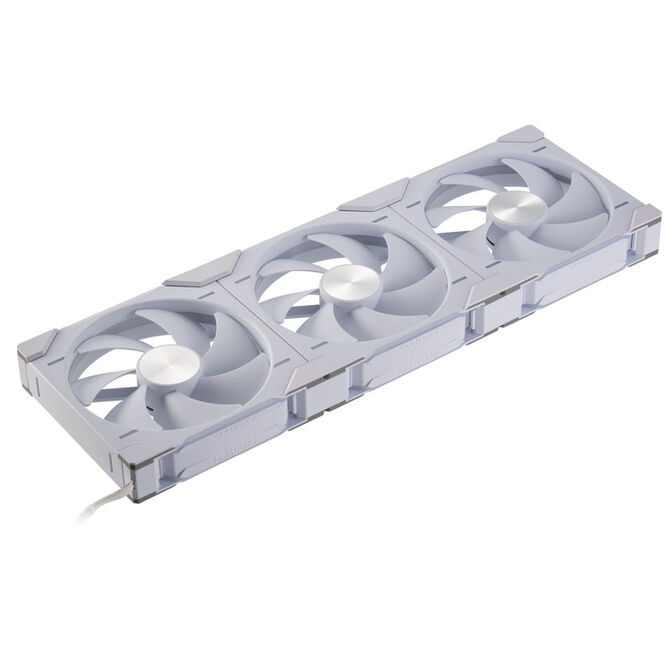

Phanteks D30 PWM Regular Airflow, D-RGB Fan, 3-pack - 140mm, white

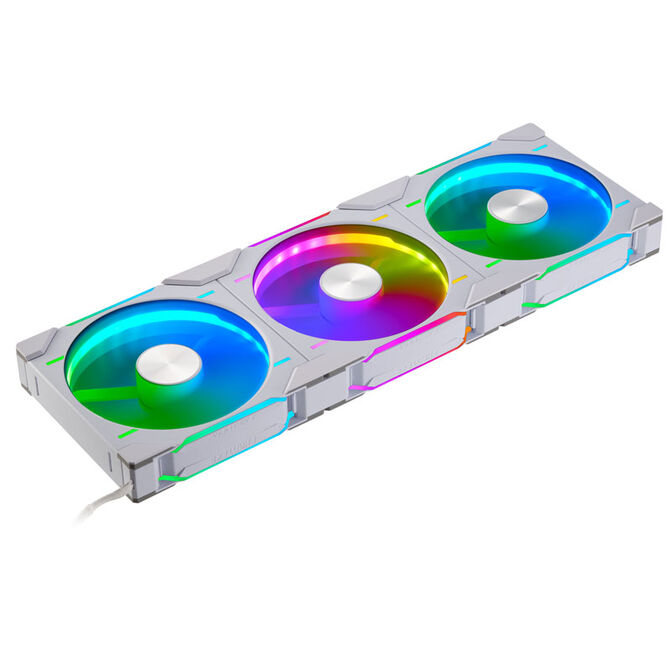

- Versatile high-end fan in white with striking ARGB lighting
- Powerful PWM for use in cases or on radiators
- 30 mm depth and aerodynamic fan blades for additional cooling
- Connect up to four fans with clips for easy daisy-chaining
- Available in Regular or Reversed Mode to hide spokes and stickers
- Includes screw covers for clean builds
The Features of the Phanteks D30-140 Fan in Detail
The Phanteks D30-140 PWM D-RGB fans are designed to provide high airflow and static pressure. Thanks to their 30 mm depth, powerful hydrodynamic PWM motor, and aerodynamic fan blades, they can be used for cooling your case with restrictive mesh and dust filters or on radiators. Furthermore, they offer extensive daisy-chaining capabilities without cable clutter. You can connect up to four of them together and connect them to your motherboard for PWM and ARGB signals with just one cable.

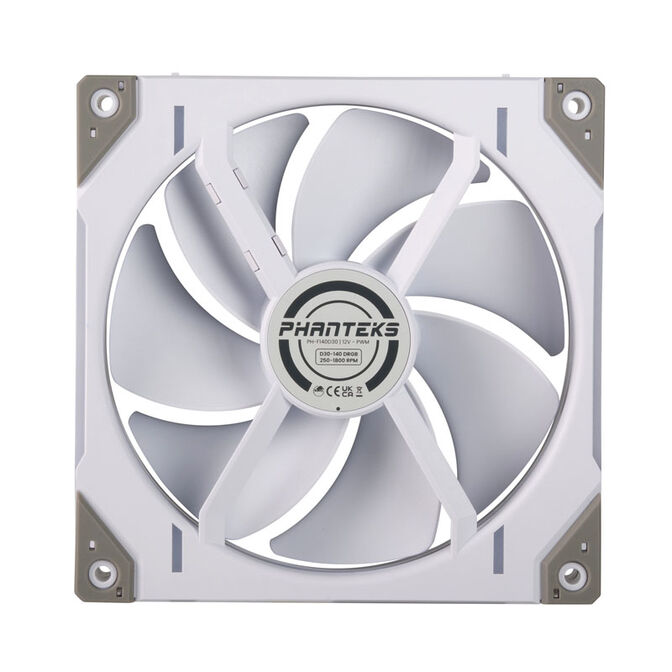

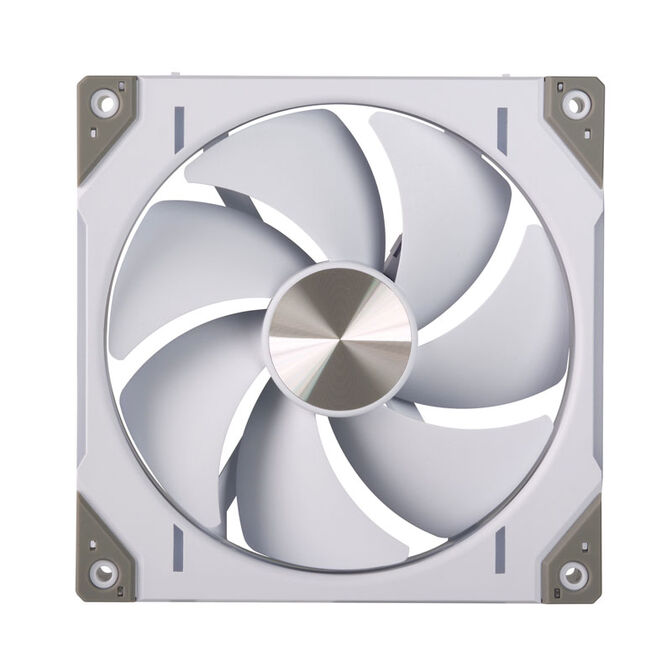

Available in Regular and Reversed Airflow variants, you can choose the model you need to hide unsightly hub stickers and spokes. This version supports regular airflow and directs the air from front to back and out of the case.

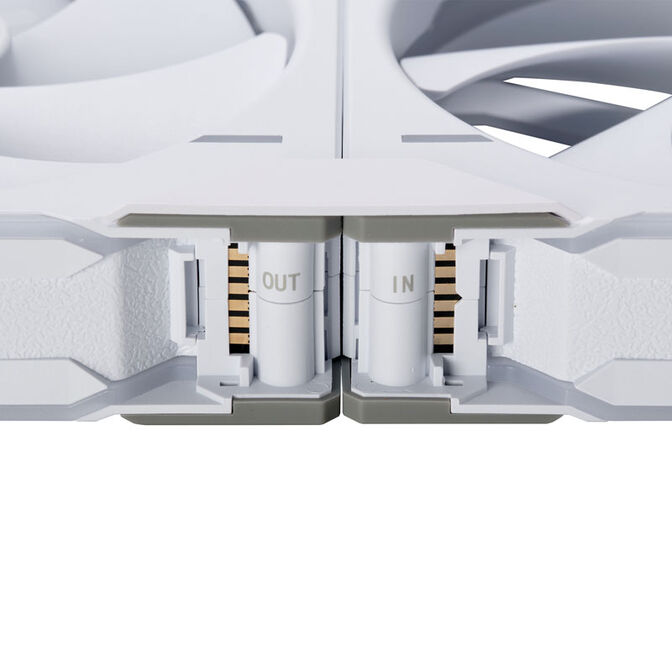

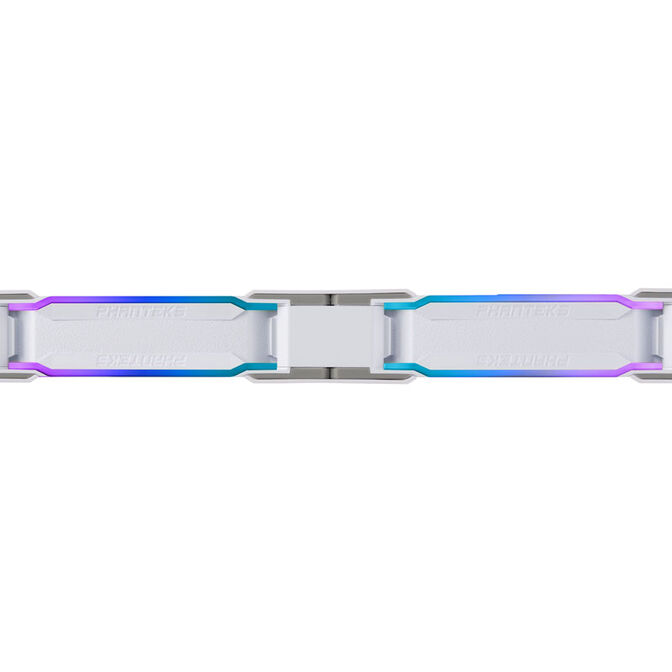

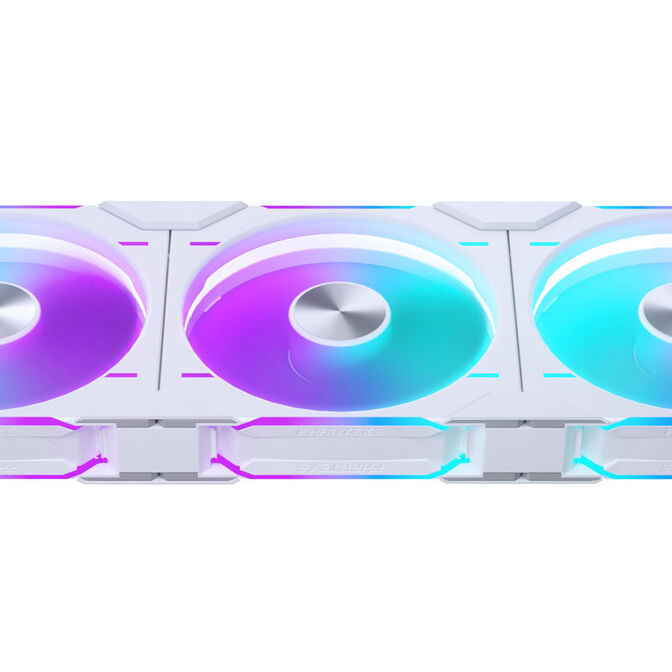

The fans can be connected using two clips on the sides, one of which routes power from the first fan to a total of four. This reduces cable clutter, as only the first fan needs to be connected to your Phanteks controller via a 4-pin PWM and 3-pin D-RGB JST cable. A D-RGB to 3-pin ARGB adapter cable for direct connection to your motherboard is included.
Technical Details:
- Dimensions: 140 x 140 x 30 mm (L x W x D)
- Weight: 266 g
- Color: White (Frame), White (Fan Blades)
- Material: Plastic
- Bearing: Hydrodynamic
- Mode: Regular (Front-to-Back Airflow)
- Specifications:
Speed: max. 1,800 RPM
Airflow: max. 122.2 m³/h
Pressure: max. 3.32 mmH2O
Noise Level: max. 29.5 dB(A)
Current: max. 0.15 A
Voltage: 12 V - Connections:
4-pin PWM
3-pin JST D-RGB - Cable Length: 100 mm + 600 mm

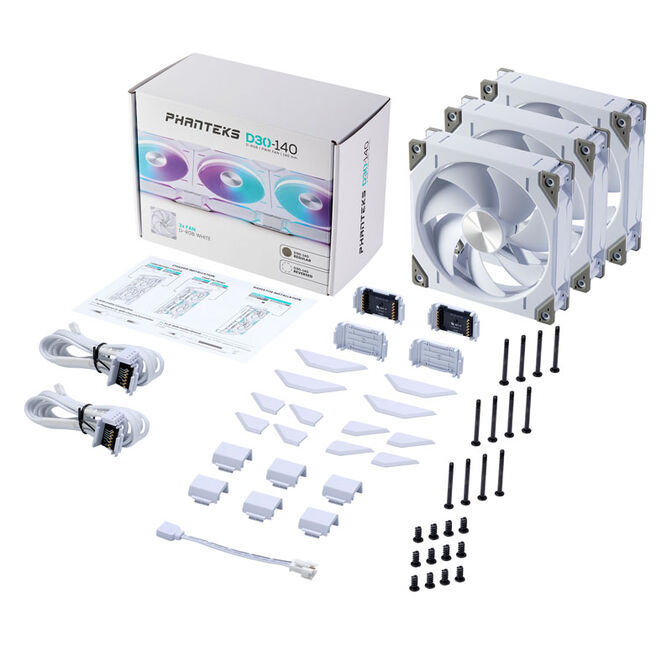

- Package Contents:
3x D30-140 Fans

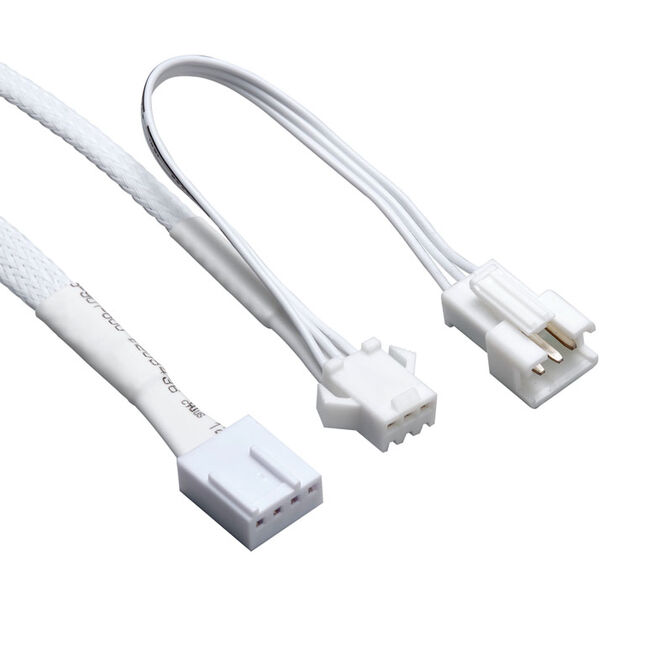

4-pin and 3-pin Extension Cables
2x Corner Connection Cables
2x Connection Bridges
6x Corner Clips
2x Connection Clips
4x Screw Covers for Connection Bridges
4x Screw Covers for Corners L
4x Screw Covers for Corners R
12x Fan Screws
12x Radiator Screws
D-RGB Mainboard Adapter
|
Colour
|
|
|
Primary Colour
|
White
|
|
Fan Main Colour (Frame)
|
White
|
|
Fan Main Colour (Rotor)
|
White
|
|
Dimensions
|
|
|
Length / Depth
|
140 mm
|
|
Width
|
140 mm
|
|
Weight
|
350 g
|
|
Fan height
|
30 mm
|
|
Fan Specifications
|
|
|
Fan Size
|
140 mm
|
|
Fan mounting size
|
140 mm
|
|
Fan Blade Direction
|
Standard
|
|
Fan Bearing
|
Fluid Dynamic Bearing
|
|
Min. Fan RPM
|
250 rpm
|
|
Max. Fan RPM
|
1800 rpm
|
|
Max. Single Fan Airflow
|
71.93 cfm
|
|
Max. Static Pressure
|
3.32 mmH2O
|
|
Power Specifications
|
|
|
Rated voltage
|
12 V
|
|
Noise
|
|
|
Max. Single Fan Noise
|
29.5 dB(A)
|
|
Internal Ports
|
|
|
Fan connectors
|
4 Pin (PWM)
|
|
RGB / LED connectors
|
1x Digital RGB PHANTEKS (3-Pin 5VDG)
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
|
Lighting Compatibility
|
ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync
|
|
Set
|
|
|
Set
|
Yes
|
|
Number of Products in Set
|
3
|
