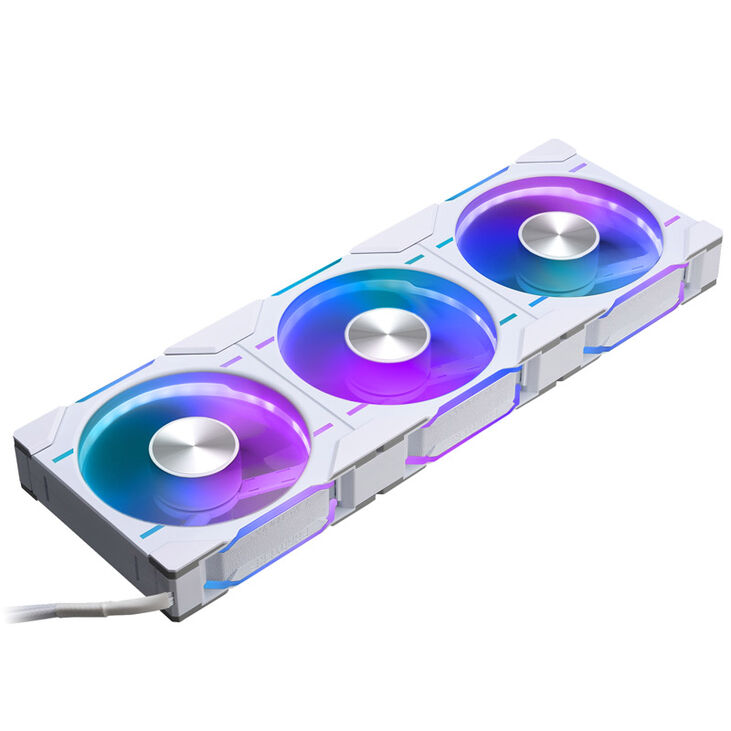

- Versatile high-end fans in white with striking ARGB lighting
- High efficiency PWM for use in cases or on radiators
- 30 mm in depth and aerodynamic fan blades for extra cooling

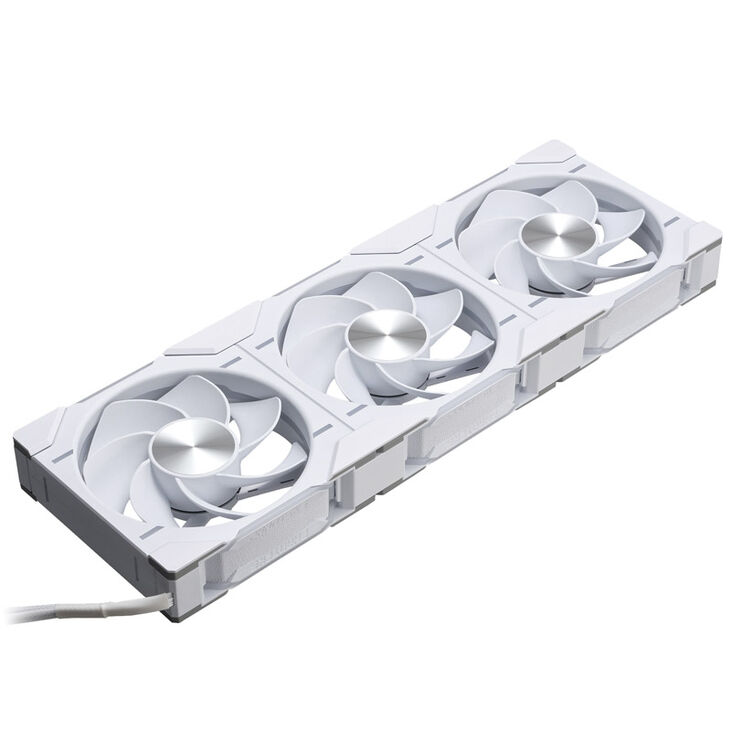

- Connect up to four fans with clips for easy daisy-chaining
- Available in regular or reversed models to hide spokes and hub stickers
- Includes screw covers for clean builds

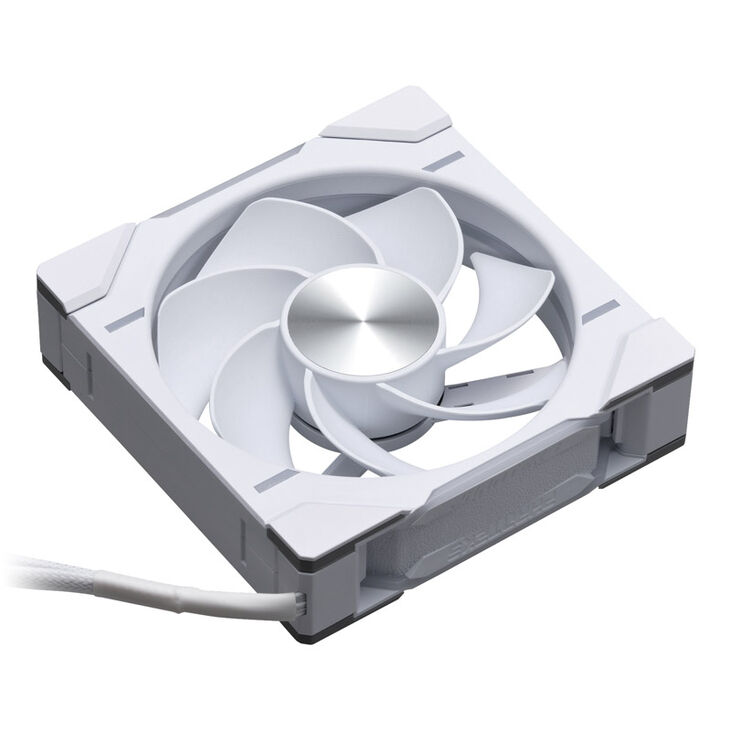

The Features of the PHANTEKS D30-120 Fan in Detail
The PHANTEKS D30-120 PWM D-RGB fans are designed to provide high airflow and static pressure. Thanks to their depth of 30 mm and powerful hydrodynamic PWM motor and aerodynamic blades, they can used to cool your case with restrictive mesh and dust filters or be put on radiators. Furthermore, they provide extensive daisy-chaining capabilities without cable clutter. You can clip up to four of them together, using just one cable to connect to your motherboard for PWM and ARGB signals.

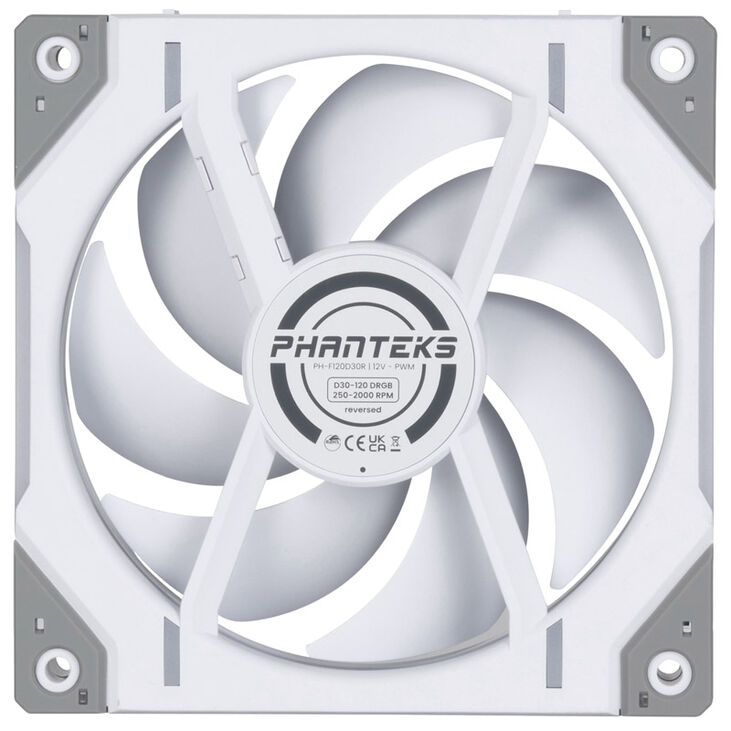

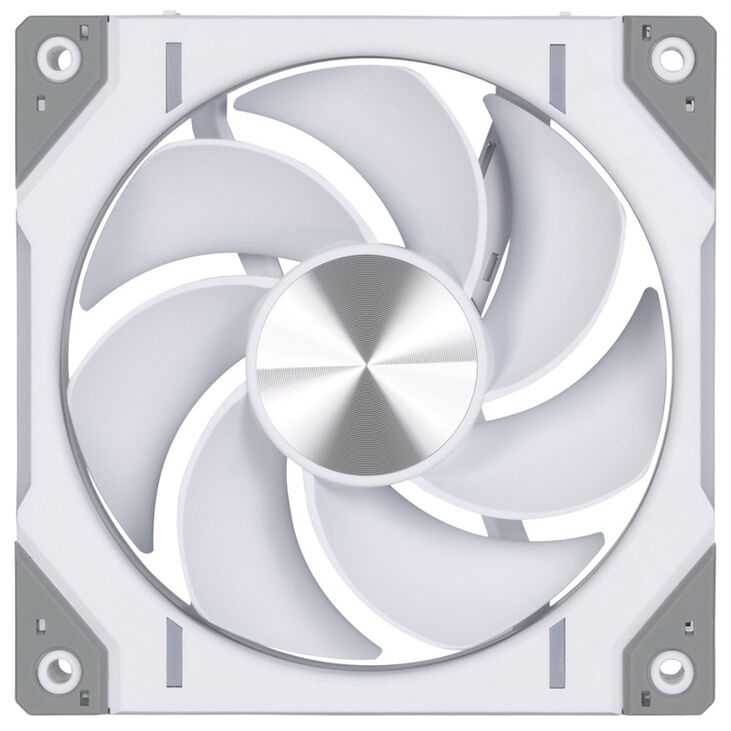

Available in regular and reversed airflow modes, you can choose the model you need, hiding unsightly hub stickers and spokes, avoiding obstruction of the integrated D-RGB lighting, enhanced by the reflecting blades, and keeping your build immaculate. This version runs in reversed mode, moving air from the rear to the front and into the case.

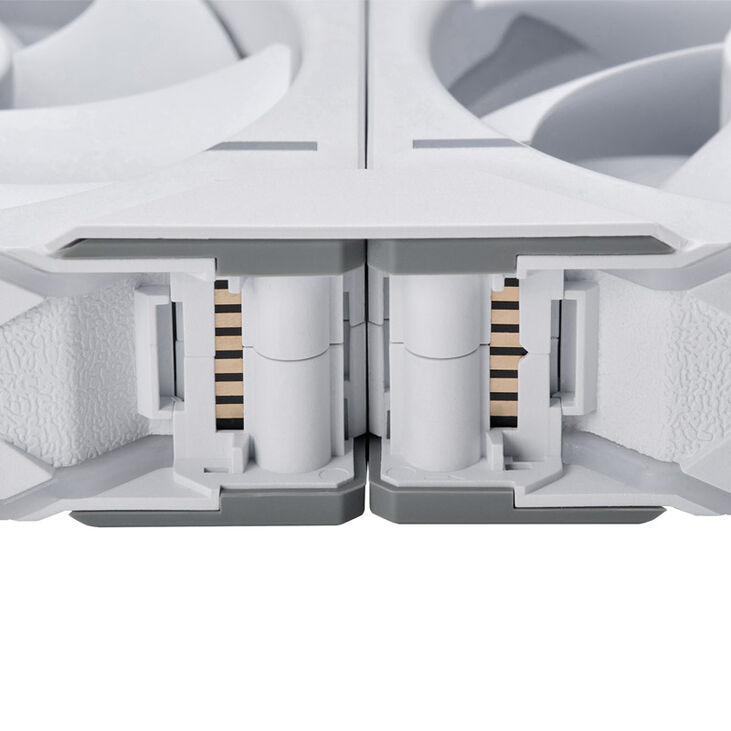

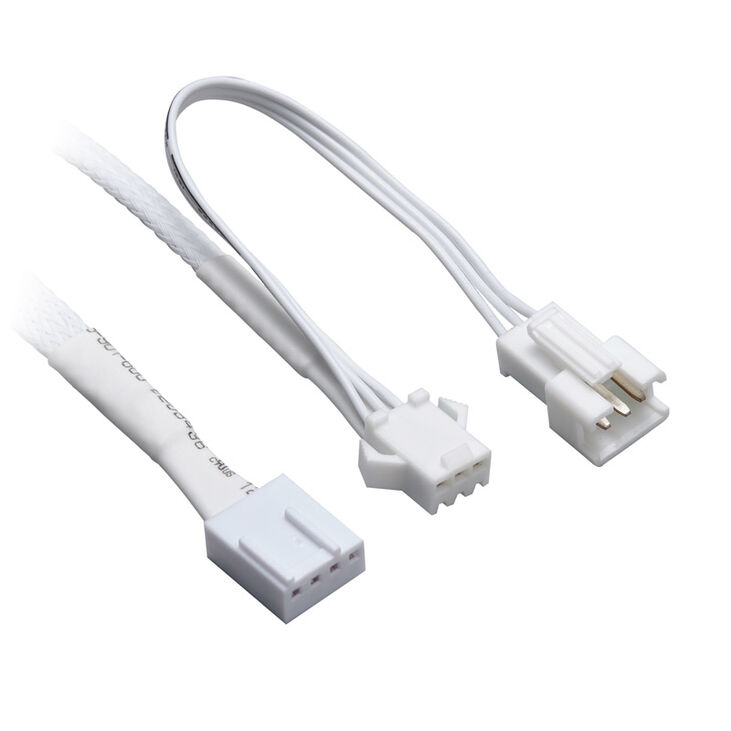

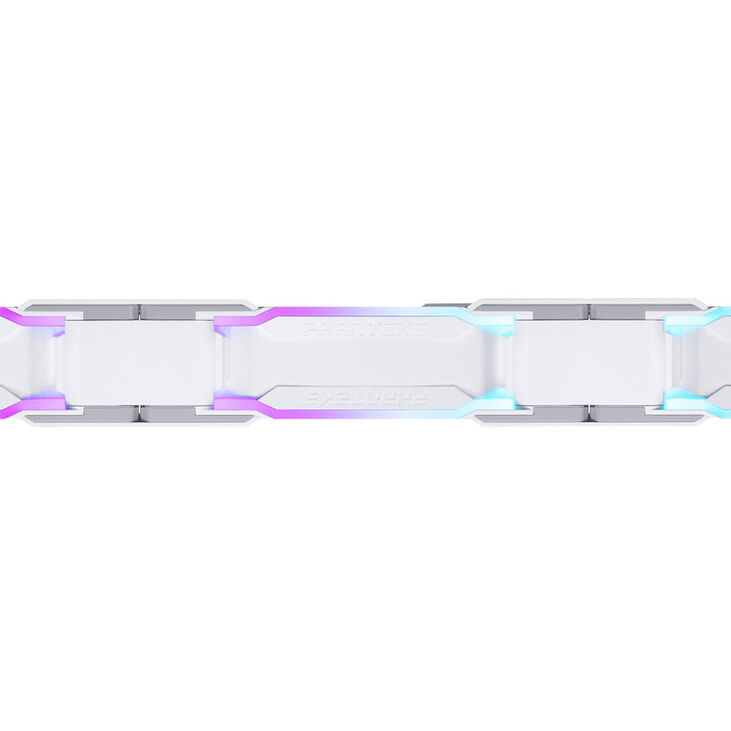

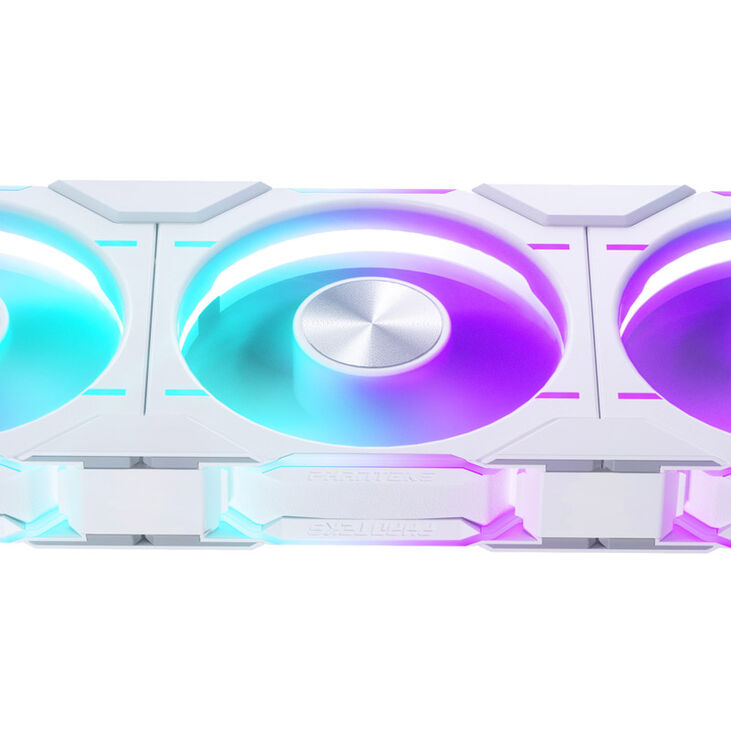

The fans can be connected by two clips on the sides of the fan, one of which passes the power from the first fan through a total of four. This reduces cable clutter, just the first fan needs to be connected to your PHANTEKS controller, via a 4-pin PWM and 3-pin D-RGB JST cable. A D-RGB to 3-pin ARGB adapter cable is provided to connect directly to your motherboard.
Technical Details:
- Dimensions: 120 x 120 x 30 mm (W x D x H)
- Weight: 200 g
- Colour: White
- Material: Plastic (frame, rotor)
- Bearing: Hydrodynamic
- Mode: Reversed (rear to front airflow)
- Specs:
Speed: max. 2,000 rpm
Airflow: max. 104.5 m³/h
Static pressure: max. 2.72 mmH2O
Volume: max. 31.8 dB(A)
Current: max. 0.20 A
Operating voltage: 12 V - Connections:
4-pin PWM
3-pin JST D-RGB - Cable length: 100 mm + 500 mm extension cable

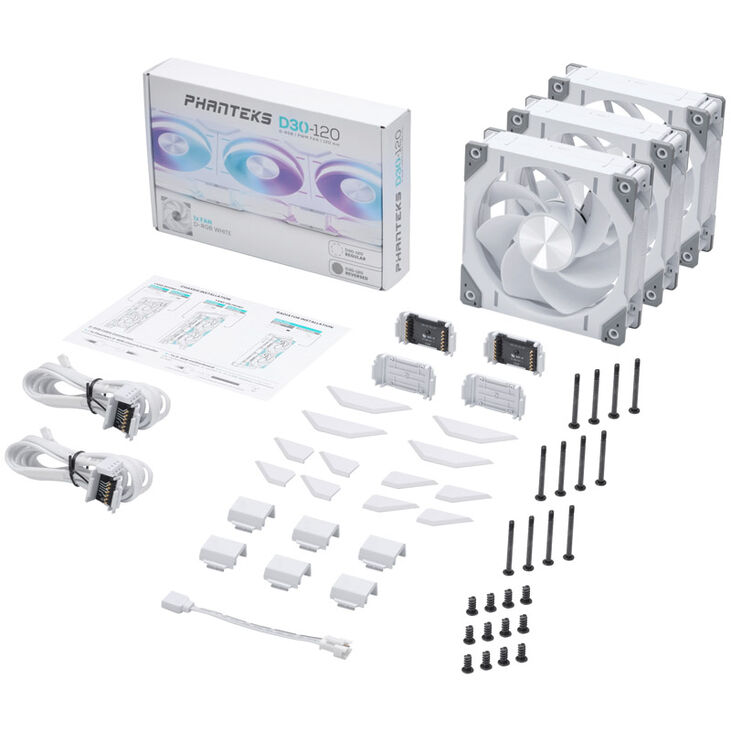

- Scope of delivery:
3x D30-120 fan
3x 4-pin and 3-pin extension cable
2x Corner Clip Cable
2x Bridge Clip Connector
6x Corner Clip
2x Bridge Clip
4x Bridge Screw Cover
4x Corner Screw Cover L
4x Corner Screw Cover R
12x Fan screws
12x Radiator screws
D-RGB motherboard adapter
Colour
|
|
Primary Colour
|
White
|
Fan main colour (cage)
|
White
|
Fan main colour (rotor)
|
White
|
Dimensions
|
|
Width
|
120 mm
|
Fan height
|
30 mm
|
Fan Specifications
|
|
Fan Size
|
120 mm
|
Fan mounting size
|
120 mm
|
Min. Fan RPM
|
250 rpm
|
Max. Fan RPM
|
2000 rpm
|
Max. Single Fan Airflow
|
61.5 m³/h
|
Max. Static Pressure
|
2.72 mH2O
|
Noise
|
|
Max. Single Fan Noise dB(A)
|
31.8 dB(A)
|
Internal Ports
|
|
Fan connectors
|
4 Pin (PWM)
|
RGB / LED connectors
|
1x Digital RGB PHANTEKS (3-Pin 5VDG)
|
Lighting
|
|
Lighting
|
Yes
|
Lighting Colour
|
RGB
|
Set
|
|
Set
|
Yes
|
Number of products in set
|
3
|
