The

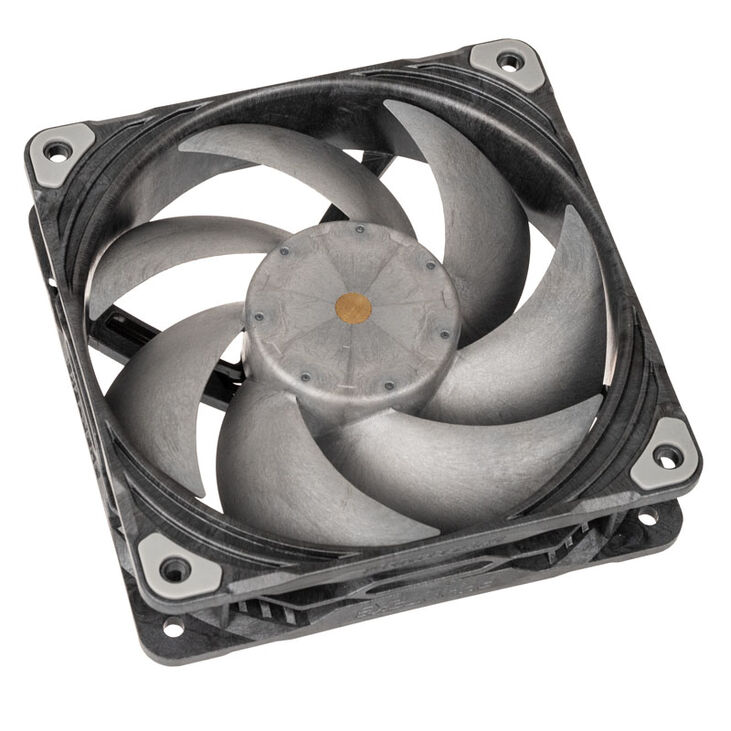

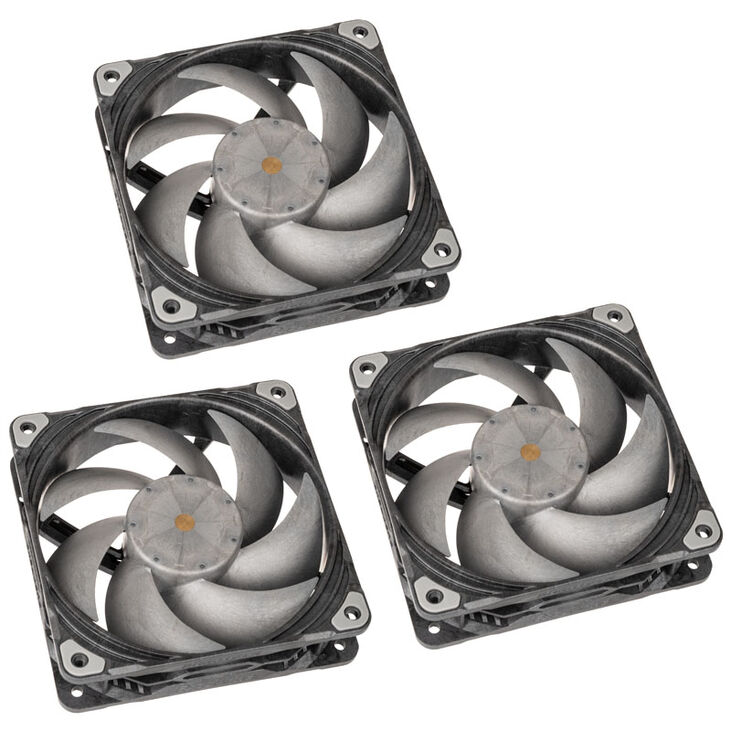

T30-120 is a 120 mm, high-end fan in a triple-pack in an all-black design. With its three operating modes, the fan can be adapted to a wide range of systems and application scenarios. The optimised frame and rotor design, the sophisticated motor, the Dual Vapo bearing, and the material and build quality result in a unique overall package of high-performance and quiet operation.
The Features of the PHANTEKS T30-120 Fan Triple-Pack at a Glance:
- Versatile high-end fan in black
- 120 model with 30 mm depth, only 0.5 mm impeller gap
- Three fan profiles: Advanced, Performance and Hybrid
- 25% higher fan blades for increased performance
- Three-phase Sunon motor and Dual Vapo bearing
- Frame and rotor made of glass fibre reinforced LCP material
- 4-pin PWM connector with daisy-chain support
- Rubber anti-vibration pads
- Six-year manufacturer's warranty
The Features of the PHANTEKS T30-120 Fan Triple-Pack in Detail
In close cooperation with
Sunon, one of the leading fan manufacturers,
PHANTEKS has developed the
T30-120. Both companies incorporated their many years of experience in the air and water cooling sector. The result is a high-end fan with
aerodynamic optimisations and clever features.
Thanks to its
high airflow and static pressure, the
T30-120 is suitable for the use on radiators and air coolers, but also makes for a excellent case fan due to its low noise emissions.

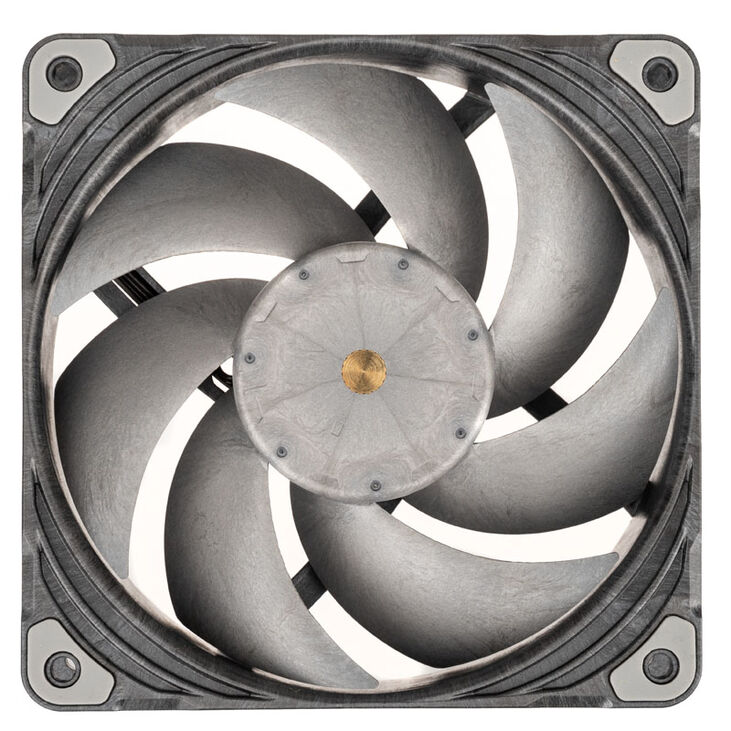

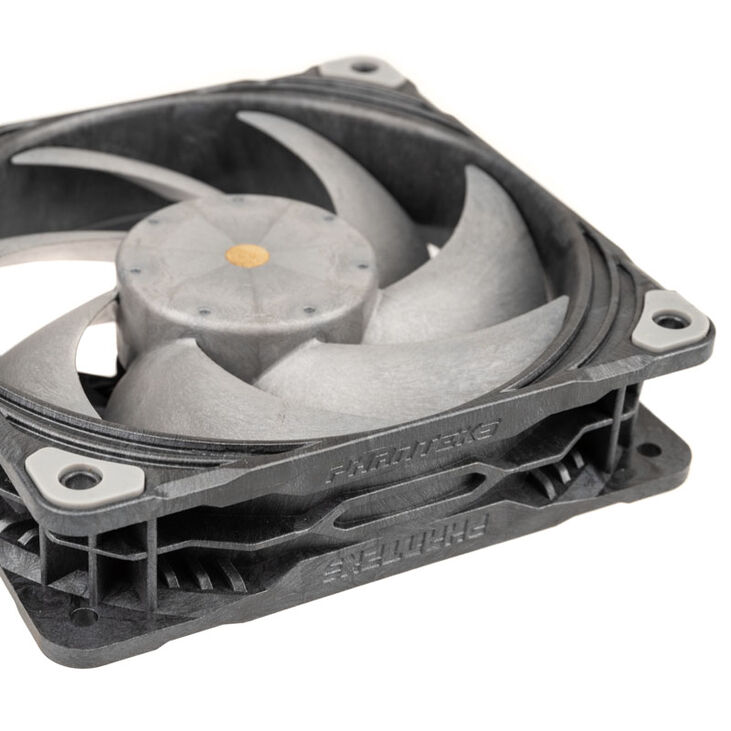

T30-120: Optimised frame design and unique LCP material
Due to its bigger frame design with a thickness of 30 mm, the
T30-120 has
25 % higher fan blades. This increase in surface area results in significantly better airflow, as well as an optimised airflow-to-noise ratio. In addition, the small
impeller gap of only 0.5 mm reduces air turbulence and therefore noise emissions.
Both the frame and the rotor with its fan blades are made of
glass fibre reinforced LCP material (Liquid Crystal Polymer). Liquid crystal polymer has a significantly higher mechanical strength and temperature resistance than normal plastics. These qualities ensure high stability, durability, and a reduction of vibrations.

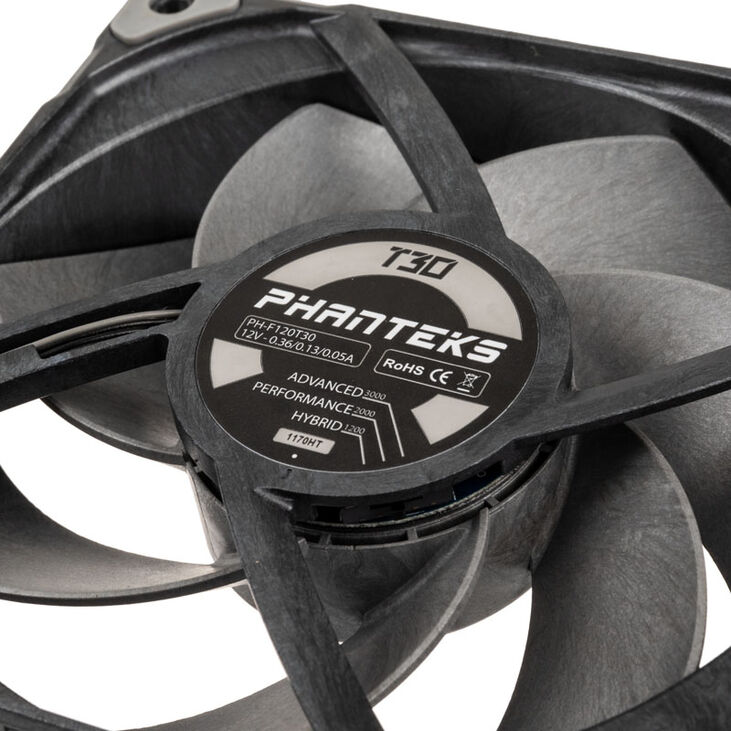

Three Fan Profiles: Prepared for any Scenario
With
three different fan profiles, the
T30-120 can be used in different scenarios or systems. The modes differ in their maximum speed and make the fan suitable for performance-oriented system builders and overclockers, as well as gaming or silence enthusiasts.
The Advanced mode enables the maximum performance of the T30-120. With up to 3,000 rpm, this mode is best suited for extreme performance requirements such as servers, workstations, or overclocking records.
The performance mode is recommended for most system configurations. The T30-120 spins at a maximum of 2,000 rpm and offers a balanced performance-to-noise ratio, ideal for gaming systems of all types and performance tiers.
The hybrid mode with its semi-passive operation fits the needs of silent enthusiasts. If the PWM signal is below 50 %, the fan stops spinning. Only above 50 % will it start up again and rotate at a maximum of 1,200 rpm. This mode is particularly suitable for low-noise systems such as office computers, HTPCs, or multimedia PCs.
The
high-quality three-phase motor from Sunon and the
magnetic Dual Vapo bearing ensure smooth and quiet operation at all times. The
anti-vibration pads on the frame additionally reduce vibrations and oscillations.

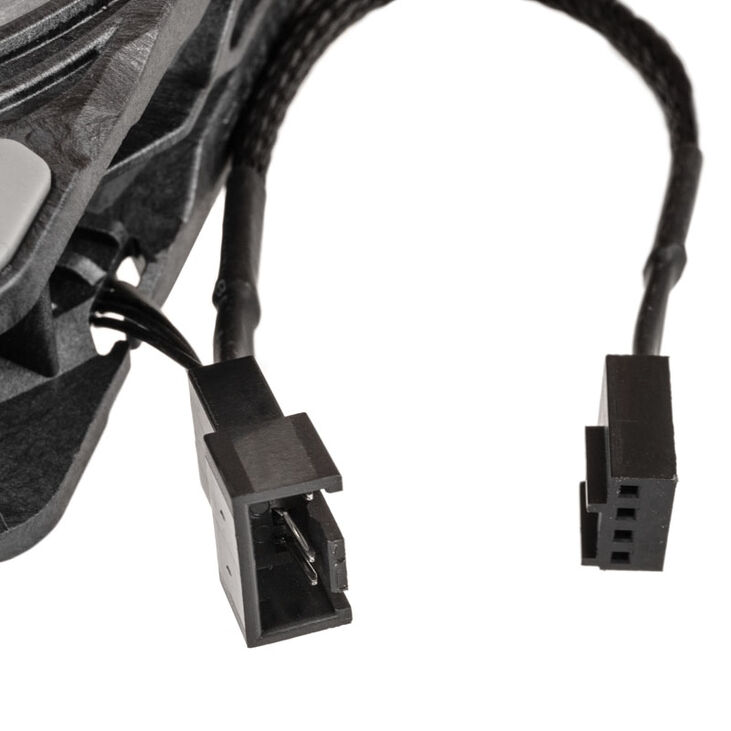

The
T30-120 uses a 4-pin PWM connection with a cable length of 130 mm. The cable also features a 4-pin PWM socket, which enables
daisy chain operation. For the connection of multiple
T30-120 fans only one cable needs to be connected to the motherboard. A 50 cm extension cable is included for neat cable management and increased flexibility during installation.
Technical Details:
- Amount: 3
- Dimensions: 120 x 120 x 30 mm (W x D x H)
- Weight: 230 g
- Colour: Black
- Material: Liquid crystal polymer (frame, rotor), rubber (vibration dampers)
- Bearing: Dual Vapo
- Advanced profile:
Speed: 3,000 ±150 rpm
Delivery volume: 171.4 m³/h
Static pressure: 7.11 mmH2O
Loudness: 39.7 dB(A)
Amperage: 0.36 A
Power consumption: 4.32 W
- Performance profile:
Speed: 2,000 ±100 rpm
Delivery volume: 113.6 m³/h
Static pressure: 3.3 mmH2O
Loudness: 27.3 dB(A)
Amperage: 0.13 A
Power consumption: 1.58 W
- Hybrid profile:
Speed: 1,200 ±75 rpm
Delivery volume: 66.4 m³/h
Static pressure: 1.27 mmH2O
Loudness: 11.1 dB(A)
Amperage: 0.05 A
Power consumption: 0.55 W
- Operating voltage: 10.2 to 13.2 V
- Connection: 4-pin PWM (daisy chain)
- Cable length: 130 mm + 500 mm extension cable
- MTTF: 150,000 h
- Manufacturer's warranty: 6 years

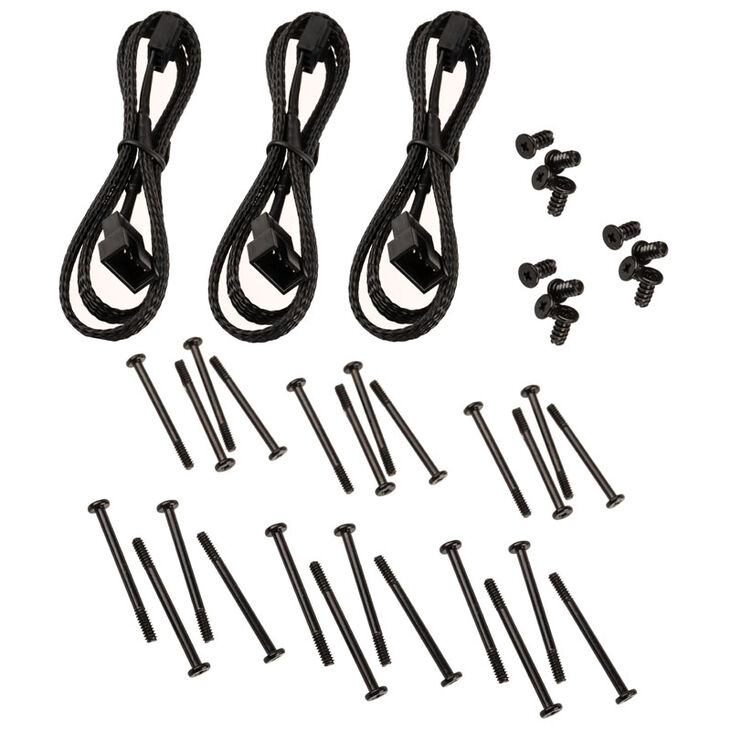

- Scope of delivery:
3x T30-120 fan
3x 4-pin extension cable
12x fan screws
12x Radiator screws 36 mm
12x Radiator + HALOS screws 39 mm
