DDWorld PHANTEKS XT
Aus dem Tschechischen übersetzt:
+ sehr gutes Preis-/Leistungsverhältnis
+ geräumiges und ästhetisch gestaltetes Gehäuse
"Es ist also definitiv ein interessantes Modell"

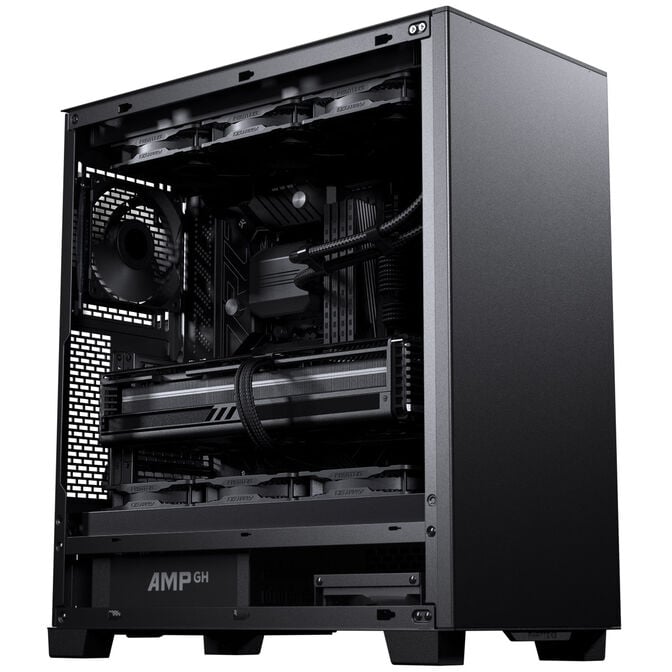

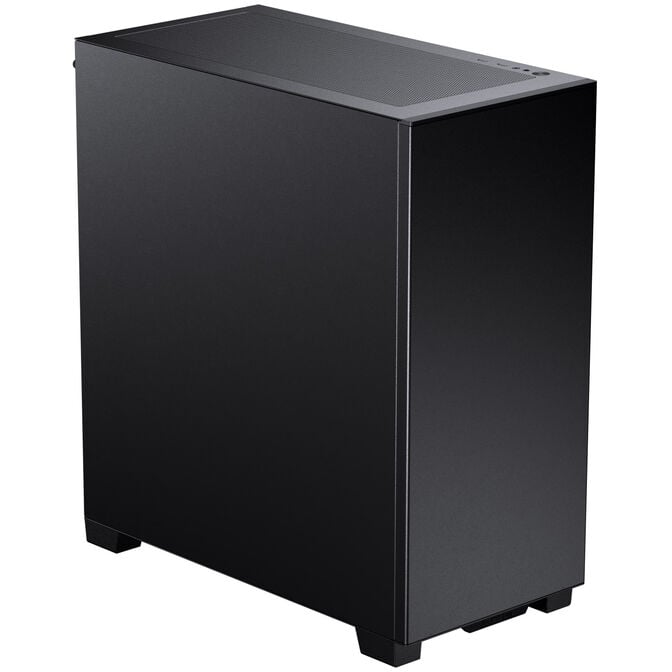

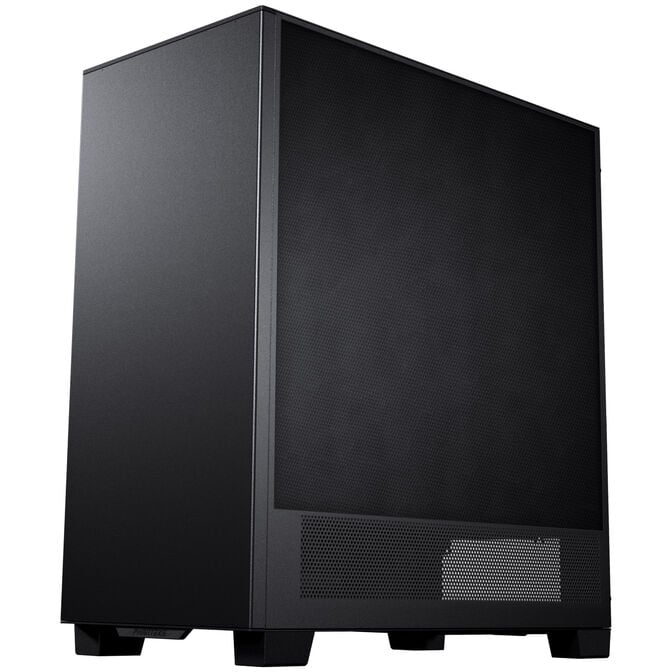

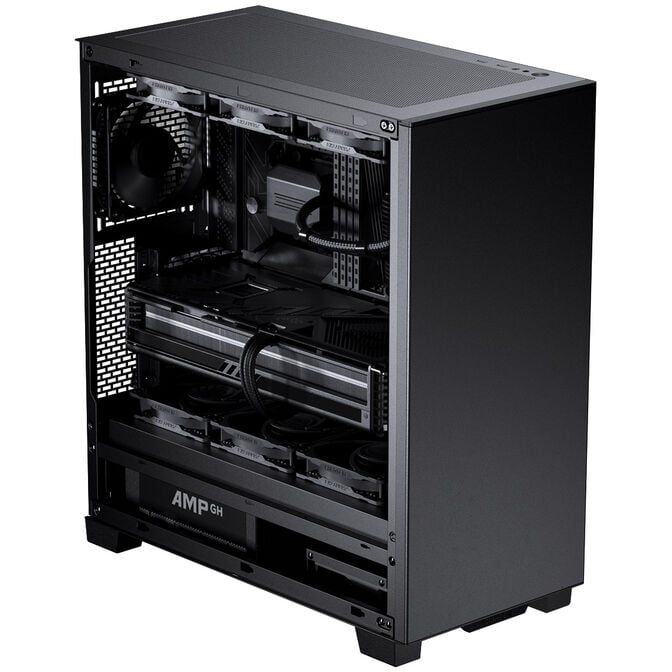

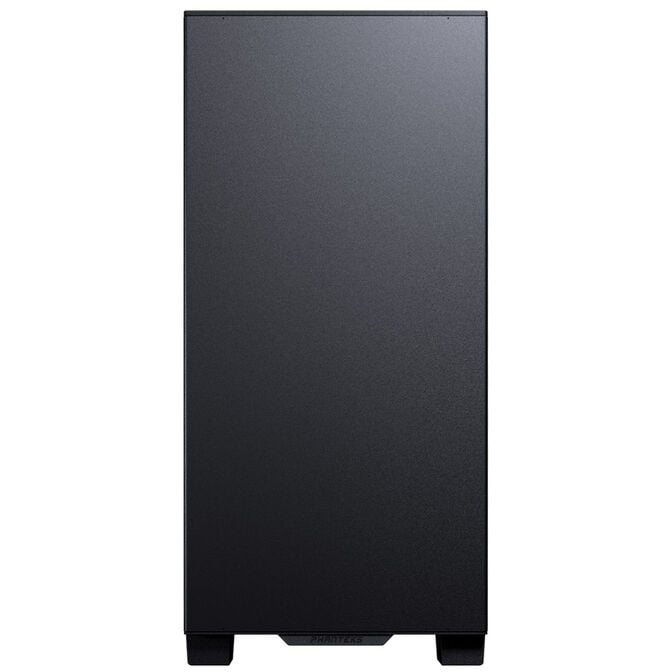

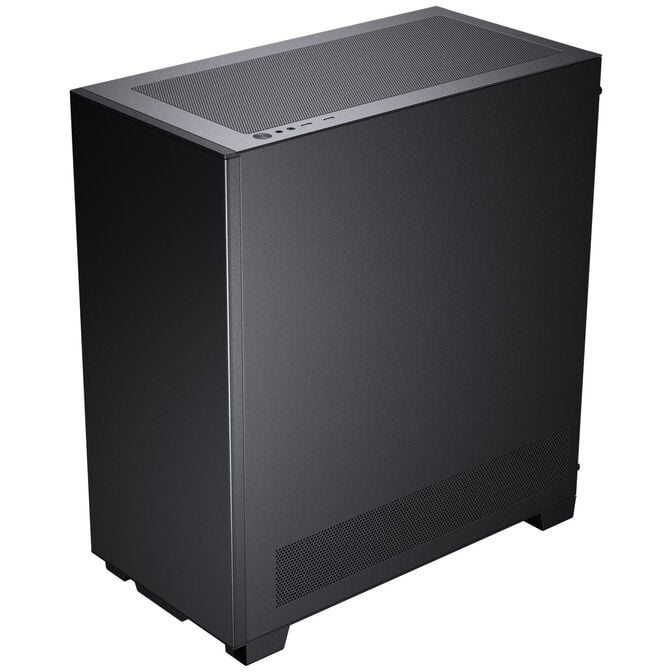

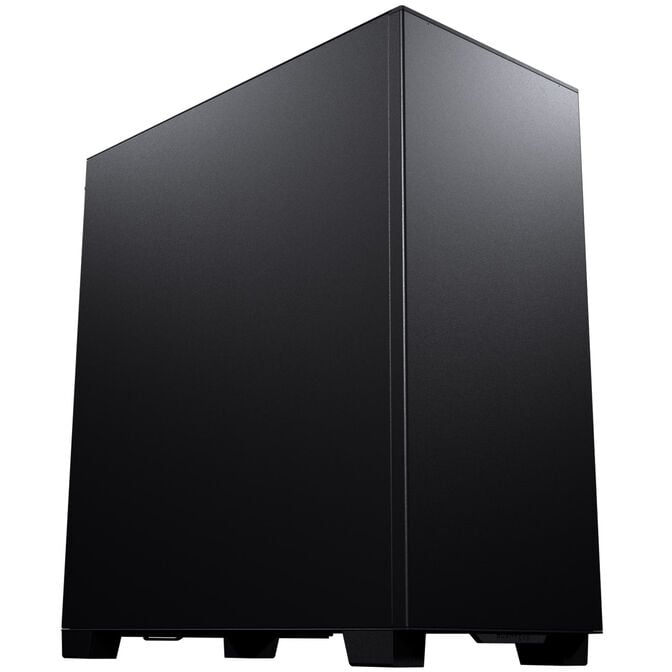

The PHANTEKS XT Silent fits into any setup with its simple black design. It offers extensive options for installing your high-end hardware. To keep your system cool even at full power, there is plenty of space for fans and radiators.

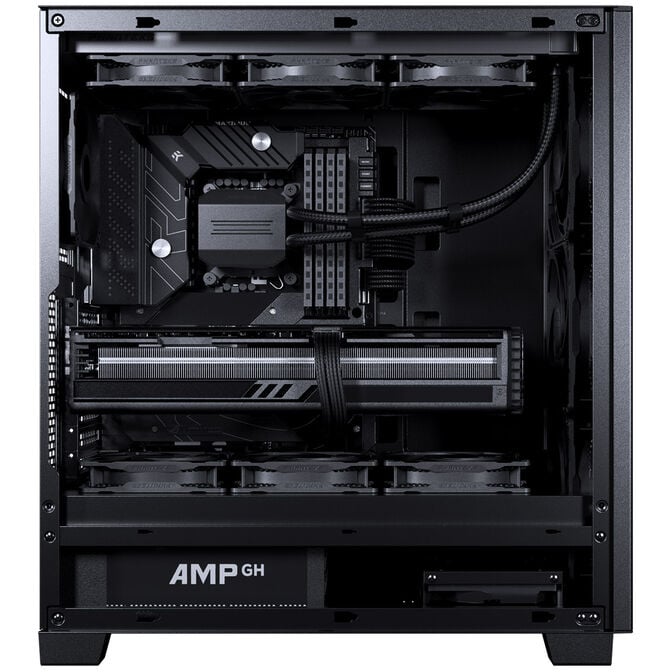

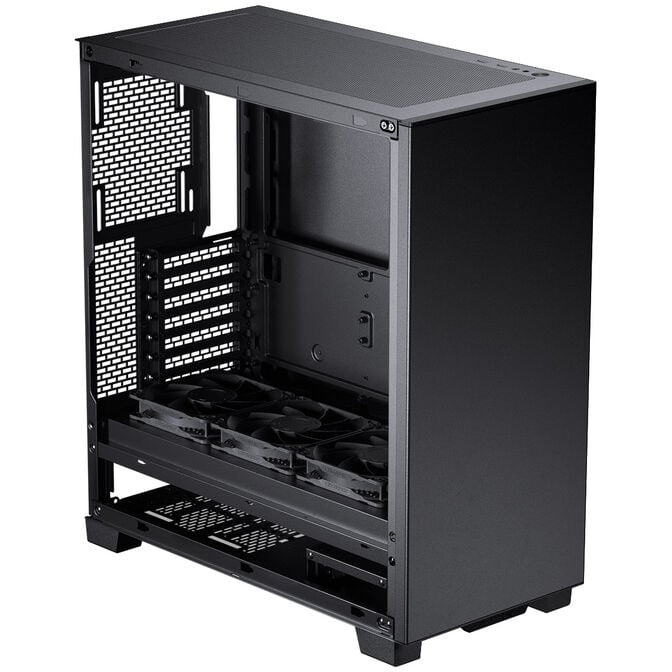

To ensure your high-end components do not overheat even under full load, up to seven fans can be installed in the midi-tower. The top supports either up to three 120mm or two 140mm fans. Additionally, three more 120mm fans can be installed on the mid-plate. The rear also allows for a 120mm or 140mm fan.
Furthermore, three PHANTEKS M25-120mm fans are already included in the package.
If you prefer water cooling - whether an all-in-one water cooling system or a custom-built water cooling solution - there are two locations to install a radiator. A maximum 360mm radiator can be mounted at the top, and another 120mm radiator at the rear. With these fan and radiator options, your system will not lose performance.

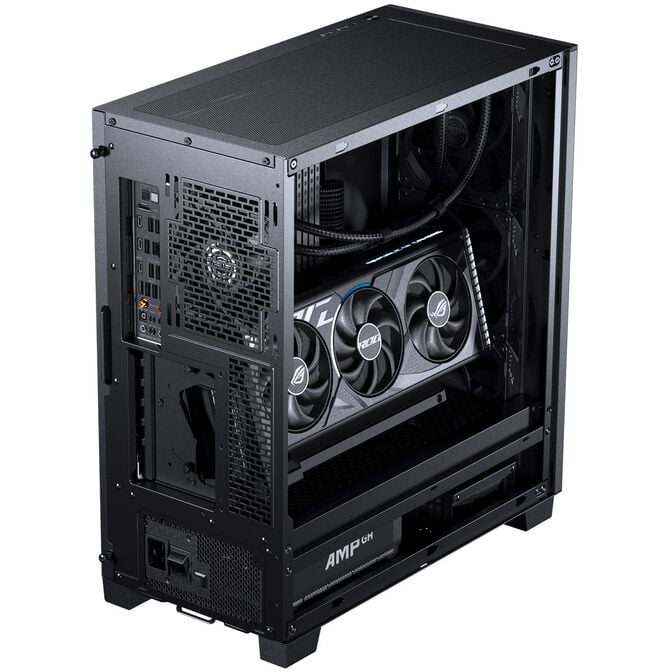

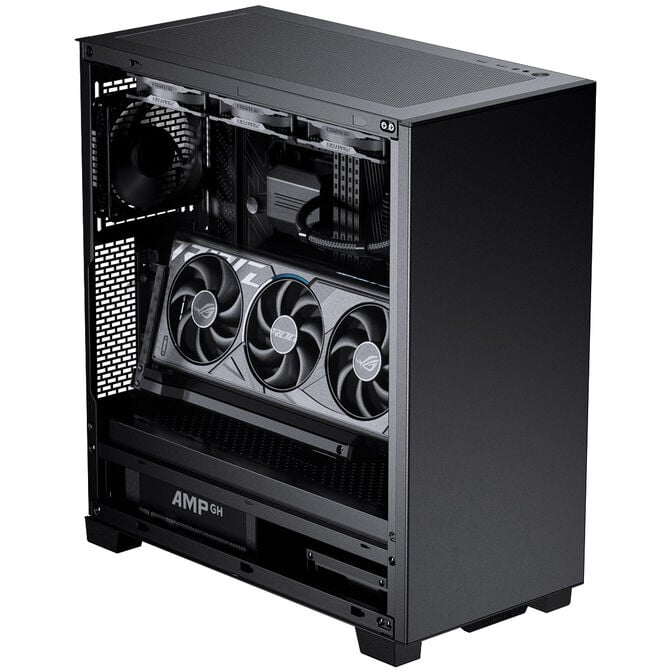

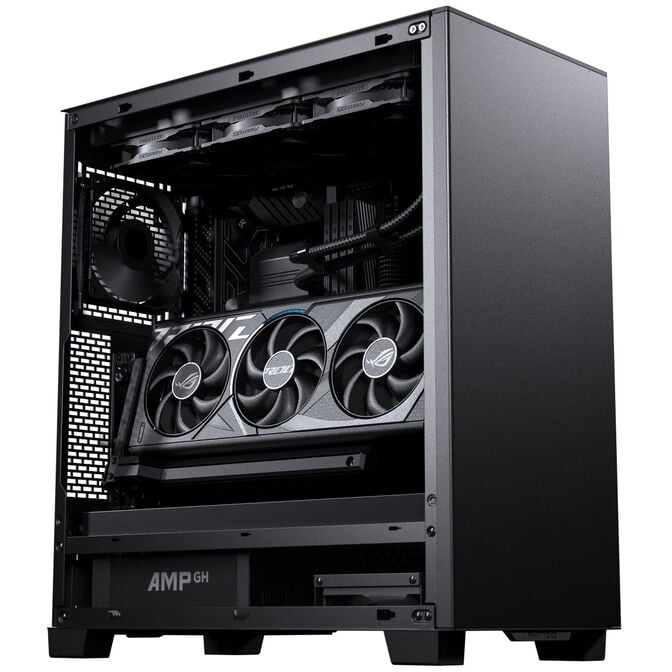

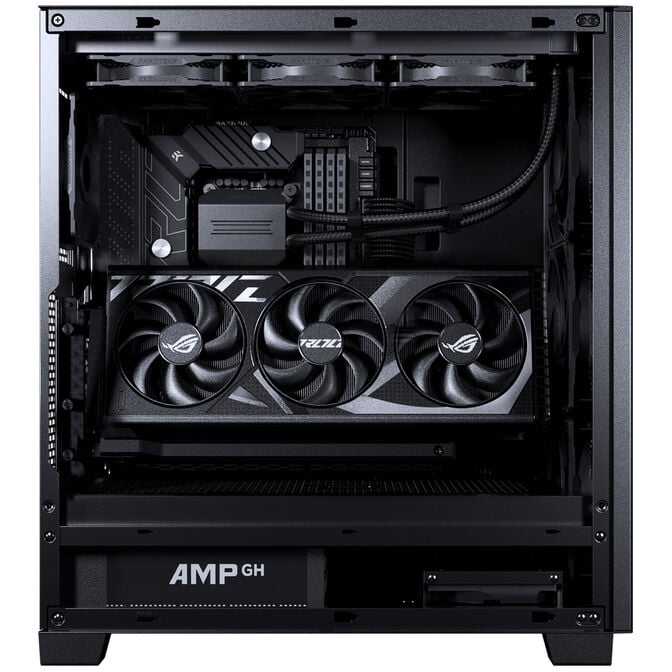

The midi-tower supports the installation of large graphics cards up to 415mm in size. Consequently, the current NVIDIA GPUs of the 40 series are also possible. Motherboards up to E-ATX format can be accommodated. To avoid messy cable clutter, you can also install motherboards with back-connect.
The CPU cooler should not exceed a height of 184mm. On the other hand, there are hardly any limits for the power supply, as it can be up to 270mm long. To store programs and games, up to six drives can be installed: up to three 2.5-inch SSDs can be placed on the side, two more in the power supply chamber, as well as one 3.5-inch drive.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Fan Main Colour (Frame)
|
Black
|
|
Fan Main Colour (Rotor)
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
450 mm
|
|
Width
|
230 mm
|
|
Height
|
500 mm
|
|
Weight
|
7.6 kg
|
|
Case
|
|
|
Case Type
|
Mid Tower
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, E-ATX, Micro-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
E-ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
184 mm
|
|
Max. GPU Length
|
415 mm
|
|
Max. GPU Width
|
184 mm
|
|
Max. PSU Length / Depth
|
270 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
Internal
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Bottom)
|
120mm Fan (3x)
|
|
Case Fan Support (Rear)
|
120mm Fan (1x), 140mm Fan (1x)
|
|
Case Fan Support (Top)
|
120mm Fan (3x), 140mm Fan (2x)
|
|
Max. Number of Fans
|
7
|
|
120 mm fans
|
7
|
|
140 mm fans
|
3
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
1x Single (120 mm), 1x Triple (360 mm)
|
|
Radiator/AIO Support (Rear)
|
120mm Radiator
|
|
Radiator/AIO Support (Top)
|
360mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
5
|
|
Max. 3.5 Inch Drives
|
2
|
|
Max. 5.25 Inch Drives
|
0
|
|
2.5 inch internal drive bay
|
5
|
|
3.5 inch internal drive bay
|
2
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
Front I/O – USB Type C Ports Total
|
1
|
|
Front I/O – USB Type A Ports Total
|
1
|
|
USB 3.1 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
1
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|
I/O position
|
Top
|
|
Side panel
|
closed
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
No
|
|
Noise dampening
|
Yes
|
|
Mainboard slide / tray
|
No
|
|
Remote included
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
Yes
|
|
Back-Connect Compatibility
|
ASUS BTF, Gigabyte Project Stealth, MSI Project Zero
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
7
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
ABS, Steel
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
RGB Controller
|
No
|
|
Additional Contents
|
|
|
Fans Included
|
Yes
|
|
Included fans
|
3x 120 mm
|
