PNY GeForce RTX 5080 Slim OC Graphics Card, 16384 MB GDDR7
007 First Light GeForce RTX 50 Series Bundle
View Details
Get a free download code for the standard edition of 007 First Light.
With the purchase of select GeForce RTX 5090, 5080, 5070 Ti, 5070 and 5060 Ti graphics cards or desktop PCs, and laptops with GeForce RTX 5090, 5080, 5070 Ti, 5070 or 5060 Laptop GPU.
- Compact dual-fan cooler design for small form factor builds
- High base GPU clock: 2,295 MHz
- Extremely high GPU boost clock: 2,730 MHz
- Next-generation graphics memory: 16 GB GDDR7
- Very high memory clock: 30 Gbps
- Wide 256-bit memory interface
- Enormous memory bandwidth of 960 GB/s
- Massive computing power: 10,752 CUDA cores
- Additional PCIe power connector: 1x 16-pin

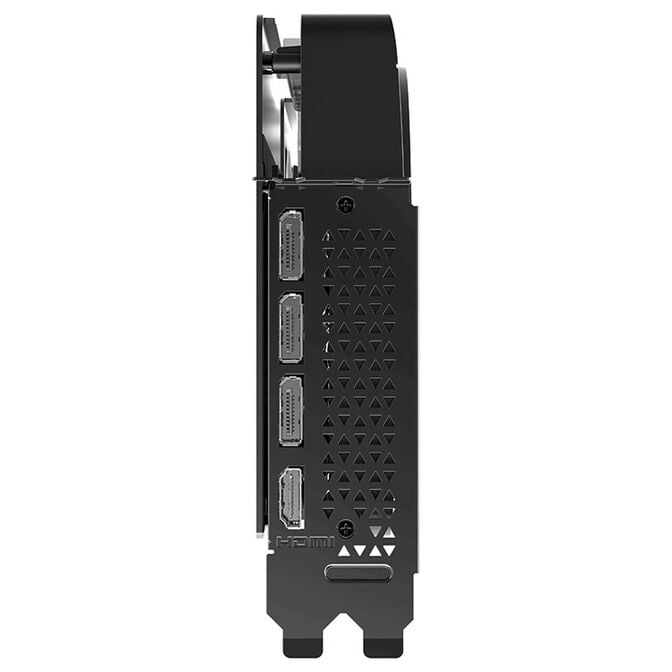

- Video outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b
- Supports DLSS 4 and NVIDIA Reflex 2
The PNY GeForce RTX 5080 Slim OC in Detail
The PNY GeForce RTX 5080 Slim OC delivers uncompromising gaming performance in a surprisingly compact form. Thanks to the NVIDIA Blackwell architecture, you can experience current titles in high resolutions with impressive detail and stable frame rates.
With the latest ray tracing and tensor cores, you create realistic lighting and shadow effects as well as AI-optimised image quality. DLSS 4 and Multi Frame Generation significantly increase your FPS and ensure smooth gameplay even in demanding scenes.
The GPU is also ideally suited for content creation and AI applications: NVIDIA Studio and modern AI acceleration enable more efficient workflows in rendering, streaming, and editing.
Compact SFF Graphics Card for Small Builds
The RTX 5080 Slim was specially designed as a Small Form Factor (SFF) graphics card and impresses with a space-saving dual-slot design. This makes it ideal for compact Mini-ITX or small form factor cases, enabling powerful builds in a small space.

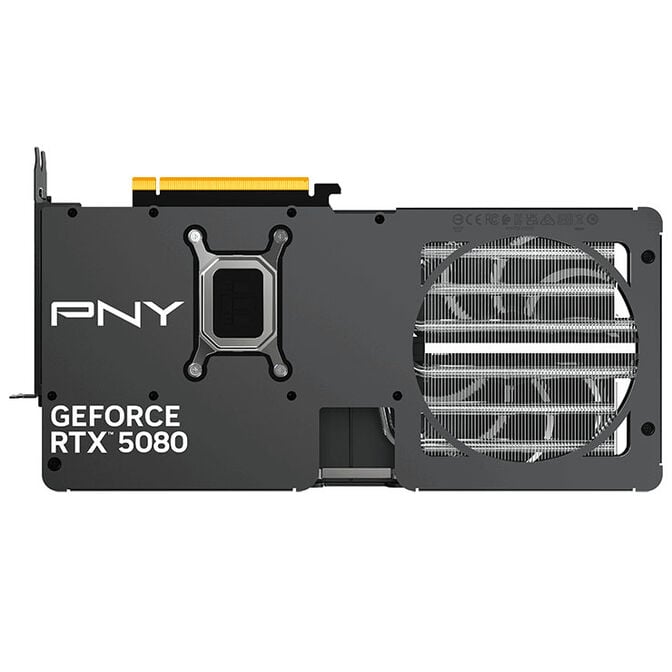

Despite its slim design, it offers a powerful cooling system with two large fans, a vapour chamber, and a metal backplate for efficient heat dissipation and quiet operation – perfect for high-end performance in compact systems.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
300 mm
|
|
Width
|
150 mm
|
|
Height
|
40 mm
|
|
Graphics Card
|
|
|
GPU Series
|
RTX 50 Series
|
|
GPU Model
|
NVIDIA GeForce RTX 5080
|
|
GPU Series Name
|
NVIDIA GeForce RTX 5080
|
|
Graphics Chip
|
GB203-400
|
|
Manufacturing Process
|
5 nm
|
|
Shader Units
|
10752
|
|
Tensor Cores
|
336
|
|
Raytracing Cores / Ray Acceleratorss
|
84
|
|
GPU Memory Type
|
GDDR7
|
|
Slot Type Standard
|
PCIe 5.0
|
|
GPU Memory Size (GB)
|
16
|
|
GPU Memory Interface (bit)
|
256
|
|
GPU Memory Bandwidth (GB/s)
|
960
|
|
GPU Memory Clock (MHz)
|
1875
|
|
GPU Memory Clock Effective (Gbps)
|
30
|
|
Clock Speeds
|
|
|
Max. GPU Clock (Base)
|
2295 MHz
|
|
Max. GPU Clock (Boost)
|
2730 MHz
|
|
Cooling
|
|
|
Number of GPU Fans
|
2
|
|
Water Cooling
|
|
|
Watercooling
|
No
|
|
Internal Ports
|
|
|
Required Power Connectors
|
16-Pin PCIe 5.0 - 12v-2x6 (1x)
|
|
External Ports
|
|
|
Display Connectors
|
Display Port (3x), HDMI (1x)
|
|
Display Connector Standards
|
DisplayPort 2.1, HDMI 2.1
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
Expansion Slots Required
|
2 Slots
|
|
Standards / Specifications
|
|
|
Adaptive Sync Technology (G-SYNC / FreeSync)
|
NVIDIA G-SYNC
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
AI
|
|
|
AI Acceleration
|
Yes
|
|
AI Accelerator
|
Tensor Cores
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
