- Efficient triple-fan cooler design with Free Flow Cooling
- High game and boost clock: 2,520 / 3,060 MHz
- 16 GB GDDR6 graphics memory with 64 MB Infinity Cache
- High memory clock: 20,000 MHz
- Wide 256-bit memory interface
- Large memory bandwidth of 640 GB/s
- Video outputs: 2x DisplayPort and 2x HDMI
- Power connector: 12V-2x6 or PhantomLink (GC-HPWR)

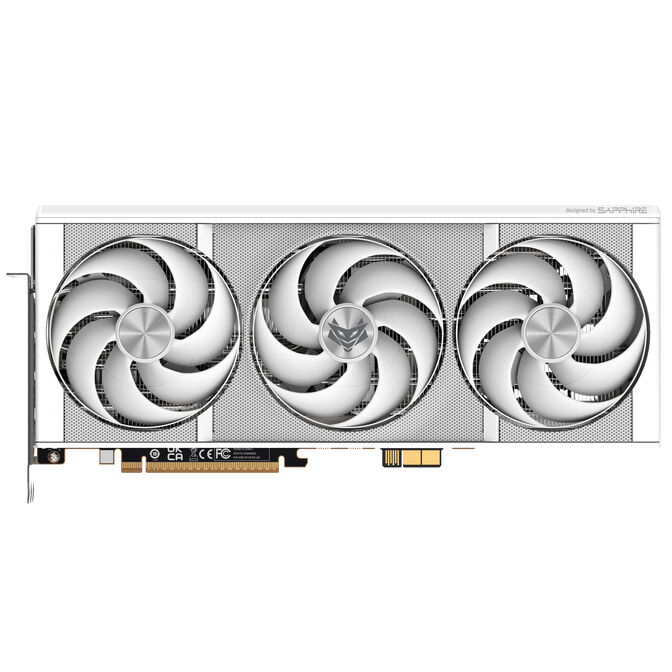

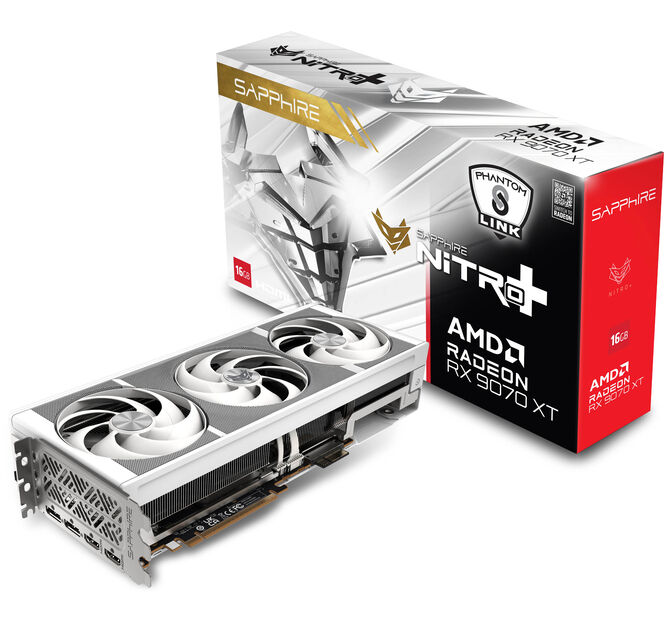

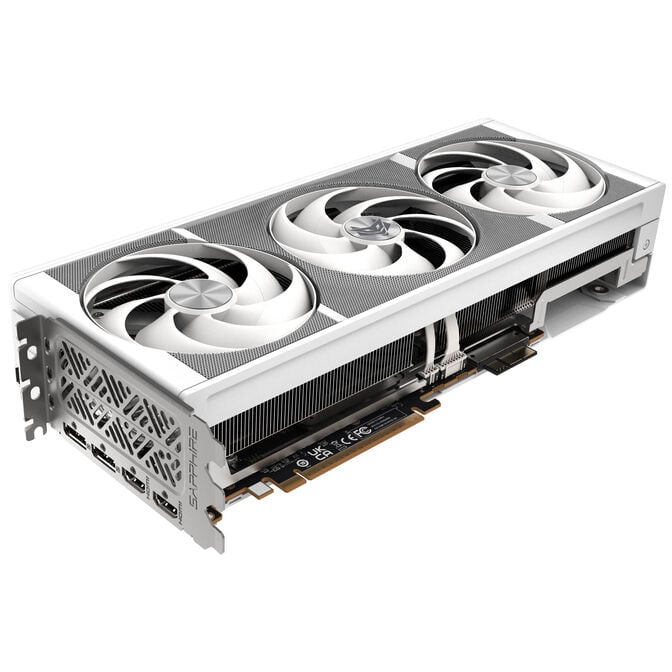

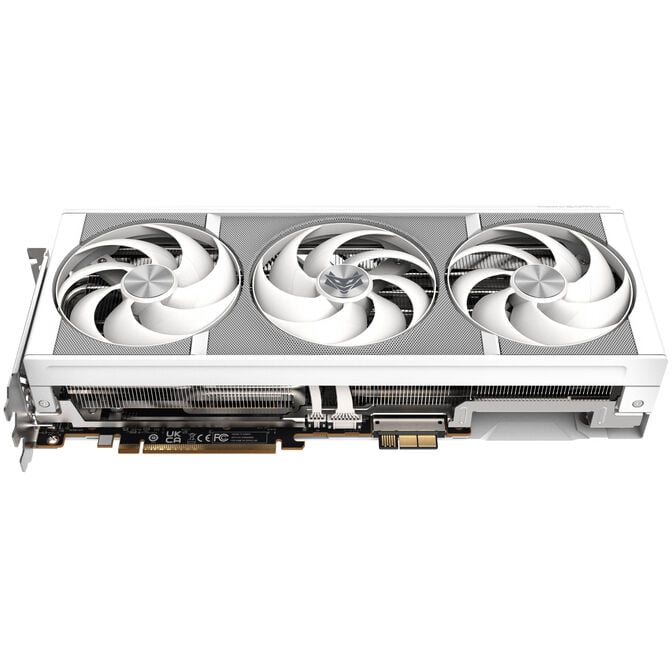

The SAPPHIRE NITRO+ Radeon RX 9070 XT PhantomLink POLAR Gaming OC in detail
Equipped with a powerful graphics processor, the AMD Radeon RX 9070 XT is the ideal choice for gamers seeking strong performance in the high-end segment. It allows you to play current games at high to maximum graphics settings in 4K resolution – all with smooth frame rates.
AMD’s RDNA 4 architecture: More ray tracing and AI power
With the new generation, AMD relies on the current RDNA 4 architecture. The Navi 48 GPU operates at a boost clock of up to 3,060 MHz and, together with the 16 GB GDDR6 memory, delivers enormous graphics performance. The triple-fan cooler design with AeroCurve fans and optimised airflow ensures effective cooling to keep the SAPPHIRE NITRO+ Radeon RX 9070 XT PhantomLink POLAR Gaming OC at low temperatures.
The third-generation ray tracing accelerators and integrated AI accelerators offer significantly improved performance compared to previous generations. Features such as AMD FSR with AI upscaling and Fluid Motion Frames additionally provide higher frame rates and exceptionally smooth visuals.
PhantomLink & NITRO+ features: Clean build, maximum control
A special highlight is the PhantomLink technology (GC-HPWR / BTF), which allows compatible motherboards to supply power directly to the graphics card. This creates an especially clean look without visible cables. Alternatively, a modern 12V-2x6 connector is available.

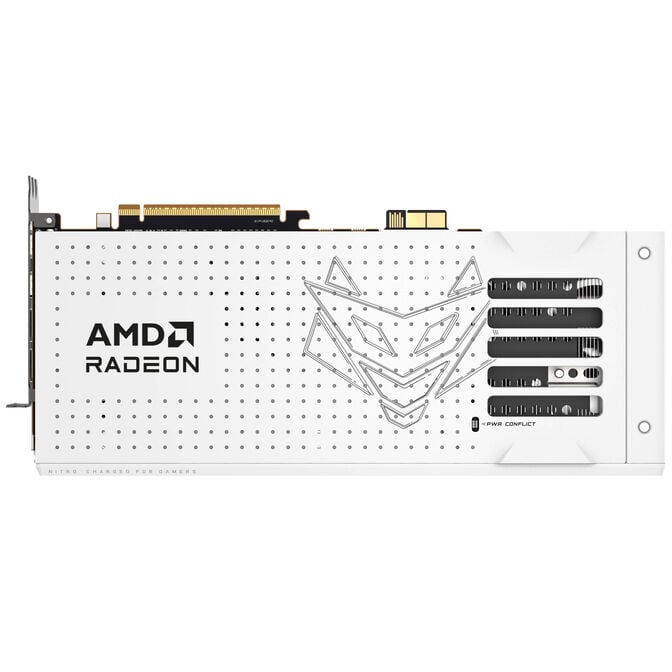

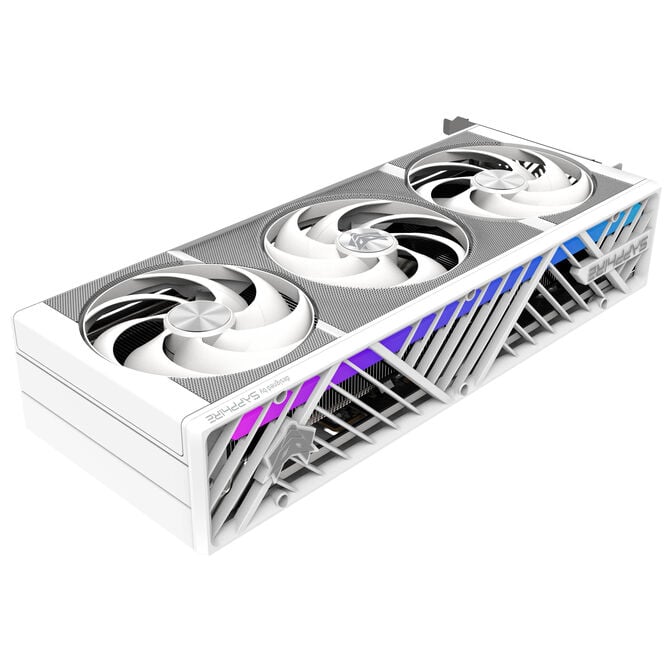

Additionally, the NITRO+ POLAR Edition offers the well-known premium features of the series such as ARGB lighting, interchangeable backplates, quick-connect fans, integrated protection mechanisms, and high-quality cooling with graphene thermal pads. The bright POLAR design is especially suitable for striking, colour-coordinated builds.
|
Colour
|
|
|
Primary Colour
|
White
|
|
Dimensions
|
|
|
Length / Depth
|
331 mm
|
|
Width
|
129 mm
|
|
Height
|
66 mm
|
|
Graphics Card
|
|
|
GPU Series
|
RX 9000 Series
|
|
GPU Model
|
AMD Radeon RX 9070 XT
|
|
GPU Series Name
|
AMD Radeon RX 9070 XT
|
|
Graphics Chip
|
Navi 48 XTX
|
|
Manufacturing Process
|
4 nm
|
|
Shader Units
|
4096
|
|
Raytracing Cores / Ray Acceleratorss
|
64
|
|
GPU Memory Type
|
GDDR6
|
|
Slot Type Standard
|
PCIe 5.0
|
|
Compute Units
|
64
|
|
GPU Memory Size (GB)
|
16
|
|
GPU Memory Interface (bit)
|
256
|
|
GPU Memory Bandwidth (GB/s)
|
644.6
|
|
GPU Memory Clock (MHz)
|
2518
|
|
GPU Memory Clock Effective (Gbps)
|
20.1
|
|
Clock Speeds
|
|
|
Max. GPU Clock (Base)
|
1660 MHz
|
|
Max. GPU Clock (Game)
|
2520 MHz
|
|
Max. GPU Clock (Boost)
|
3060 MHz
|
|
Cooling
|
|
|
Number of GPU Fans
|
3
|
|
Water Cooling
|
|
|
Watercooling
|
No
|
|
Internal Ports
|
|
|
Required Power Connectors
|
PCIe High-Power Connector (BTF)
|
|
External Ports
|
|
|
Display Connectors
|
Display Port (2x), HDMI (2x)
|
|
Display Connector Standards
|
DisplayPort 2.1, HDMI 2.1
|
|
Back Connect
|
|
|
Back Connect
|
Yes
|
|
Expansion Slots
|
|
|
Expansion Slots Required
|
3 Slots
|
|
Standards / Specifications
|
|
|
Adaptive Sync Technology (G-SYNC / FreeSync)
|
AMD Freesync
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
AI
|
|
|
AI Acceleration
|
Yes
|
|
AI Accelerator
|
AMD AI-Accelerator
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
|
Product Series
|
|
|
Product Series/Family
|
PhantomLink
|
