SilverStone RM53-502 Server Case, Rackmount, SSI-EEB, Mesh - Black

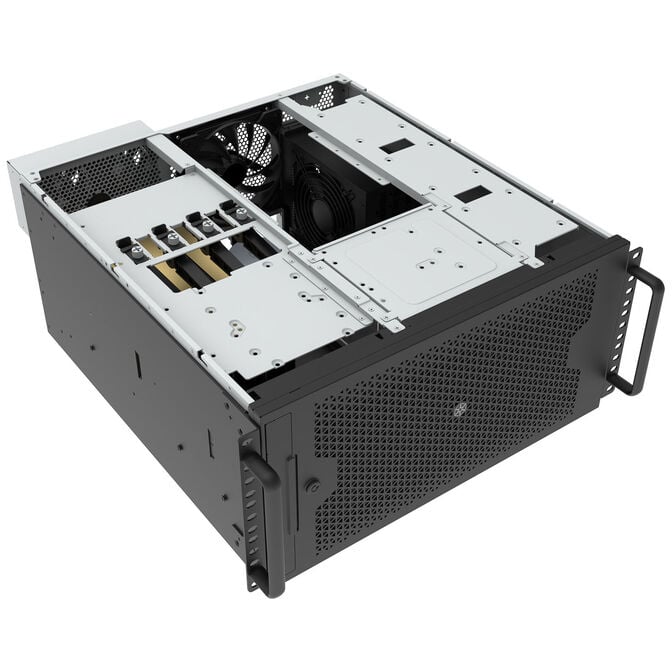

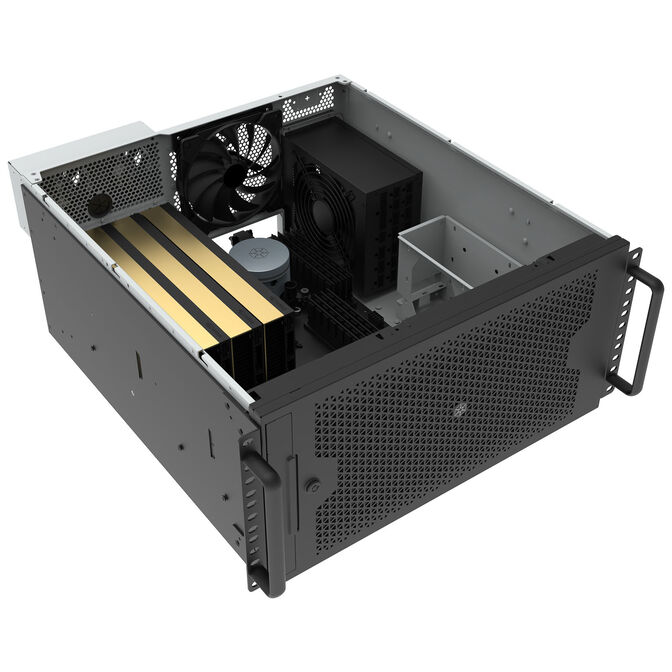

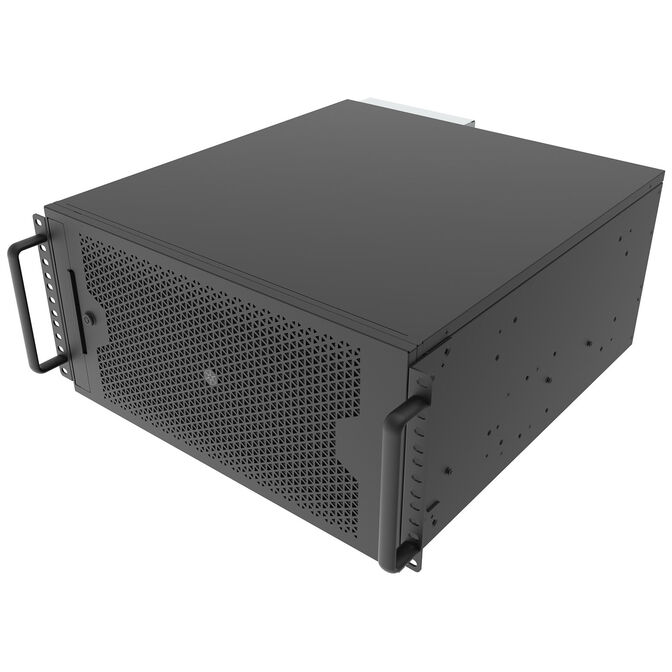

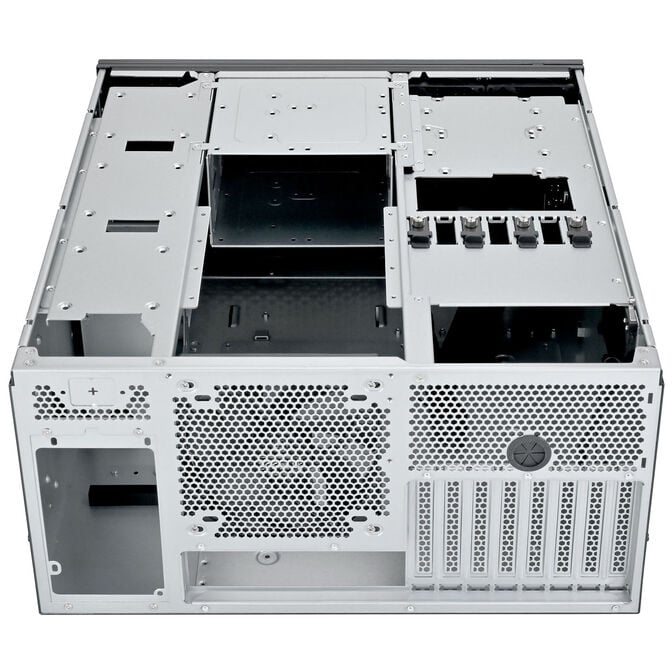

The SilverStone RM53-502 is a 5U rackmount server chassis designed for high-performance server and workstation systems. Its broad hardware compatibility, extensive cooling options, and flexible drive configurations enable the construction of a wide variety of systems in a rack or as a tower.
- Supports motherboards up to SSI-EEB
- 360 mm radiators for powerful cooling
- Up to 8 PCIe expansion cards usable
- Flexible mounting for 2.5-, 3.5- and 5.25-inch drives
- Can be positioned vertically or horizontally
High Compatibility for Servers and Workstations

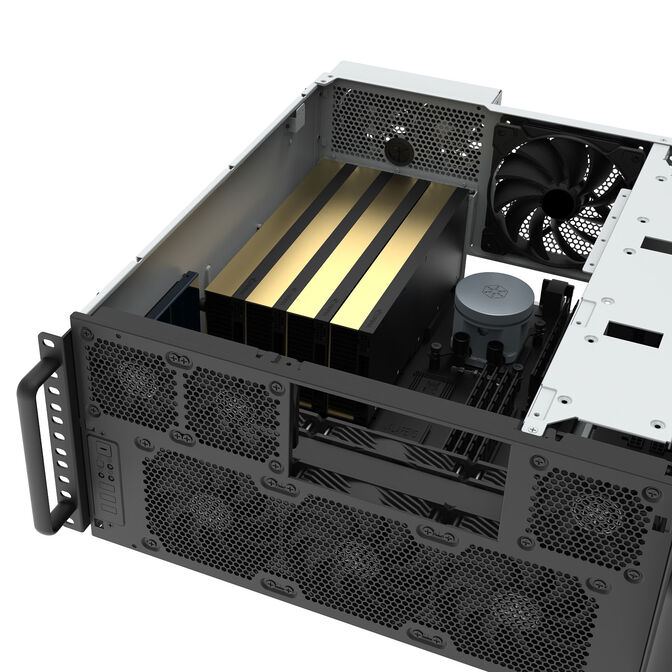

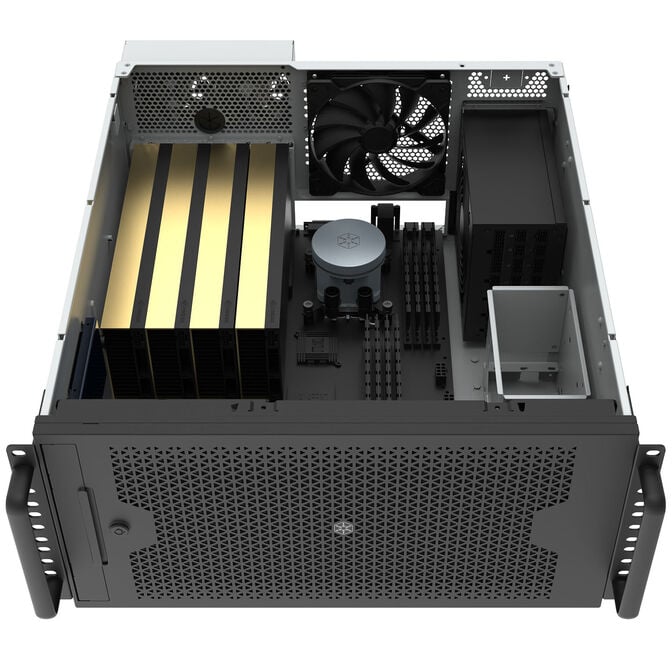

The RM53-502 supports motherboards up to SSI-EEB, expansion cards up to 454 mm in length, and various PSU form factors. This makes the chassis suitable for high-performance servers, workstations, and GPU-based computing systems.
Flexible Cooling for Demanding Hardware

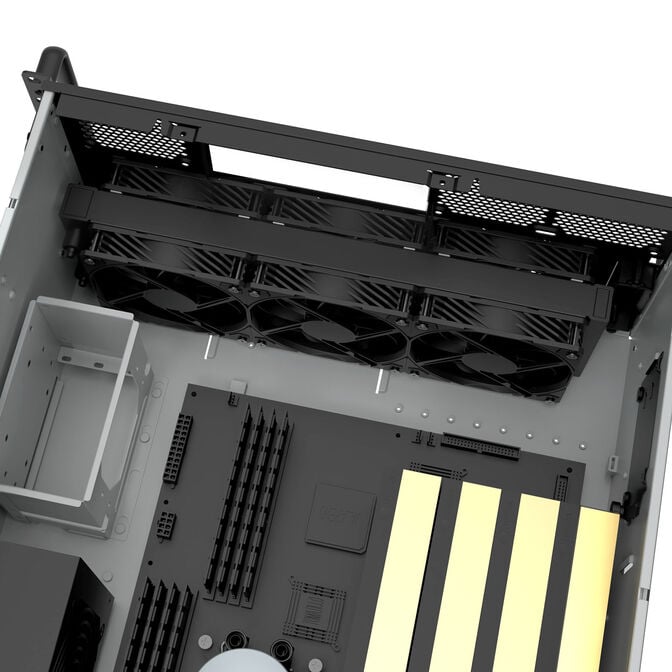

In addition to multiple fan slots, the chassis supports radiators up to 360 mm in length at the front. Additional cooling options for graphics cards and CPU coolers up to 178 mm in height allow the use of powerful components.
Versatile Storage and Mounting Options

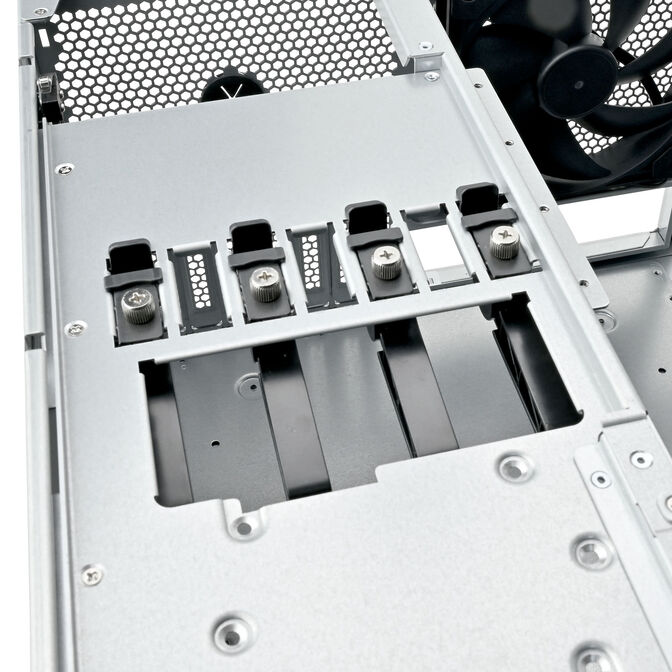

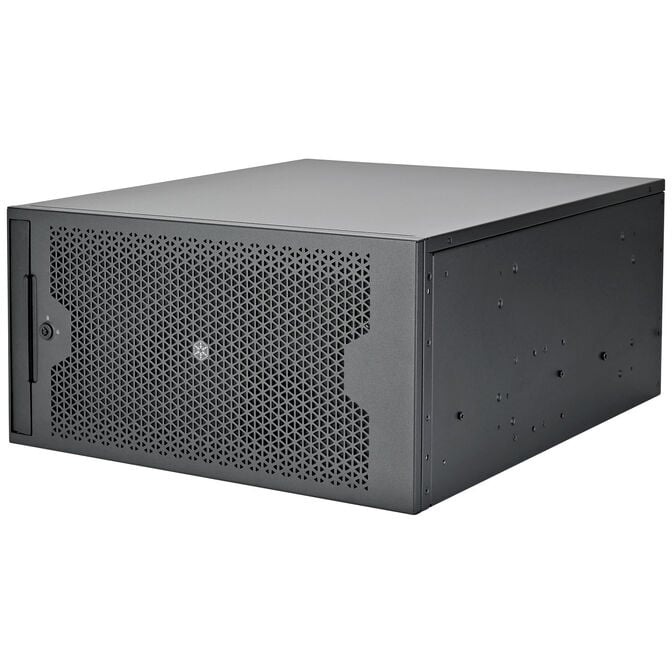

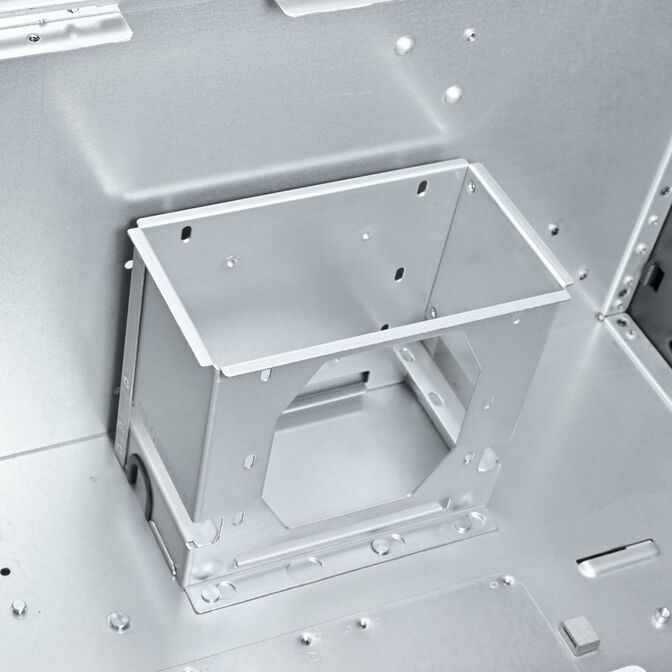

The universal drive cage design supports 2.5-, 3.5-, and 5.25-inch storage drives. The lockable front panel protects hardware access, while the option to position the chassis horizontally or vertically offers extra flexibility in integration.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
530 mm
|
|
Width
|
440 mm
|
|
Height
|
220 mm
|
|
Weight
|
11.47 kg
|
|
Case
|
|
|
Case Type
|
Server Case
|
|

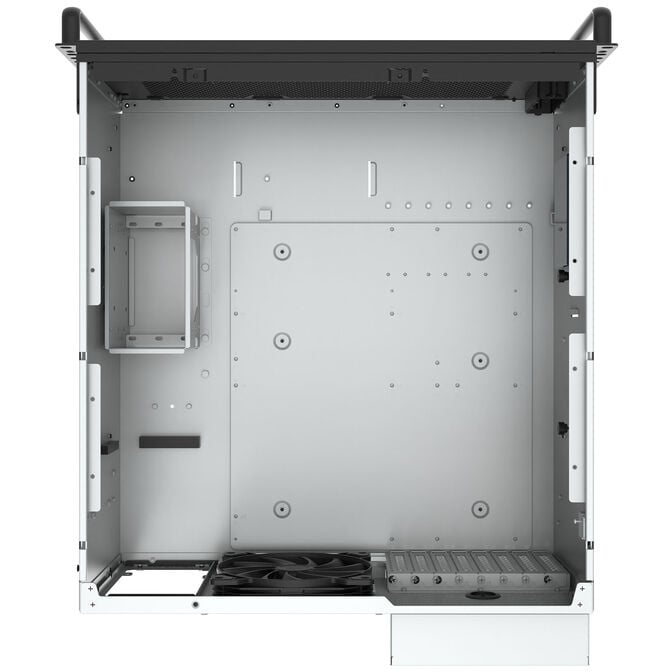

Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, E-ATX, Micro-ATX, Mini-ITX, SSI-CEB, SSI-EEB
|
|
Max. Motherboard Format
|
SSI-EEB
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
178 mm
|
|
Max. GPU Length
|
454 mm
|
|
Max. PSU Length / Depth
|
190 mm
|
|
Inner Volume
|
51.3 l
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX, redundant PSU, SFX
|
|
Power Supply Position
|
Internal
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|

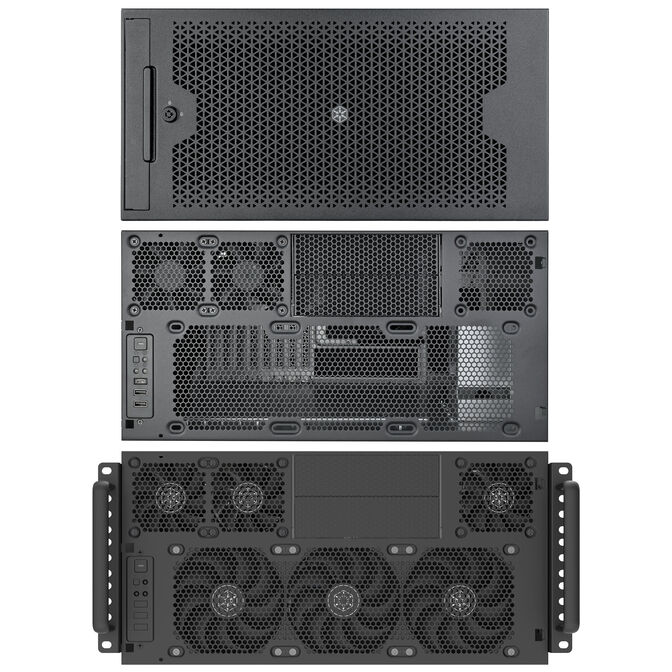

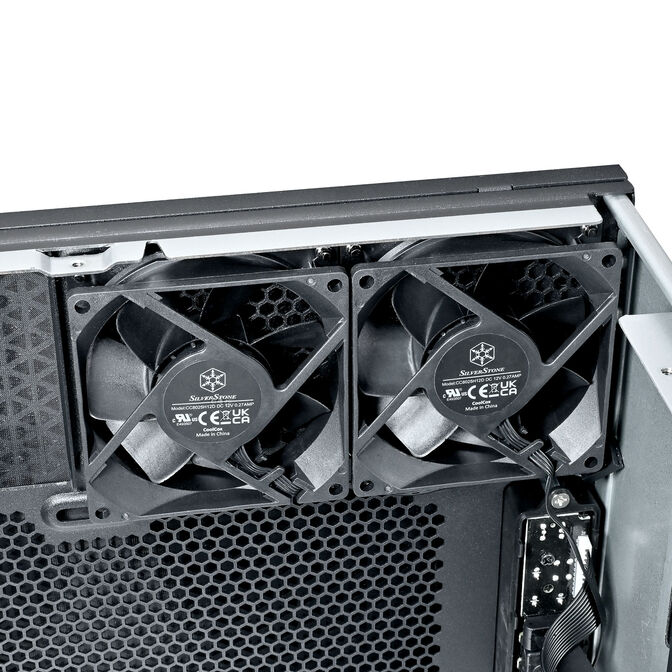

Case Fan Support (Front)
|
120mm Fan (3x), 80mm Fan (3x)
|
|
Case Fan Support (Rear)
|

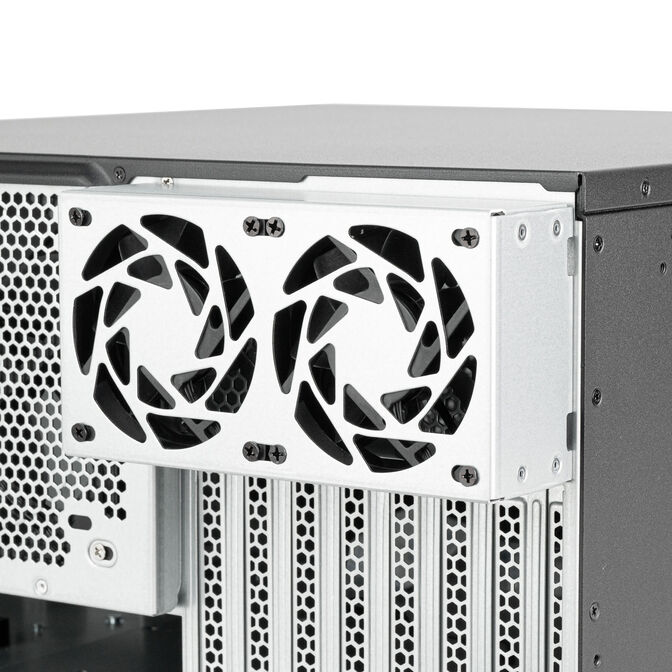

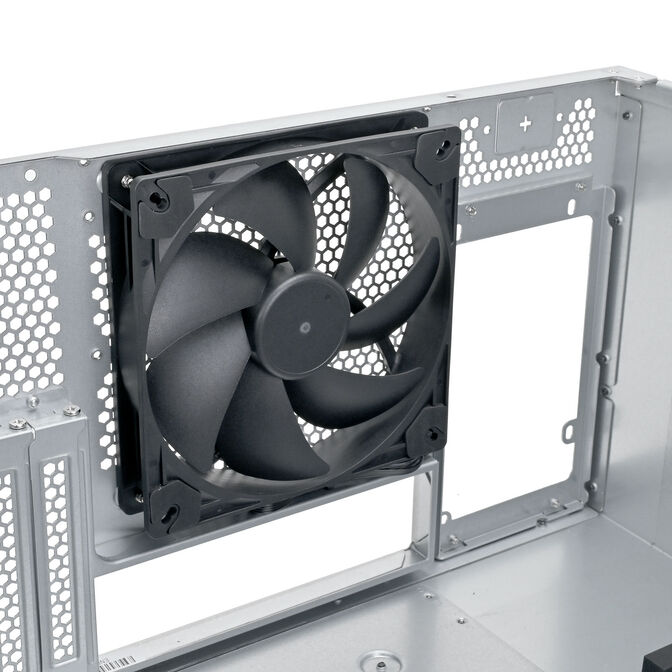

120mm Fan (1x), 140mm Fan (1x), 80mm Fan (2x)
|
|
Max. Number of Fans
|
6
|
|
80 mm fans
|
5
|
|
120 mm fans
|
4
|
|
140 mm fans
|
1
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
1x Single (120 mm), 1x Triple (360 mm)
|
|
Radiator/AIO Support (Front)
|
120mm Radiator, 240mm Radiator, 360mm Radiator
|
|
Radiator/AIO Support (Rear)
|
120mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
11
|
|
Max. 3.5 Inch Drives
|
5
|
|
Max. 5.25 Inch Drives
|
2
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
Front I/O – USB Type C Ports Total
|
1
|
|
Front I/O – USB Type A Ports Total
|
2
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
Case Features
|
|
|
I/O position
|
Front
|
|
Side panel
|
closed
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
Yes
|
|
Cable Management
|
No
|
|
Filters Included
|
No
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|

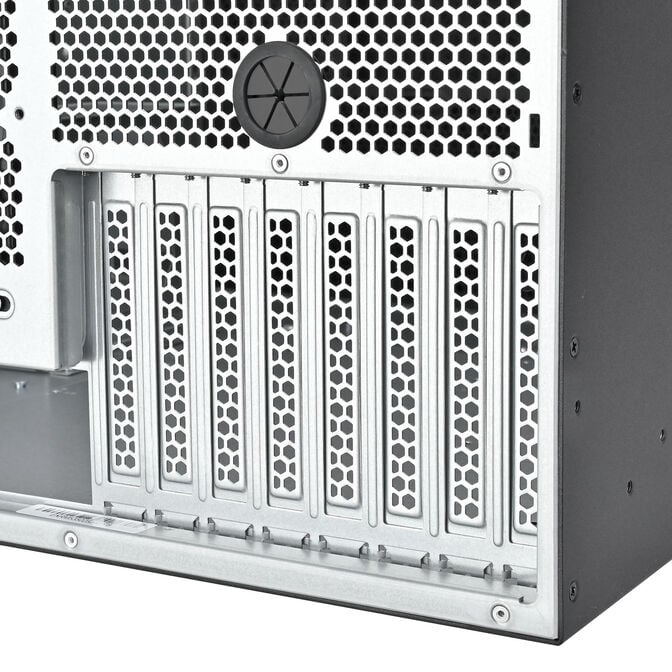

Expansion slots / PCI slots
|
8
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
Steel
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Additional Contents
|
|
|
Fans Included
|
Yes
|
|
Included fans
|
1x 140 mm, 2x 80 mm
|
