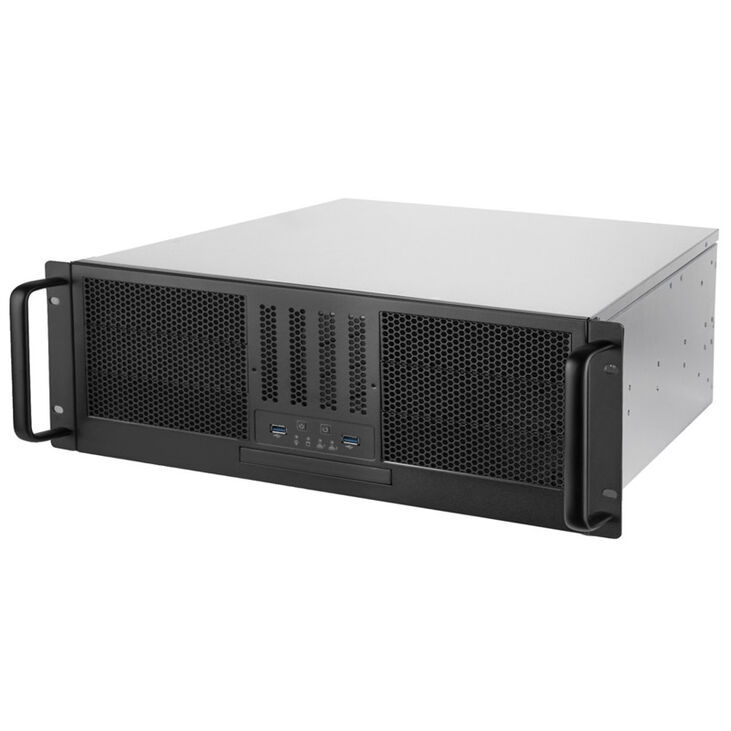

SilverStone SST-RM41-506 Rackmount Server - 4U - black
19-inch 4U server chassis, for mainboards up to SSI-CEB, with 2 pre-installed fans, 6x 5.25 / 4x 3.5 / 2x 2.5-inch / 1x 2.5-inch or SlimLine-ODD, 2x USB 3.0
219,90 €
incl. VAT
, add. delivery costs starting from 4.99€
- ￭ Supports up to SSI-CEB motherboard
- ￭ Supports Standard profile PCI / PCIe x 7 slots
- ￭ Six 5.25" drive bays for flexible 5.25" device installation
- ￭ 5Gbps Super Speed USB 3.1 Gen 1 interface, backward compatible with USB 2.0 / 1.1
- ￭ Mounting holes ready for quick rail slide installation (rail slide sold separately)

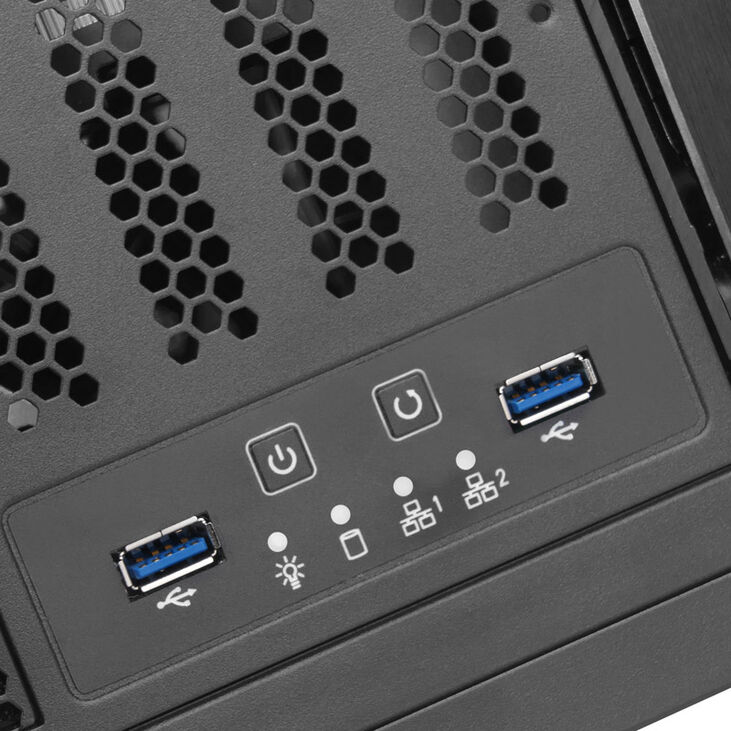

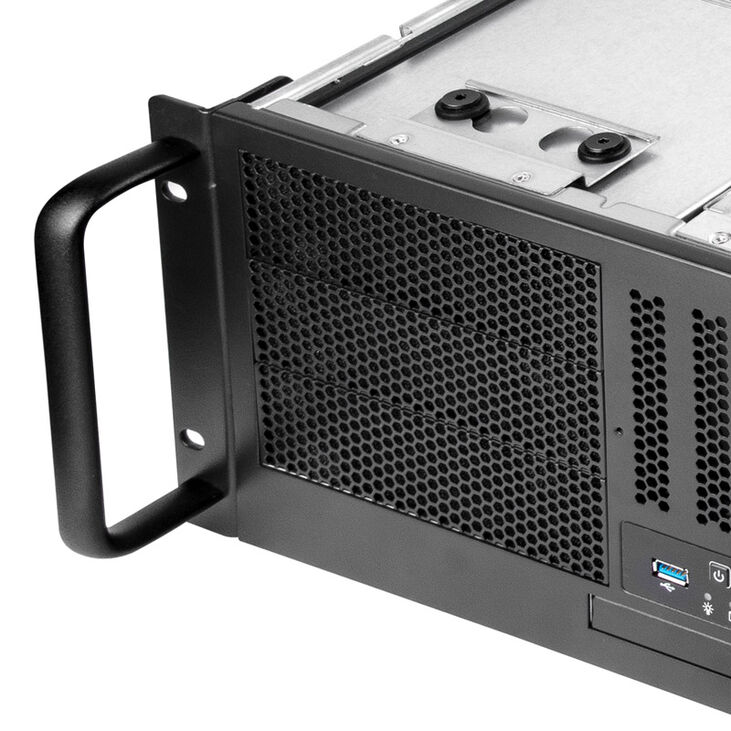

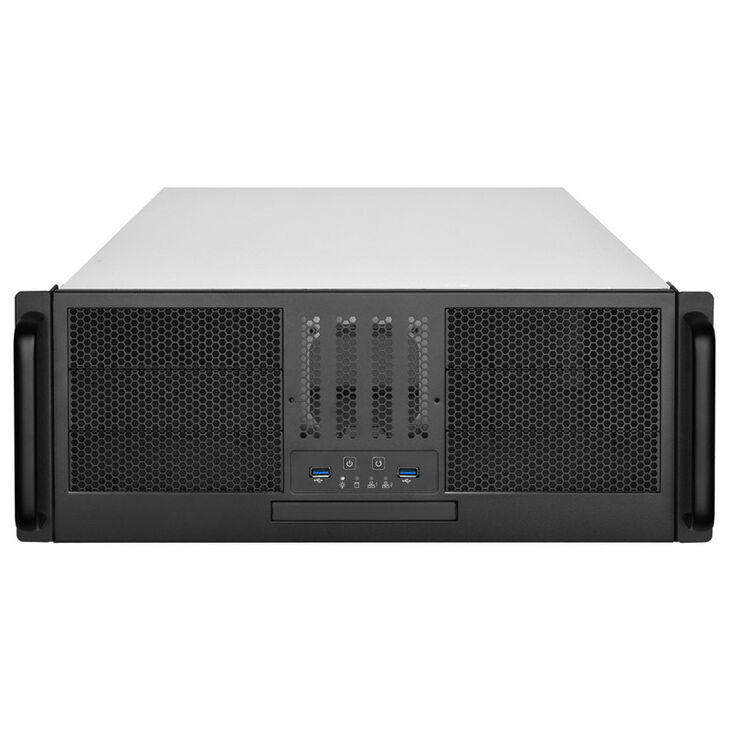

Distinctive front panel features a handle design allowing for easy accessibility to the internal components, along with two USB 3.0 data transfer ports
Storage device performance
Supports optional 5.25” storage devices: FS204, FP510, FS305, FS305-12G

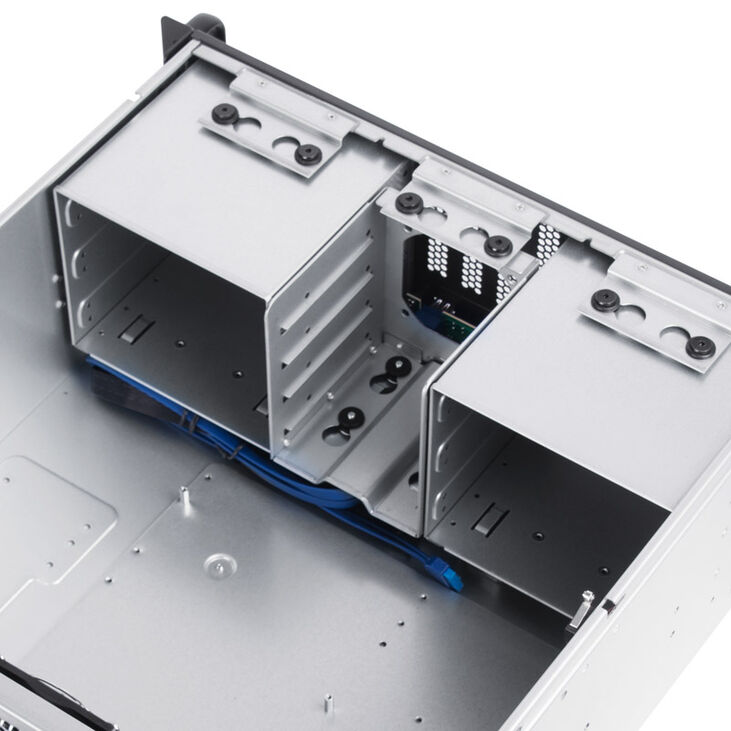

Storage bays
Offers users a wide range of hard drive options including support for 5.25"/3.5"/2.5" hard drives and slim optical drives
Internal configurations
- Length limitation: 7.87” (200mm)
- Supports ATX (PS2) / Mini Redundant
- Supports up to SSI-CEB (12" x 10.5") motherboards
Cooling capabilities

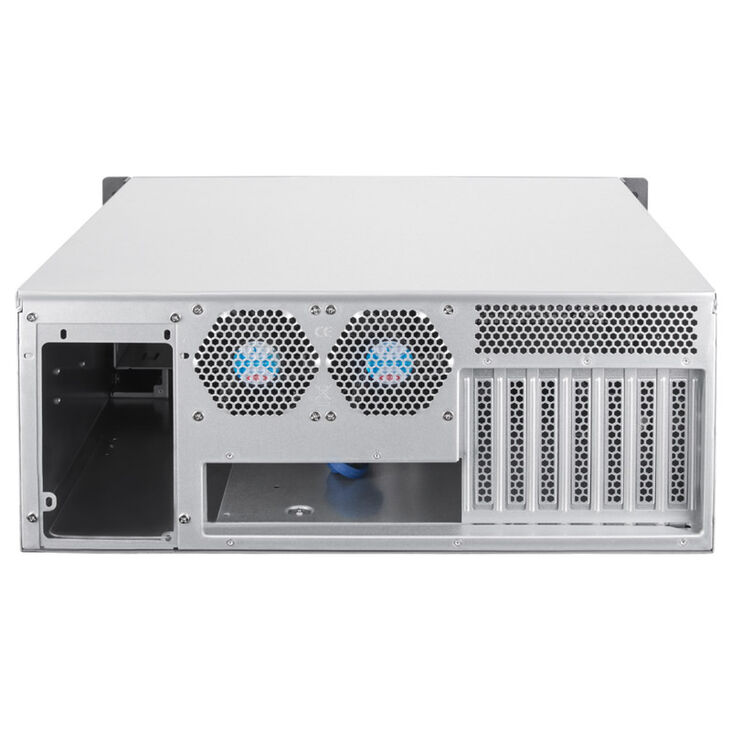

Utilizing the typical front-to-back directional airflow, RM41-506 comes pre-installed with two 80mm PWM fans for exhaust, designed to achieve a rapid heat dissipation effect that does not easily accumulate hot air inside

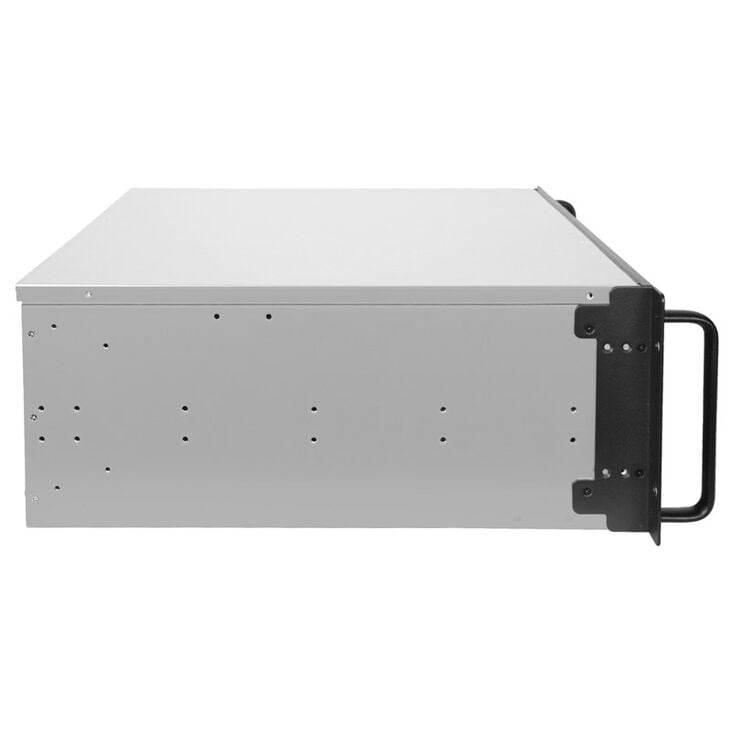

Sliding rail compatibility
Reserved mounting holes for sliding rails which can be easily installed. Can be used with the RMS06-22 rail
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Silver
|
|
Fan Main Colour (Frame)
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
460 mm
|
|
Width
|
430 mm
|
|
Height
|
176 mm
|
|
Weight
|
9.7 kg
|
|
Case
|
|
|
Case Type
|
Server Case
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, Micro-ATX, Mini-ITX, SSI-CEB
|
|
Max. Motherboard Format
|
SSI-CEB
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
148 mm
|
|
Max. GPU Length
|
200 mm
|
|
Max. PSU Length / Depth
|
160 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU Format
|
ATX, redundant PSU
|
|
Power Supply Position
|
rear side
|
|
Fan Support
|
|
|
80 mm fans
|
3
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
no
|
|
Drive Bays
|
|
|
2.5 inch internal drive bay
|
2
|
|
3.5 inch internal drive bay
|
4
|
|
5.25 inch external drive bay
|
6
|
|
External Ports
|
|
|
USB 3.0 (external) Type A
|
2
|
|
Card reader
|
No
|
|
Case Features
|
|
|
I/O position
|
Front
|
|
Side panel
|
closed
|
|
Front door
|
No
|
|
Cable Management
|
No
|
|
Filters Included
|
No
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Remote included
|
No
|
|
Transport System
|
No
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
7
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Materials
|
|
|
Materials
|
Steel
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Fan / RGB control
|
No
|
|
Additional Contents
|
|
|
Included fans
|
2x 80 mm
|
