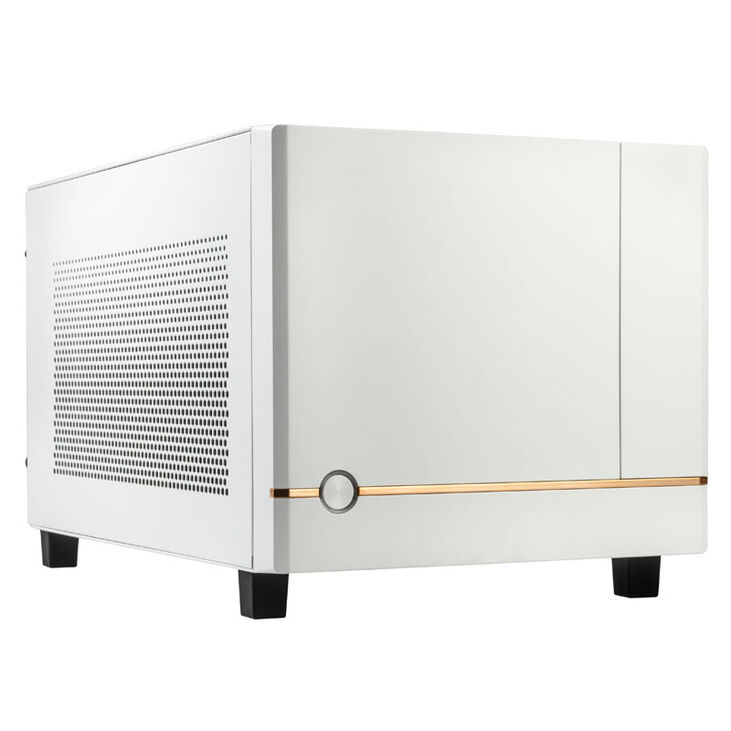

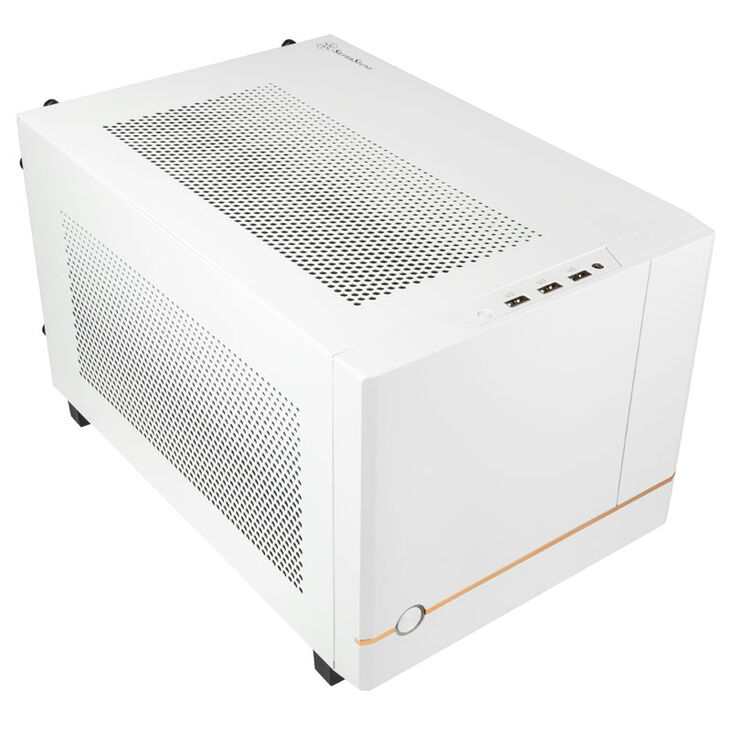

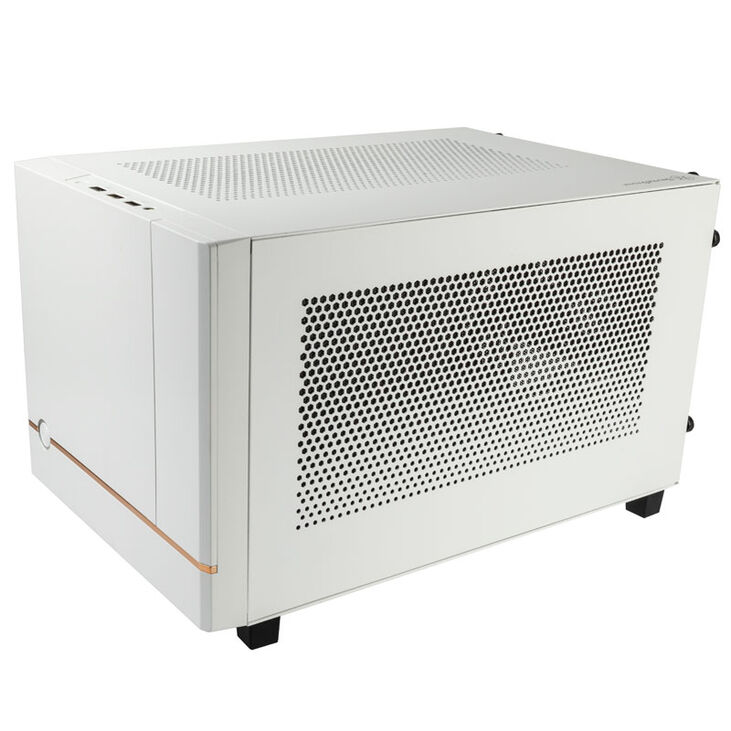

SilverStone SST-SG14W Sugo 14 Mini-ITX case - white
Compact Mini-ITX case in white, with optimized airflow, space for a 240 mm radiator, 3-slot GPUs up to 330 mm, for ATX power supplies, 3x 2.5 inch SSDs possible
112,90 €
incl. VAT
, add. delivery costs starting from 4.99€
- Supports 3 slot full length graphics cards with adjustable graphics card holder
- Compatible with Mini-DTX / Mini-ITX motherboard & ATX PSU
- Supports up to 240mm radiators
- Modular design with 4 removable panels (top, left, right, bottom)
- Different configurations support various storage components for 5.25", 3.5" and 2.5"

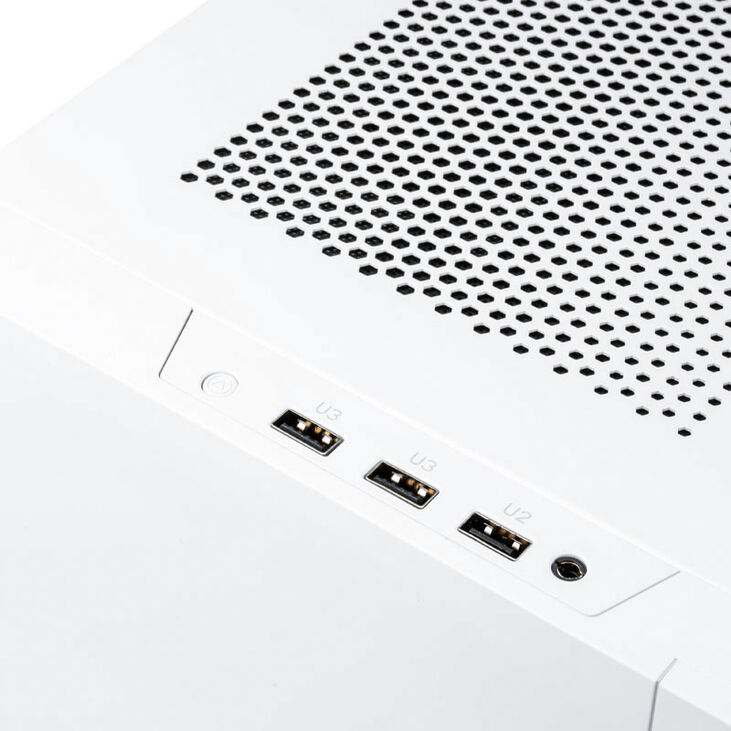

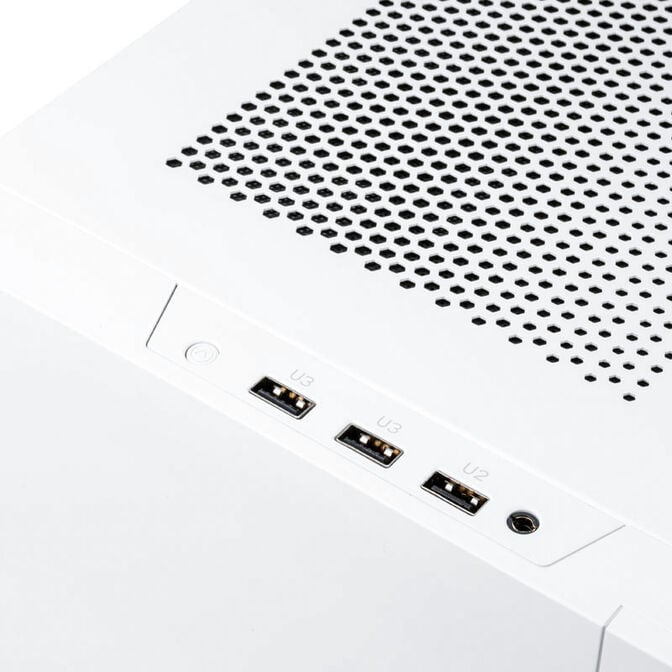

- Front I/O port includes: USB 3.0 x 2, USB 2.0 x 1, combo audio x 1
Unlike most SFF Mini-ITX chassis on the market, SG14 is capable of fitting a 3 slot full length graphics cards on the left side and up to 240mm radiators on the right side.
Exceptional usability & upgradability

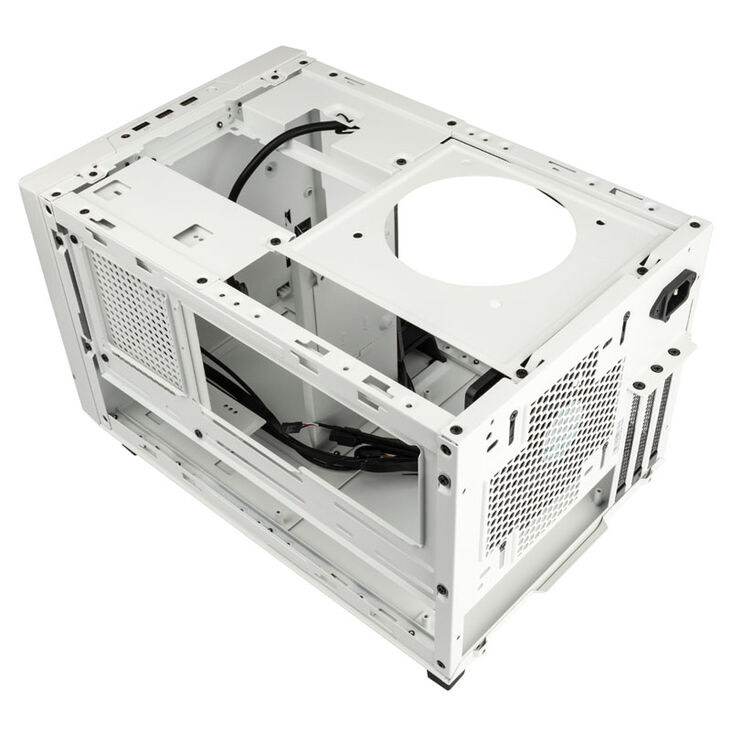

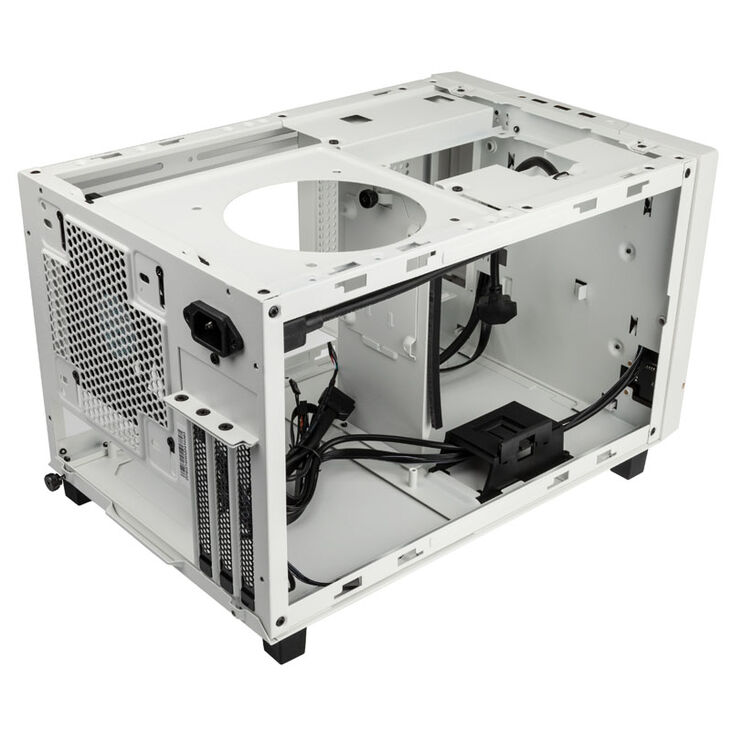

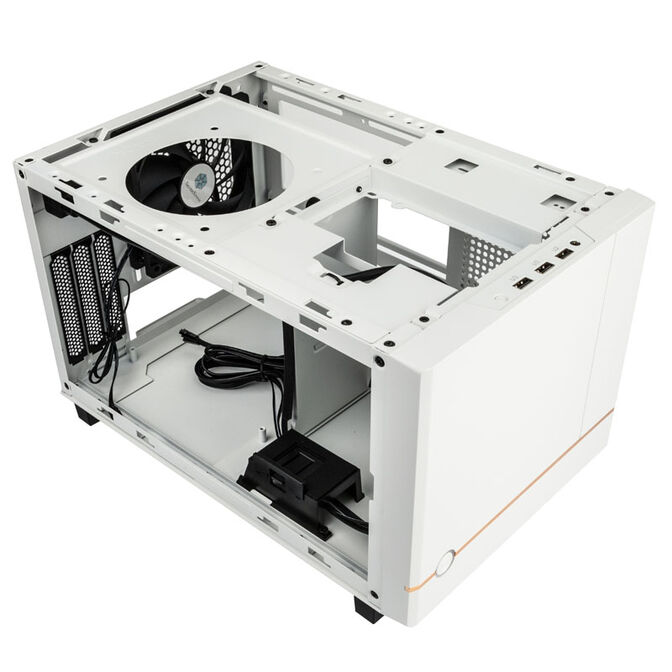

Modular design allows for removal of 4 panels which eases the build process and ease of upgradability at a later date.
2-way placement

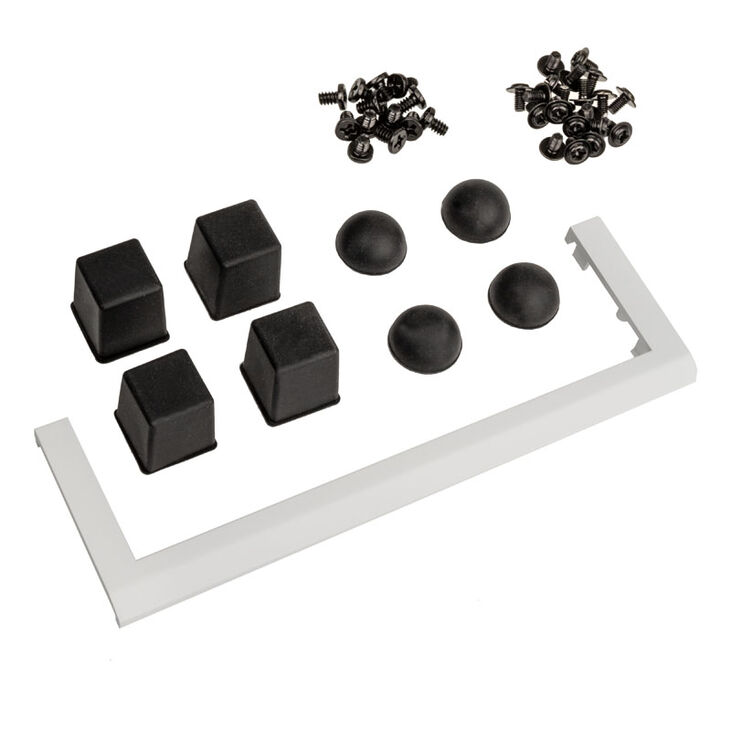

SG14 comes included with 8 foot pads, the design allows users the flexibility in choosing how they wish to place their chassis
|
Colour
|
|
|
Primary Colour
|
White
|
|
Fan Main Colour (Frame)
|
Black
|
|
Fan Main Colour (Rotor)
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
368.1 mm
|
|
Width
|
247 mm
|
|
Height
|
215 mm
|
|
Weight
|
4.89 kg
|
|
Case
|
|
|
Case Type
|
Mini Case
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
Mini-DTX, Mini-ITX
|
|
Max. Motherboard Format
|
Mini-ITX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
182 mm
|
|
Max. GPU Length
|
330 mm
|
|
Max. PSU Length / Depth
|
150 mm
|
|
Inner Volume
|
19.55 l
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear bottom
|
|
Fan Support
|
|
|
120 mm fans
|
3
|
|
140 mm fans
|
3
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
1x Dual (240 mm)
|
|
Drive Bays
|
|
|
2.5 inch internal drive bay
|
3
|
|
3.5 inch internal drive bay
|
2
|
|
5.25 inch external drive bay
|
1
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
USB 3.0 (external) Type A
|
2
|
|
USB 2.0 (external) Type A
|
1
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Card reader
|
No
|
|
Case Features
|
|
|
I/O position
|
Top
|
|
Side panel
|
closed
|
|
Front door
|
No
|
|
Cable Management
|
No
|
|
Filters Included
|
No
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Remote included
|
No
|
|
Transport System
|
No
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
3
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Materials
|
|
|
Materials
|
Plastic, Steel
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Fan / RGB control
|
No
|
|
Additional Contents
|
|
|
Included fans
|
1x 120 mm
|
