Thermal Grizzly Delid-Die-Mate Heater Heating Element - Socket 1851

Thermal Grizzly Delid-Die-Mate Heater Heating Element - Socket 1851

Tools for delidding Intel Core Ultra 200 CPUs, heats CPU and delidder to 165 °C, compatible with Thermal Grizzly Delid-Die-Mate, requires a USB-C charger with at least 65 watts of power
89,90 €
incl. VAT , add. delivery costs starting from 4.99€
SKU FSD8-074 |
EAN 4260711991172 |
MPN TG-DDMH-i1851-V1 |
Manufacturer Thermal Grizzly
  • Heating element for heating the CPU for a trouble-free delidding process
  • Suitable for the Intel 1851 Delid-Die-Mate V1
  • With OLED display for status indication for a quick overview

The Delid-Die-Mate Heater: Heating Element for CPU Delidding

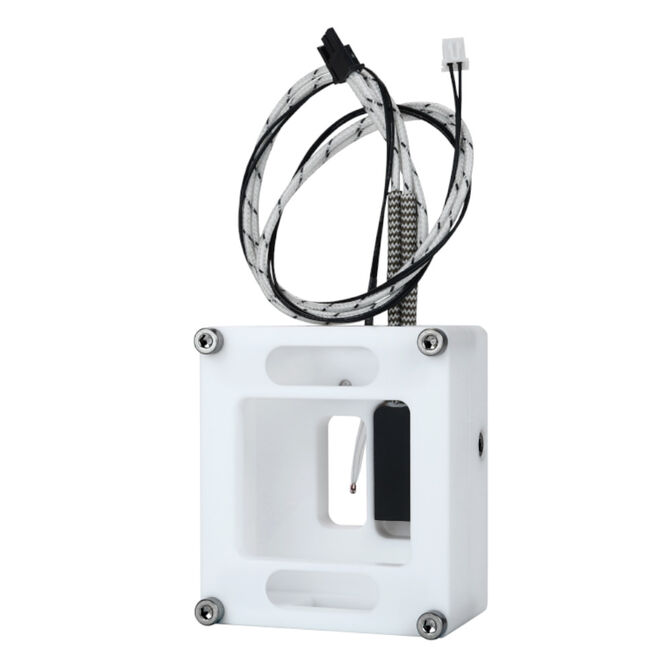

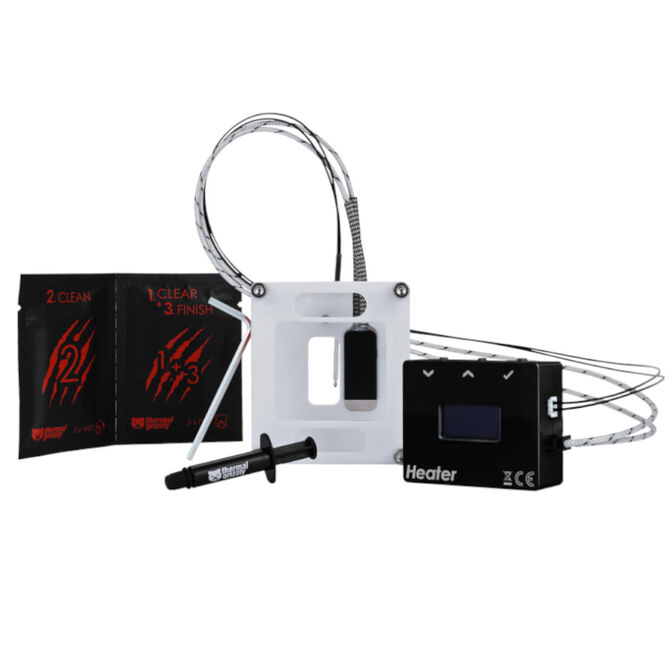

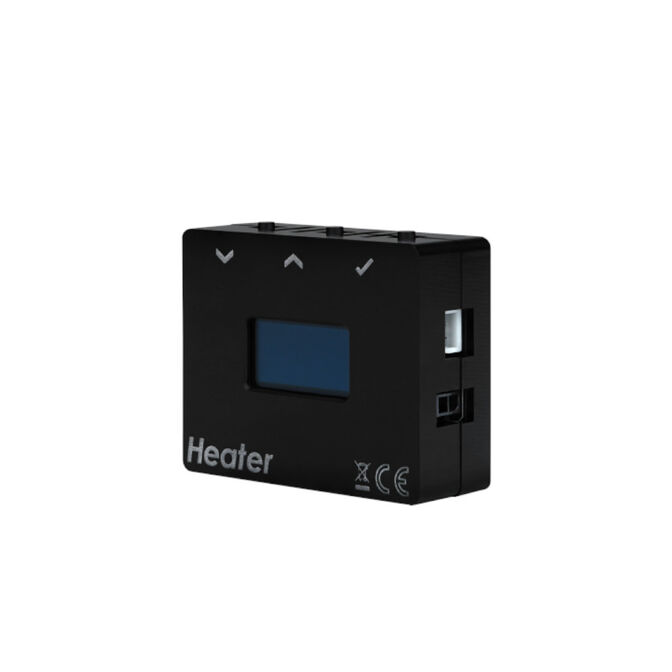

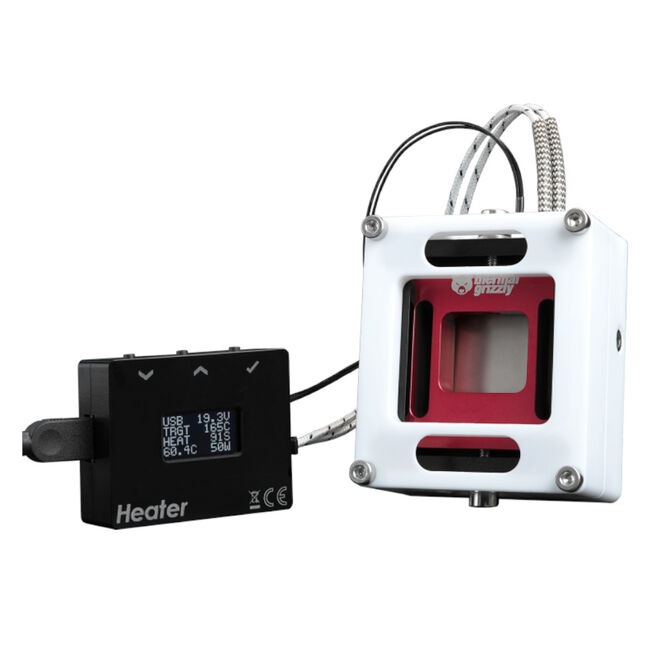

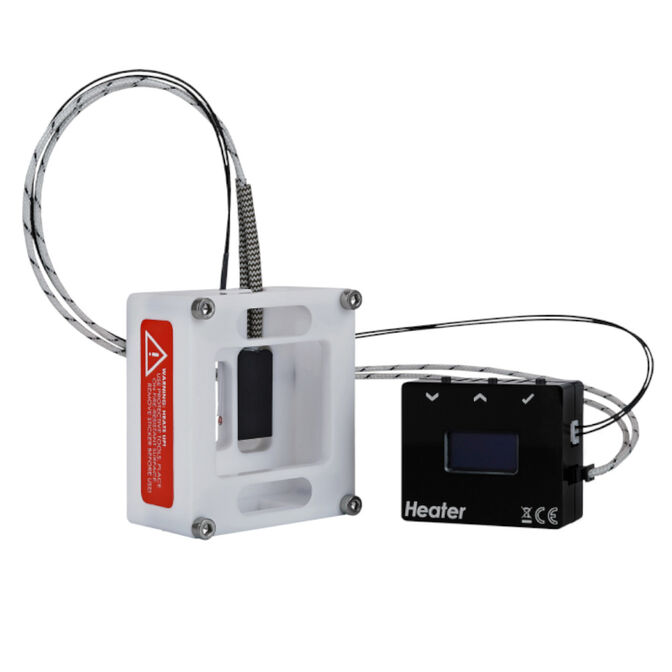

The Intel 1851 Delid-Die-Mate Heater V1 is a specially designed heating element for the Intel 1851 Delid-Die-Mate V1. The heater heats the CPU and delidder to a necessary temperature of 165 °C for delidding. Operation is via a control unit with an OLED display, which is connected to the heater with two cables.

For the operation of the heater, a laptop/smartphone charger with a power of at least 65 watts and a USB Type-C connector is required, which is not included in the delivery! Additionally, a small amount of thermal paste is needed.

Warnings:

The CPU should be heated to 165 °C when delidding with the Intel 1851 Delid-Die-Mate V1 (the melting point of indium is 157 °C) so that the indium melts for the removal of the heat spreader. This minimizes the mechanical stress on the chip and avoids damage. Otherwise, there is a high risk that the CPU may be damaged during delidding.

Caution: Removing the heat spreader ("delidding") of a processor is done at your own risk! Delidding the CPU voids the manufacturer's warranty! Damage incurred during CPU delidding is not covered by the manufacturer!

Caution: When delidding a CPU with the Intel 1851 Delid-Die-Mate V1, it is essential to pay attention to the manufacturer's provided instructions!

Colour
Primary Colour
White
Dimensions
Length / Depth
190 mm
Width
105 mm
Height
55 mm
Weight
243 g
Materials
Materials
Acrylic, Aluminium
Lighting
Lighting / RGB
No
